CST-2103 Multi Functional Cable Tester

Features

For network RJ-45 cable continuity tester

Also tests BNC cables

Easy to read LED display indicates problems

Hand-held for portability

Material: ABS

Color : White

Size: approx. 12x10cm/4.72x3.94in

Power Source: DC9V Battery Required (not included)

Functions:

Keep your network running smoothly by testing your cables to uncover problematic shorts, open wires, crossing pairs and other wiring mishaps

Use for testing your homemade Ethernet patch cables to make sure they are in working order prior to connecting to your devices

Tests RJ45 cables, RJ11 telephone cables and Network Cables

Requires one 9-volt battery (not included)

Following are abnormal connections:

If one cable, for example cable NO.3 is open circuited, the two NO.3 lights of the main tester and remote tester will not turn on.

If several cables are not connected, several lights will not turn on respectively. If less than two cables are connected, none of the lights is on.

If two ends of a cable is disordered, for example NO. 2and NO. 4, then displays on:

Main tester: 1-2-3-4-5-6-7-8-G

Remote tester: 1-4-3-2-5-6-7-8-G

If two cables are short circuited, neither of the corresponding lights is on of the remote tester while main tester remains unchanged. If three cables, including three, are short circuited, none of the corresponding lights is on.

If test patch panels or wall plate outlles, two cables which can match each other (RJ45) will be connected to the tester.

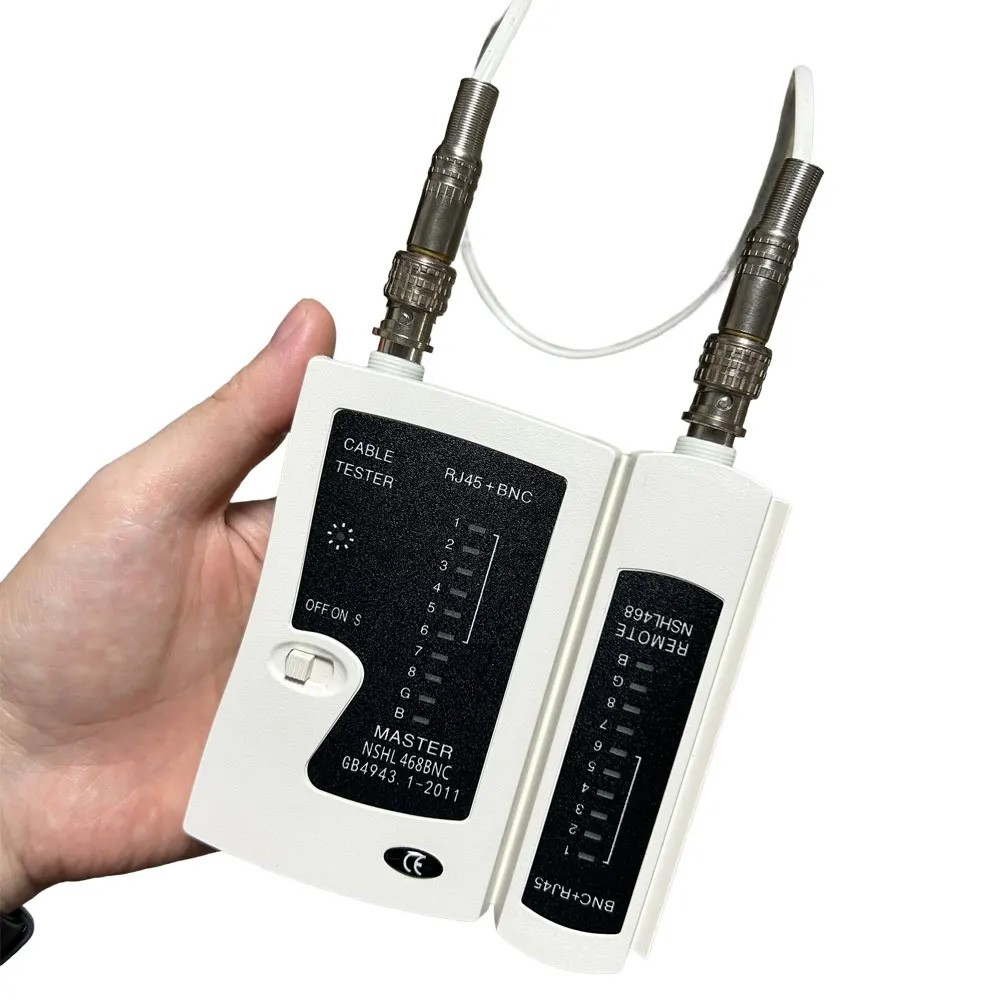

If test cables of the same axes, BNC turns on when the cable works.
