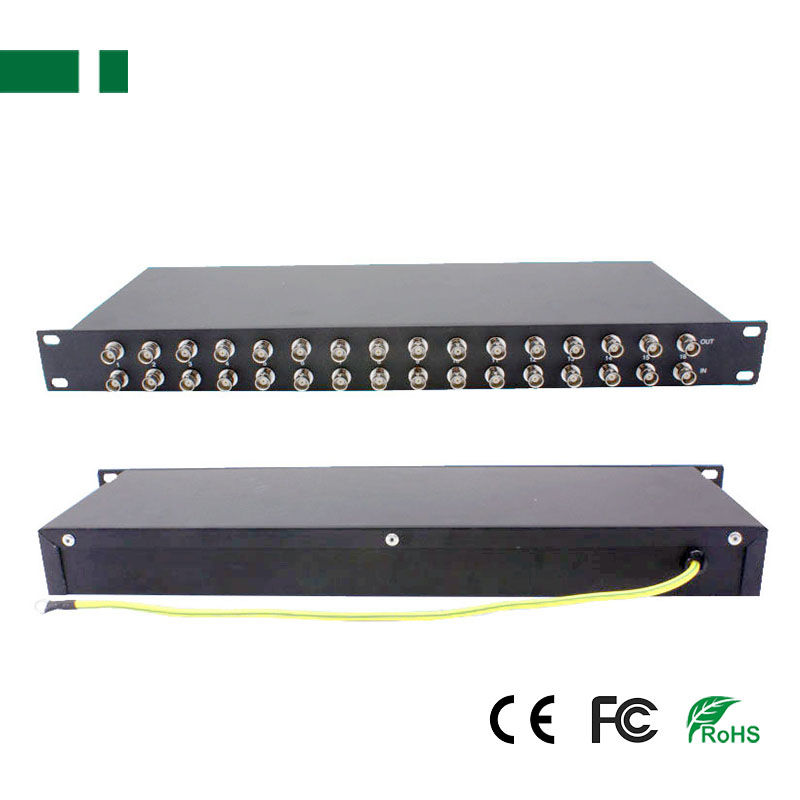

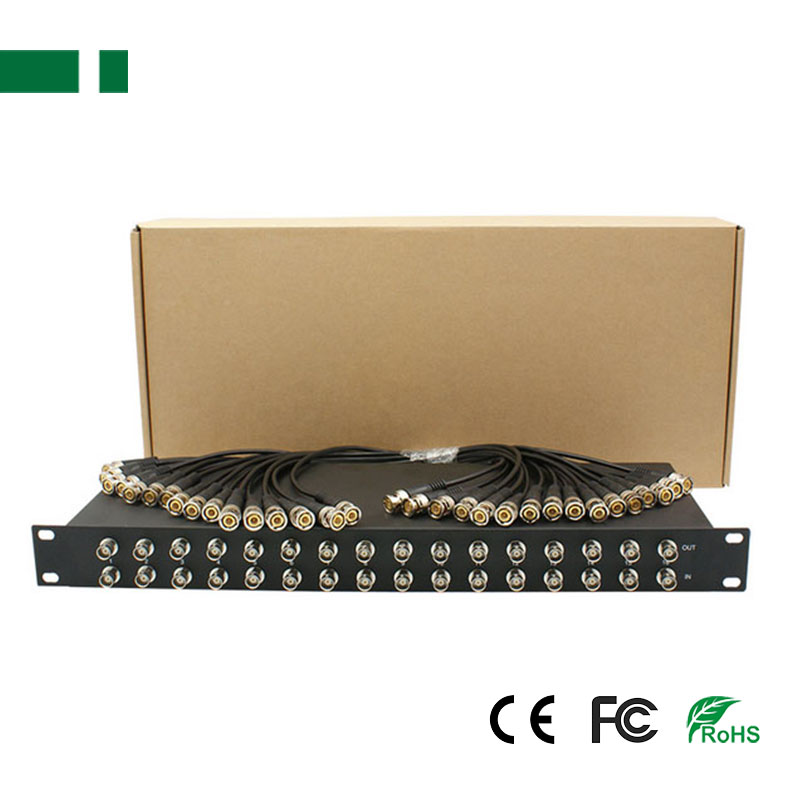

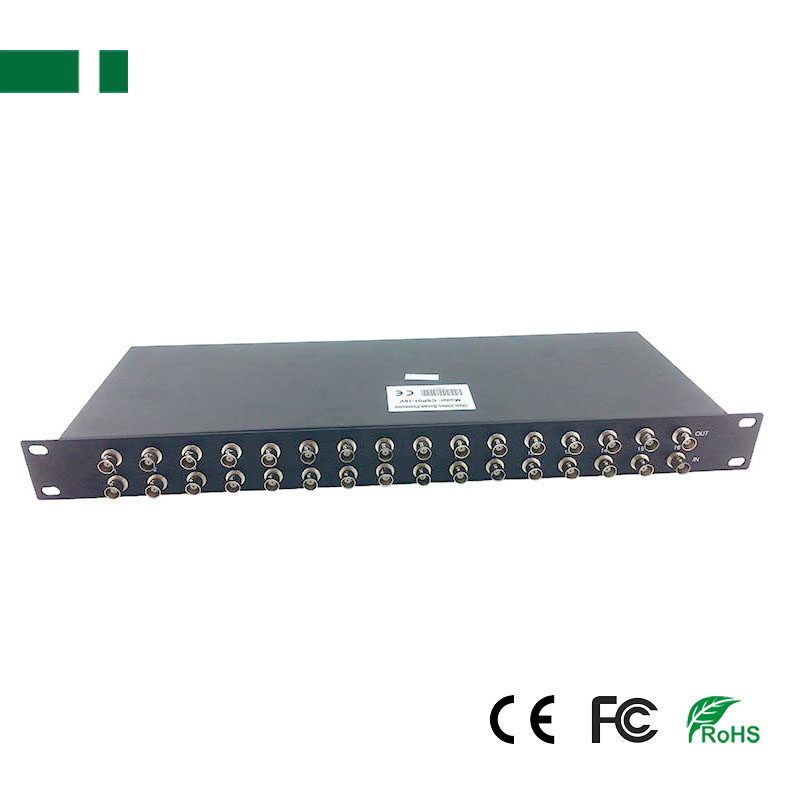

16chs Video Surge Protector
High transmission rate
Multi-level protection
Larger flow capacity
16CHS HD-AHD CVI TVI Coaxial-cable Surge protector.For transmission via coaxial cable video and data signals over-voltage protection-related equipment. Protective equipment against induced over-voltage, over-voltage and electrostatic discharge caused by damage.
Product Parameter :
◆ 16 channel Video Surge Protector
◆ Function Multi-level over voltage protection large capacity discharge current low limiting voltage;
◆ Quick reacting time low inserting loss;
◆ Grounding Mode Extending Line to ground;
◆ Outlook design Clear mark easily recognized;
◆ Aluminum shell delicate size simple installation;
| Model | CSP01-16V | |
| Video | Video channel | 16 channels |
| Rated operation voltage | 5V | |
| Max continuous operating voltage | 10V | |
| Nominal discharge current in(8/20μs) | 5KA | |
| Max discharge current(8/20μs) | 10KA | |
| Voltage protection level(10/700μs) | <20V | |
| Reacting time | ≤1ns | |
| Inserting loss | ≤0.5dB | |
| Inserting resistance | ≥0.4MΩ | |
| Signal Bandwidth | 10MHz | |
| Standing-wave ratio | ≤1.2 | |
| Environmental | Working temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +70°C | |
| Humidity | 0 to 95% | |
| Stability | MTBF | >30000hrs |
