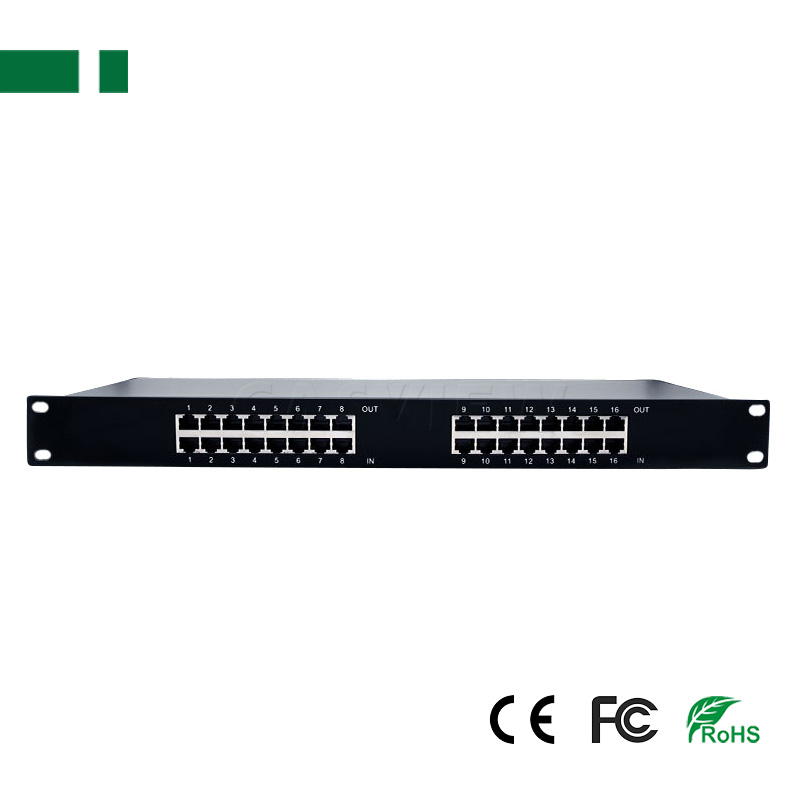

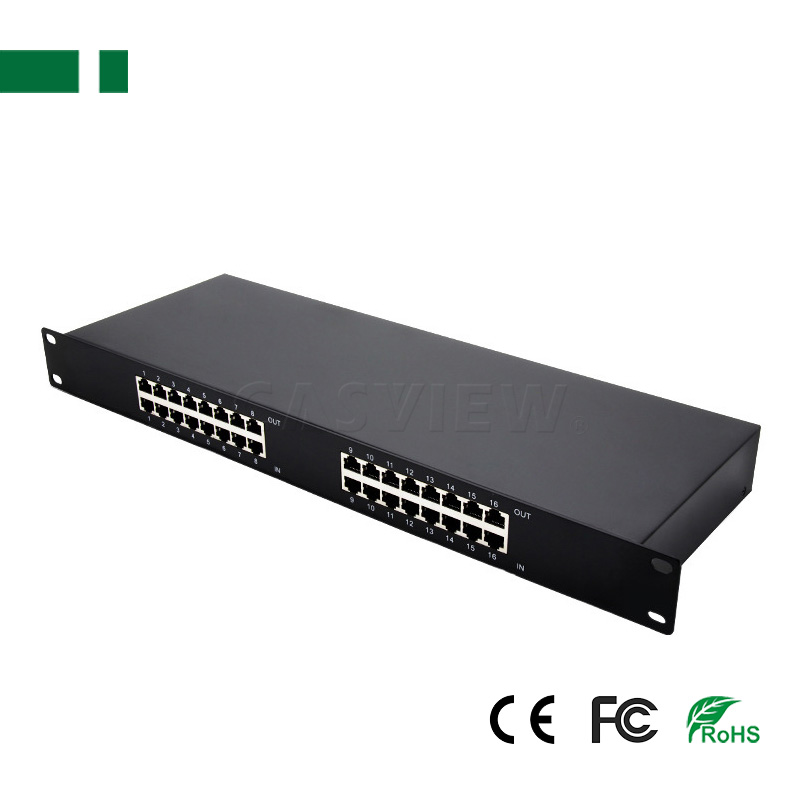

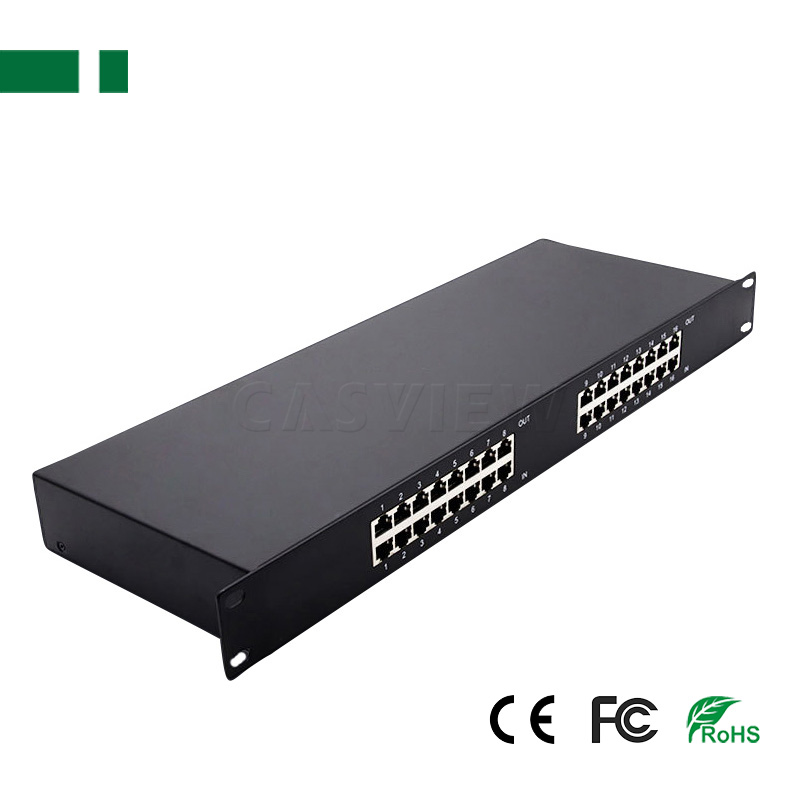

CSP-RJ45-16(100M) 16chs 100Mbps Network signal lightning Protection protector

CSP-RJ45-16(100M) 16chs 100Mbps Network signal lightning Protection protector

16chs 10/100Mbps Network protector;
Rated operation voltage(Un): DC5V;
Max. Discharge Current(8/20μs): 5KA;
Aluminum shell delicate;
Product description: 16chs 10/100Mbps Network signal lightning Protection protector, Suitable for monitoring system equipment, routers, computer rooms, network switches, etc. .
INQUIRY EMAIL

Feature:
16chs 10/100Mbps Network signal lightning Protection protector;
Rated operation voltage(Un): DC5V;
Max. Discharge Current(8/20μs): 5KA;
Aluminum shell delicate;

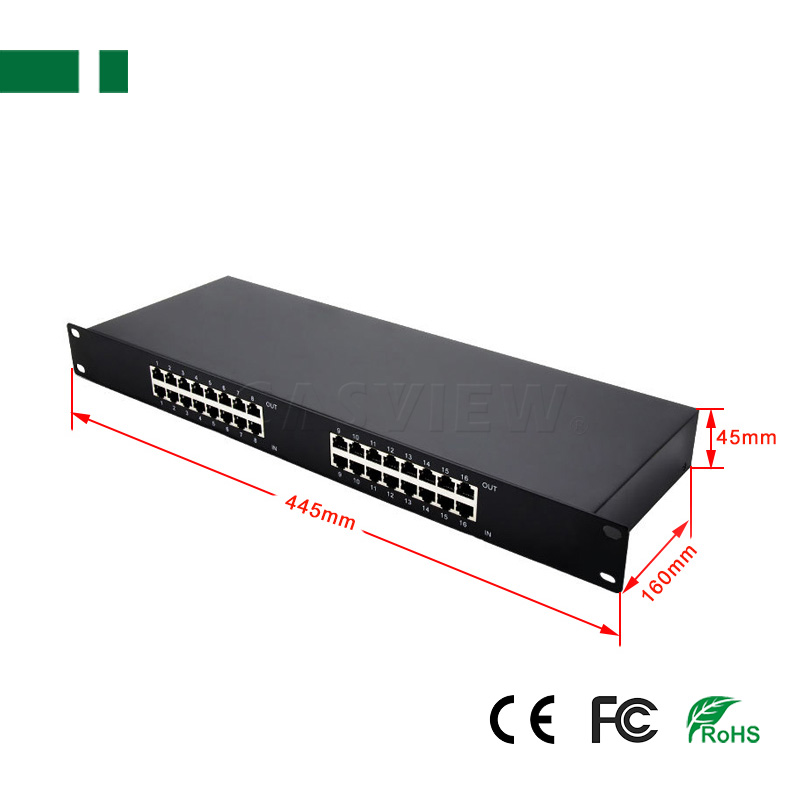

Size: 445*160*45mm, 1580G;

Suitable for monitoring system equipment, routers, computer rooms, network switches, etc.

Specification:

Item	16chs 10/100/1000Mbps Network signal lightning Protection protector
Model	CSP-RJ45-16(100M)	CSP-RJ45-16(1000M)
Protection line pair	16CH RJ45 * 2
Rated operation voltage(Un)	DC5V
Max. Continuous Operating Voltage(Uc)	DC6V
Nominal Discharge Current(8/20μs)(In)	3KA
Max. Discharge Current(8/20μs)(Imax)	5KA
Voltage Protection Level(Up)	≤15V
Response Time	≤1ns
Insulation Resistance (MΩ)	≥0.4MΩ
Insertion loss(dB)	≤0.5dB
Near end crosstalk(dB)	≥60(pass)
Interface	RJ45
Bandwidth (FG)	10/100M	10/100/1000M
Transmission Speed (Vs)	100Mbps	1000Mbps
Storage Environment	-40℃~90℃
Working Environment	-35℃~90℃
Material of Outer Shell	Aluminum shell
Net Weight	1580g
Size	44516045mm

Installation, use and maintenance
Installation instructions
1: Before the protection of the access system, first check the grounding resistance of the grounding grid, should meet the requirements of the specification.
2: Will protect the front end of the device to protect the device must be connected to a reliable.

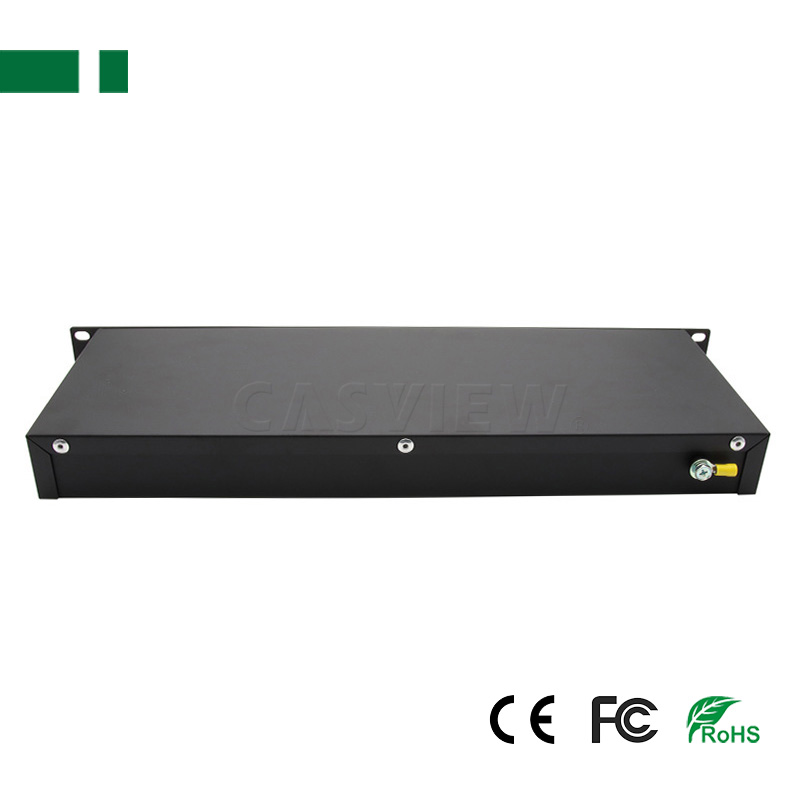

3: The protection of the grounding wire as short as possible to connect to the computer room or cabinet to protect the ground bus.

Matters needing attention
1: Protection device on the input (IN), the output (OUT) flag, the output is connected with the protected device, do not answer. Otherwise, it will cause damage to the protector, and the equipment can not be protected.
2: If the connection of the plug seat and other factors caused the loss of the increase, should be re connect or replace the protector.
3: users can not arbitrarily remove the parts of the protection of the fastener, so as to avoid damage, affecting the normal work.
