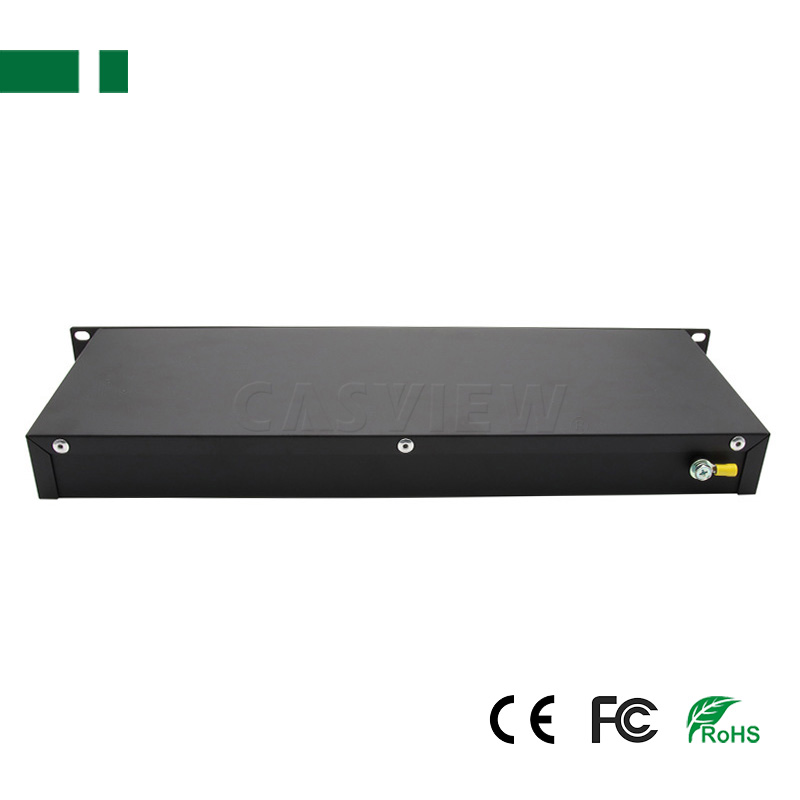

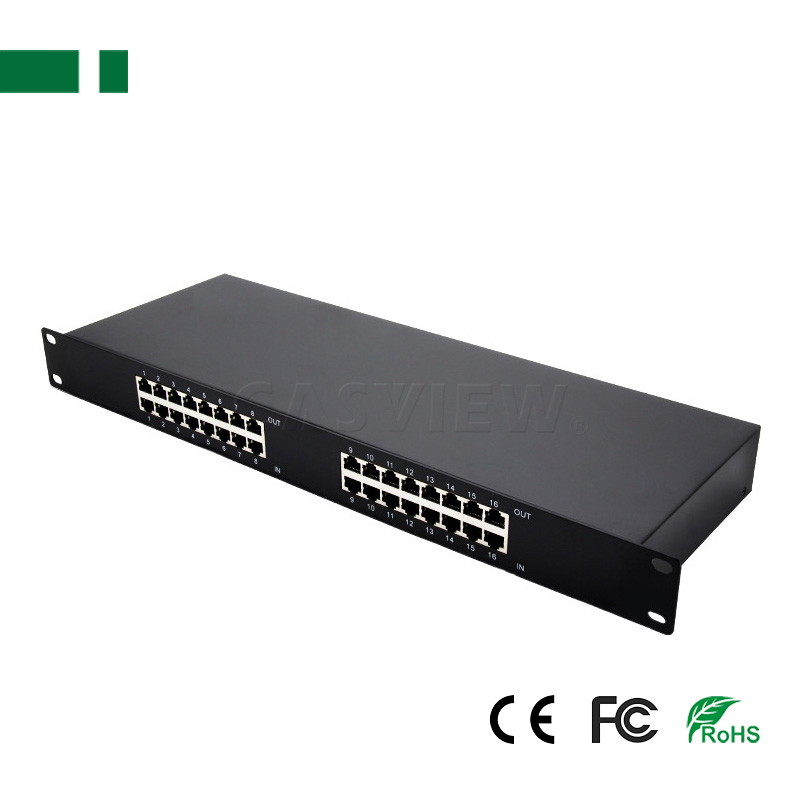

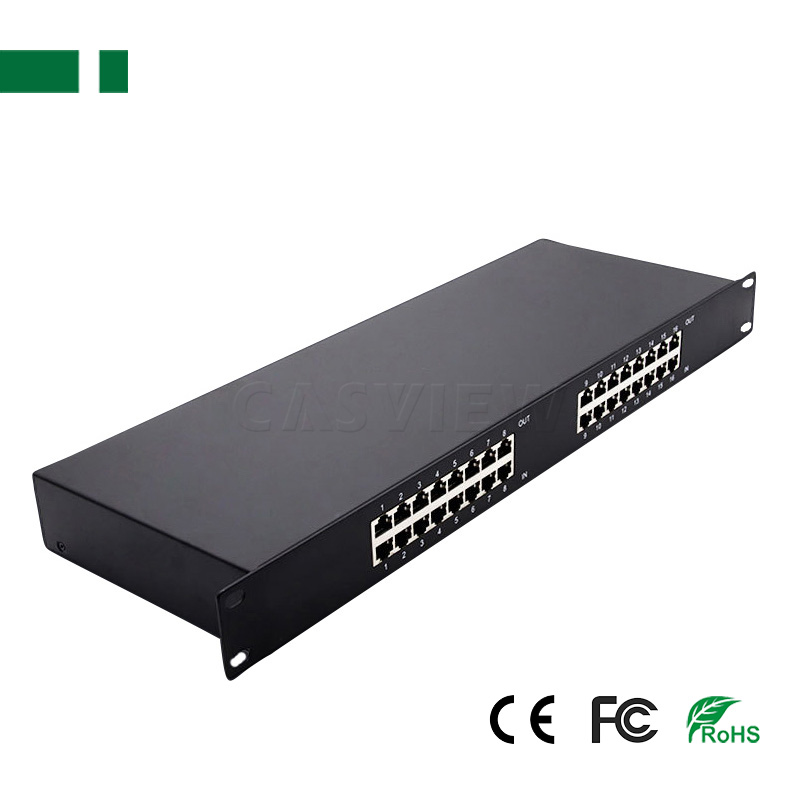

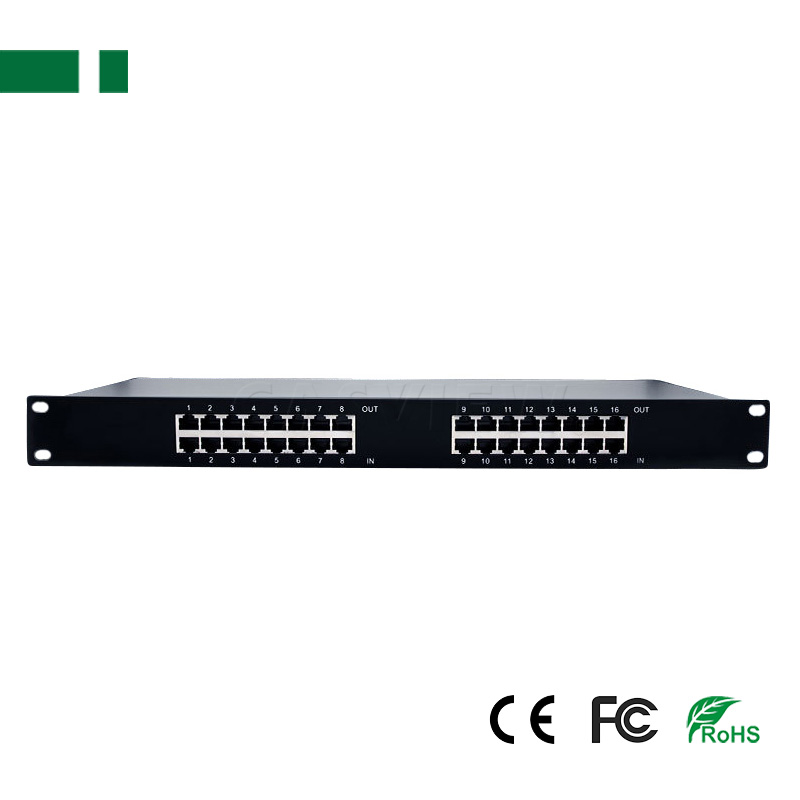

16chs 10/100/1000Mbps Network protector;
Rated operation voltage(Un): DC5V;
Max. Discharge Current(8/20μs): 5KA;
Aluminum shell delicate;
16chs 10/100/1000Mbps Network signal lightning Protection protector, Suitable for monitoring system equipment, routers, computer rooms, network switches, etc. .
Feature:
16chs 10/100/1000Mbps Network signal lightning Protection protector;
Rated operation voltage(Un): DC5V;
Max. Discharge Current(8/20μs): 5KA;
Aluminum shell delicate;

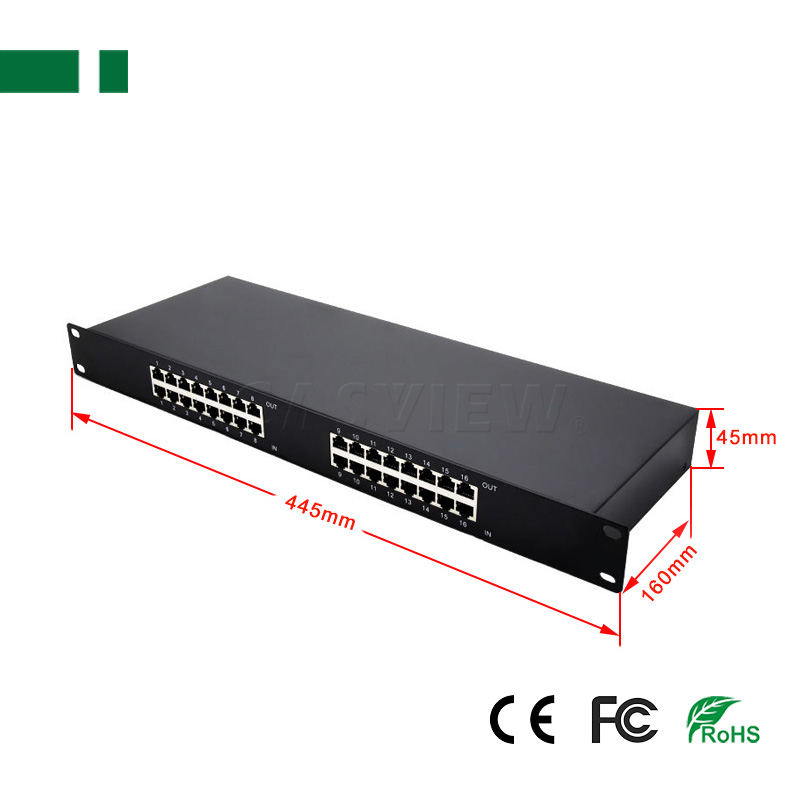

Size: 445*160*45mm, 1580G;
Suitable for monitoring system equipment, routers, computer rooms, network switches, etc.
Specification:
| Item | 16chs 10/100/1000Mbps Network signal lightning Protection protector | |
| Model | CSP-RJ45-16(100M) | CSP-RJ45-16(1000M) |
| Protection line pair | 16CH RJ45 * 2 | |
| Rated operation voltage(Un) | DC5V | |
| Max. Continuous Operating Voltage(Uc) | DC6V | |
| Nominal Discharge Current(8/20μs)(In) | 3KA | |
| Max. Discharge Current(8/20μs)(Imax) | 5KA | |
| Voltage Protection Level(Up) | ≤15V | |
| Response Time | ≤1ns | |
| Insulation Resistance (MΩ) | ≥0.4MΩ | |
| Insertion loss(dB) | ≤0.5dB | |
| Near end crosstalk(dB) | ≥60(pass) | |
| Interface | RJ45 | |
| Bandwidth (FG) | 10/100M | 10/100/1000M |
| Transmission Speed (Vs) | 100Mbps | 1000Mbps |
| Storage Environment | -40℃~90℃ | |
| Working Environment | -35℃~90℃ | |
| Material of Outer Shell | Aluminum shell | |
| Net Weight | 1580g | |
| Size | 445*160*45mm | |
Installation, use and maintenance
Installation instructions
1: Before the protection of the access system, first check the grounding resistance of the grounding grid, should meet the requirements of the specification.
2: Will protect the front end of the device to protect the device must be connected to a reliable.
3: The protection of the grounding wire as short as possible to connect to the computer room or cabinet to protect the ground bus.
Matters needing attention
1: Protection device on the input (IN), the output (OUT) flag, the output is connected with the protected device, do not answer. Otherwise, it will cause damage to the protector, and the equipment can not be protected.
2: If the connection of the plug seat and other factors caused the loss of the increase, should be re connect or replace the protector.
3: users can not arbitrarily remove the parts of the protection of the fastener, so as to avoid damage, affecting the normal work.
