● Power Input: DC44V-57V;
● Power Output: DC12V, 1.2A
● Power Pin: 1/2(+), 3/6(-) or 4/5(+), 7/8(-);
● Data Pin: 1/2: (+), 3/6: (-);

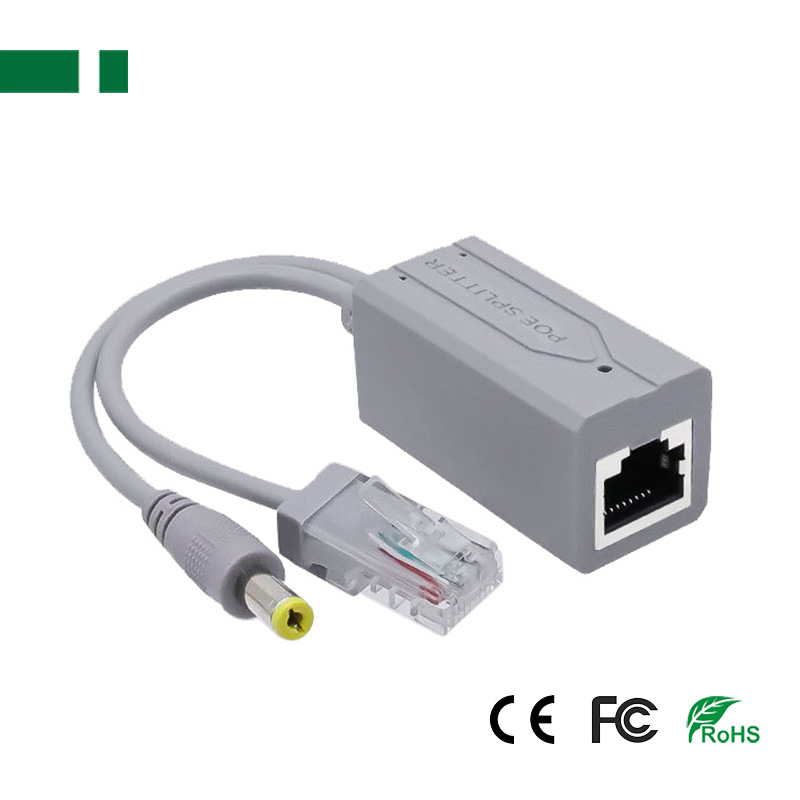

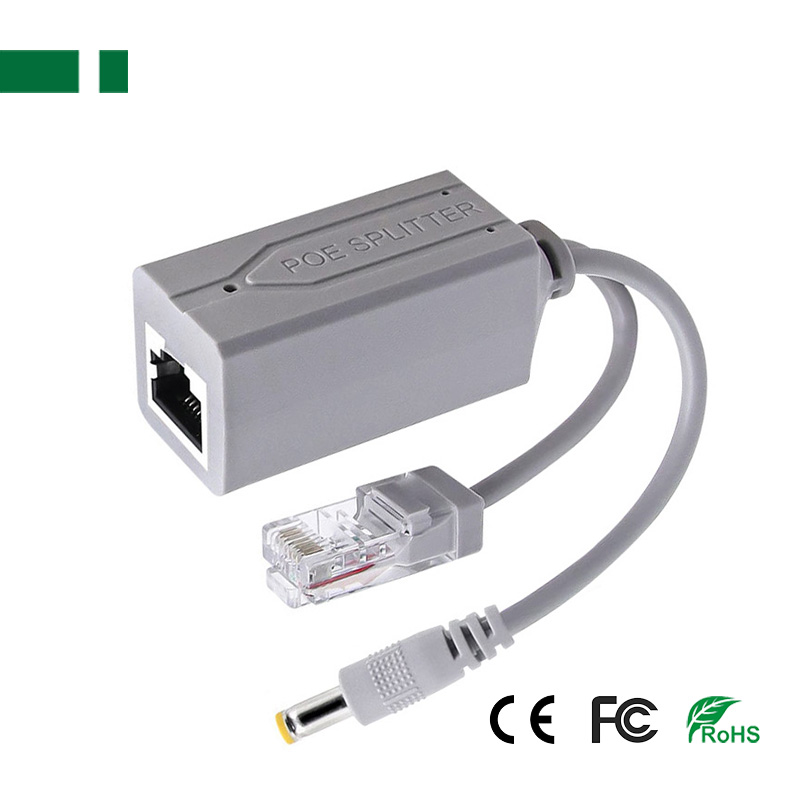

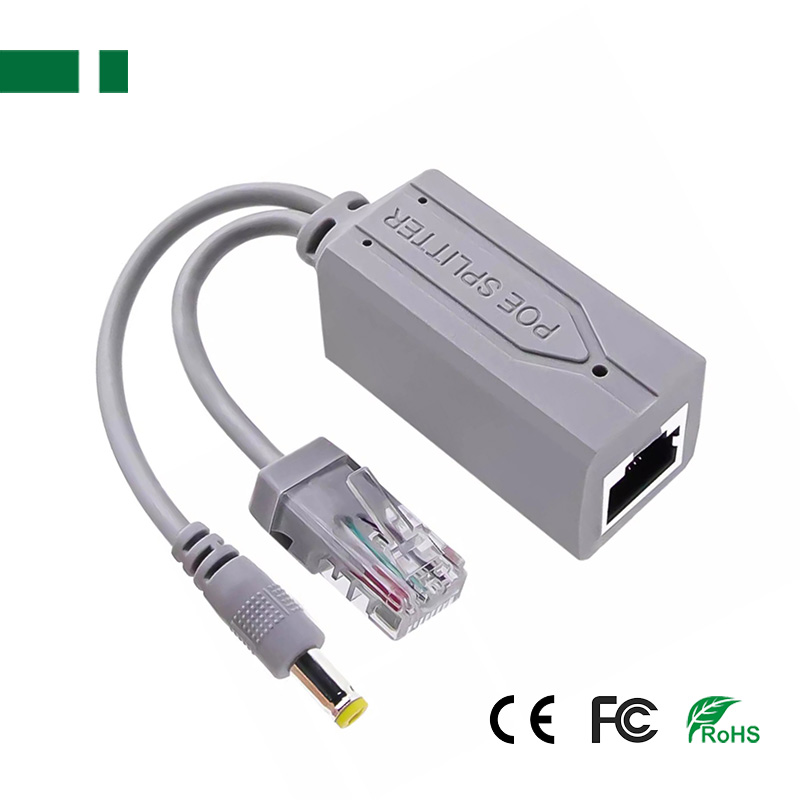

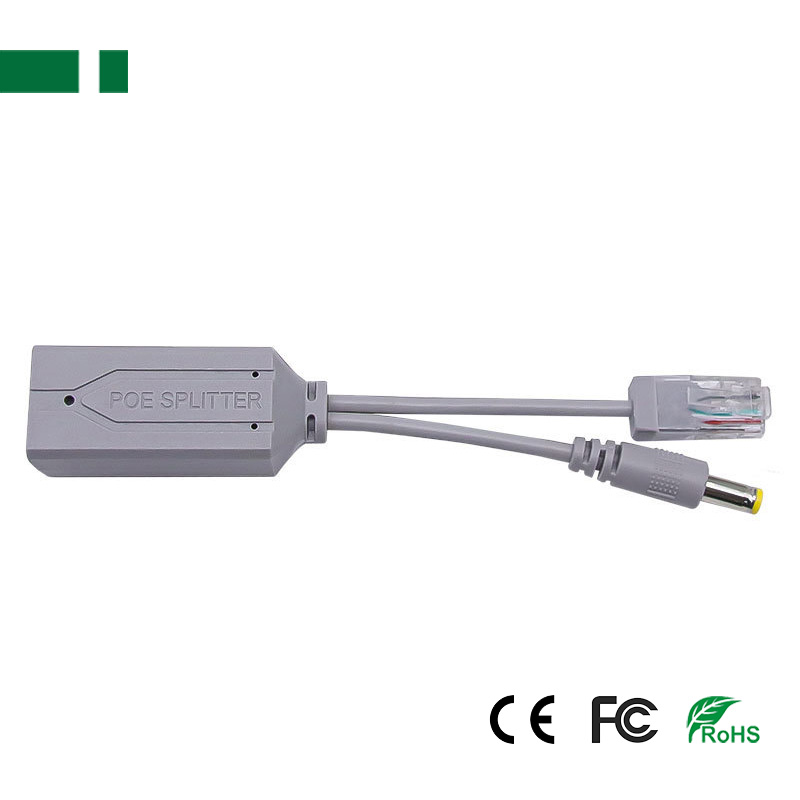

This DC48V-to-DC12V PoE Cable working with IEEE802.3at/af compliant PDs, expands home and office network, can be used with any PoE device.
Description:
This DC48V-to-DC12V PoE Cable working with IEEE802.3at/af compliant PDs, expands home and office network, can be used with any PoE device. Use with a power supply to power IP security cameras, phones, wireless access points and other devices.
Features:
● 10/100Mbps POE Splitter Cable;
● Power Input: DC44V-57V;
● Power Output: DC12V, 1.2A;
● Ports: RJ45(PoE) + RJ45(LAN) + DC Male Plug Interface;
● Network Speed: IEEE802.3at/af;
● Network Speed: 10/100Mbps;
● Data Pin: 1/2: (+), 3/6: (-);
● Power Pin: 1/2(+), 3/6(-) or 4/5(+), 7/8(-);
● Supports various DC Power Adapters and Solar Power Battery Packs.
Speicification:
| 100Mbps & 1.0Gbps DC48V-to-DC12V POE Splitter Cable | ||||||
| Model | CPOE-03 | CPOE-04 | CPOE-04G | CPOE-05 | CPOE-08 | CPOE-09 |
| Ports | PoE (RJ45) + LAN (RJ45) + DC 5.5*2.1mm Interface | |||||
| PoE Support | IEEE802.3at/af | |||||
| Power Input | DC44V-57V | DC44V-57V | DC44V-57V | DC44V-57V | DC44V-57V | DC44V-57V |
| DC Output | DC12V, 1.2A | DC12V, 1.2A | DC12V, 1.2A | DC12V, 1A | DC12V, 1A | DC12V, 1.2A |
| DC Connector | 5.5*2.1mm DC Male Plug | |||||
| Data Speed | 10/100Mbps | 10/100Mbps | 1.0Gbps | 10/100Mbps | 10/100Mbps | 10/100Mbps |
| Data Pin | 1/2: (+), 3/6: (-) | 1/2: (+), 3/6: (-) | 1/2(+), 3/6(-), 4/5(+), 7/8(-) | 1/2: (+), 3/6: (-) | 1/2: (+), 3/6: (-) | 1/2: (+), 3/6: (-) |
| Power Pin | 1/2(+), 3/6(-) or 4/5(+), 7/8(-) | |||||
| Extend Distance | 0~100M | |||||
| Network Cable | Un-shielded or Shielded Cat5E, Cat6 or Better | |||||
| Temperature | Working: -10℃~+50℃, Store: -20℃~+85℃ | |||||
| Humidity | Working: 20~90%RH, Store: 10~95%RH | |||||
| Material | ABS Plastic Housing | |||||
