POE Splitter & Injector

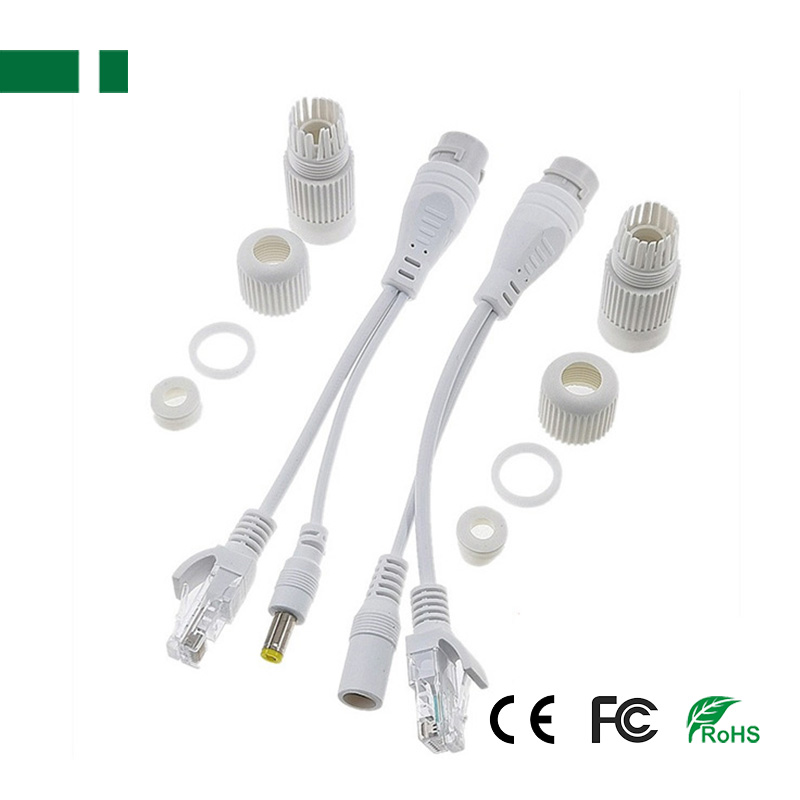

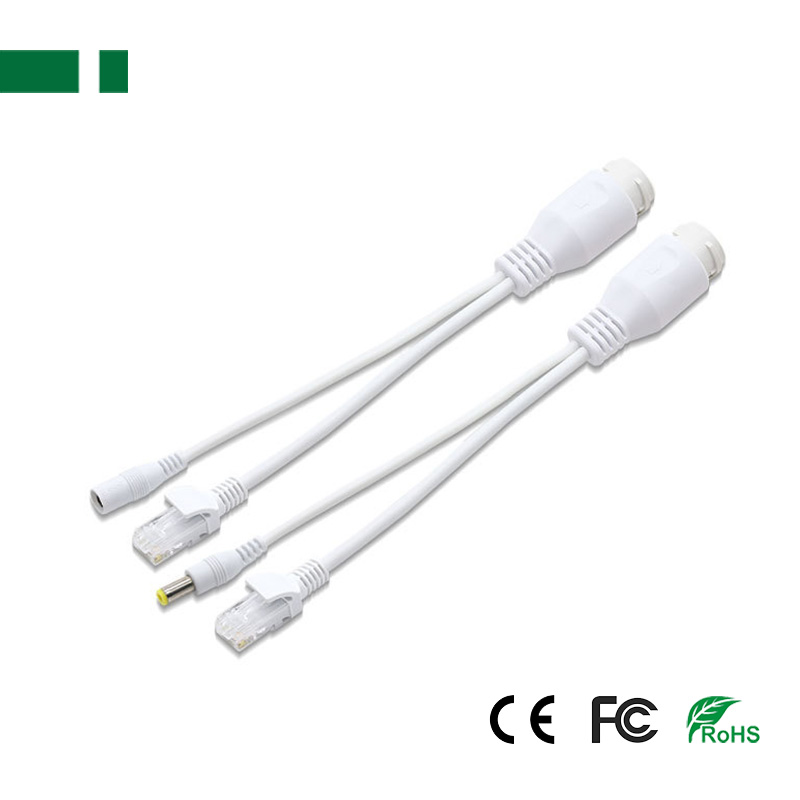

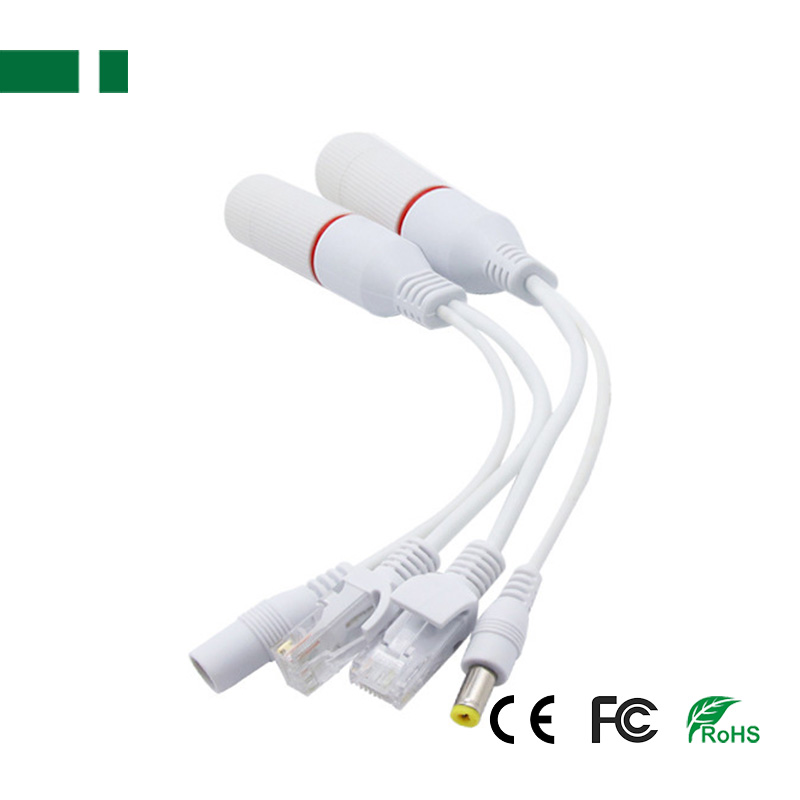

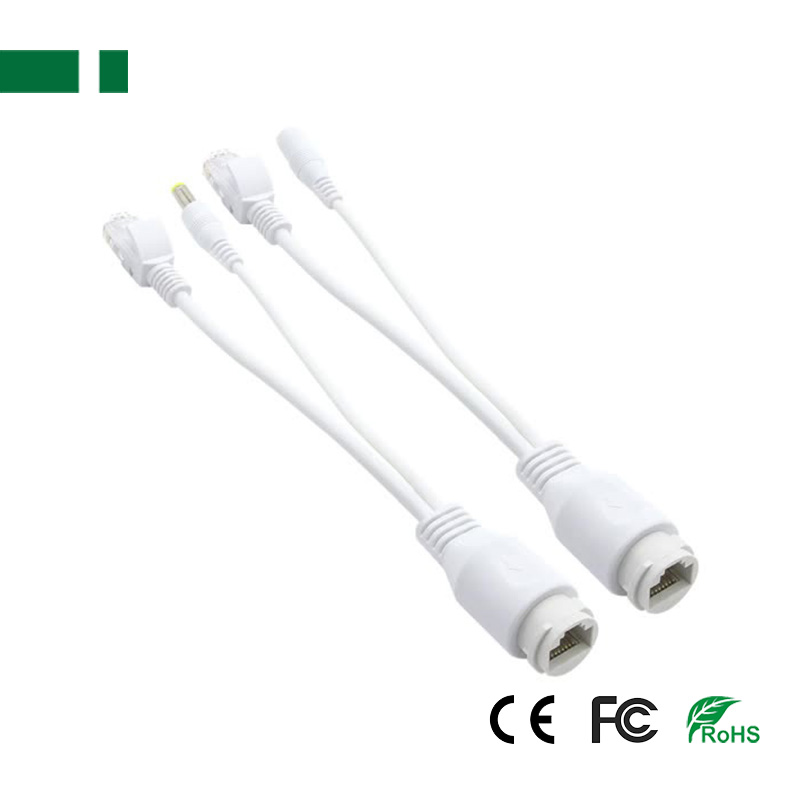

CPOE-01WE 100Mbps Waterproof POE Splitter Cable and POE Injector Cable for IP Camera

CPOE-01WE 100Mbps Waterproof POE Splitter Cable and POE Injector Cable for IP Camera

● Power Input & Output: DC5V~48V;
● Network Speed: IEEE802.3af;
● Data Pin: 1/2: (+), 3/6: (-);
● Power Pin: 4/5: (+), 7/8: (-);
Product description: This Passive PoE Cable (POE Splitter + POE Injector) working with IEEE802.3af compliant PDs, expands home and office network, can be used with any PoE device. Use with a power supply to power IP secur
INQUIRY EMAIL

Description:

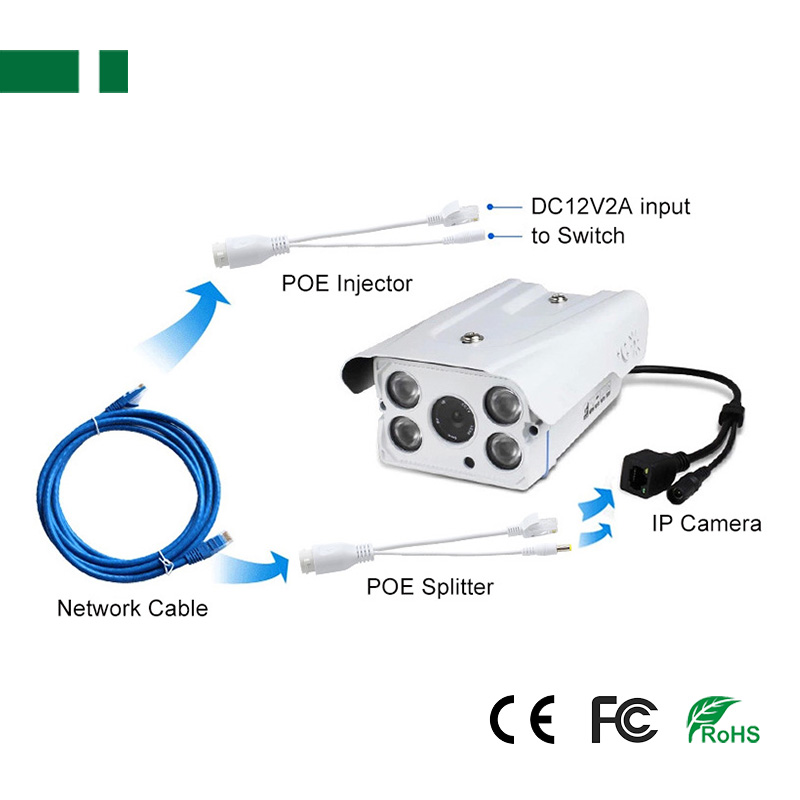

This Passive PoE Cable (POE Splitter + POE Injector) working with IEEE802.3af compliant PDs, expands home and office network, can be used with any PoE device. Use with a power supply to power IP security cameras, phones, wireless access points and other devices.

Features:
● 100Mbps Passive POE Cable for IP Camera;
● Power Input & Output: DC5V~48V;
● Ports: RJ45(PoE) + RJ45(LAN) + DC(5.5*2.1mm);
● Network Speed: IEEE802.3af;
● Network Speed: 10/100Mbps;
● Data Pin: 1/2: (+), 3/6: (-);
● Power Pin: 4/5: (+), 7/8: (-);
● Supports various DC Power Adapters and Solar Power Battery Packs.

Speicification:

10/100Mbps Passive POE Cable (The Voltage of Power Supply: Input = Output)
Model	CPOE-01	CPOE-01WE	CPOE-01P	CPOE-06
Ports	PoE + LAN + DC	PoE + LAN + DC	PoE + LAN + DC	PoE + LAN + DC
PoE Support	IEEE 802.3af	IEEE 802.3af	IEEE 802.3af	IEEE 802.3af
Power Input	DC5V~48V	DC5V~48V	DC5V~24V	DC12V~24V
DC Output	DC5V~48V	DC5V~48V	DC5V~24V	DC12V~24V

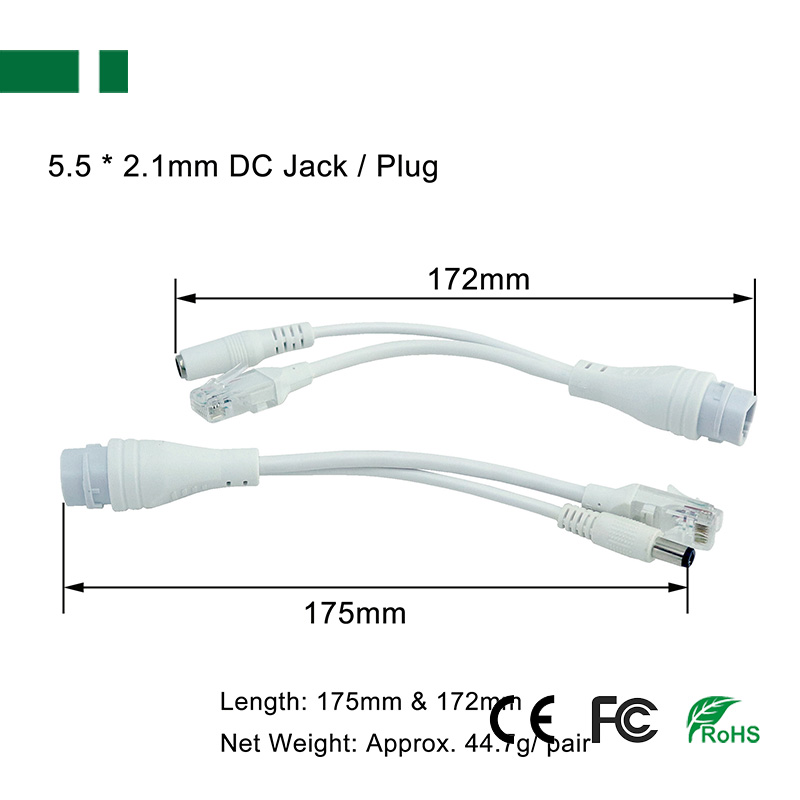

DC Connector	5.5*2.1mm DC Female Plug
Data Speed	10/100Mbps
Data Pin	1/2: (+), 3/6: (-)
Power Pin	4/5: (+), 7/8: (-)
Extend Distance	30~40M
Network Cable	Un-shielded or Shielded Cat5E, Cat6 or Better
Temperature	Working: -10℃~+50℃, Store: -20℃~+85℃
Humidity	Working: 20~90%RH, Store: 10~95%RH
Material	ABS Plastic Housing
