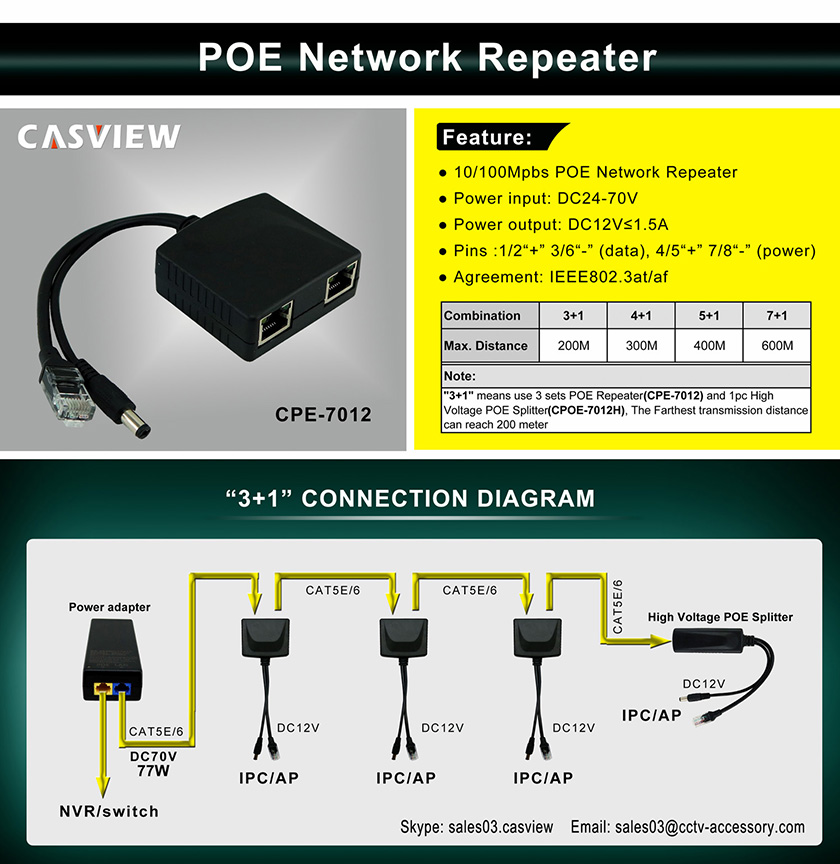

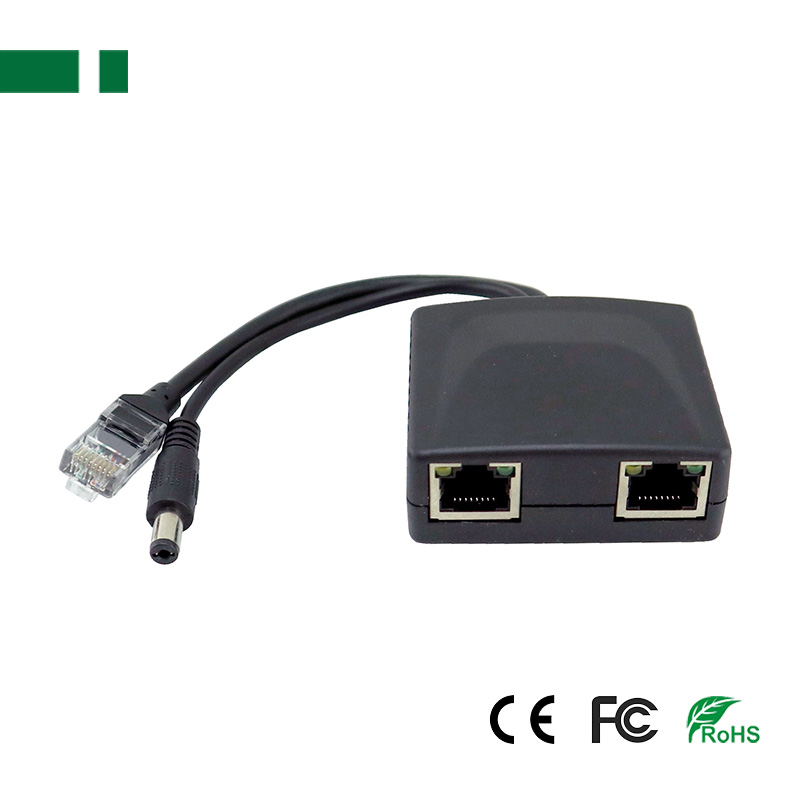

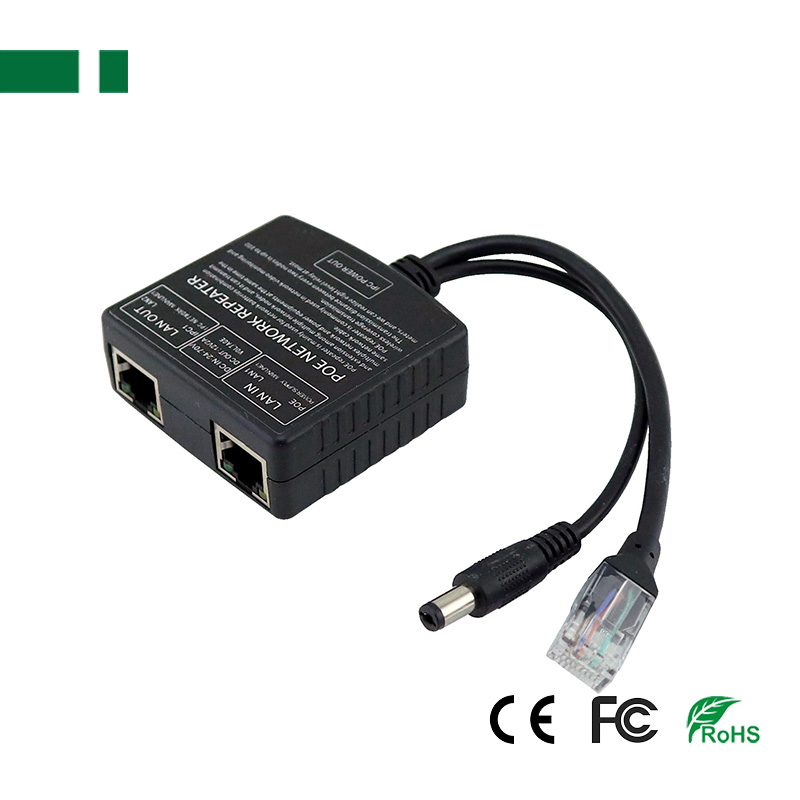

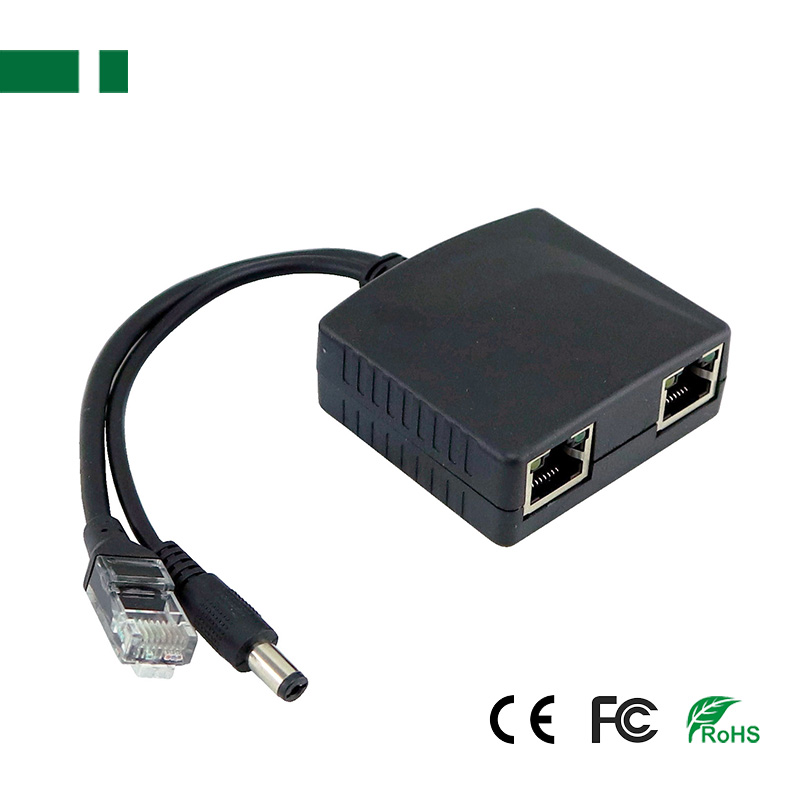

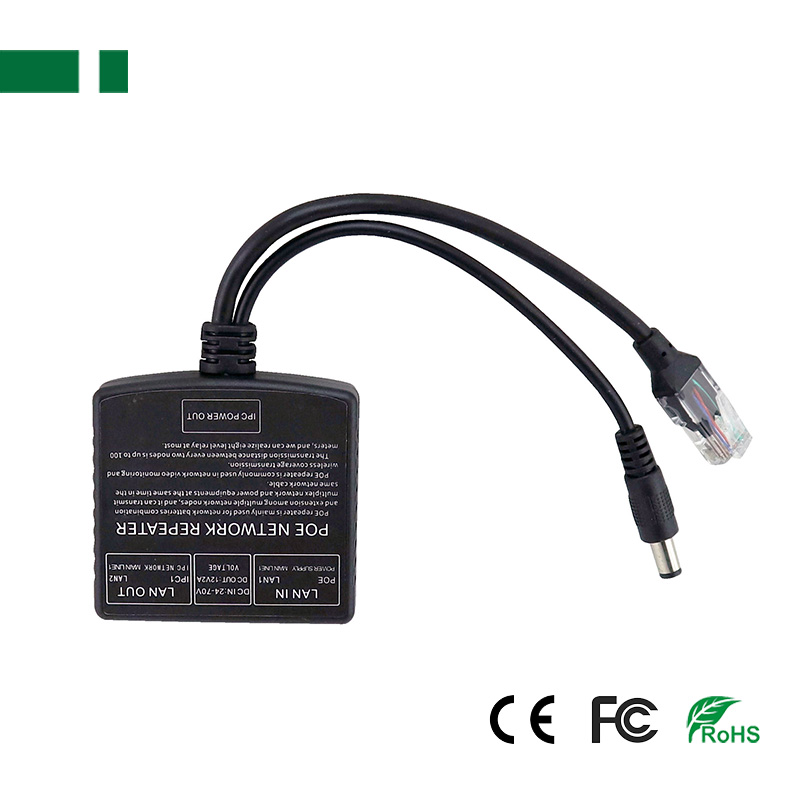

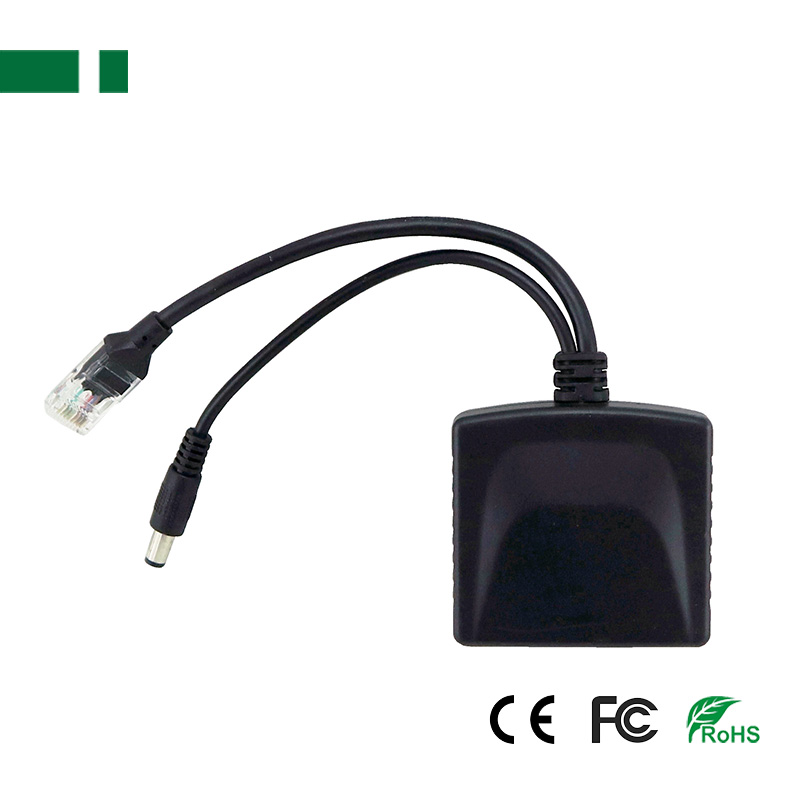

CPE-7012 10/100Mpbs POE Network Repeater

10/100Mpbs POE Network Repeater

What is  POE network repeater?
POE repeater is mainly used for network batteries combination and extension among multiple network nodes, and it can transmit multiplex network and power equipment at the same time in the same Network Cable.
POE repeater is commonly used in network video monitoring and wireless coverage transmission. the transmission distance between every two nodes is up to 80 meters, and we can realize eight level relays at most.

Features
1. 10/100M IEEE 802.3 af/at
2. Distance: 80 meters
3. Power input: DC70V
4. Power output: DC12V 1A
5. Working Current < 20MA, Standby Current < 10MA
6. 2* RJ45 ports, Pins :1/2“+” 3/6“-” (data), 4/5“+” 7/8“-” (power)
7. Plug- and -play, no configuration required.

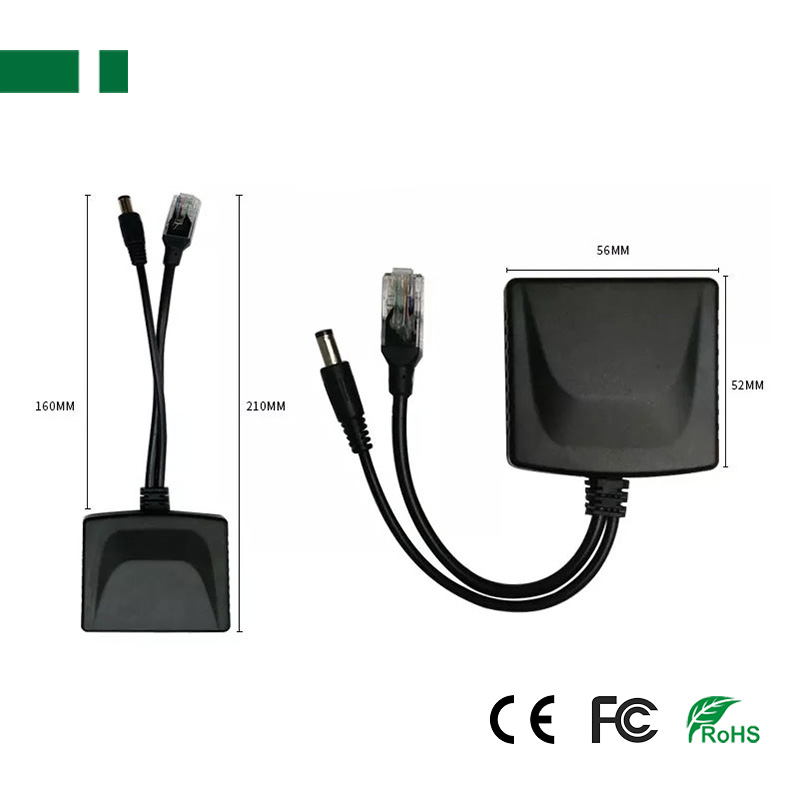

8. Size: 56*52*210mm
