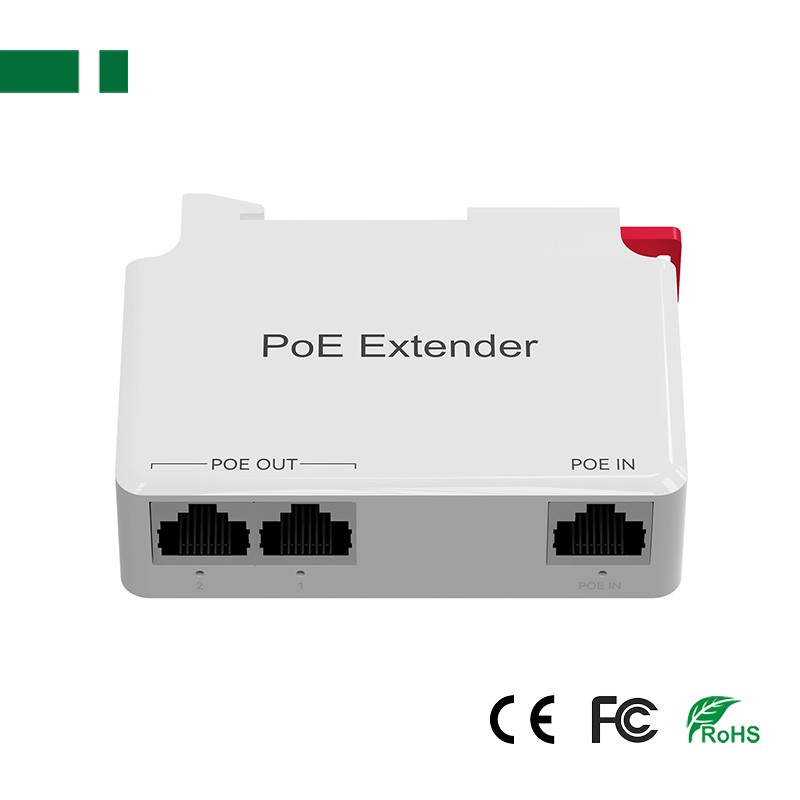

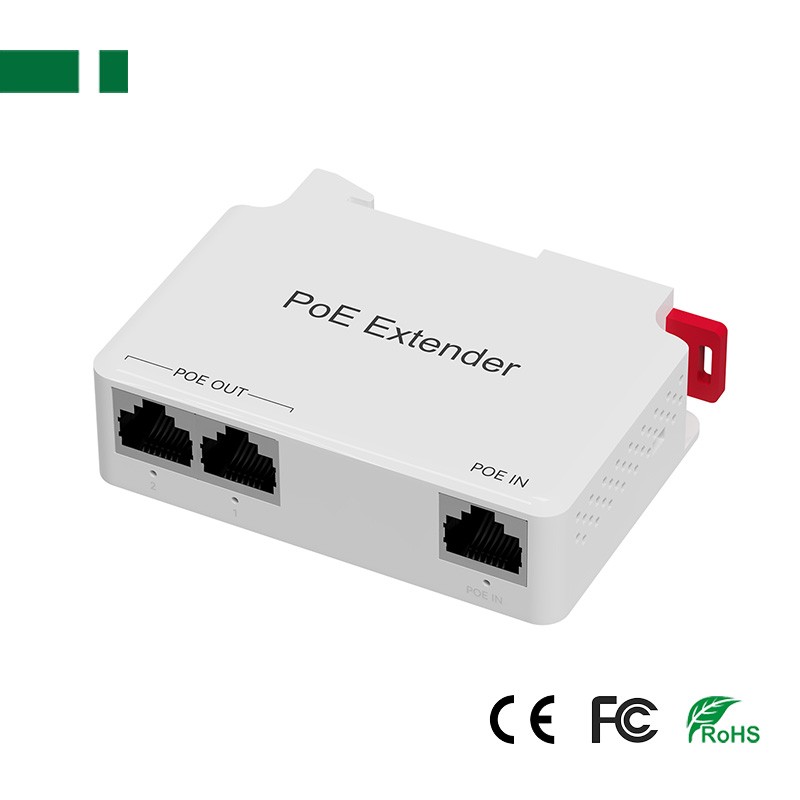

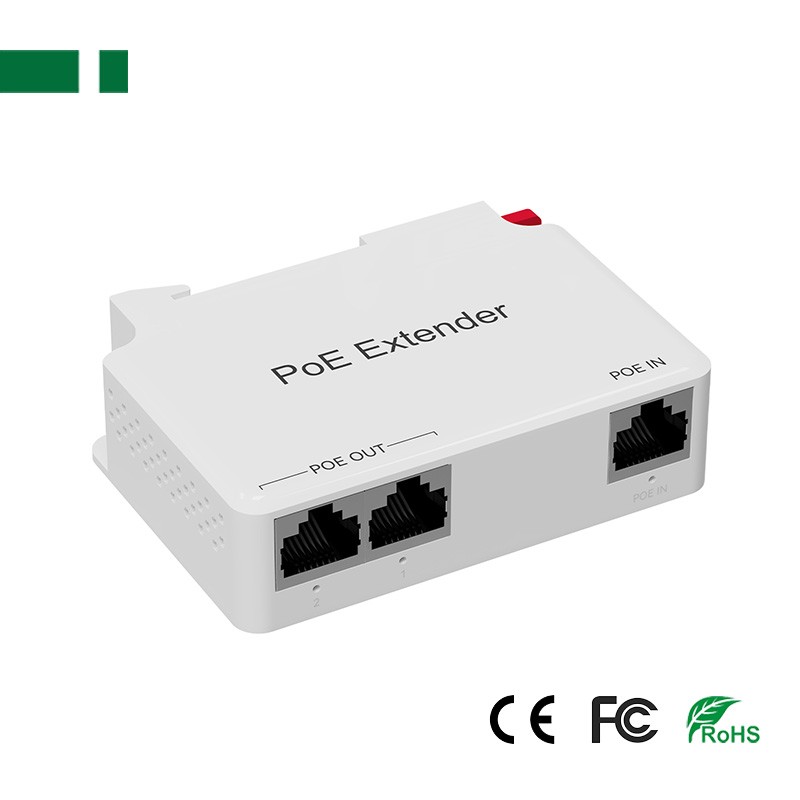

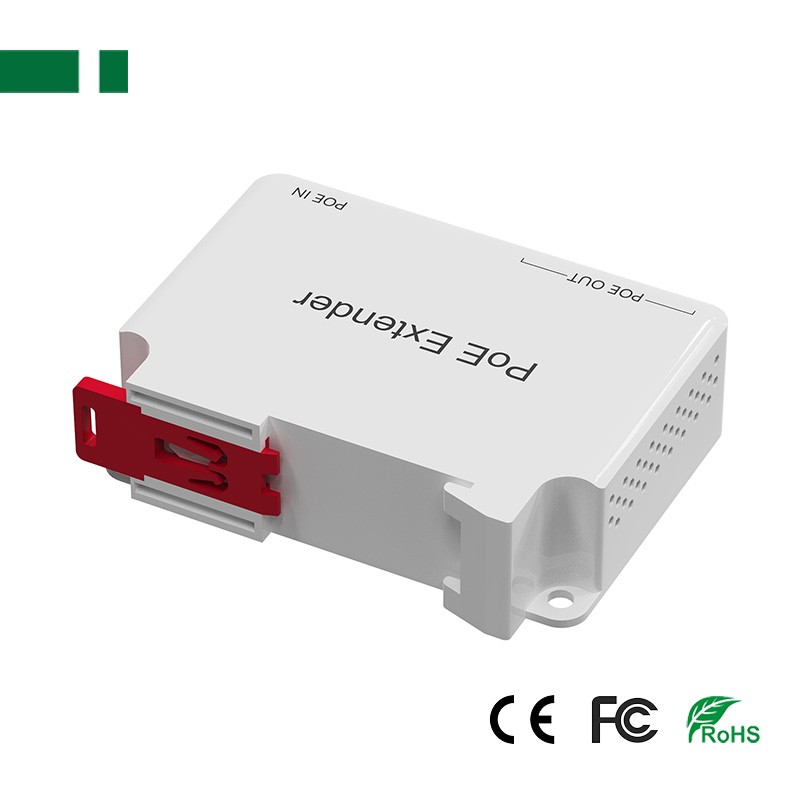

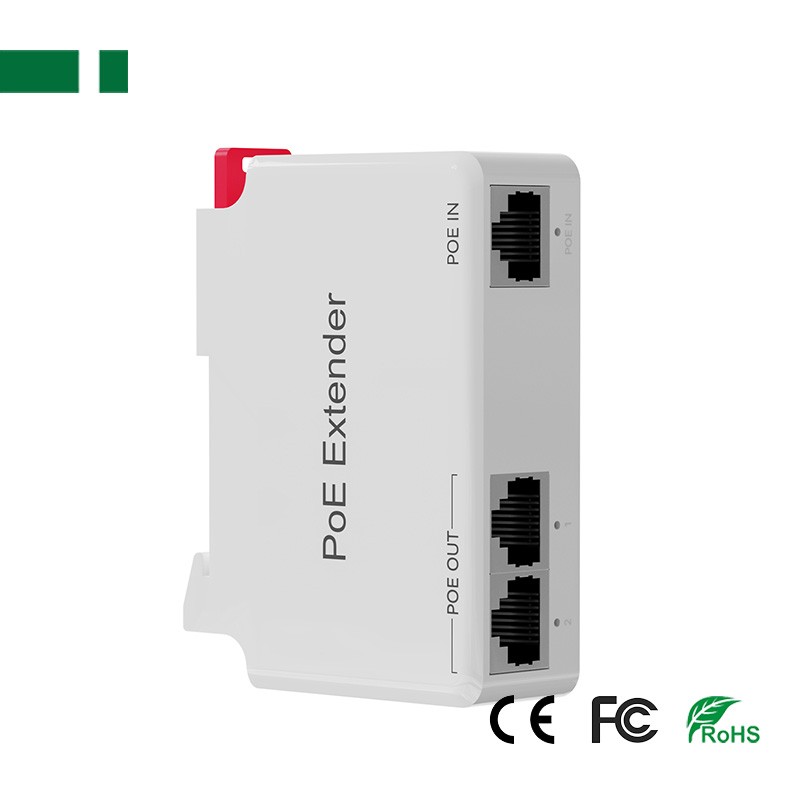

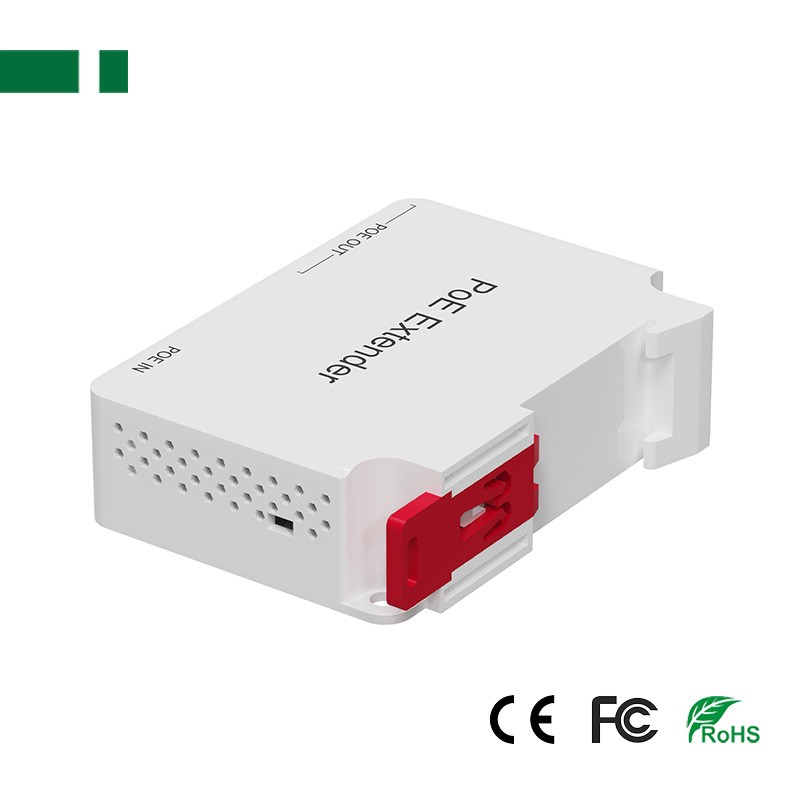

▪ 1*2 10/100Mbps Rail-Mounted POE Splitter/Extender;
▪ Interface: 3 * 10/100Mbps RJ45 port;
▪ Input Voltage: POE Power;
▪ Output Voltage: DC44V-57V ( Normal DC48V);
▪ Power supply: Support 12+ /36- power supply;
▪ PoE Extender Distance: 10-100m;
▪ PoE Standard: IEEE 802.3af, IEEE 802.3at;
▪ Material: ABS Plastic Shell;
▪ Product Size: 85*64*24mm(L*W*H);
▪ This POE extender is a professional-grade network extension device, adopting the IEEE 802.3af/at standard. It simutaneously relays data signals and transmits power over a single network cable.
Description：
This POE Extender is a professional-grade network extension device, adopting the IEEE 802.3af/at standard. It simutaneously relays data signals and transmits power over a single Network Cable. Breaking through the traditional 100-meter transmission distance limit,it supports multi-level cascading, providing an integrated solutionfor long-distance networking scenanios such as security monitoring and industrial lo. it supports full-duplex transmission mode, possesses excelent anti-static anasurge protection capabities, uses high-temperature resistant and fame-retardant materials, and features a DIN rail mounting method, easily handing various engineering instalation applications. It systematicaly solves the transmission distance and power supply problems of network terminals such as network cameras.
Feature:
▪ 1*2 10/100Mbps Rail-Mounted POE Splitter/Extender;
▪ Interface: 3 * 10/100Mbps RJ45 port;
▪ Input Voltage: POE Power;
▪ Output Voltage: DC44V-57V ( Normal DC48V);
▪ Power supply: Support 12+ /36- power supply;
▪ PoE Extender Distance: 10-100m;
▪ PoE Standard: IEEE 802.3af, IEEE 802.3at;
▪ Material: ABS Plastic Shell;
▪ Product Size: 85*64*24mm(L*W*H);
Specification:
| Model | CPE-1082 | CPE-1083 | CPE-1084 |
| Product interface | 3*10/100Base-TX POE port (Data/Power） | 4*10/100Base-TX POE port (Data/Power） | 5*10/100Base-TX POE port (Data/Power） |
| Transmission distance | Single-stage Connection≤100meter, Multi-stage Connection: 100~400meter | ||
| Network protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x | ||
| Forwarding mode | Storage and forwarding (full line speed) | ||
| POE standard | Support IEEE802.3af/at | ||
| Power Supply Type | Receiving end 1/2(+)，3/6(-) or 4/5(+)，7/8(-), Supplying end 1/2(+)，3/6(-) | ||
| Maximum POE power | Max. 25Watt, intelligent allocation of ports 1-2 | ||
| Max. Discharge Current | 2KA | ||
| Input Voltage | DC44-57V | ||
| Temperature | Working: -30℃～60°C | ||
| Material | ABS Flame Retardant | ||
| Product size | 85*64*24mm(L*W*H) | ||
| Product weight | 856G | 868G | 911G |
