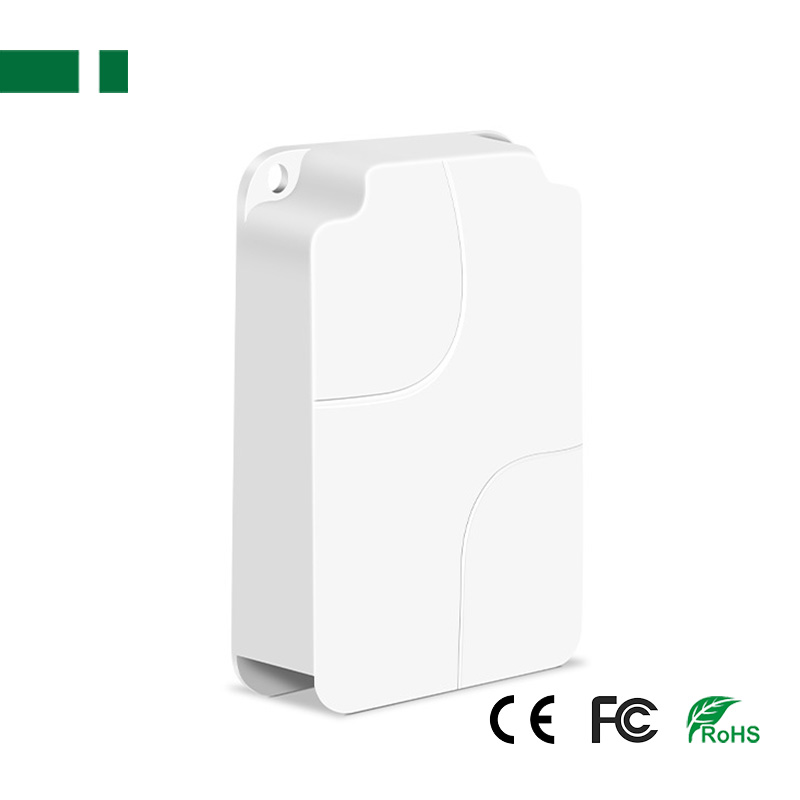

▪ 5 Ports 100Mbps Rainy-proof POE Extender
▪ POE In: 44V-57V/90W
▪ POE Output: 44V-57V(3-5) 30W/ 60W
▪ Support IEEE 802.3af/at standard POE power supply
▪ The POE extension device provides three 100Mbps or 1000Mbps power supply ports and one 100mbps or 1000Mbps up-link power supply port.
Description：
The POE extension device provides three 100Mbps or 1000Mbps power supply ports and one 100mbps or 1000Mbps up-link power supply port. 1-3 ports support IEEE 802.3af/at standard POE Power Supply, and the POE power of a single port is up to 30Watt.

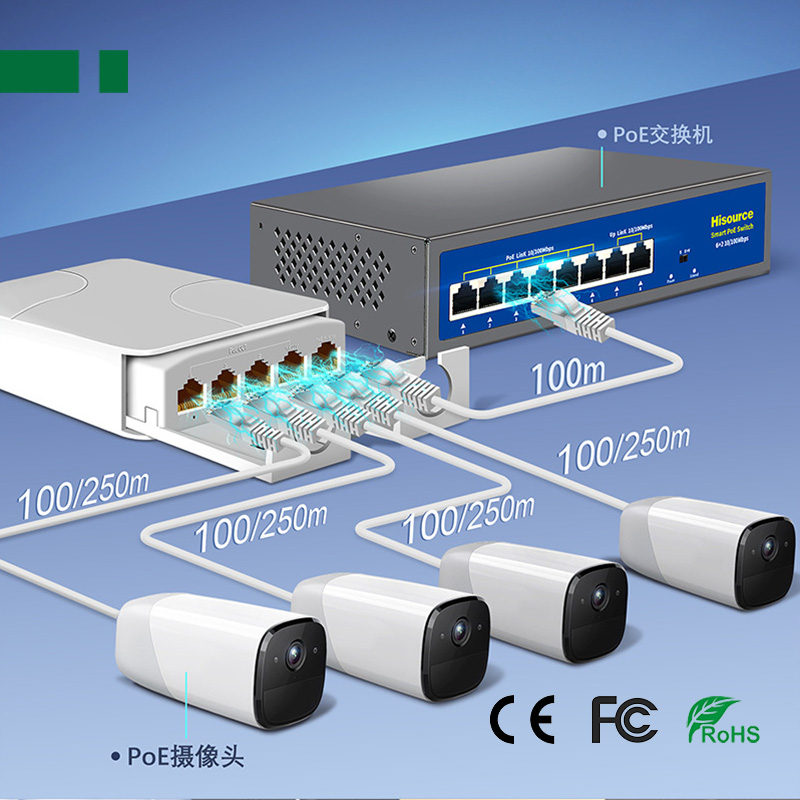

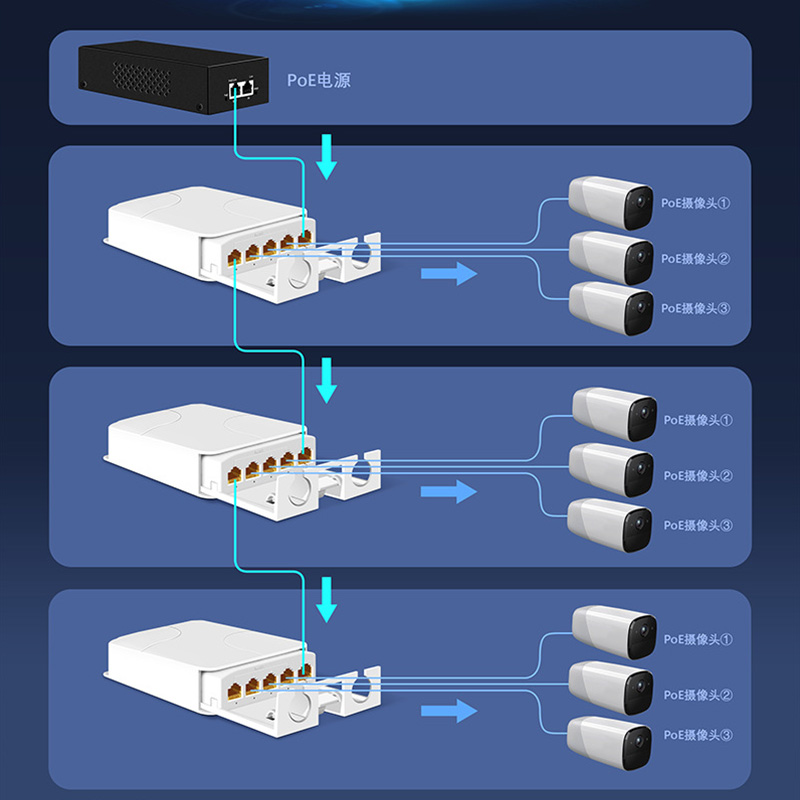

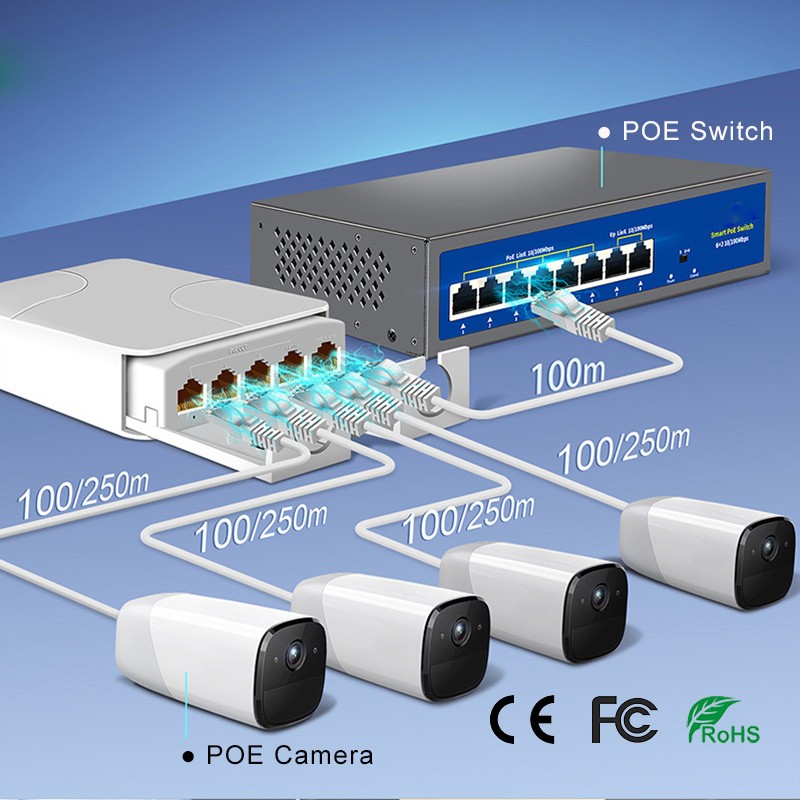

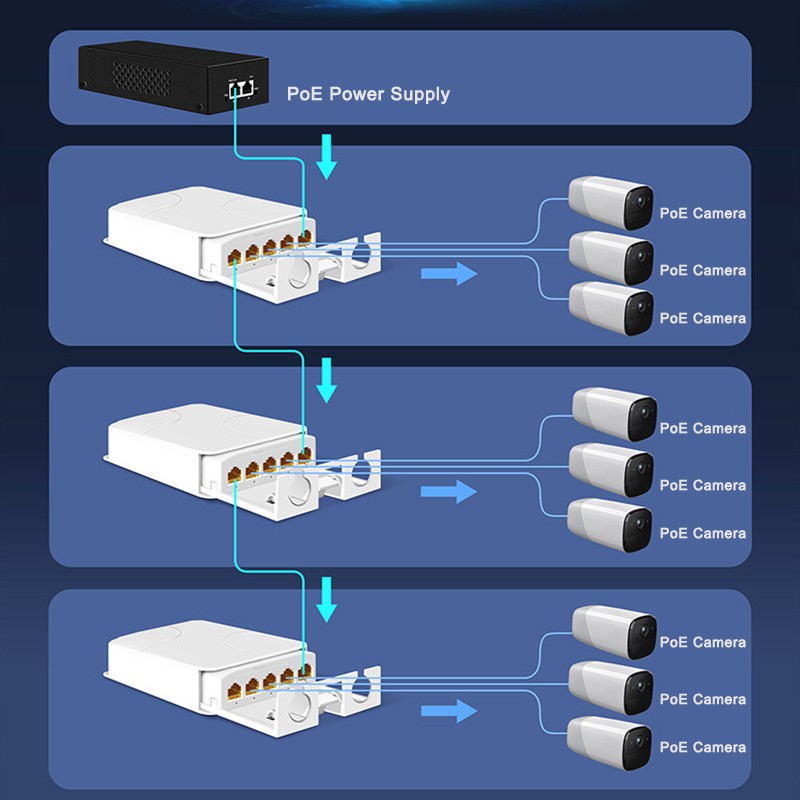

The POE Extender does not need to be connected to an additional power supply. Its power supply is placed at the end of a 100 m Network Cable from a POE Switch. It can extend the network and POE power supply for another 100m at full rate.
Feature:

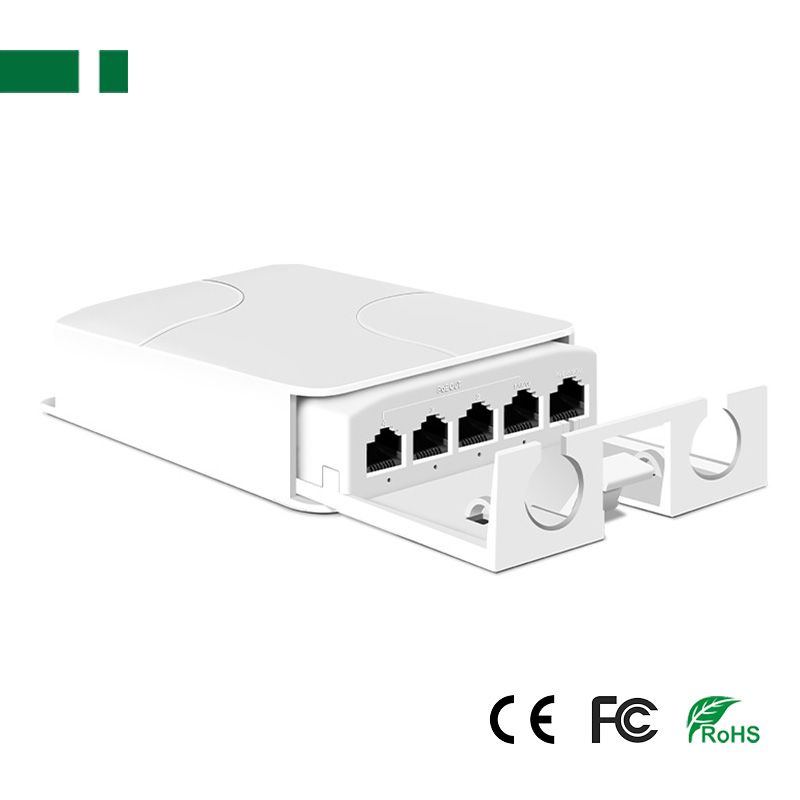

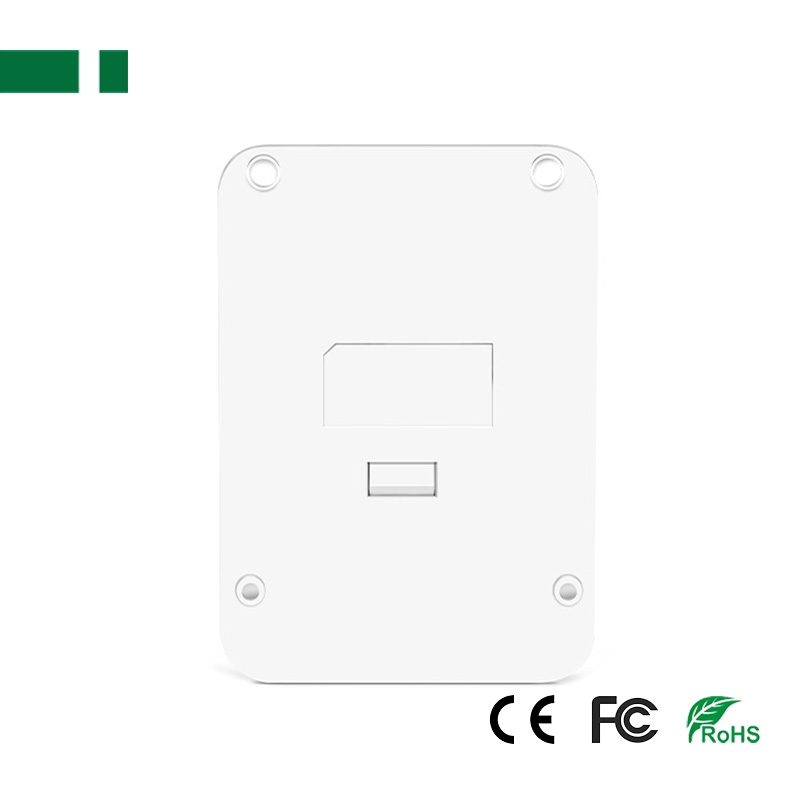

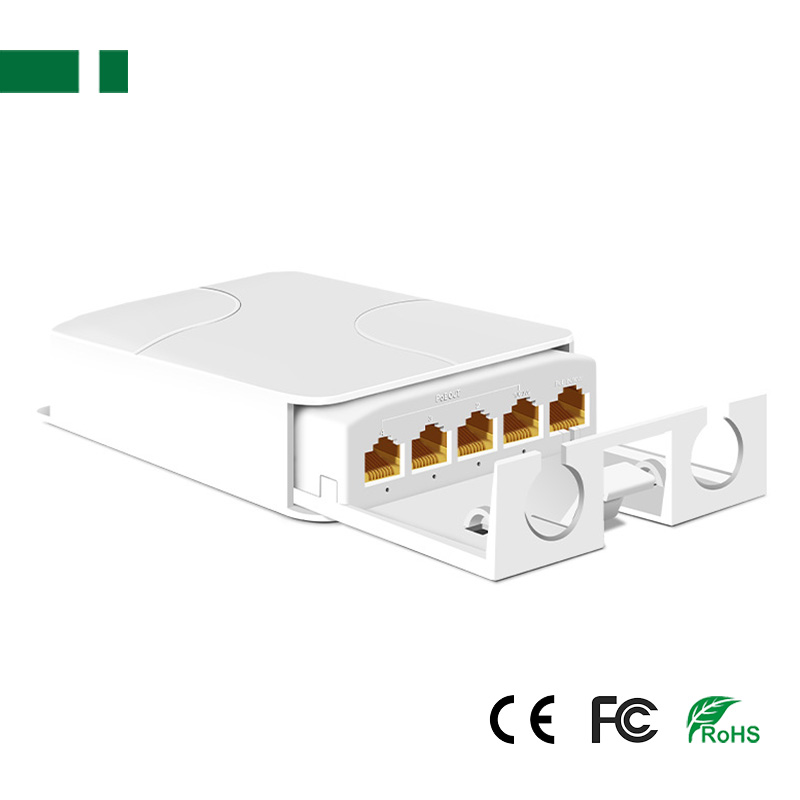

5 Ports 100Mbps POE Extender with Railing mounting;
1*10/100Base-TX POE port (Data/Power）input;
4*10/100Base-TX POE port (Data/Power）output;
Transmission distance: 100m;
Support 10/100Mbps IEEE802.3af/at/bt;
POE In: 44V-57V/90W;
POE Output: 44V-57V(3-5) 30W/ 60W;
All port supported by MDI/MDIX autoflip and self negotiation;
Supply 5*10/100Mbps adaptive high speedforwarding data;
Dimension: 95*130*35mm(L*W*H).
Specification:
| Model | CPE-1063R | CPE-1063RG | CPE-1064R | CPE-1064RG |
| RJ45 Interface A | 3*10/100Mbps-TX POE Supply Ports | 3*10/100/1000Mbps-TX POE Supply Ports | 4*10/100Mbps-TX POE Supply Ports | 4*10/100/1000Mbps-TX POE Supply Ports |
| RJ45 Interface B | 1*10/100Mbps-TX POE Receive Port | 1*10/100/1000Mbps-TX POE Receive Port | 1*10/100Mbps-TX POE Receive Port | 1*10/100/1000Mbps-TX POE Receive Port |
| Transmission distance | 100BASE-TX：Cat5 or later UTP(≤100meter) | |||
| Network protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x | |||
| Forwarding mode | Storage and forwarding (full line speed) | |||
| POE standard | Support IEEE802.3af/at | |||
| POE Supply Pins | Default 1/2(+)，3/6(-) | |||
| POE Supply input | DC44-57V, 30Watt | DC44-57V, 90Watt | ||
| POE Receive Pins | Default 1/2(+)，3/6(-); 4/5(+)，7/8(-) | |||
| POE Supply ouptut | DC44-57V, 24Watt | DC44-57V, 85Watt | ||
| Power consumption | ＜2Watt | |||
| Temperature | Working: -20℃～60°C | |||
| Product size | 95mm×130mm×35mm(L×W×H) | |||
| Weight | 55g | 80g | 55g |
80g |
