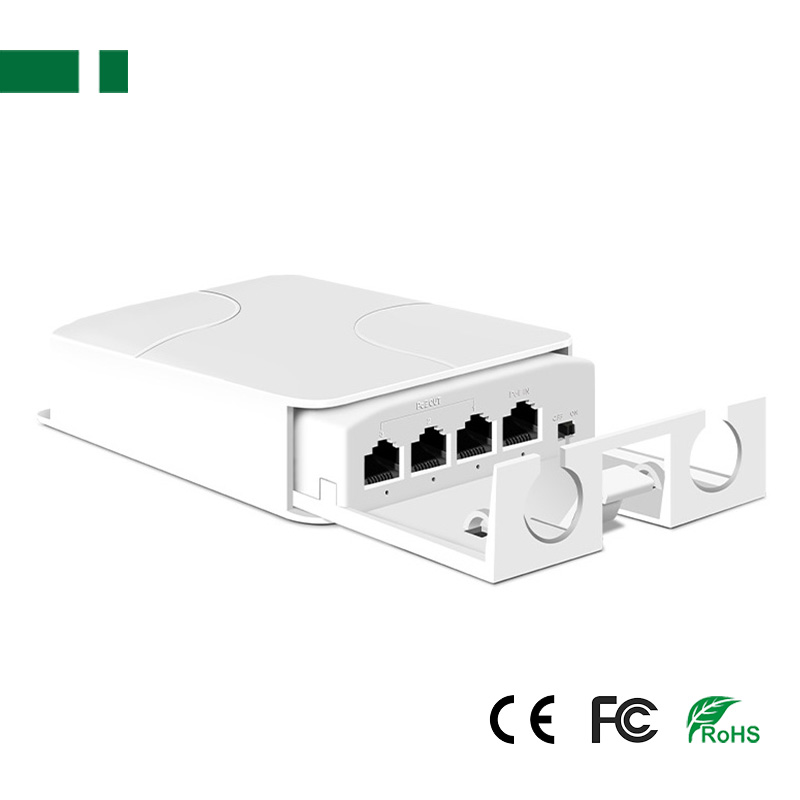

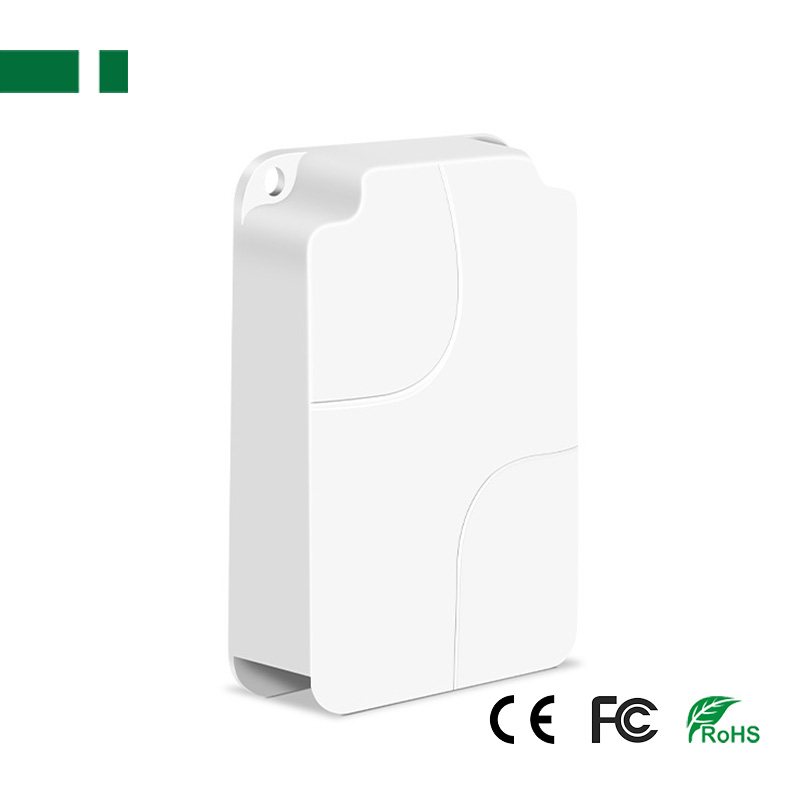

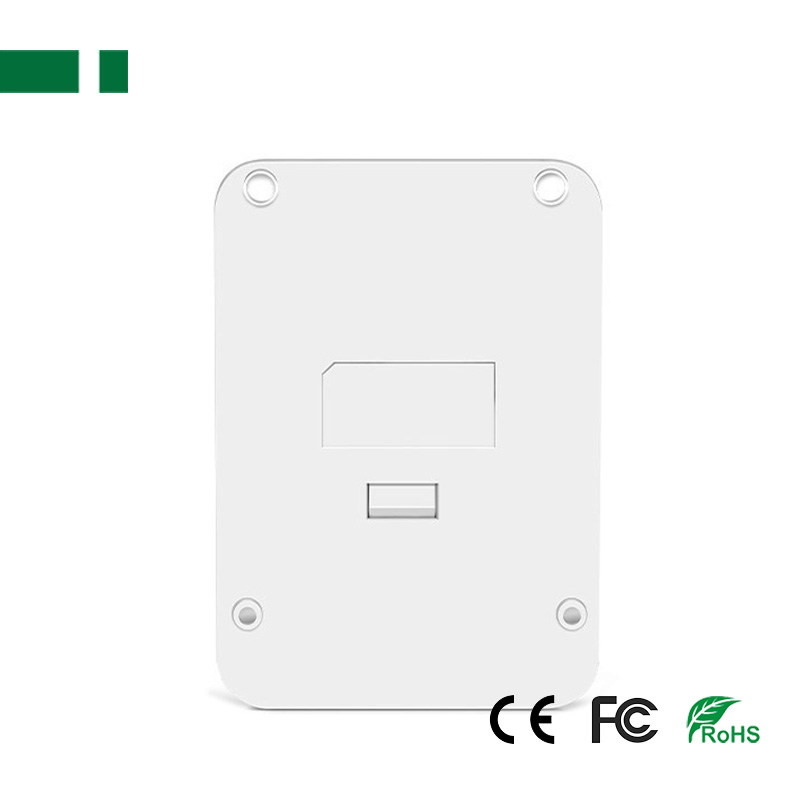

CPE-1063RG 4 Ports 1000Mbps Rainy-proof POE Extender

Description：
The POE extension device provides three 100Mbps or 1000Mbps power supply ports and one 100mbps or 1000Mbps up-link power supply port. 1-3 ports support IEEE 802.3af/at standard POE Power Supply, and the POE power of a single port is up to 30Watt.

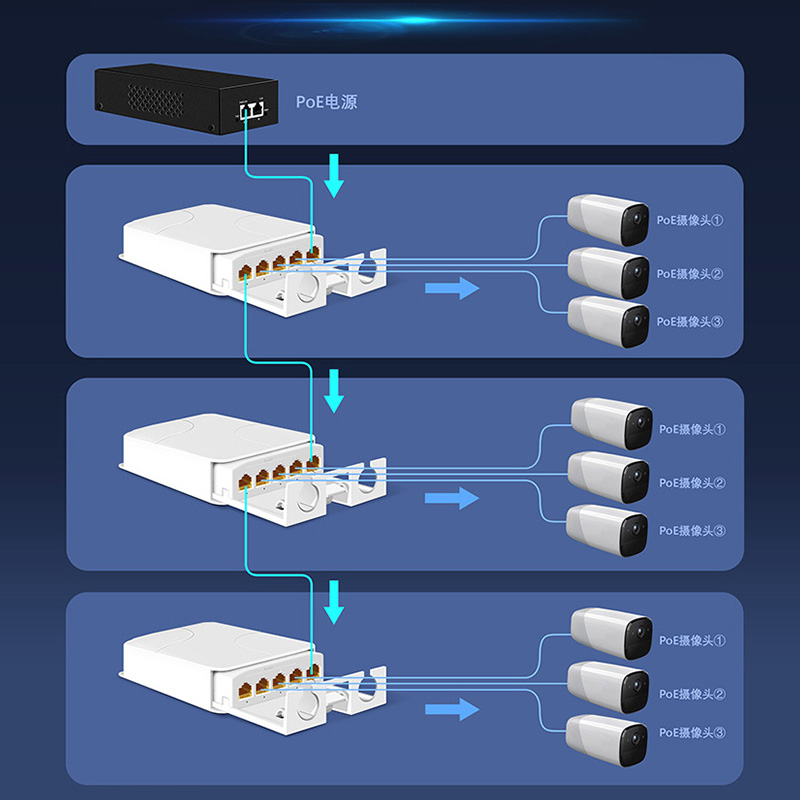

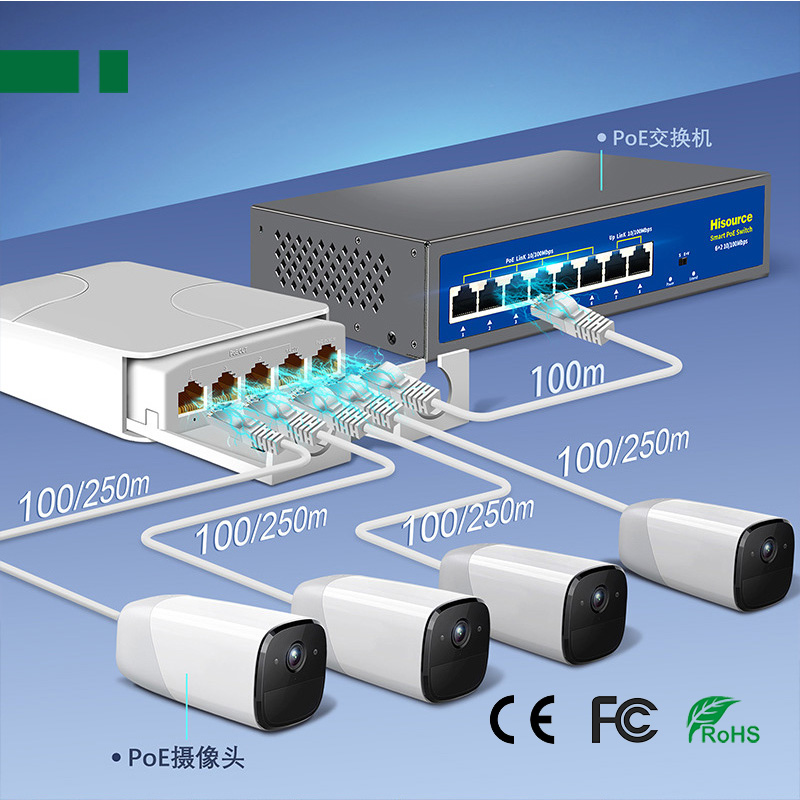

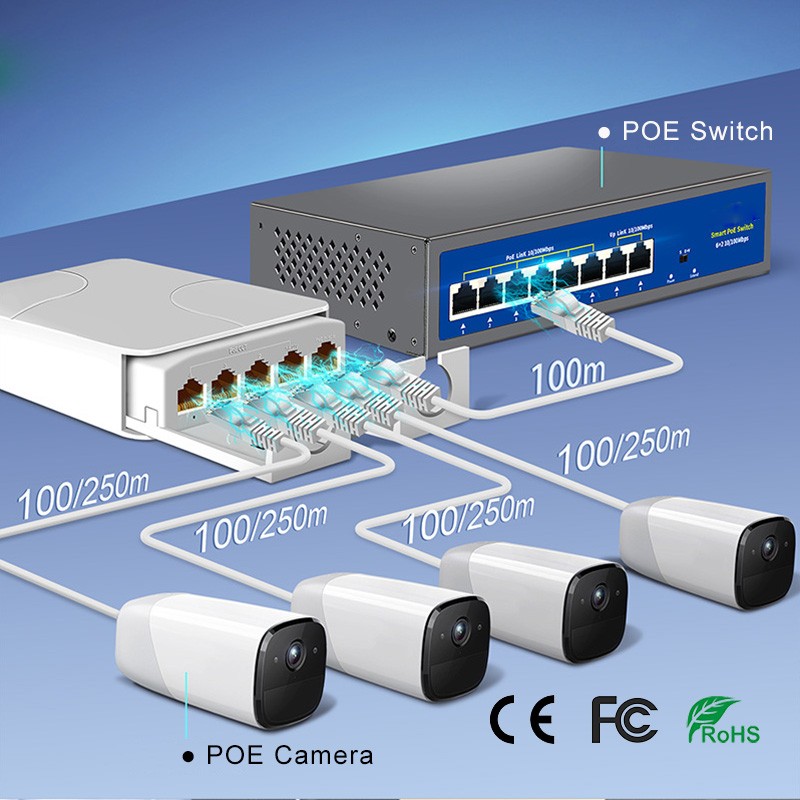

The POE Extender does not need to be connected to an additional power supply. Its power supply is placed at the end of a 100 m Network Cable from a POE Switch. It can extend the network and POE power supply for another 100m at full rate.

Feature:
4 Ports 1000Mbps POE Extender with Railing mounting;
1*10/100/1000Base-TX POE port (Data/Power）input;
3*10/100/1000Base-TX POE port (Data/Power）output;
Transmission distance: 100m;
Support 10/100/1000Mbps IEEE802.3af/at/bt;
POE In: 44V-57V/90W;
POE Output: 44V-57V(3-5) 30W/ 60W;
All port supported by MDI/MDIX autoflip and self negotiation;
Supply 4*10/100/1000Mbps adaptive high speedforwarding data;
Dimension: 95*130*35mm(L*W*H).

Specification:

Model	CPE-1063R	CPE-1063RG	CPE-1064R	CPE-1064RG
RJ45 Interface A	3*10/100Mbps-TX POE Supply Ports	3*10/100/1000Mbps-TX POE Supply Ports	4*10/100Mbps-TX POE Supply Ports	4*10/100/1000Mbps-TX POE Supply Ports
RJ45 Interface B	1*10/100Mbps-TX POE Receive Port	1*10/100/1000Mbps-TX POE Receive Port	1*10/100Mbps-TX POE Receive Port	1*10/100/1000Mbps-TX POE Receive Port
Transmission distance	100BASE-TX：Cat5 or later UTP(≤100meter)
Network protocol	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x
Forwarding mode	Storage and forwarding (full line speed)
POE standard	Support IEEE802.3af/at
POE Supply Pins	Default 1/2(+)，3/6(-)
POE Supply input	DC44-57V, 30Watt		DC44-57V, 90Watt
POE Receive Pins	Default 1/2(+)，3/6(-);  4/5(+)，7/8(-)
POE Supply ouptut	DC44-57V, 24Watt		DC44-57V, 85Watt
Power consumption	＜2Watt
Temperature	Working: -20℃～60°C
Product size	95mm×130mm×35mm(L×W×H)
Weight	55g	80g	55g	80g
