POE Repeater & Extender

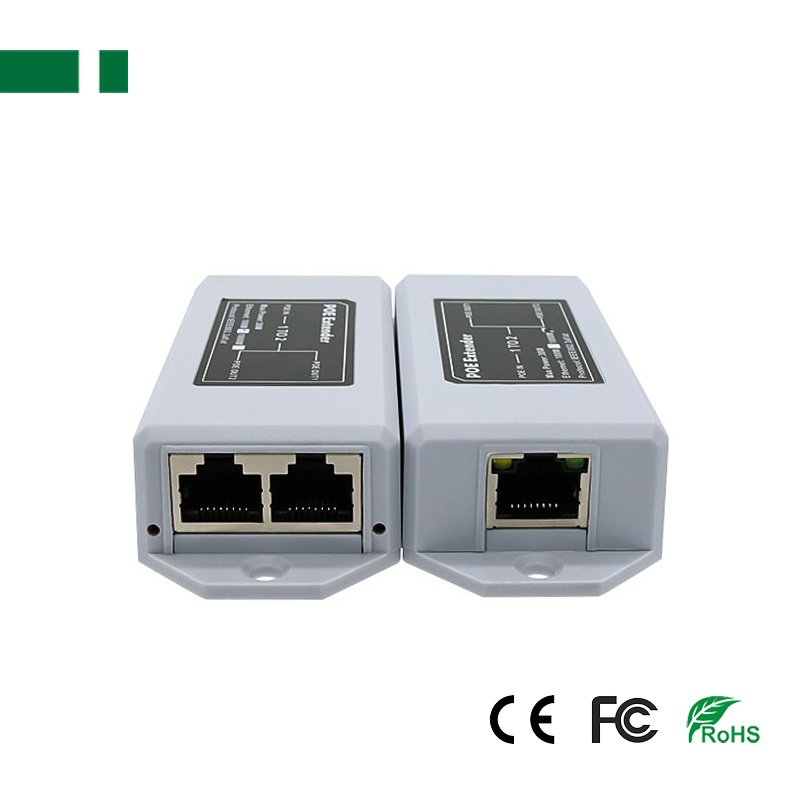

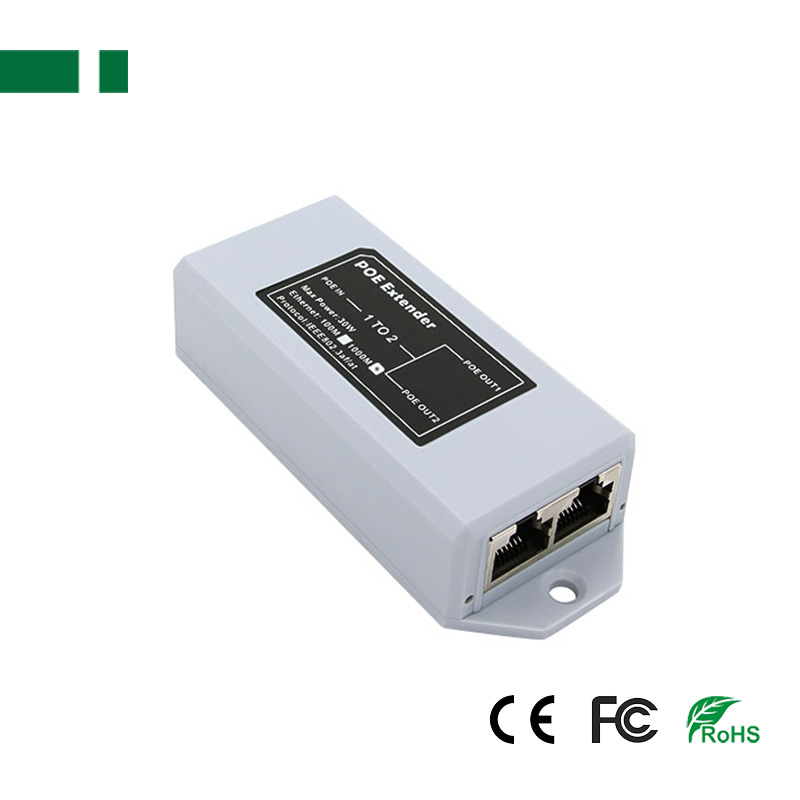

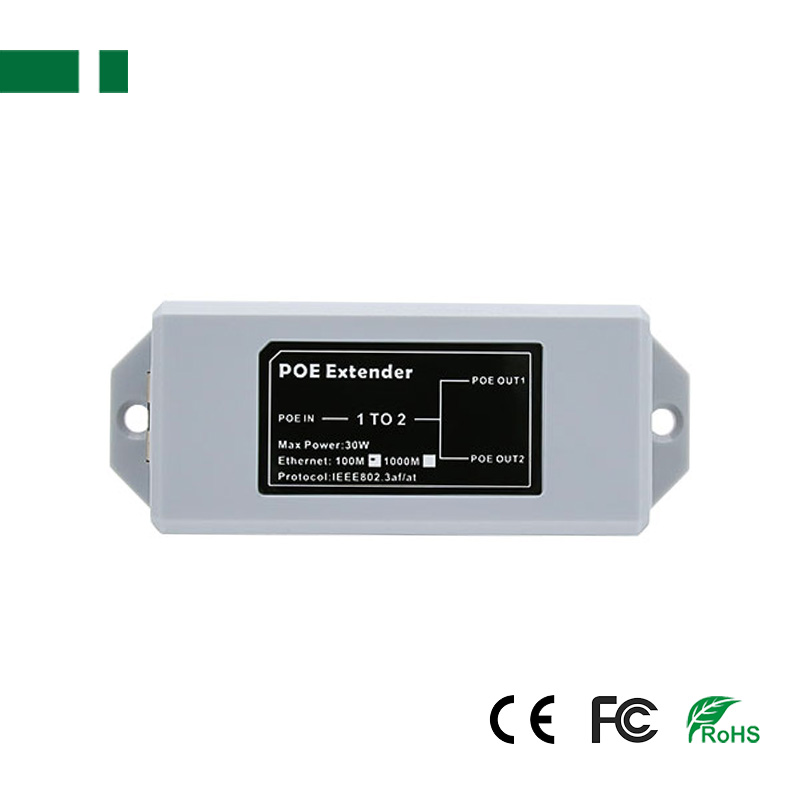

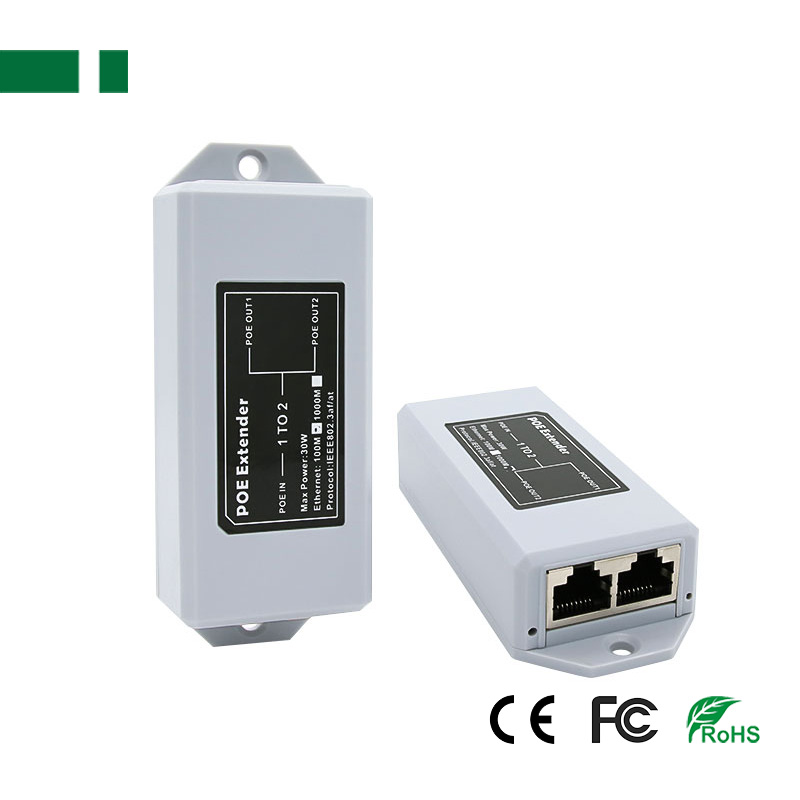

CPE-1022G 1.0Gbps 1*2 POE Splitter POE Extender

CPE-1022G 1.0Gbps 1*2 POE Splitter POE Extender

● POE Output: DC44-57V, Max.: 30W;
● Network Protocol: IEEE802.3at/af;
● Power Pin: 1/2(+)，3/6(-), Max.: 25.5W;
● Data Pin: 1/2(+), 3/6(-), 4/5(+), 7/8(-);
Product description: The POE Extender does not need to be connected to an additional power supply. Its power supply is placed at the end of a 100M Network Cable from a POE Switch.
INQUIRY EMAIL

Description：
The POE Extension Device provides 2-Port 1000Mbps power supply ports and 1-Port 1000Mbps Up-link power supply port. These ports support IEEE 802.3af/at standard POE Power Supply, and the POE power of a single port is up to 30Watt.
The POE Extender does not need to be connected to an additional power supply. Its power supply is placed at the end of a 100M Network Cable from a POE Switch. It can extend the network and POE power supply for another 100m at full rate.

Feature:
● 10/100/1000Mbps 1*2 POE Splitter/Extender;
● POE Input: DC44-57V;
● POE Output: DC44-57V, Max.: 30W;
● Network Protocol: IEEE802.3at/af;
● Network Speed: 10/100/1000Mbps;
● Data Pin: 1/2(+), 3/6(-), 4/5(+), 7/8(-);
● Power: 1/2(+)，3/6(-), Max.: 25.5W;
● Transmission distance: 100M;
● ABS Plastic Shell, Size: 108.5*42*24mm(L*W*H);

Specification:

100Mbps & 1.0Gbps *12 POE Splitter/ Extender**
Model	CPE-1022	CPE-1022B	CPE-1022G	CPE-1022BG
Interface	210/100Mbps-TX POE Port (Data & Power） 110/100Mbps-TX Uplink Port (Data & Power)		210/100/1000Mbps-TX POE Port (Data & Power） 110/100/1000Mbps-TX Uplink Port (Data & Power)
PoE Support	IEEE802.3at/af
Network protocol	IEEE802.3 10BASE-T； IEEE802.3i 10Base-T；IEEE802.3u 100Base-TX；IEEE802.3x
Forwarding mode	Storage and forwarding (full line speed)
Data Pin	1/2(+), 3/6(-)		1/2(+), 3/6(-), 4/5(+), 7/8(-)
Power Pin	1/2(+), 3/6(-) , Max.: 25.5W
Extend Distance	0~100M
Max. POE Power	30Watt
Power Consumption	＜2Watt
Temperature	Working: -10℃~+50℃, Store: -20℃~+85℃
Humidity	Working: 20~90%RH, Store: 10~95%RH
Material	ABS Plastic Housing
