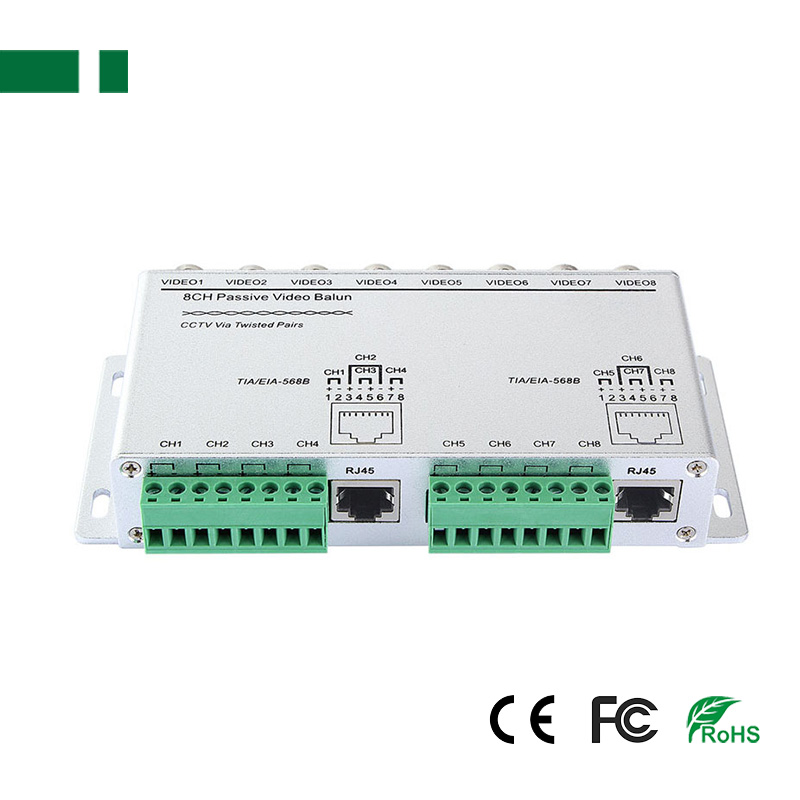

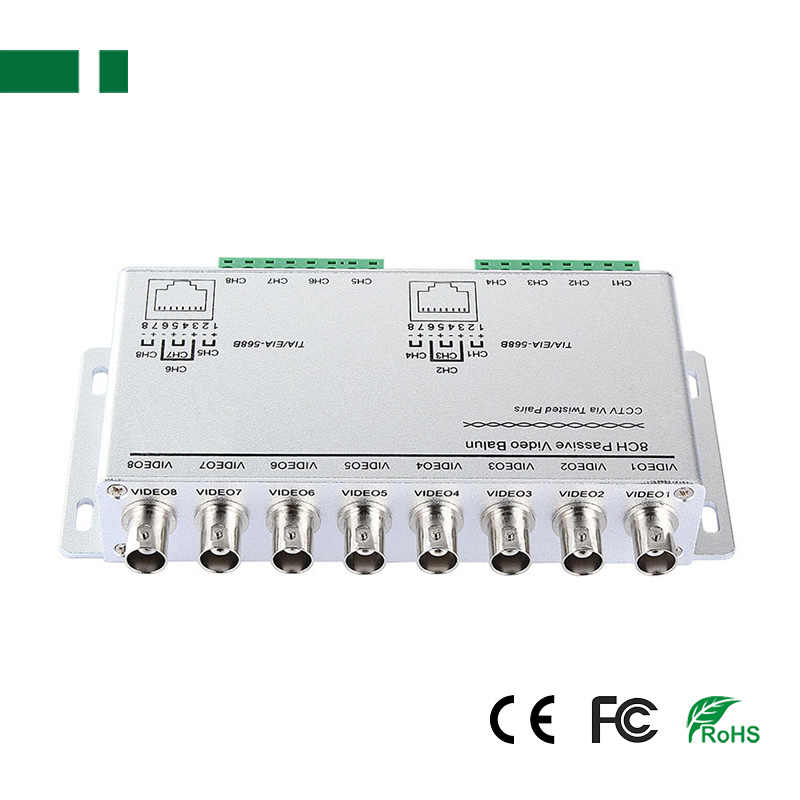

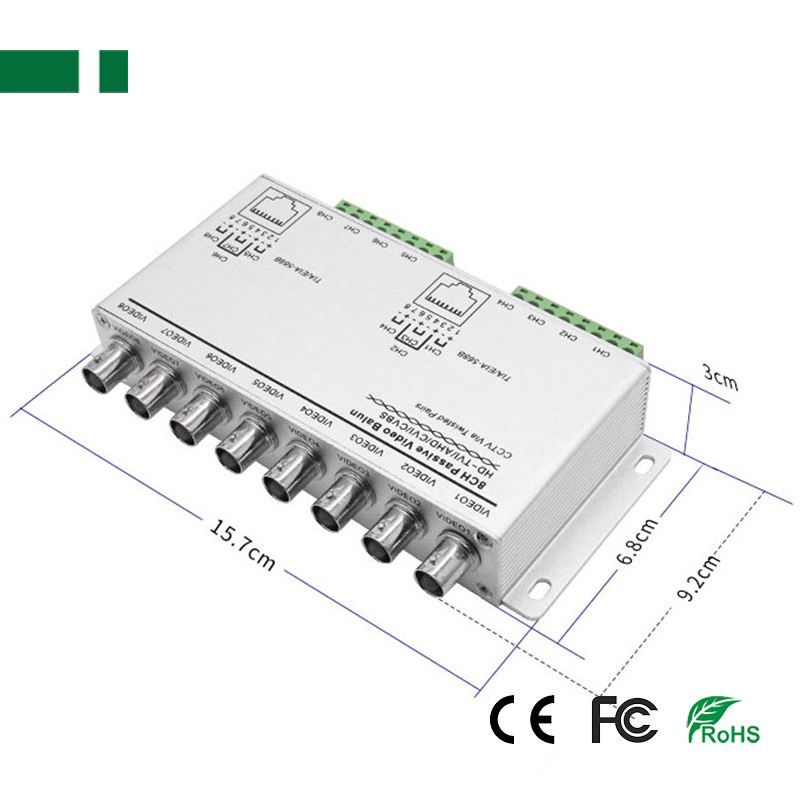

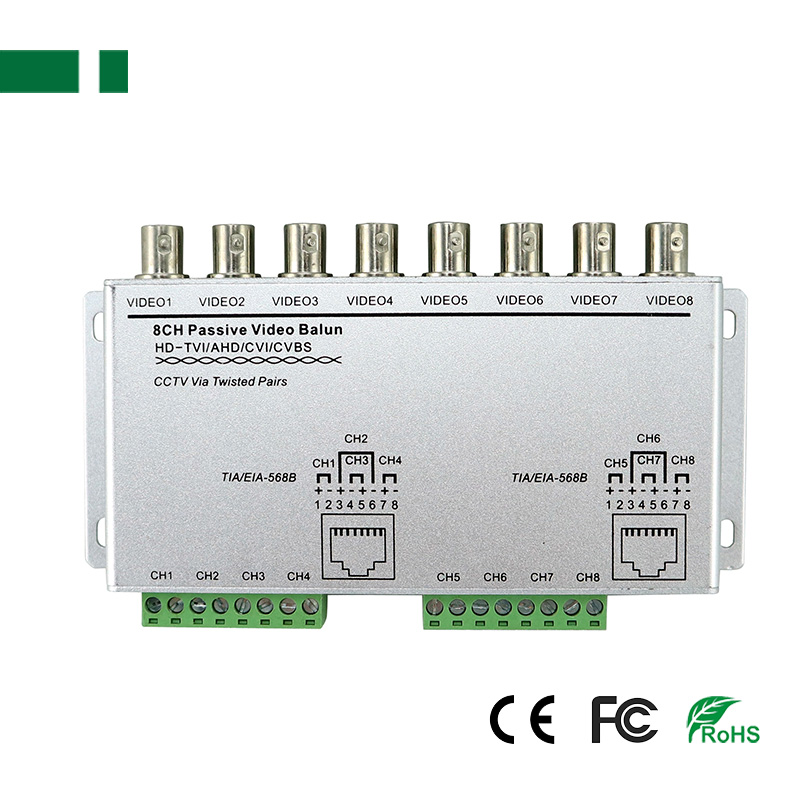

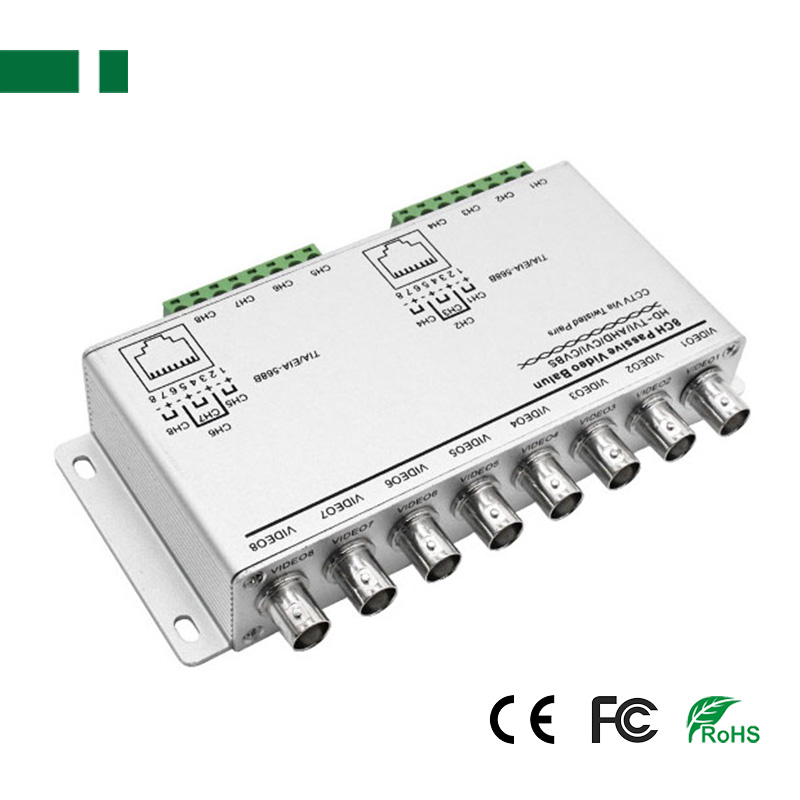

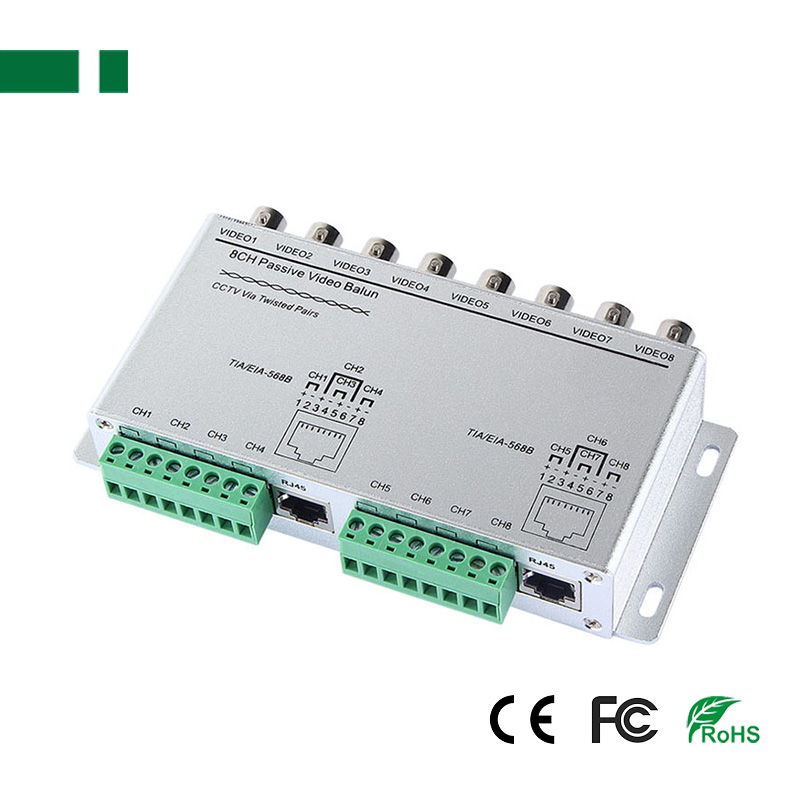

▪ 8 channels HD-CVI/ HD-TVI/HD-AHD/ CVBS Video Balun
▪ Resolution: 720P/ 960P/ 1080P/ 3MP/ 4MP/ 5MP
▪ Built-in solid state TVS for surge protection
▪ Aluminum alloy Metal Housing
▪ The HD Video Balun is a passive device that allows the transmission of real-time CCTV HD Video Signal and power via cost-effective UTP cable.
Description:
The HD Video Balun is a passive device that allows the transmission of real-time CCTV HD Video Signal and power via cost-effective Unshielded Twisted Paired (UTP) cable.
Feature:
1. Real-time transmission Video Signals over UTP CAT5e/6;
2. Compatible with HD-TVI, HD-CVI, HD-AHD and CVBS Analog Camera;
3. Compatible with 720P/ 960P/ 1080P/ 3MP/ 4MP/ 5MP;
4. 8-CH BNC Female to Terminal and RJ45 Connector;
5. Low crosstalk and noise suppressions;
6. Built-in solid state TVS(Transient Voltage Suppressor) for surge protection;
7. Wave Filter Design, Anti-Static Design;
8. 60dB crosstalk and noise immunity;
9. Exceptional interference rejection;
10. Aluminum alloy Metal Housing.
Specification:
| Model | CPB-H401C | CPB-H405C | CPB-H404 | CPB-H808 | CPB-H404C | CPB-H808C |
| Connector | BNC Male to RJ45 Female Connector | BNC Female to Terminal & RJ45 Connector | BNC Male to Terminal & RJ45 Connector | |||
| Balun Type | 4-CH Passive type | 4-CH Passive type | 8-CH Passive type | 4-CH Passive type | 8-CH Passive type | |
| Video Formats | HD-TVI, HD-CVI, AHD and CVBS | |||||
| Resolution | 720P/ 960P/ 1080P/ 3MP/ 4MP/ 5MP | |||||
| Ant-interference | >60dB | |||||
| ESD | 1a contact discharge electricity level 3, 1b air discharge electricity level 3 | |||||
| Surge Protection | 2KV (different-code), 2KV (common-code), Per: IEC61000-4-5 | |||||
| Wire Type | UTP CAT5e/ 6 (R<100Ω/100M) Twisted Pair Wire | |||||
| Impedance | BNC Male:75 ohms; UTP Cable: 100 ohms | |||||
| MTBF | >10000h | |||||
| Temperature | Working: -10°C to +70°C, Storage: -20°C to +90°C | |||||
| Humidity | 0 to 95% (non-condensing) | |||||
| Material | ABS Engineering Plastic | Aluminum alloy Metal Housing | ||||
| HD-TVI, HD-CVI, HD-AHD and CVBS Video transmitting Distance | |||
| Camera Type | HD-TVI | HD-CVI | HD-AHD |
| 720P Camera | Max. 350M (1148ft) | Max. 400M (1312ft) | Max. 450M (1476ft) |
| 960P Camera | / | / | Max. 350M (1148ft) |
| 1080P Camera | Max. 250M (820ft) | Max. 250M (820ft) | Max. 250M (820ft) |
| 3MP Camera | Max. 250M (820ft) | Max. 250M (820ft) | Max. 250M (820ft) |
| 4MP Camera | Max. 210M (689ft) | Max. 210M (689ft) | Max. 200M (656ft) |
| 5MP Camera | Max. 210M (689ft) | Max. 210M (689ft) | Max. 190M (623ft) |
| 8MP Camera | Max. 200M (656ft) | Max. 200M (656ft) | Max. 190M (623ft) |
| CVBS Camera | Max. 400M (1312ft) | ||
