HD-CVI/TVI/AHD & CVBS
1080P/3MP/4MP/5MP/8MP
Lightning protection design
Real-time transmission over UTP Cat5e/6

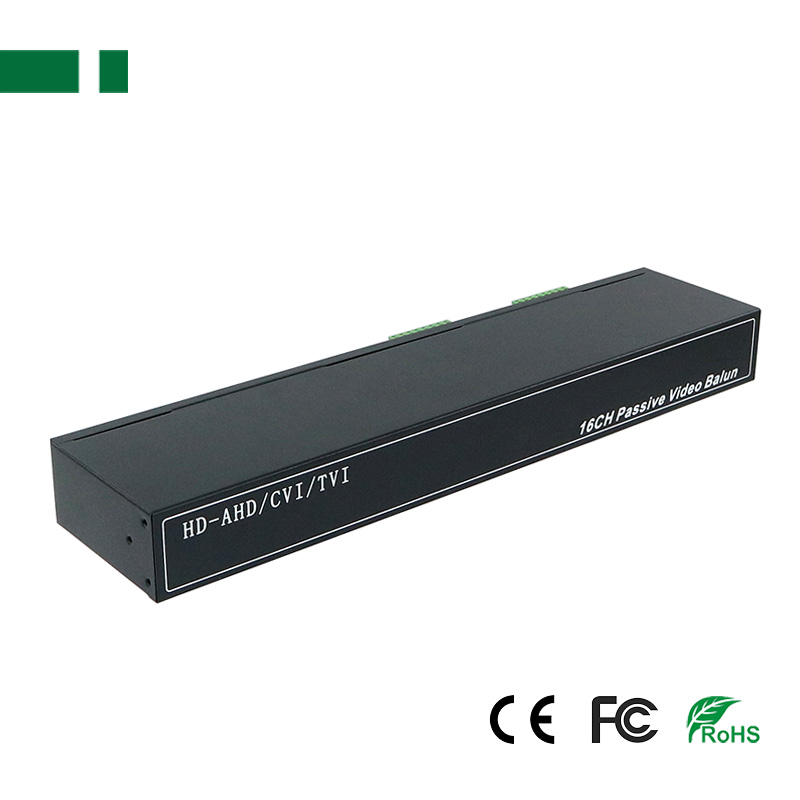

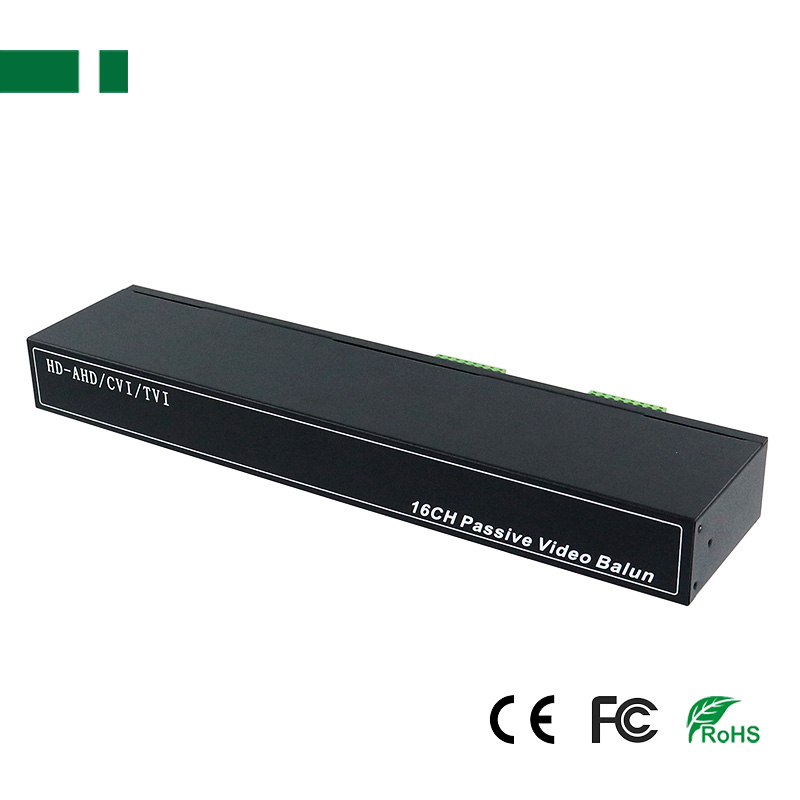

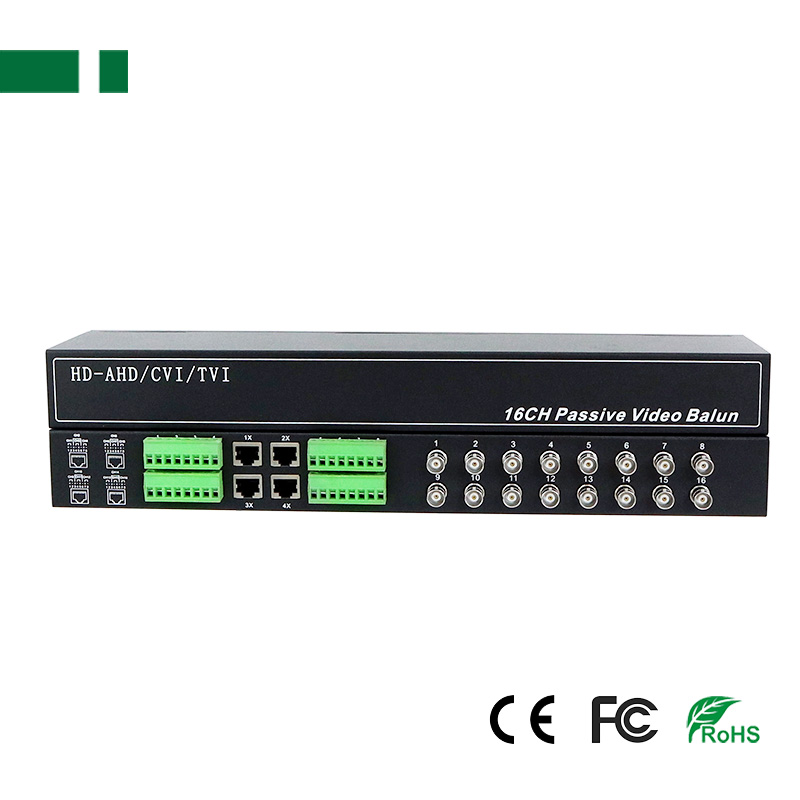

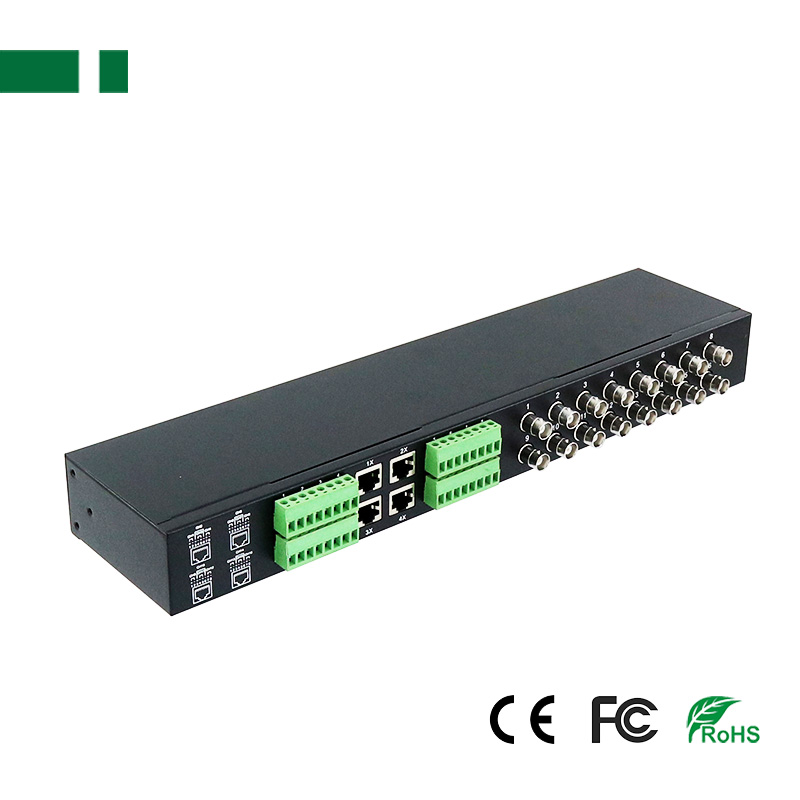

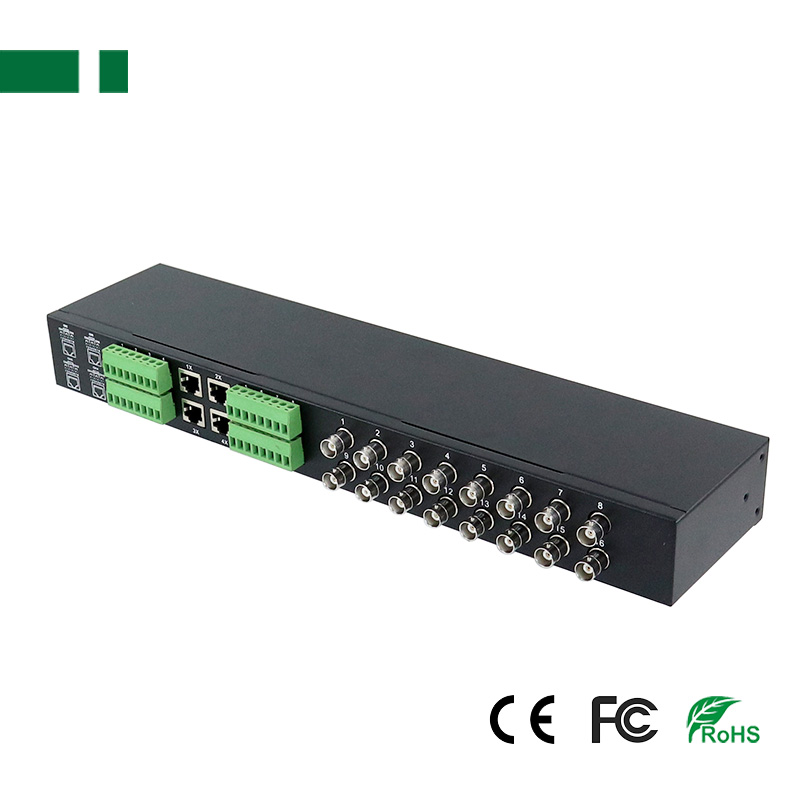

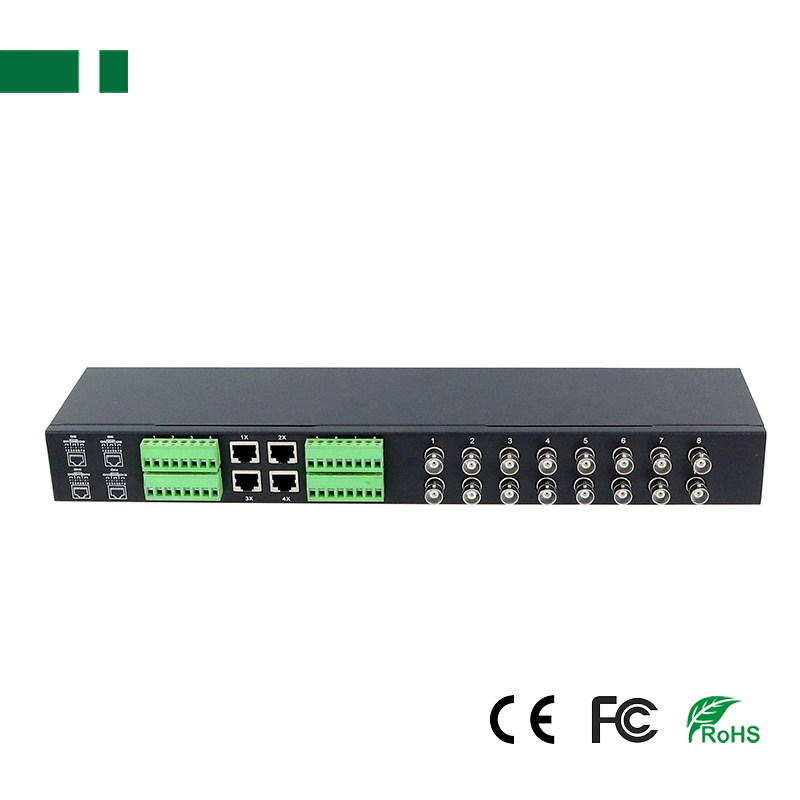

16CH HD-AHD CVI TVI Video Balun Compatible with 720P/ 960P/ 1080P/ 3MP/ 4MP/ 5MP/ 8MP
Features:
1. Video Balun Compatible with all HD-CVI/TVI/AHD & CVBS
2. Compatible with 720P/960P/1080P/3MP/4MP/5MP/8MP
3. Built in solid state TVS (Transient voltage suppressor) for surge protection
4. No power required
5. stackable for Neat installtion
6. ABS engineering plastic Housing
7. 60dB crosstalk and noise immunity
8. Lightning protection design grade:III
9. Wave Filter design, Anti-statit design
10. Real-time transmission over UTP Cat5e/6
Specification:
<p style="color:#333333;font-family:Arial, " font-size:14px;background-color:#ffffff;"="">
| Model | CPB-H1602 |
| Balun Type | Passive |
| Video transmitting distance | Up to 450m for 720P CVI Cameras |
| Video Formats | NTSC, PAL, SECAM |
| Crosstalk & noise immunity | 60dB |
| Surge protection | 4KV, ESD:8KV |
| Frequency Response | DC to 60Mhz |
| Wire Type | Unshielded Cat-5 or above twisted pair wire |
| Impedance | BNC:75 ohms; Terminal: 100 ohms |
| Working temperature | -10°C to +70°C |
| Storage Temperature | -10°C to +70°C |
| Humidity | 0 to 95% |
| Material | AL |
