36W Access Control Power Supply
Input AC220V/ 50Hz
N/O & N/C contacts for connection to various electric locks;
Size: 205*165*74mm

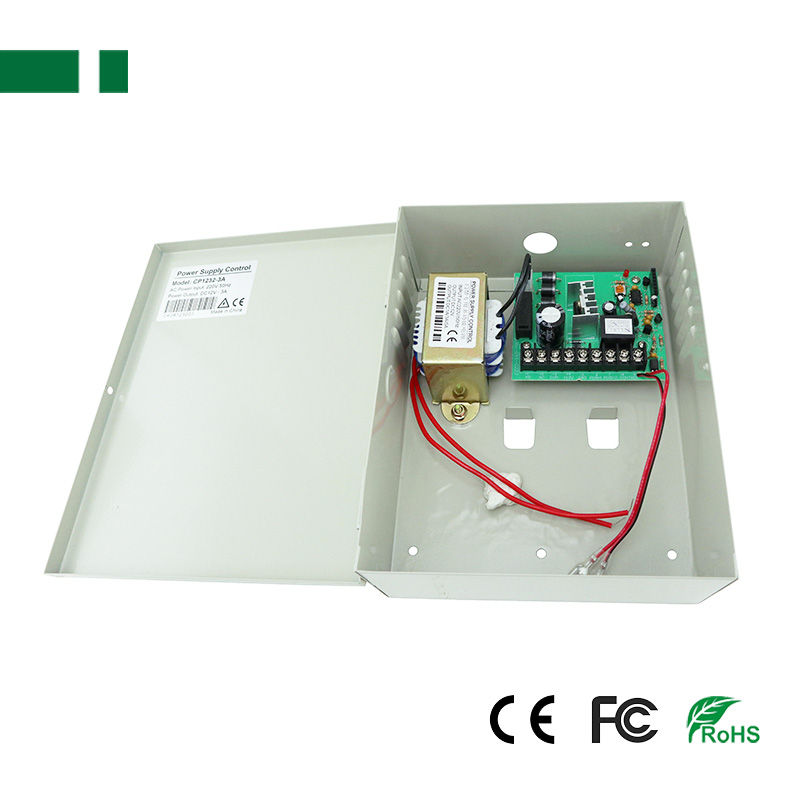

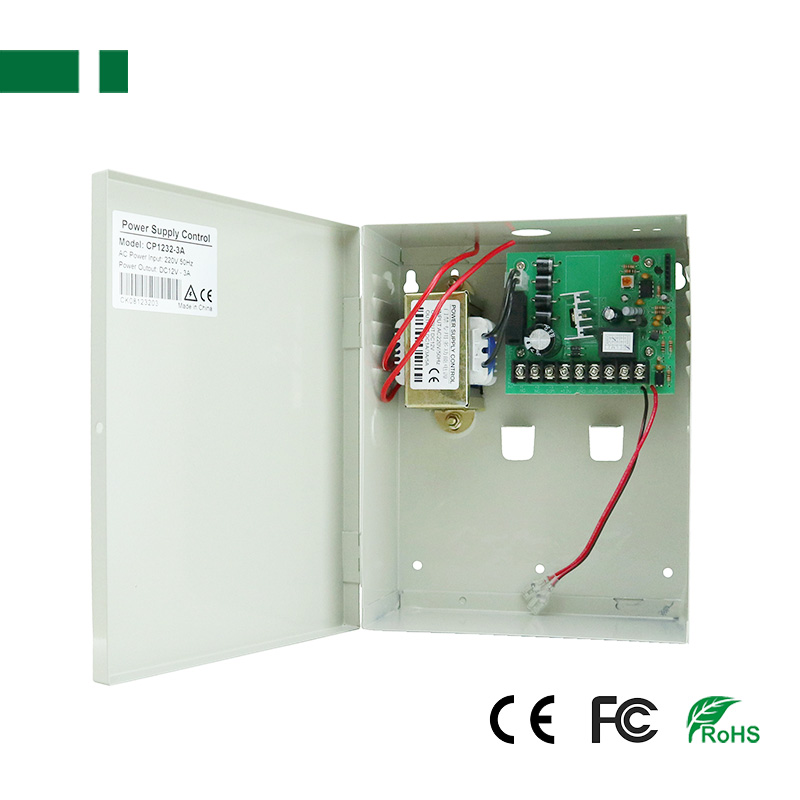

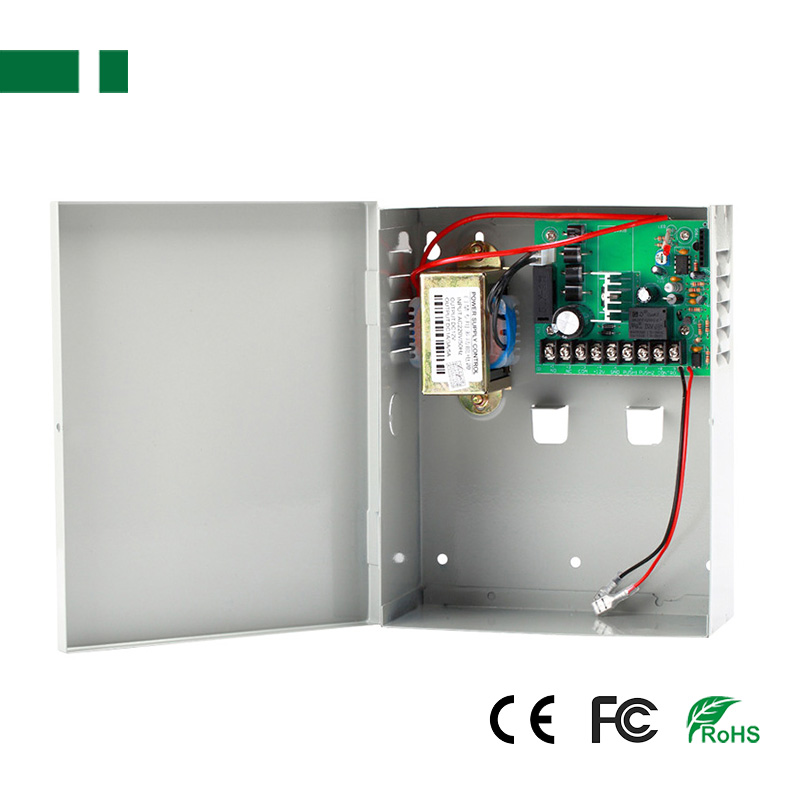

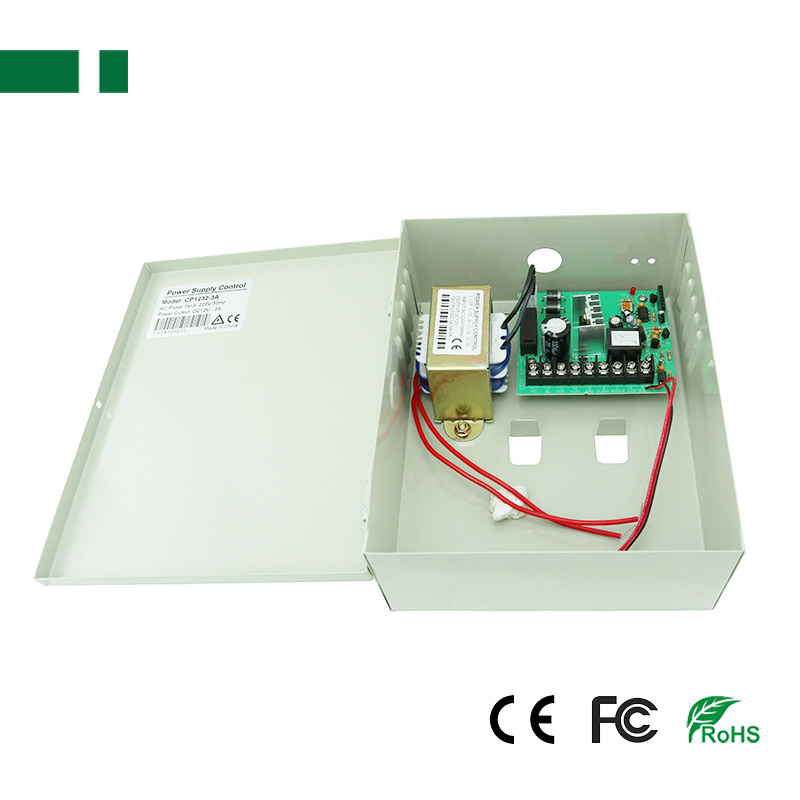

DC12V 3A Access Control Power Supply Box, Support Battery For All Kinds of Electric Door Lock With Time Delay
DC12V 3A Access Control Power Supply Box, Support Battery For All Kinds of Electric Door Lock With Time Delay
Introduction:
This power supply uses high quality electronic components and has been manufactured with advanced manufacturing technology. High product quality and reliability are guaranteed. Which is suitable for building inter-coms, entrance and exit inhibitors, and various electric door locks.
Features:
1. Input AC220V/ 50Hz, output DC12V stablized 3A;
2. Direet control of door locks to reduce loading on door inhibitors, anti-disturbance, reduced wiring to save costs and reduce possible faults;

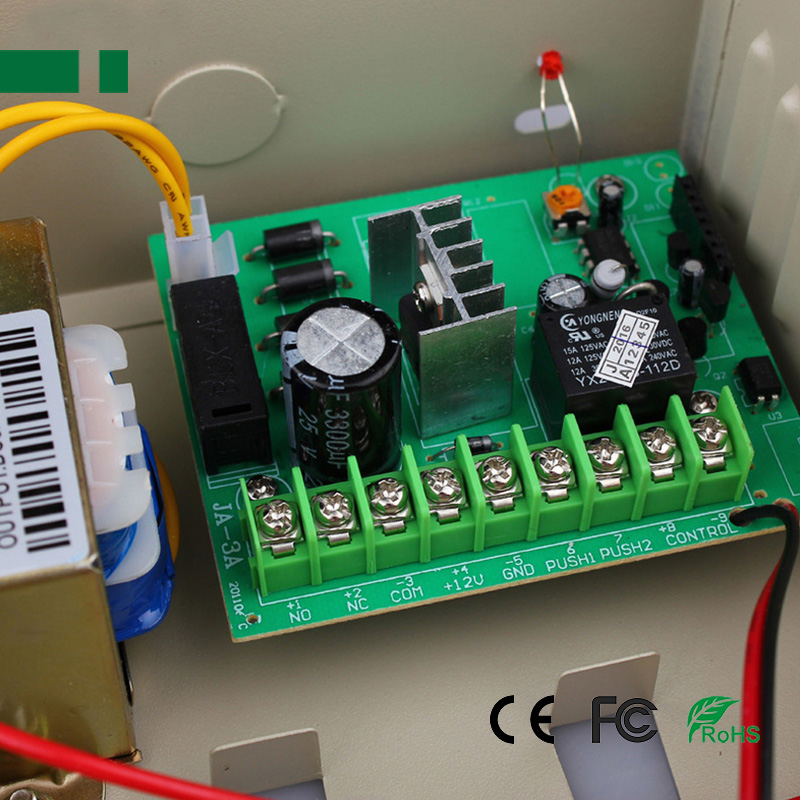

3. N/O and N/C contacts for connection to various electric locks;
4. Delayed switching, settable between 0-15 seconds;
5. Automatic protection. Power will be temporarily disconnected of fuse will blow when there is overloading or a short circuit;
6. Remote control with an optional remote control module. A remote confroller is used to activate doors// gates. Control range is up to 80m at open field with no disturbance.

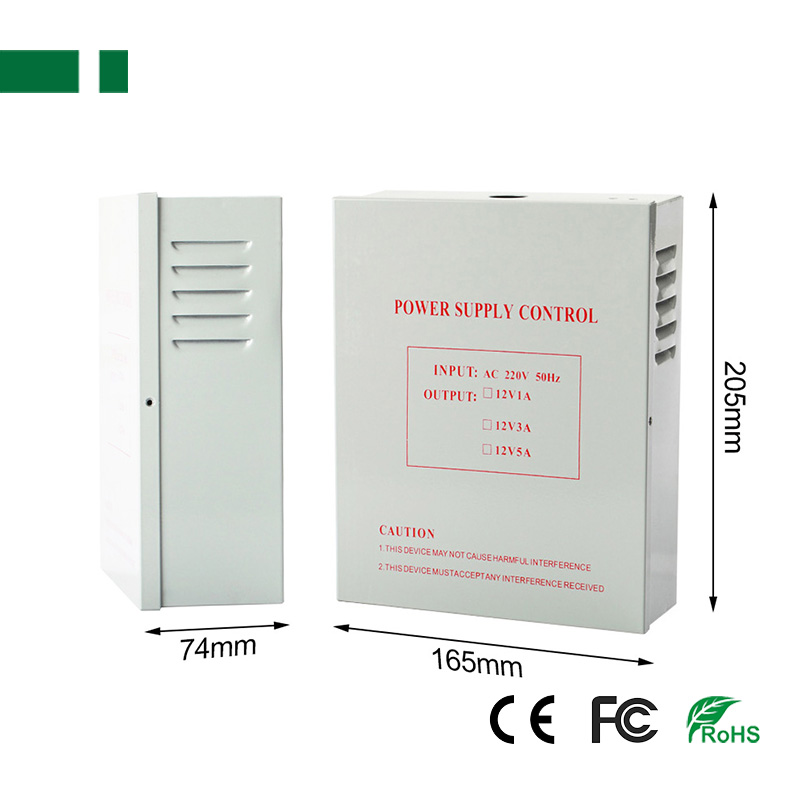

7. Size: 205*165*74mm
Specification:
| DC12V Access Control Power Supply, AC220V with Delay Adjustment, Suitable for Building Door Lock Control | |||||
| Model | CP1232-3A | CP1232-5A | CP1233-3A | CP1233-5A | |
| Output | DC output Voltage | 12V±10% | |||
| Output Current Range | 0-3A | 0-5A | 0-3A | 0-5A | |
| Wave and Noise | 120mVp-p | ||||
| DC output Power | 36W | 60W | 36W | 60W | |
| Efficiency | 0.85 | ||||
| DC Voltage Adjustable Scope | （at full load）≦0.5% | ||||
| Input | Voltage Range | 220VAC 50Hz | |||
| Input Current | 0.18A/220V | 0.27A/220V | 0.18A/220V | 0.27A/220V | |
| Leakage Current | <1mA/ 240VAC | ||||
| Inrush Current | Cold start 20A/120VAC, 40A/230VAC | ||||
| Protection | Over-load | 105%~135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed | |||
| Over-voltage | 105%---150% Rated Voltage, Protection type: Shut off | ||||
| High-temperature | RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V) | ||||
| Environment | Working temperature and humidity | -10°C~+50°C, 20~90%RH | |||
| Store temperature and humidity | -20°C~+85°C, 10~95%RH | ||||
| Temperature coefficient | ±0.03%°C(0~50°C) | ||||
| Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES | ||||
| Safety | Withstand voltage | I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC | |||
| Isolation resistance | I/P-O/P,I/P-FG,O/P-FG: 100M Ohms/500VDC | ||||
| Standard | CE EMC Standard | EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013 | |||
| CE LVD Standard | EN61347-2-13:2014+A1:2017, EB61347-1:2015 | ||||
| ROHS Standard | IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc. | ||||
| Other | Dimension | 165*205*74mm | 165*205*74mm | 185*88*65mm | 185*88*65mm |
| Weight | 1340g | 1580g | 1020g | 1300g | |
| NOTE: | 1. All parameters NOT specially mentioned are
measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. I/P-O/P: Input and output interval, I/P-FG: Input and enclosure, O/P-FG: Output and enclosure | ||||
