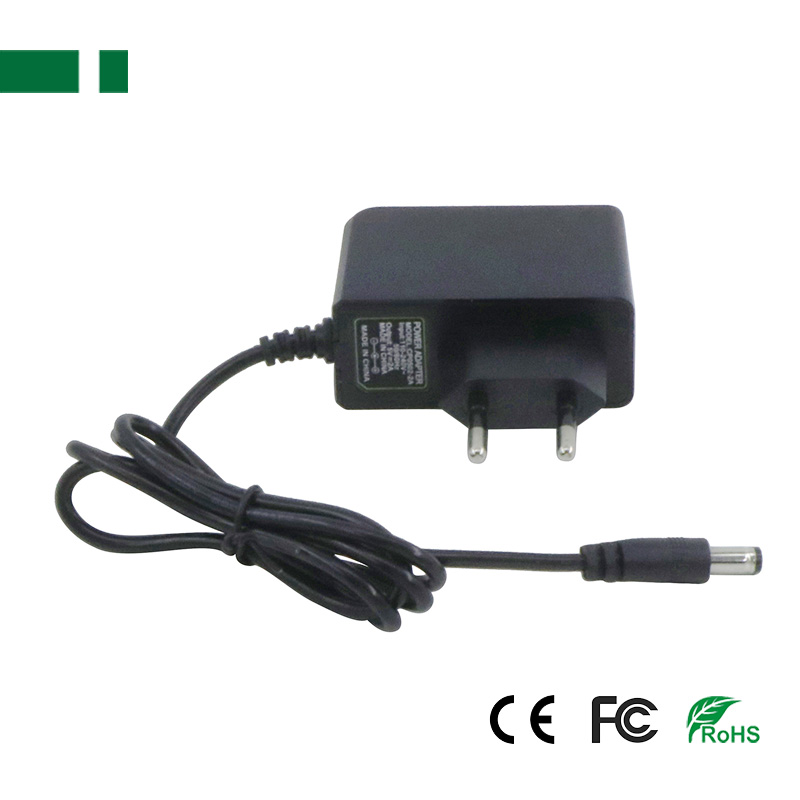

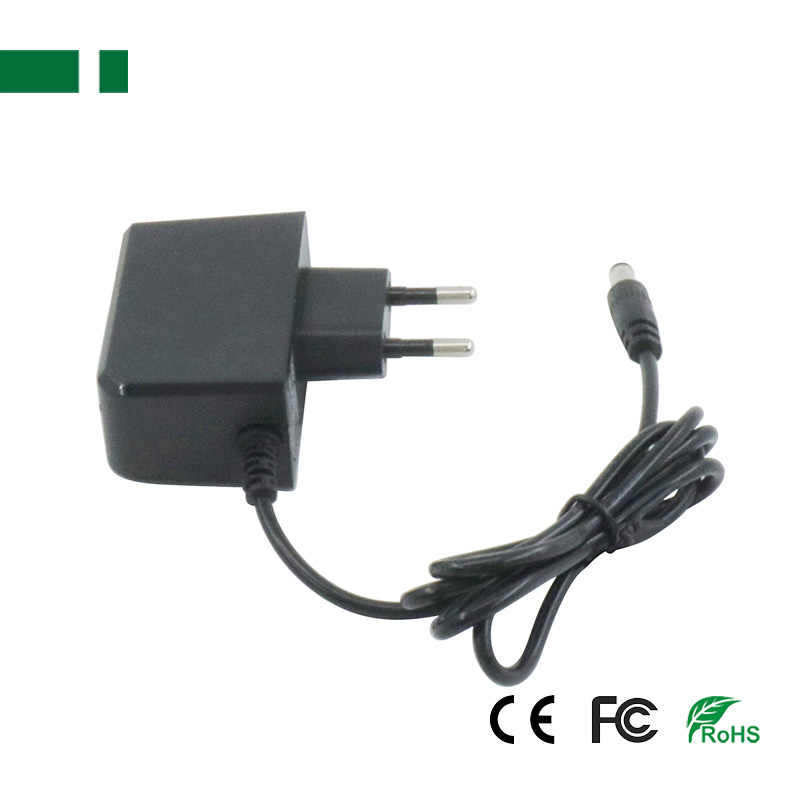

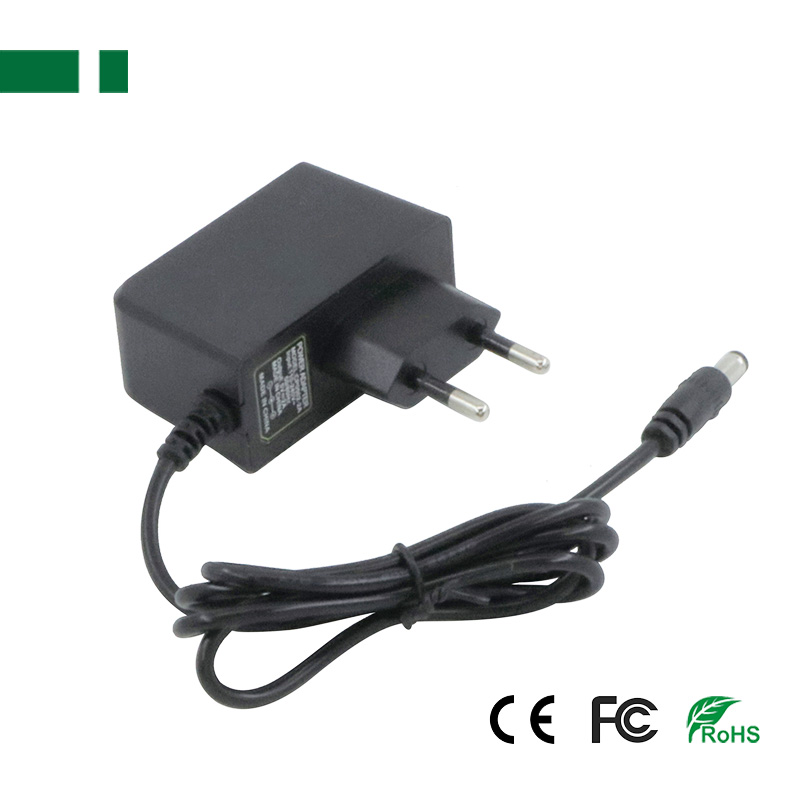

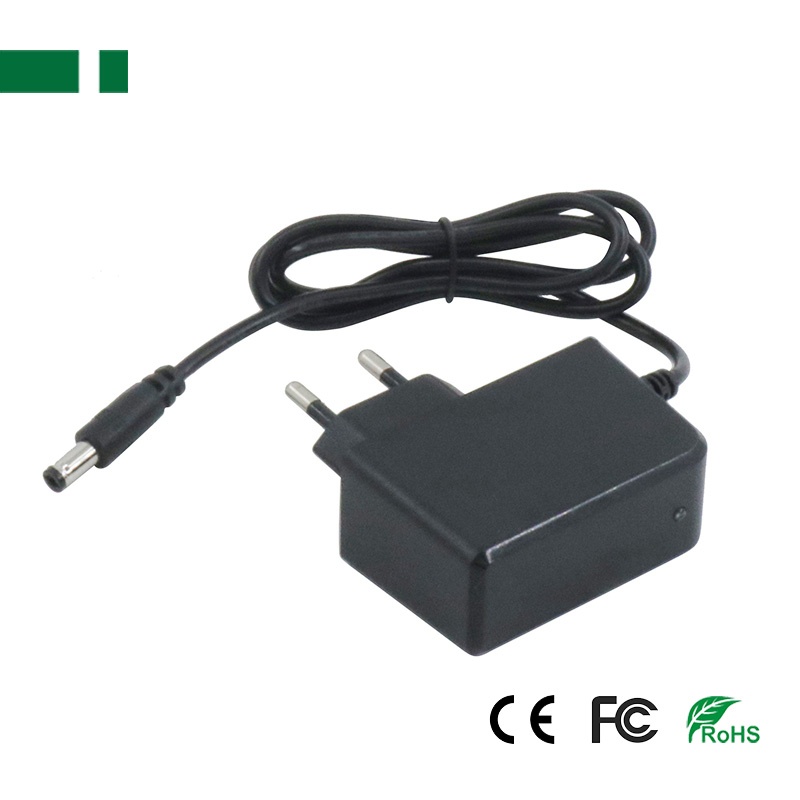

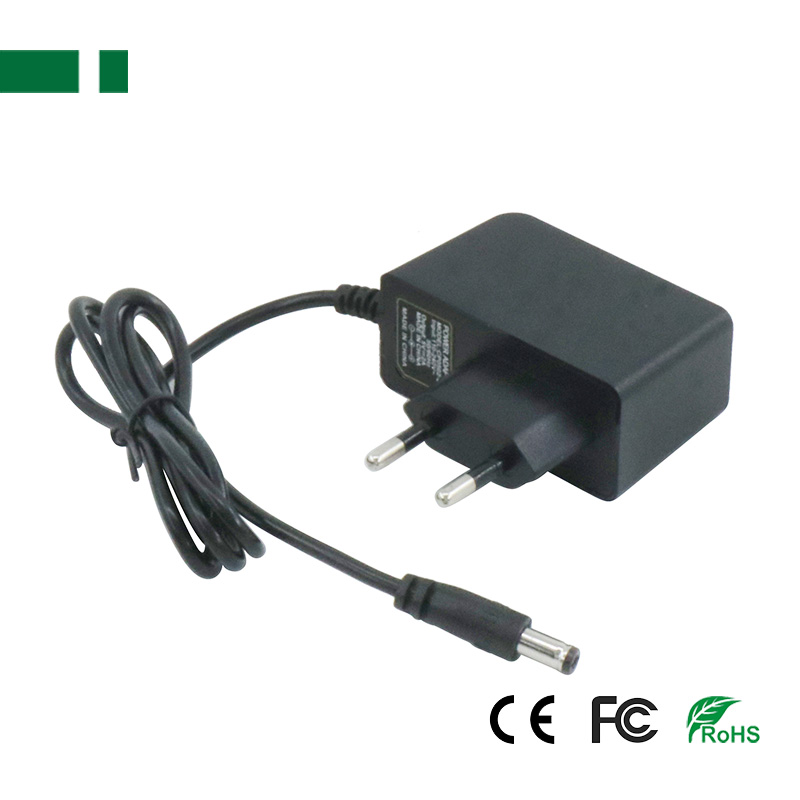

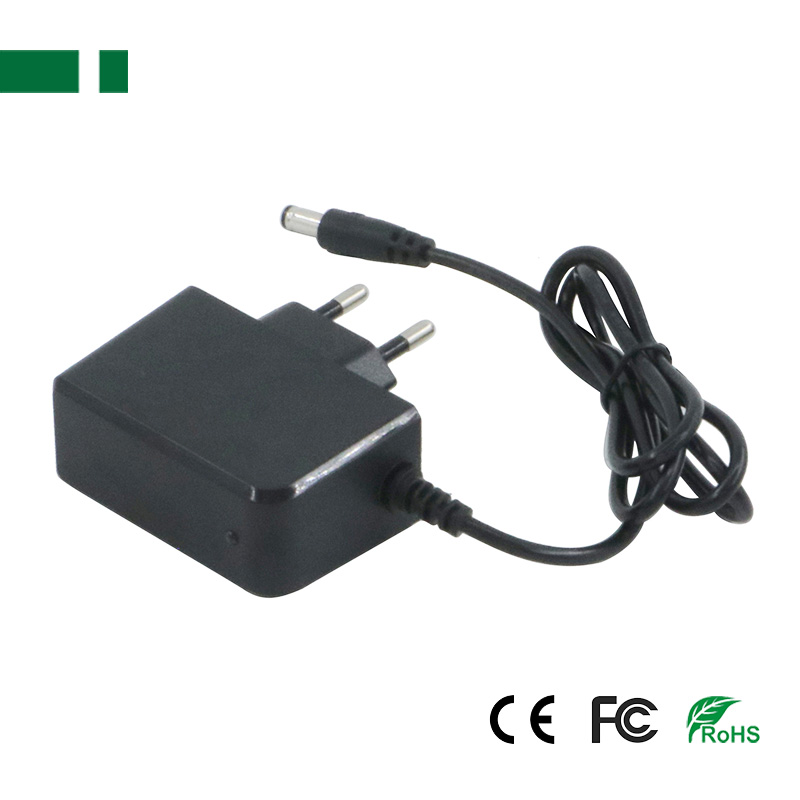

▪ 12W DC5V 2A Power Adapter;
▪ Output voltage & current: DC5V 2A;
▪ Input voltage range: 85~264VAC;
▪ 100% full load burn-in test.
▪ 100% full load burn-in testAn AC-DC power supply or adapter is an electrical device that obtains electricity from a grid-based power supply and converts it into a different current, frequency, and voltage. AC-DC power supplies are necessary to provide the right power that an electrical component needs.
Features:
1. 12W Output Power Adapter;
2. Output voltage & current: DC5V 2A;
3. Input voltage range: 85~264VAC;
4. Built in EMI filter with tiny ripple;
5. 100% full load burn-in test;
6. Air Cooling;
7. Protection: Short circuit/ Overload/ Over voltage/ Over temperature.
Specification:
| Model | CP0501-1A | CP0501-2A | CP0502-2A | CP0504-2A | CP0503-6A |
| DC output Voltage | DC5V±10% | ||||
| Output Current Range | 0-1A | 0-2A | 0-2A | 0-2A | 0-6A |
| Wave and Noise | 120mVp-p | ||||
| DC output Power | 5W | 12W | 12W | 12W | 30W |
| Efficiency | 85% | ||||
| DC Voltage Adjustable Scope | （at full load）≦0.5% | ||||
| Voltage Range | 100~240VAC 47-63Hz | ||||
| Input Current | 0.07A/ 115V, 0.04A/ 230V | 0.14A/ 115V, 0.07A/ 230V | 0.36A/ 115V, 0.18A/ 230V | ||
| Leakage Current | <1mA/ 240VAC | ||||
| Inrush Current | Cold start 20A/ 120VAC, 40A/ 230VAC | ||||
| Dimension | 75*81*29mm(L*W*H) | 65*75*29mm(L*W*H) | 42*76*67mm(L*W*H) | 80*35*25mm(L*W*H) | 126*56*31mm(L*W*H) |
| Weight | 62g | 65g | 63g | 35g | 226g |
| Over-load | 105%~135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed | ||||
| Over-voltage | 105%---150% Rated Voltage, Protection type: Shut off | ||||
| High-temperature | RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V) | ||||
| Temperature | Working: -10°C~+50°C, Store: -20°C~+85°C | ||||
| Humidity | Working: 20~90%RH, Store: 10~95%RH | ||||
| Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES | ||||
| Withstand voltage | I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC | ||||
| Isolation resistance | I/P-O/P,I/P-FG,O/P-FG: 100M Ohms/500VDC | ||||
| CE EMC Standard | EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013 | ||||
| CE LVD Standard | EN61347-2-13:2014+A1:2017, EB61347-1:2015 | ||||
| ROHS Standard | IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc. | ||||
| Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. I/P-O/P: Input and output interval, I/P-FG: Input and enclosure, O/P-FG: Output and enclosure | ||||
