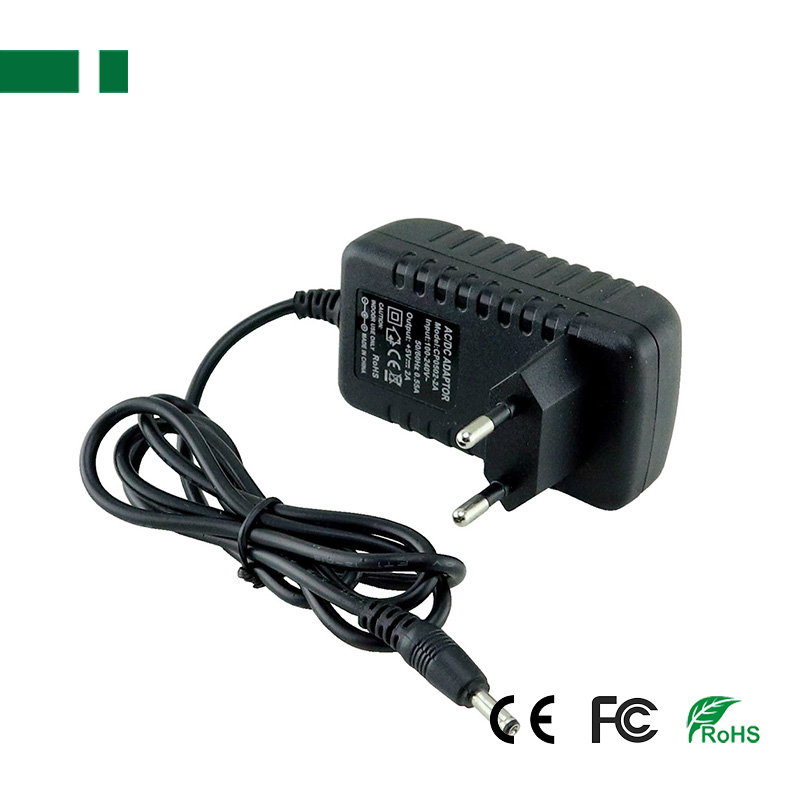

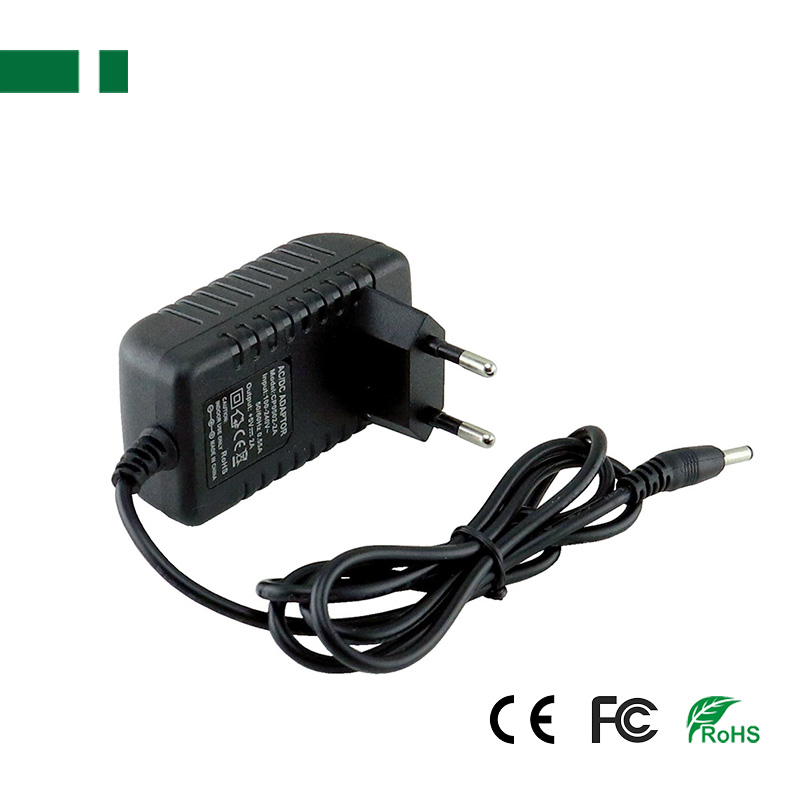

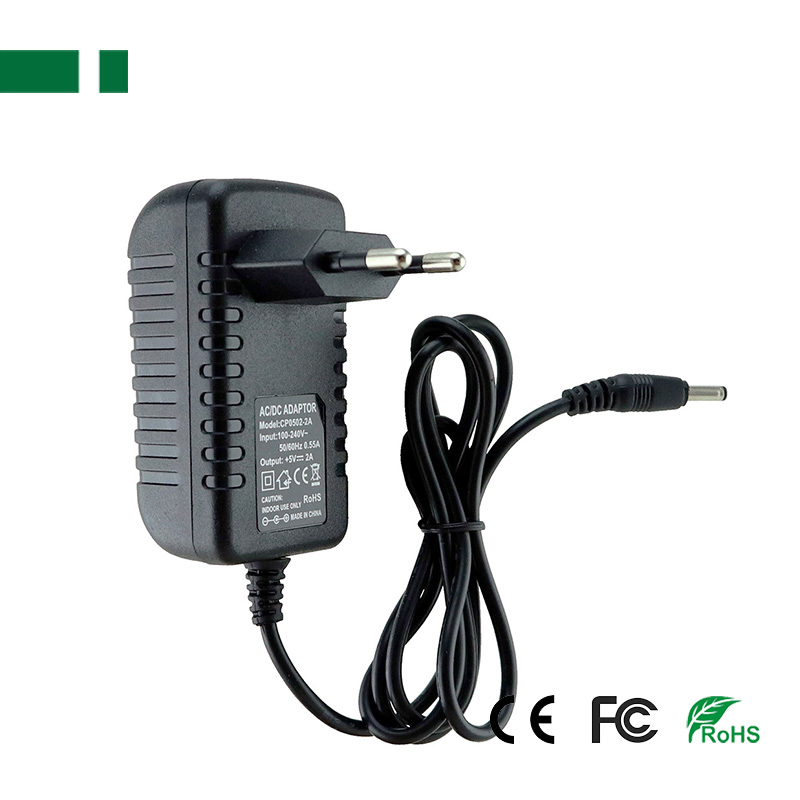

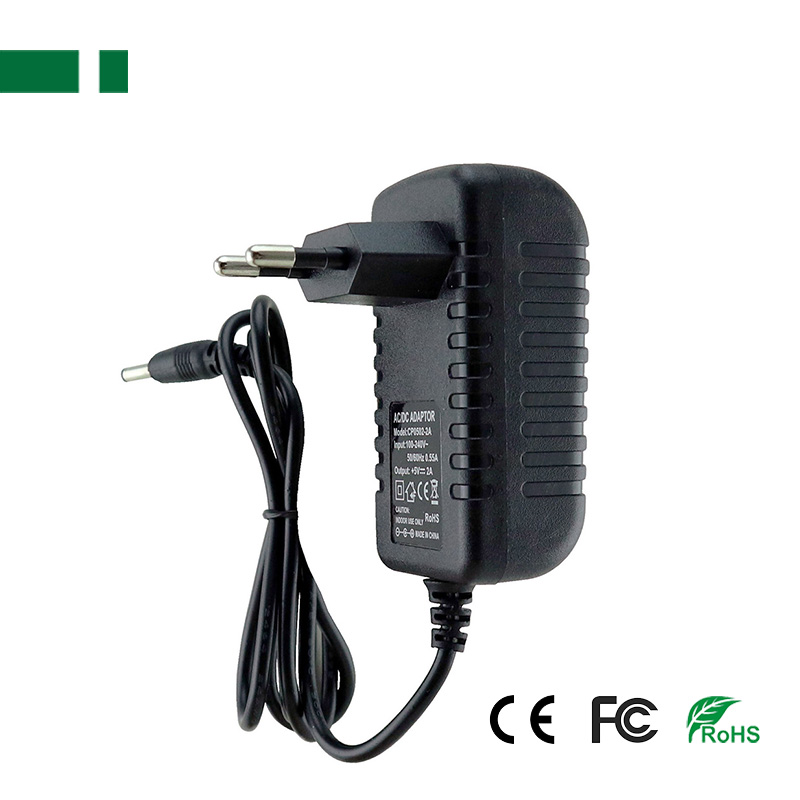

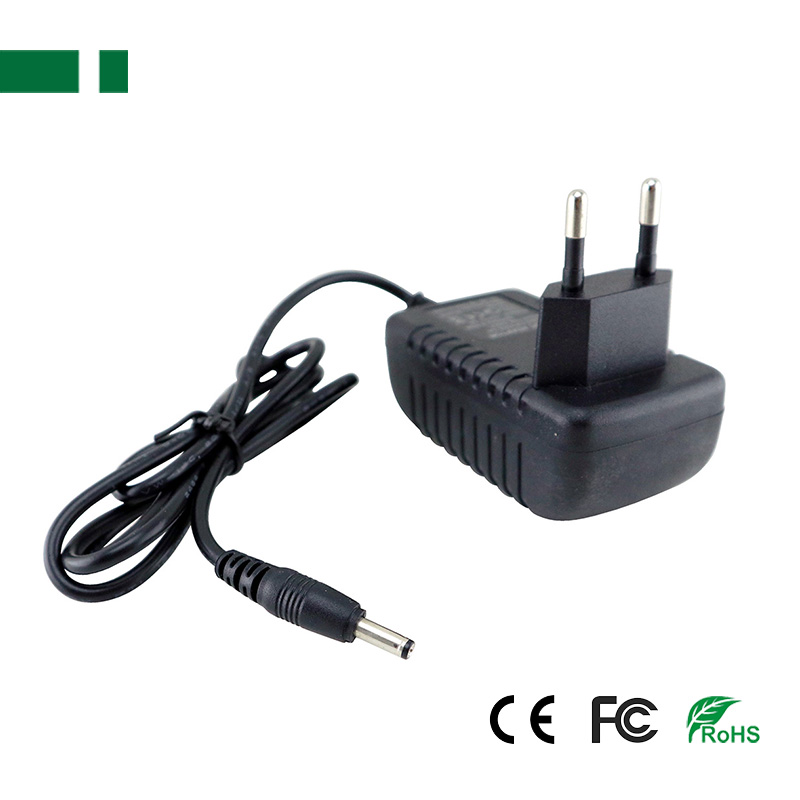

CP0502-2A 12W DC5V 2A Power Adapter

12W Output Power Adapter
Output voltage & current: DC5V 2A
100% full load burn-in test
Input voltage range: 85~264VAC
Product description: An AC-DC power supply or adapter is an electrical device that obtains electricity from a grid-based power supply and converts it into a different current, frequency, and voltage. AC-DC power supplies
INQUIRY EMAIL

Features:

1. 12W Output Power Adapter
2. Output voltage & current: DC5V 2A
3. Input voltage range: 85~264VAC
4. Built in EMI filter with tiny ripple
5. 100% full load burn-in test
6. Air Cooling
7. Protection: Short circuit/ Overload/ Over voltage/ Over temperature

Specification:

Model	CP0501-1A	CP0501-2A	CP0502-2A	CP0504-2A	CP0503-6A
DC output Voltage	DC5V±10%
Output Current Range	0-1A	0-2A	0-2A	0-2A	0-6A
Wave and Noise	120mVp-p
DC output Power	5W	12W	12W	12W	30W
Efficiency	85%
DC Voltage Adjustable Scope	（at full load）≦0.5%
Voltage Range	100~240VAC 47-63Hz
Input Current	0.07A/ 115V, 0.04A/ 230V	0.14A/ 115V, 0.07A/ 230V	0.14A/ 115V, 0.07A/ 230V	0.14A/ 115V, 0.07A/ 230V	0.36A/ 115V, 0.18A/ 230V
Leakage Current	<1mA/ 240VAC
Inrush Current	Cold start 20A/120VAC, 40A/230VAC
Dimension	758129mm(LWH)	657529mm(LWH)	427667mm(LWH)	803525mm(LWH)	1265631mm(LWH)
Weight	62g	65g	63g	35g	226g
Over-load	105%~135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over-voltage	105%---150% Rated Voltage, Protection type: Shut off
High-temperature	RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V)
Temperature	Working: -10°C~+50°C, Store: -20°C~+85°C
Humidity	Working: 20~90%RH, Store: 10~95%RH
Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
Withstand voltage	I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
Isolation resistance	I/P-O/P,I/P-FG,O/P-FG: 100M Ohms/500VDC
CE EMC Standard	EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013
CE LVD Standard	EN61347-2-13:2014+A1:2017, EB61347-1:2015
ROHS Standard	IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc.
Notes	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. I/P-O/P: Input and output interval, I/P-FG: Input and enclosure, O/P-FG: Output and enclosure
