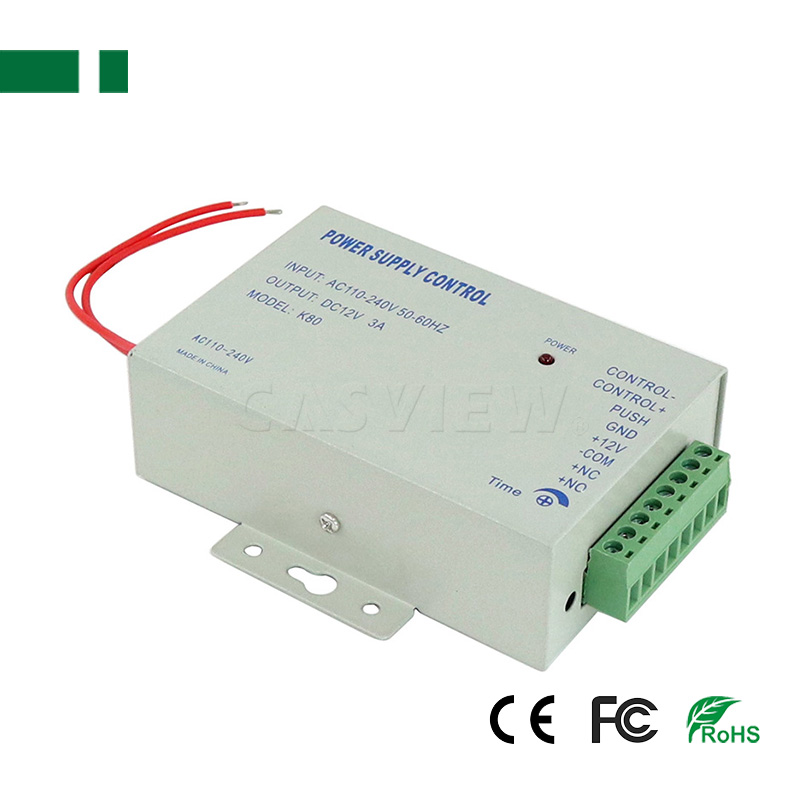

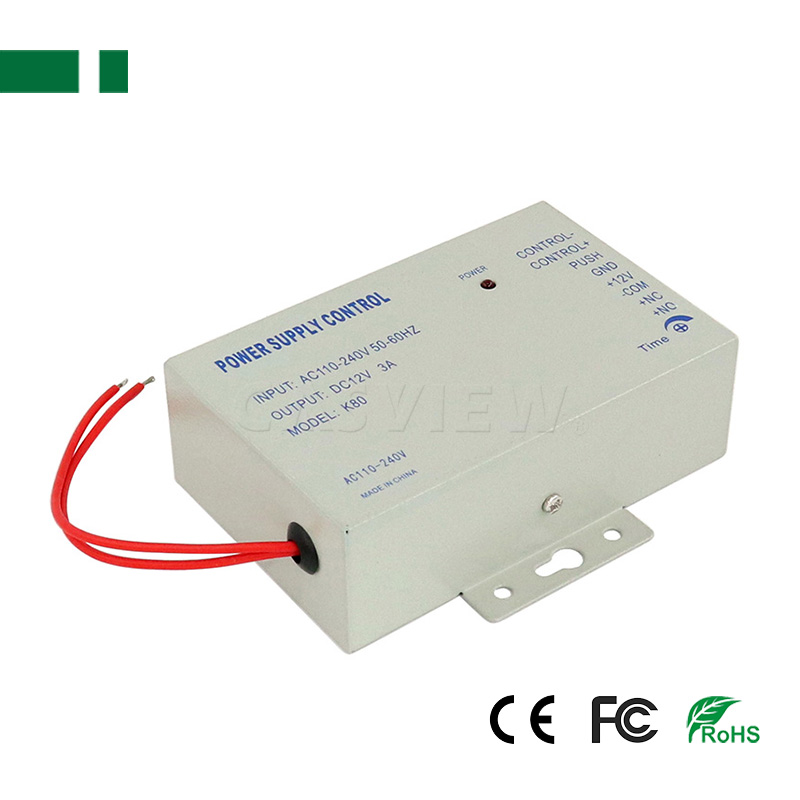

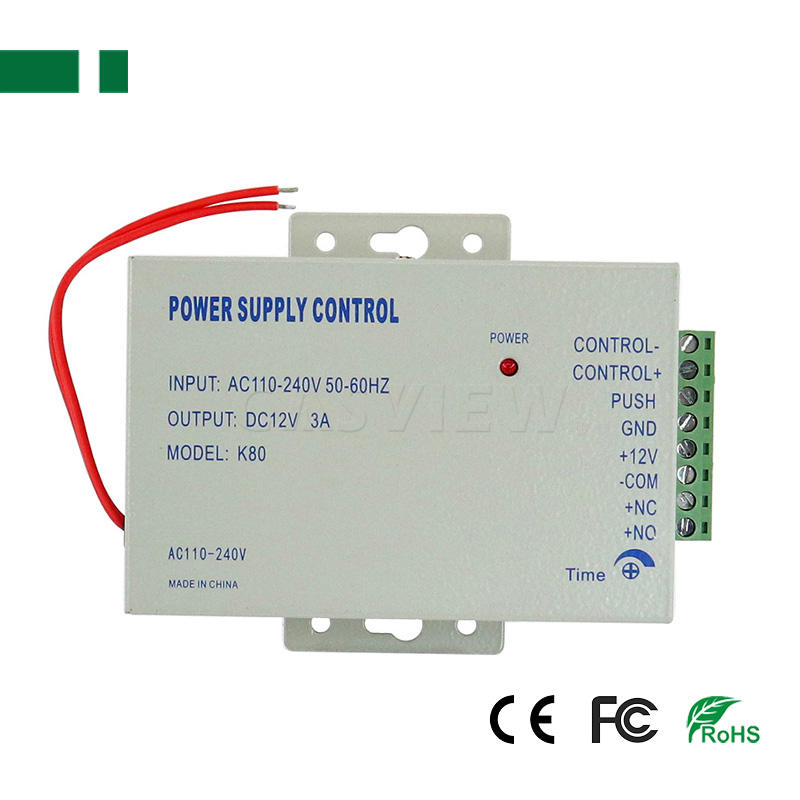

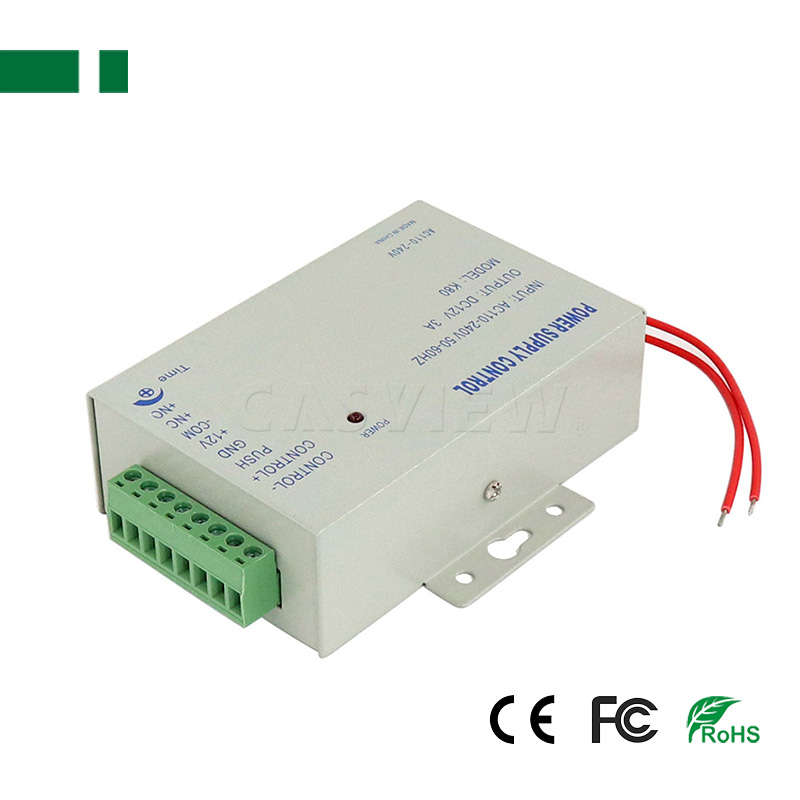

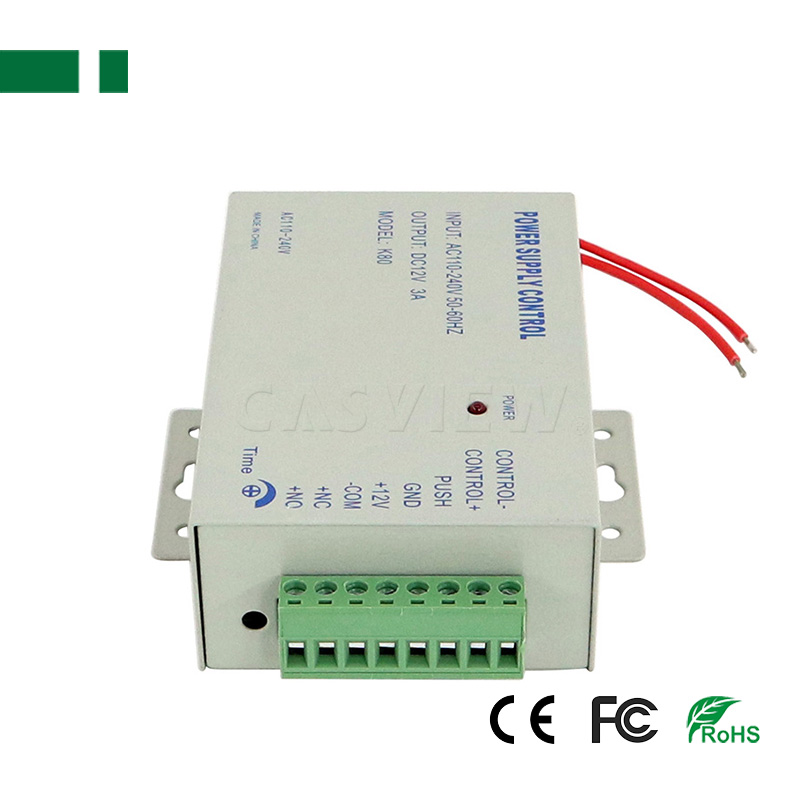

CP-K80 DC12V 3A Access Control Power Supply

  • DC12V 3A Access Control Power Supply
  • Output Power: 36W
  • Overload Protection: all outputs in a short circuit, overload are protected; output of 0 - 15 seconds of delay locks.
  • Dimension: 100*65*32mm
  • Product description: It is a DC12V 3A access control system power supply, can connect to electric lock, access controller, door exit. It is suitable for all kinds of access control electri door lock.
  • INQUIRY   EMAIL

DC12V 3A Access Control Power Supply for All Types Access Control System Door Lock with Time Delay

Description:
It is a DC12V 3A access control system power supply, can connect to electric lock, access controller, door exit. It is suitable for all kinds of access control electri door lock.

Features:
1. DC12V 3A Access Control Power Supply
2. Input Voltage: 110 ~ 240V 50/60Hz
3. Output Voltage: DC12 V
4. Output Current: 3A
5. The Output Voltage of the Garrison: ± 10% ~ ± 15%
6. Insulation Voltage: Junior / sub polar AC inter - 1500V, primary / shell between 1500VAC, subpolar / shell between 500VAC
7. Waiting Time: typically 20 ms full load
8. Size: 100(L)*65(W)*32(H)mm
9. Overload Protection: all outputs in a short circuit, overload are protected; output of 0 - 15 seconds of delay locks.

Specifications
Material: Steel
Output Power: 36W
Durability Test: 500000 times
Input Frequency: 50-60Hz
Input Voltage: 110-240VAC
Output Voltage: DC12V/3A
Working Temperature: -20 to +65
Time Delay: 0-15 seconds adjustable
Relative Humidity: 0%-90%
Dimension: 100*65*32mm

Package Including:
1* Power supply controller
1* user manual
