Support HD-CVI/TVI/AHD & CVBS
Support Resolution: 720P, 960P
Single-Mode Fiber transmit up to 10KM
Optical interface: FC interface
Multiple HD video optical transceiver supports HD-AHD/ CVI/ TVI & CVBS signals, Support 960P/ 720P, Transmission distance up to 10KM.
The coaxial HD optical transceiver is designed for long-distance optical fiber transmission HD-CVI/ AHD/ TVI composite video, and adopts self-developed uncompressed digital photoelectric conversion technology. Use fiber-optic point-to-point transmission of megapixel HD video for video transmission without delay and high reliability.
Multiple HD coaxial HD composite video can be transmitted at the same time.Supports 1280×720,1280x960 resolutions, 1280H/25f, 1280H/30f 1280H/50f, 1280H/60f.
Feature:
● Compatible with Hikvision (TVI), Dahua (CVI), XM (AHD) Coaxial HD camera;
-CVI: 960P/1.3MP (1280×960), 720P/1MP (1280×720);
-AHD: 960P/1.3MP (1280×960), 720P/1MP (1280×720);
-TVI: 960P/1.3MP (1280×960), 720P/1MP (1280×720);
● Compatible with both digital analog cameras and coaxial HD cameras;
● Transmission distance: 0 - 10KM;
● 12V power supply, shared camera power supply does not burn out the machine;
● Internal use of power protection chip to effectively prevent voltage instability and burn out the machine.
Application:
● Transportation monitoring system;
● Security monitoring system;
● Remote multimedia teaching, campus monitoring & video conferencing system etc.;
● Intelligent community system.
Specification:
| Model | COV-HD4V-960P | COV-HD4V1D-960P |

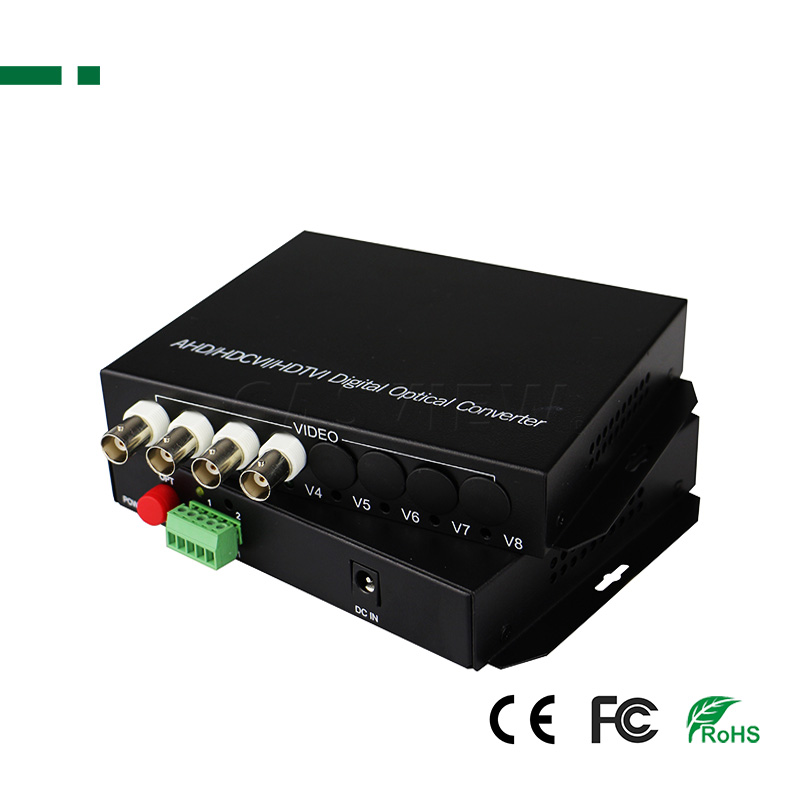

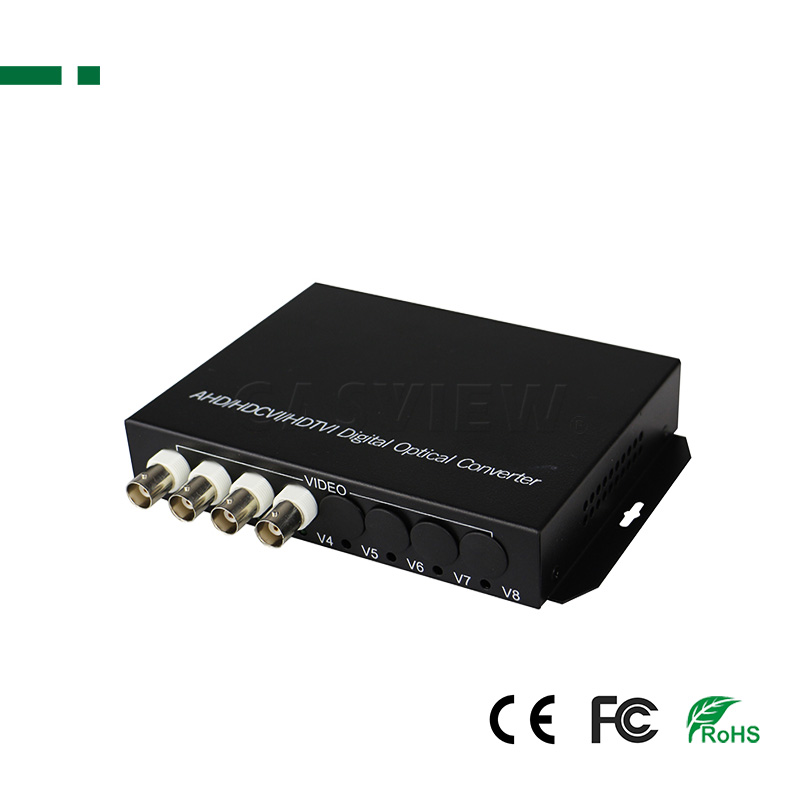

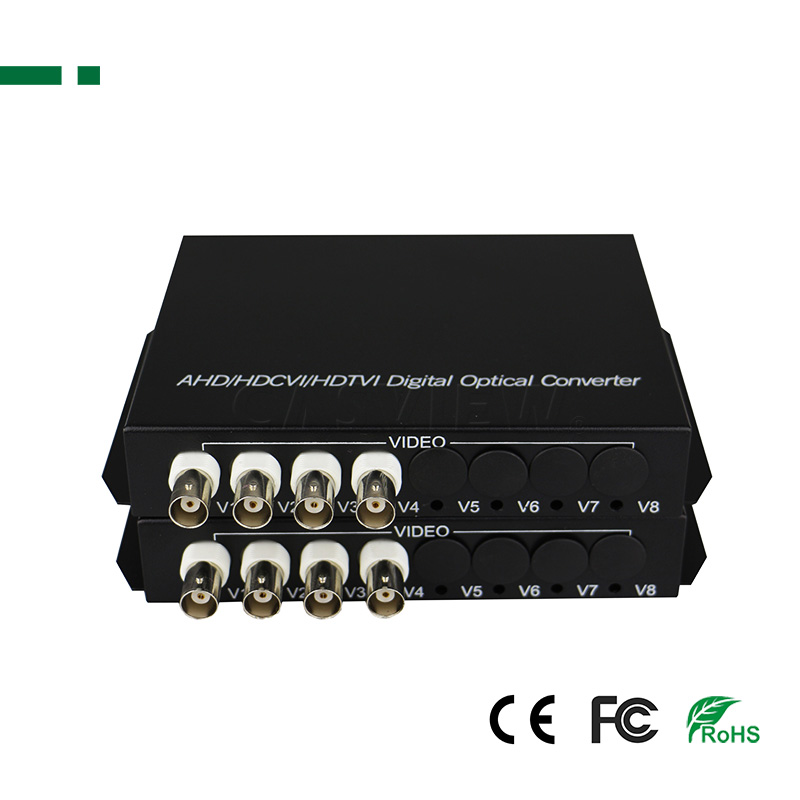

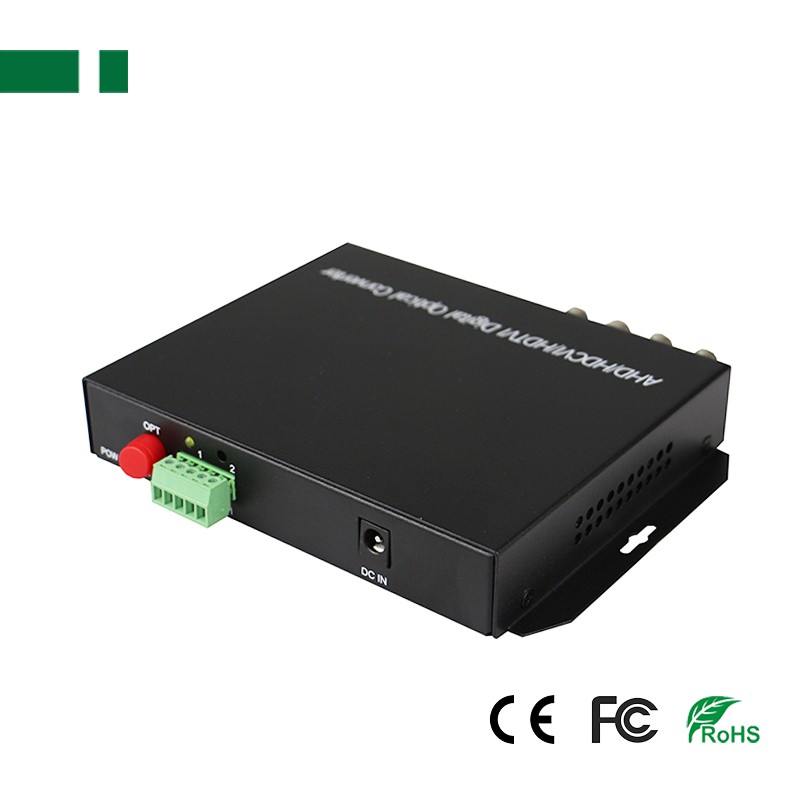

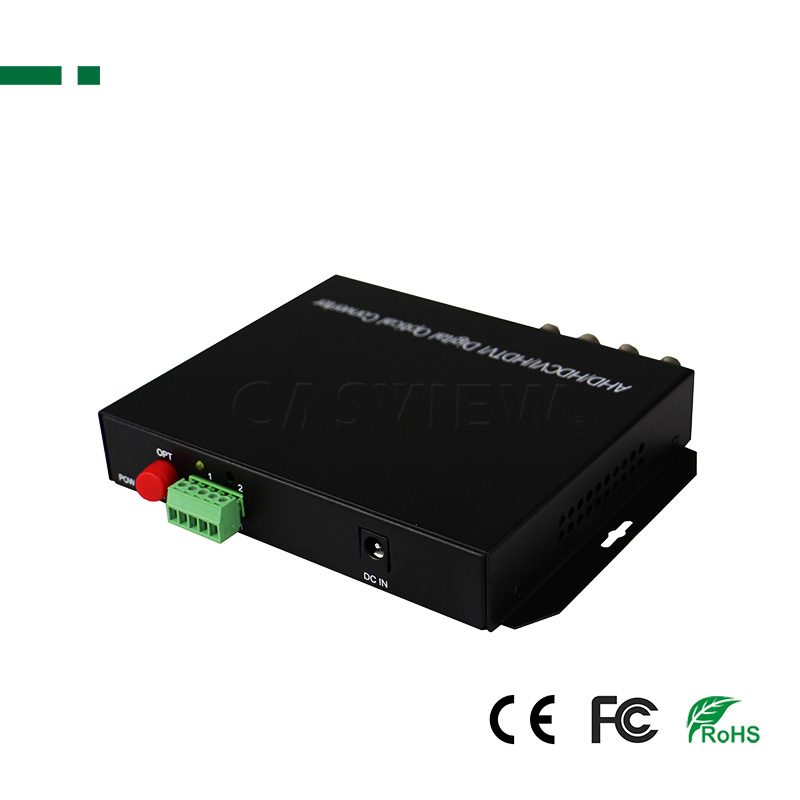

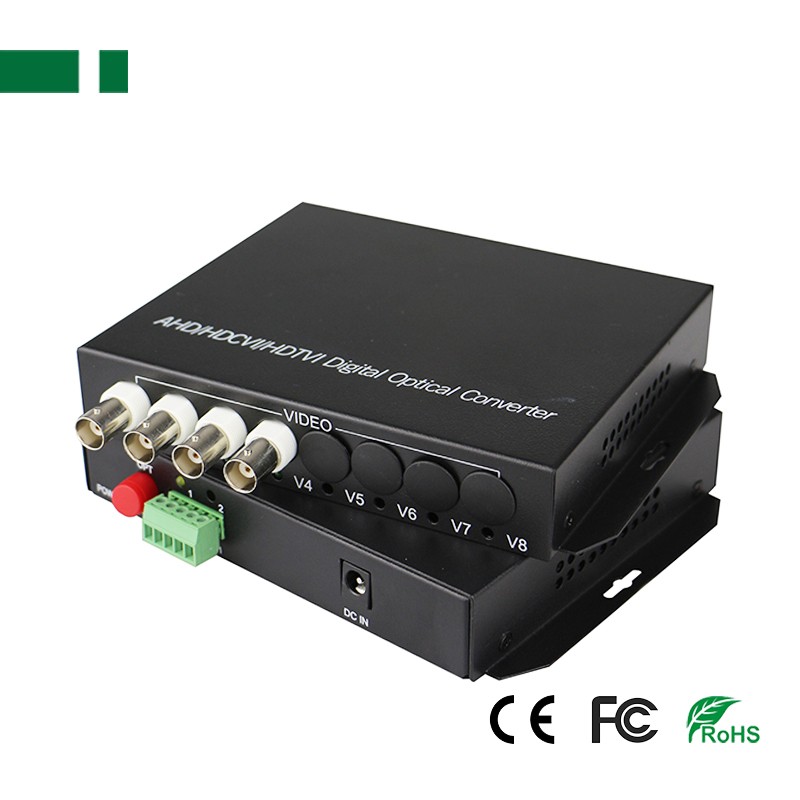

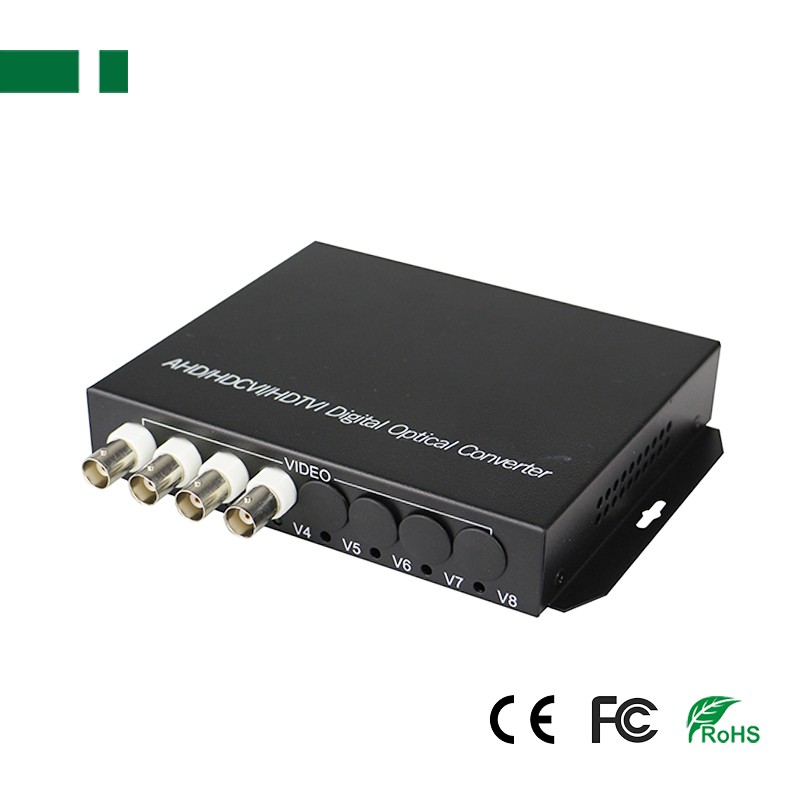

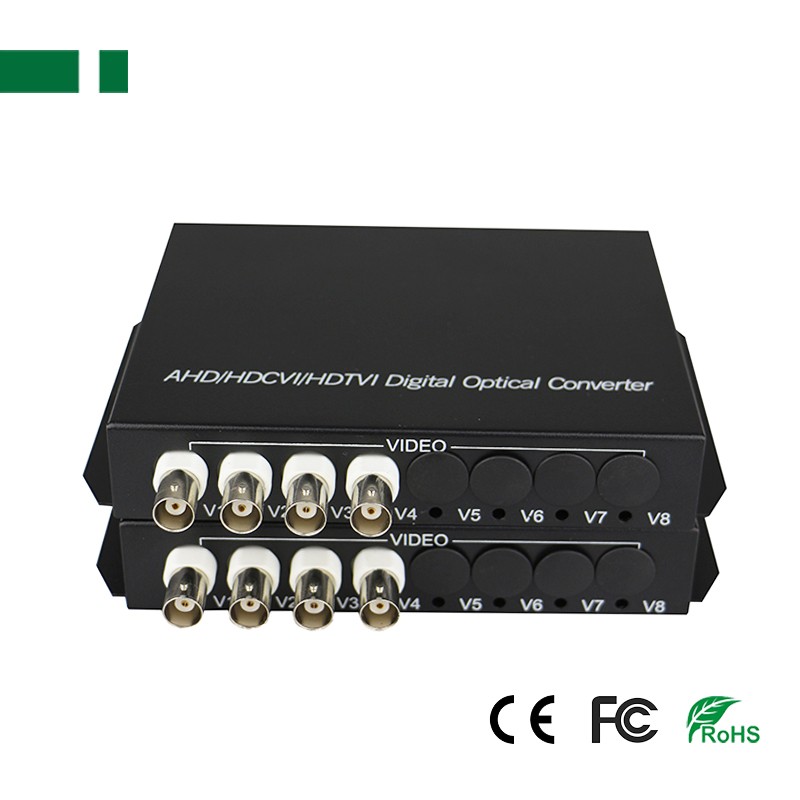

| Description | 4 channels HD-CVI/ TVI/ AHD Coaxial HD Fiber Converter | |
| Fiber interface | Single mode single fiber FC/ UPC | |
| Input/Output Impedance | 75Ω (Non-equilibrium) | |
| Video Bandwidth | 45MHz | |
| Video Voltage | 500MVP-P | |
| Input Reflection Loss on Transmitting Terminal | >15dB | |
| Maximum Jitter on Receiving Terminal | <0.2UI | |
| Rise/Fall Time on Video Receiving Terminal | <0.8ns | |
| Video interface | BNC | |
| Transmission distance | 10KM | |
| Video bandwidth | 45MHZ | |
| Video resistance | 75Ω | |
| Support video format | HD-CVI/ HD-TVI/ HD-AHD | |
| Support video pixels | 1280×960P, 1280×720P | |
| Support Cameras | CVI: 960P/1.3MP (1280×960), 720P/1MP (1280×720) | |
| AHD: 960P/1.3MP (1280×960), 720P/1MP (1280×720) | ||
| TVI: 960P/1.3MP (1280×960), 720P/1MP (1280×720) | ||
| Data format | N/A | RS485, does not support coaxial encryption |
| Data rate | N/A | 0~200 Kbps |
| Bit error rate | N/A | < 10-9 |
| Data interface | N/A | Terminal Block |
| Power Consumption | 2.5W (input: DC12V 1A) | |
| Working Environment | Operating temperature: -30 °C ~ +75 °C | |
| Storage temperature: -40 °C ~ +85 °C | ||
| Relative humidity: 0 ~ 95% (no condensation) | ||
| Power Adapter | External power adapter (input AC100-240V 50/ 60Hz; output 12V 1A) | |
| Dimension | Product Size: 165(L)*145(W)*25(H)mm | |
