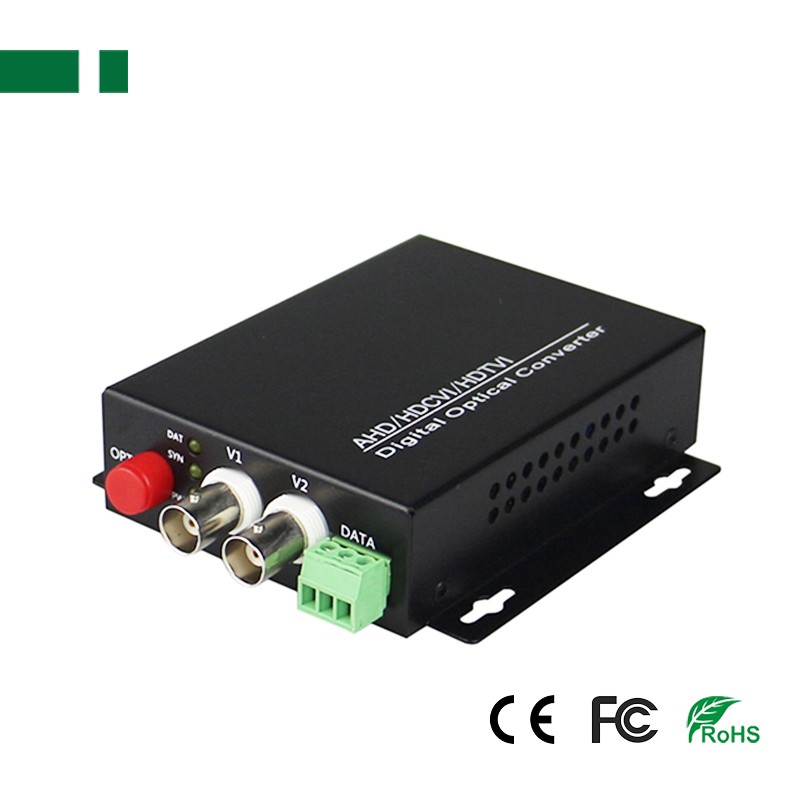

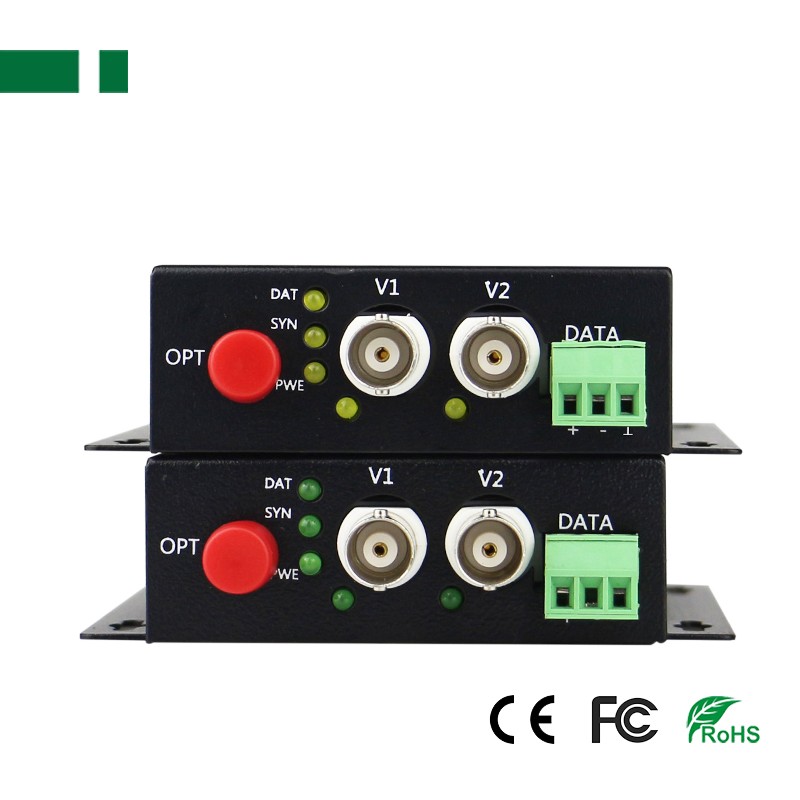

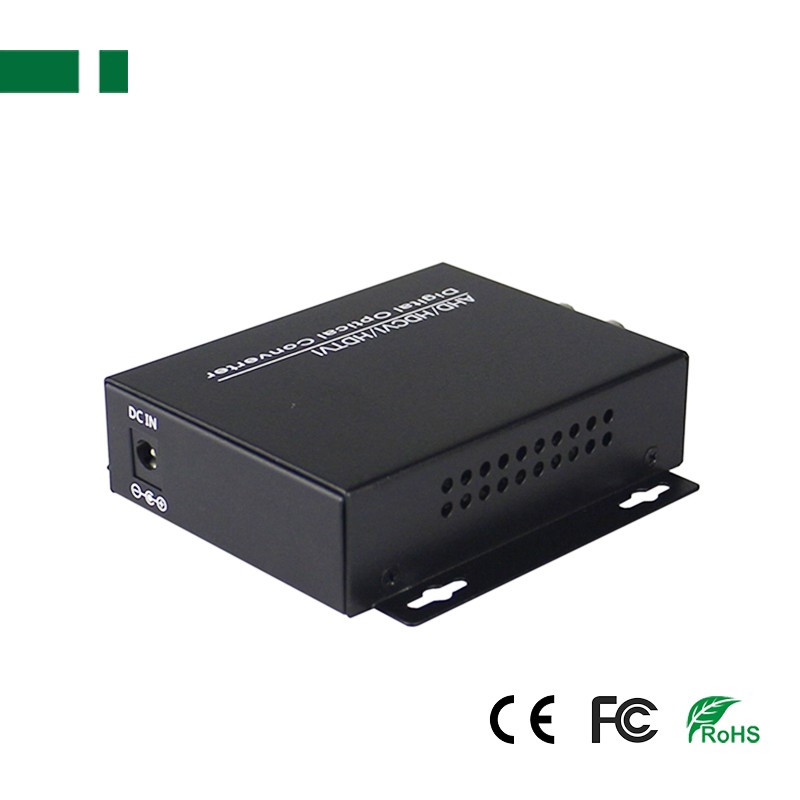

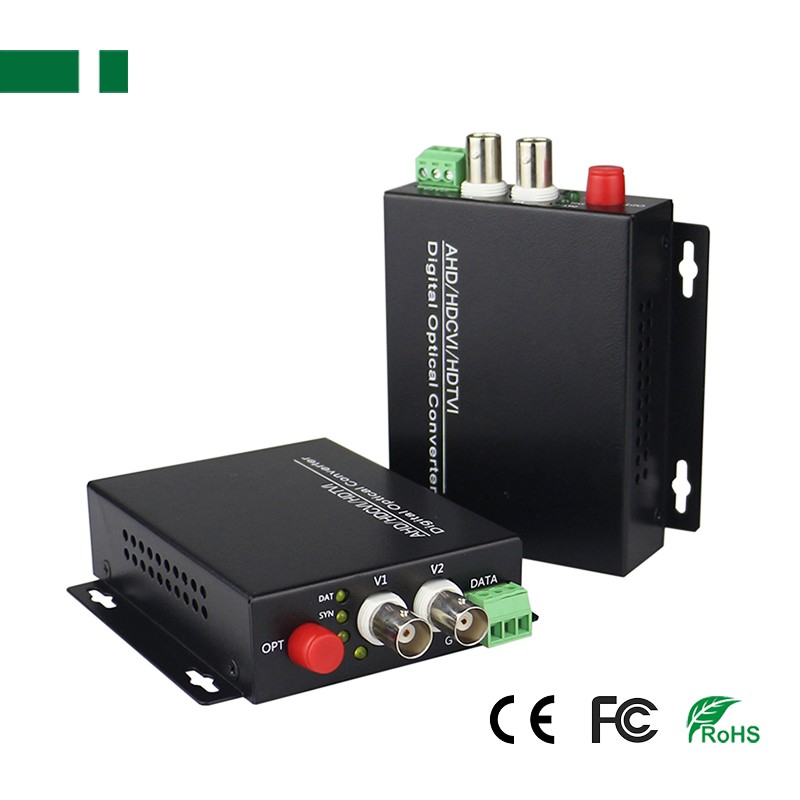

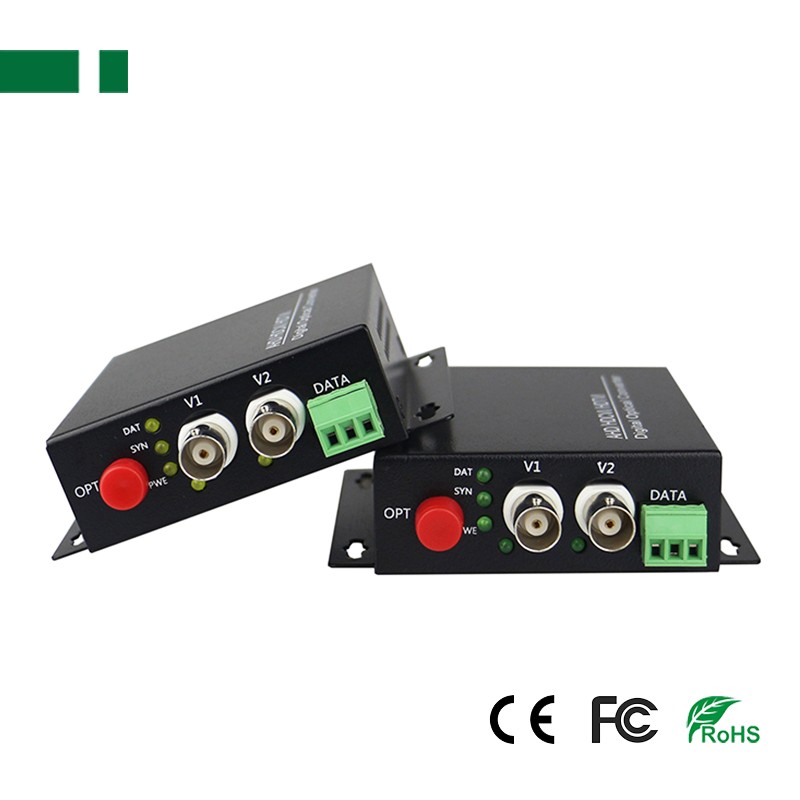

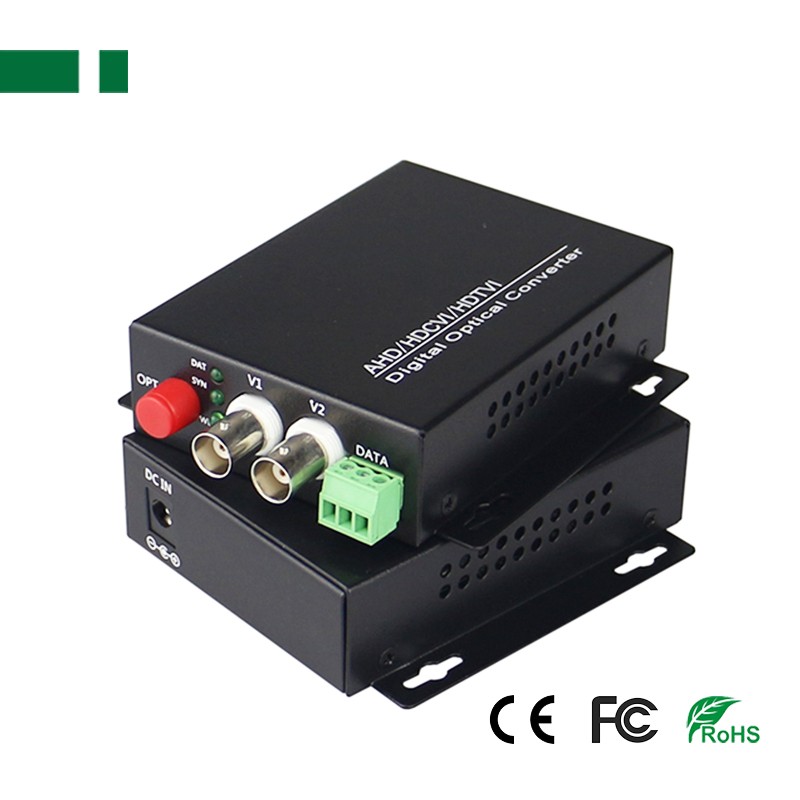

COV-HD2V1D-960P CVI-TVI-AHD Fiber Converter with RS485 - 副本

Description:

The Coaxial HD Fiber Converter is designed for long-distance optical fiber transmission HD-CVI/ AHD/ TVI composite video, and adopts self-developed uncompressed digital photoelectric conversion technology. Use fiber-optic point-to-point transmission of megapixel HD video for video transmission without delay and high reliability.

Feature:

▪ 2-ch 960P HD-CVI/TVI/AHD Fiber Converter with RS485;

▪ Compatible with Hikvision (TVI), Dahua (CVI), XM (AHD) Coaxial HD camera:

- CVI: 960P/1.3MP (1280×960), 720P/1MP (1280×720);

- AHD: 960P/1.3MP (1280×960), 720P/1MP (1280×720);

- TVI: 960P/1.3MP (1280×960), 720P/1MP (1280×720);

▪ Fiber interface: Single mode single fiber FC/UPC;

▪ Data format: RS485, does not support coaxial encryption;

▪ Transmission distance: 0-10KM;

▪ Power Supply: DC12V;

▪ Dimension: 110(L)*92(W)*25(H)mm;

▪ Application: Security Monitoring System, Remote Multimedia Teaching, Video Conferencing System & Intelligent Community System etc..

Specification:
