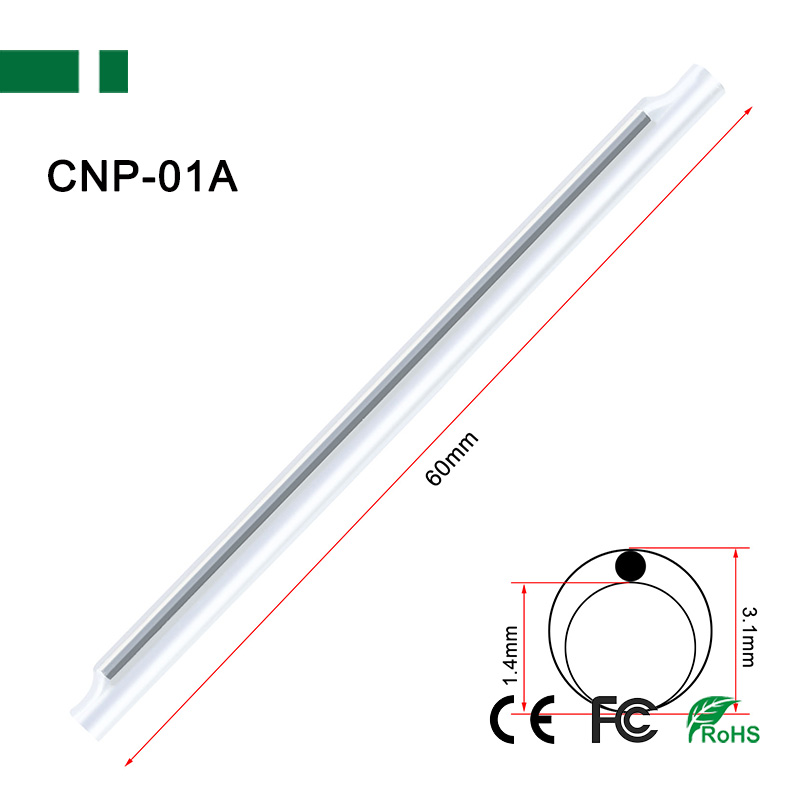

CNP-01A Bare fiber single needle protective sleeve

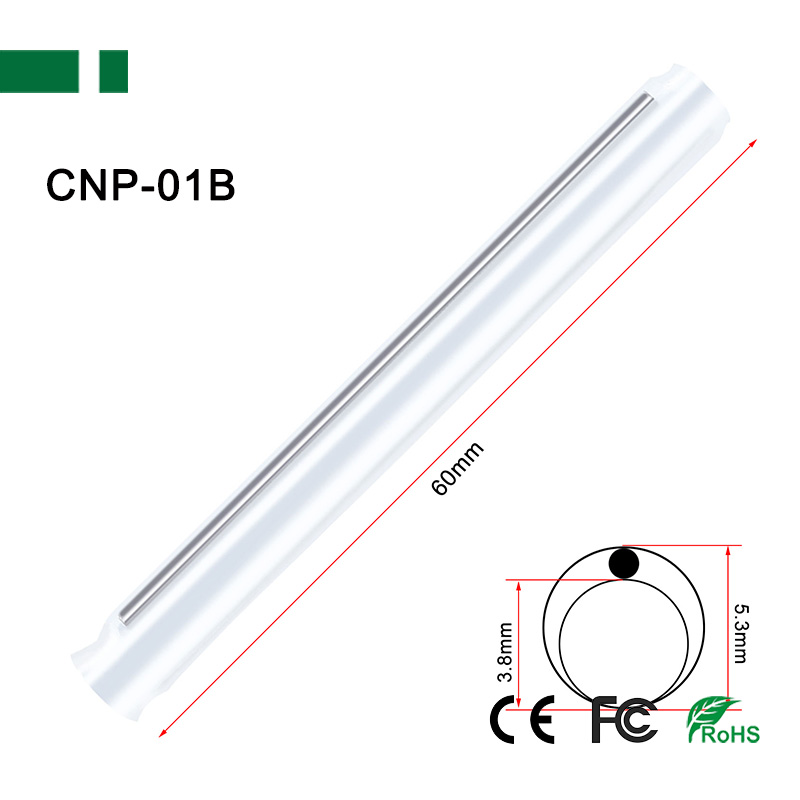

CNP-01B Leather thread single needle protective sleeve

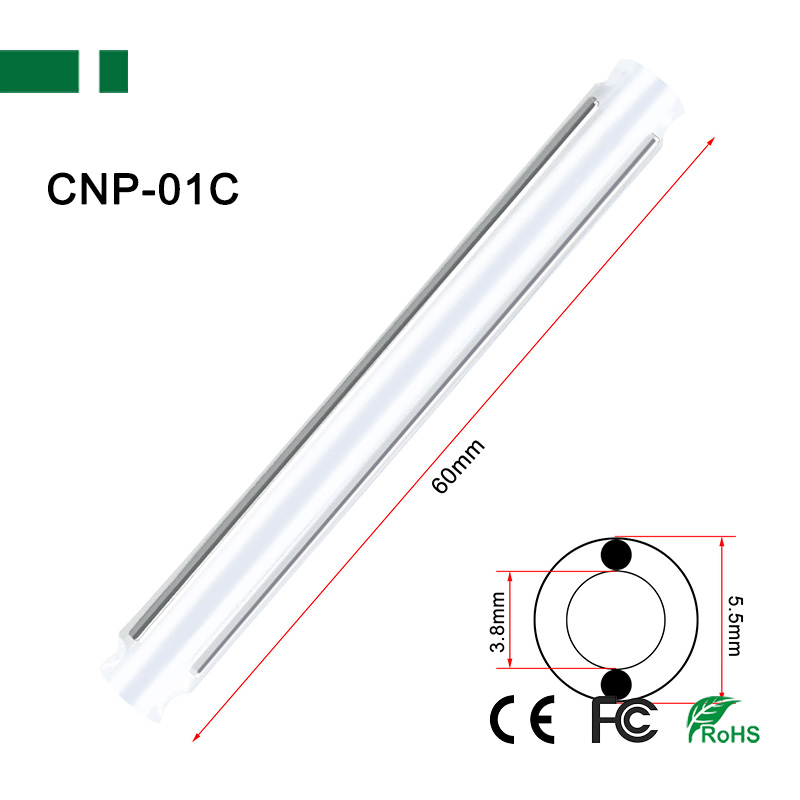

CNP-01C Leather thread double needle protective sleeve
Length: 60mm

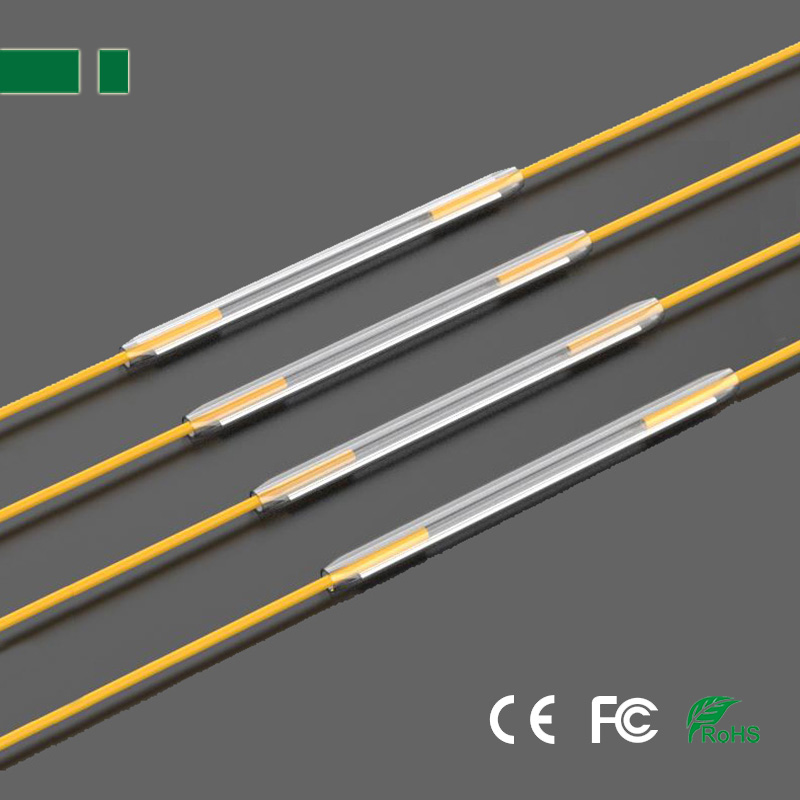

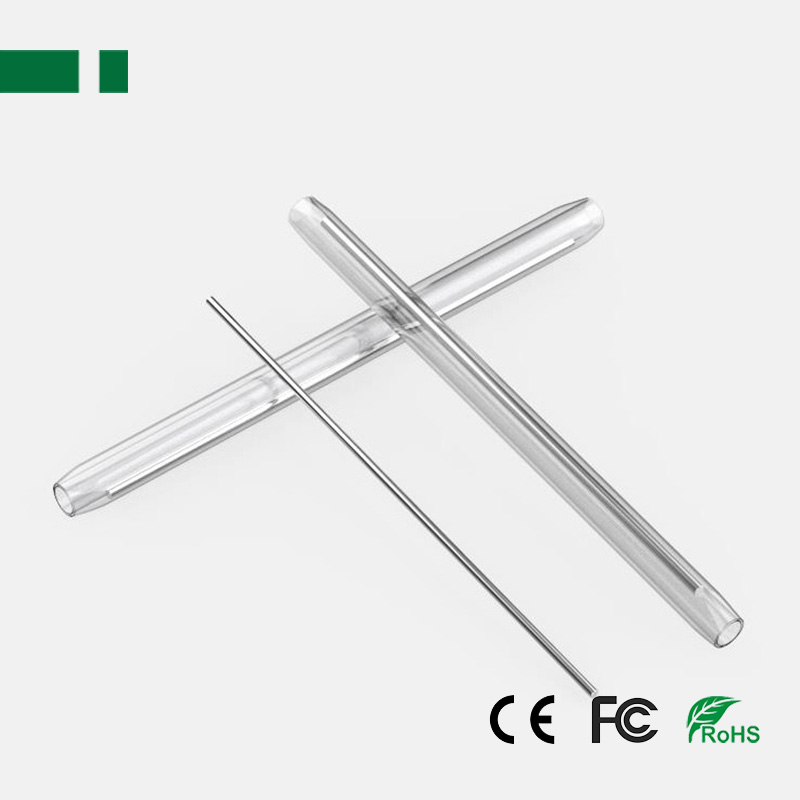

60mm Optical fiber heat shrinkable tube FTTH fiber splicing Protection Sleeves thin tube
60mm Optical fiber heat shrinkable tube FTTH fiber splicing Protection Sleeves thin tube
Feature:
1. Two-way ironing head sealing.
Both ends of the heat shrinkable tube are designed with lock mouth. Effectively prevent the internal steel needle from falling off.
2. High quality 304 stainless steel needle.
High strength light weight, high temperature resistance and long service life.
3. Environmentally friendly PE material.
Cross linked polyolefin material, in the extension, oil and cold resistance cracking and other aspects of performance greatly improved corrosion resistance, it can be used under harsh conditions, and it is safer to use.
4. Effectively protect the welding part without affecting the loss.
Only need to connect the optical fiber to the tube, which is fast and convenient to use.
Specification:

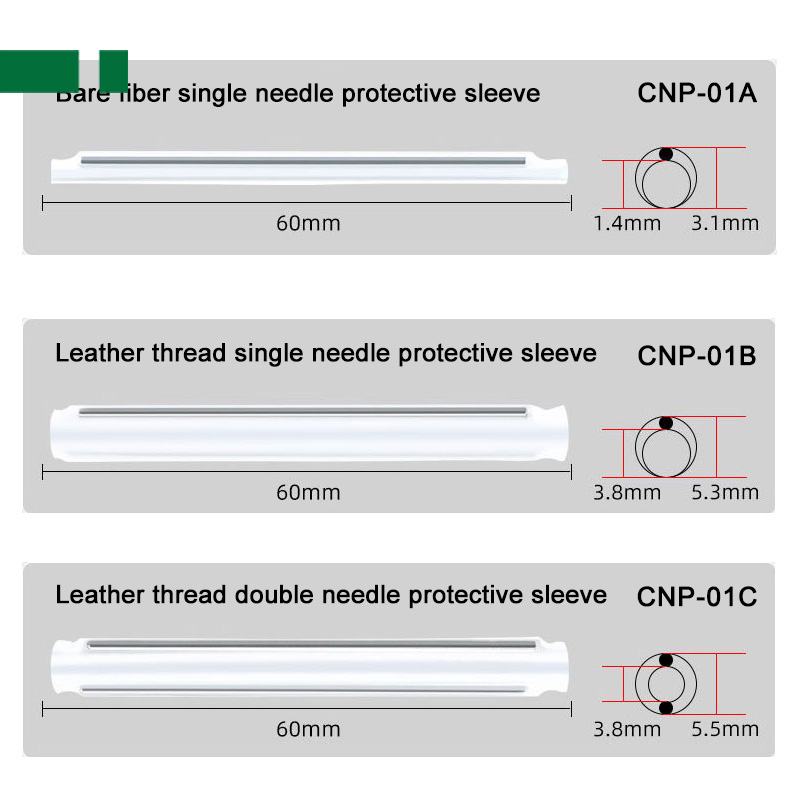

| Product name | Optical Fiber Heat Shrinkable Tube protective sleeve | ||
| Model | CNP-01A | CNP-01B | CNP-01C |
| Product name | Bare fiber single needle | Leather thread single needle | Leather thread double needle |
| Inner wall | Inner diameter: 1.4mm | Inner diameter: 3.8mm | Inner diameter: 3.8mm |
| Outer wall | Inner diameter: 3.1mm | Inner diameter: 5.3mm | Inner diameter: 5.5mm |
| Length | Length: 60mm | ||
| Steel needle material | 304 stainless steel | ||
| Steel needle size | Diameter: 1.2mm, Length: 55mm | ||
| Skin quality | Environmental protection PE material | ||
| Scope of application | Optical Fiber welding position | ||
| Color | Transparent | ||
| Operating temperature | —55~105℃ | ||
| Packaging | 100pcs/packet | ||
