Optic Fiber Protection Box

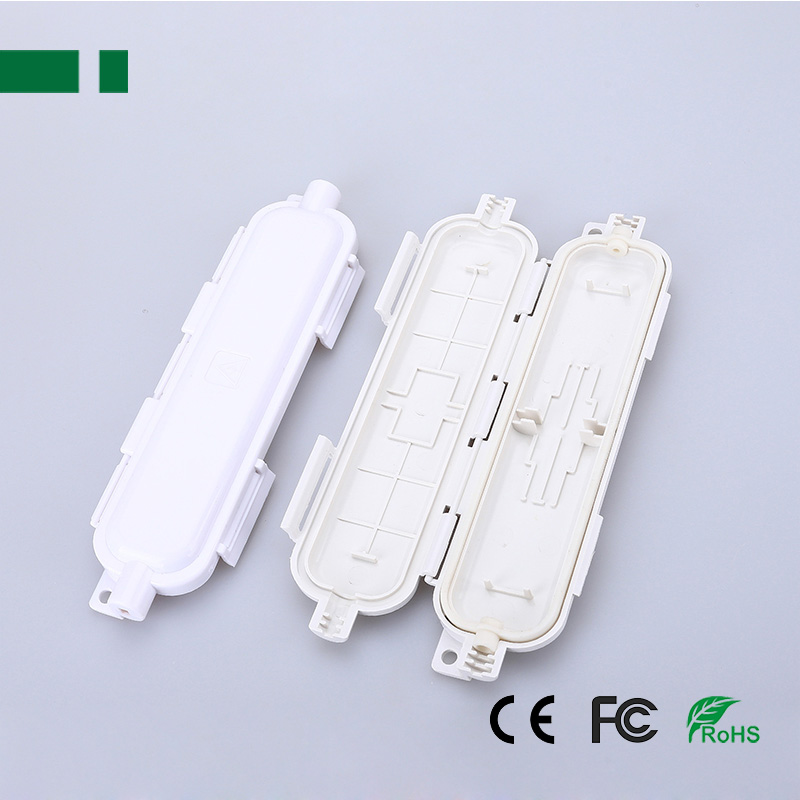

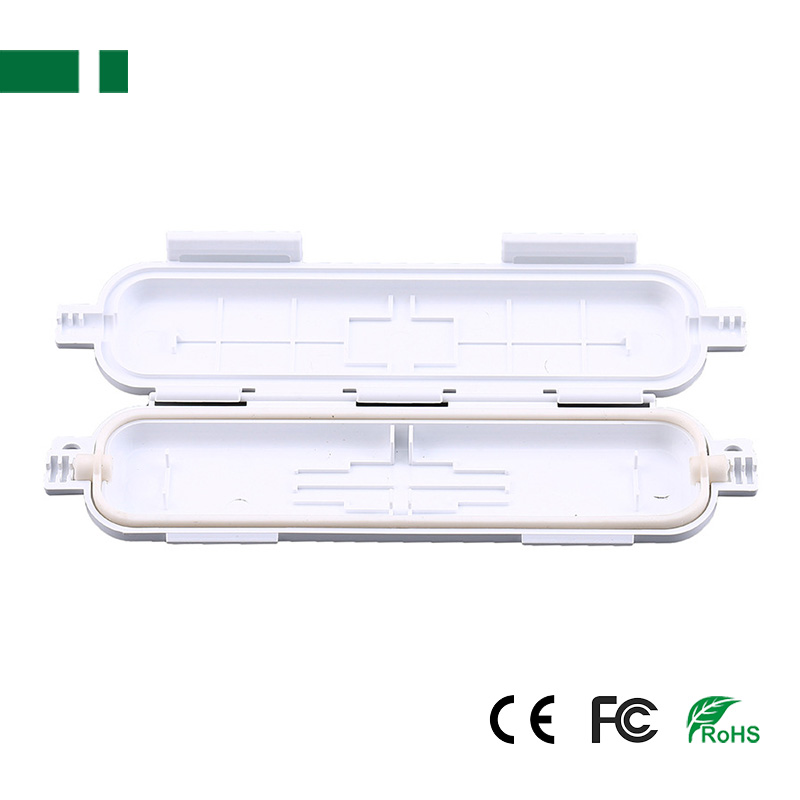

CNP-05W Waterproof Optical Fiber Protection Box
- Waterproof Optical Fiber Protection Box
- Protective box for sheath cable
- Size: 160*45*16mm
- Material: PP

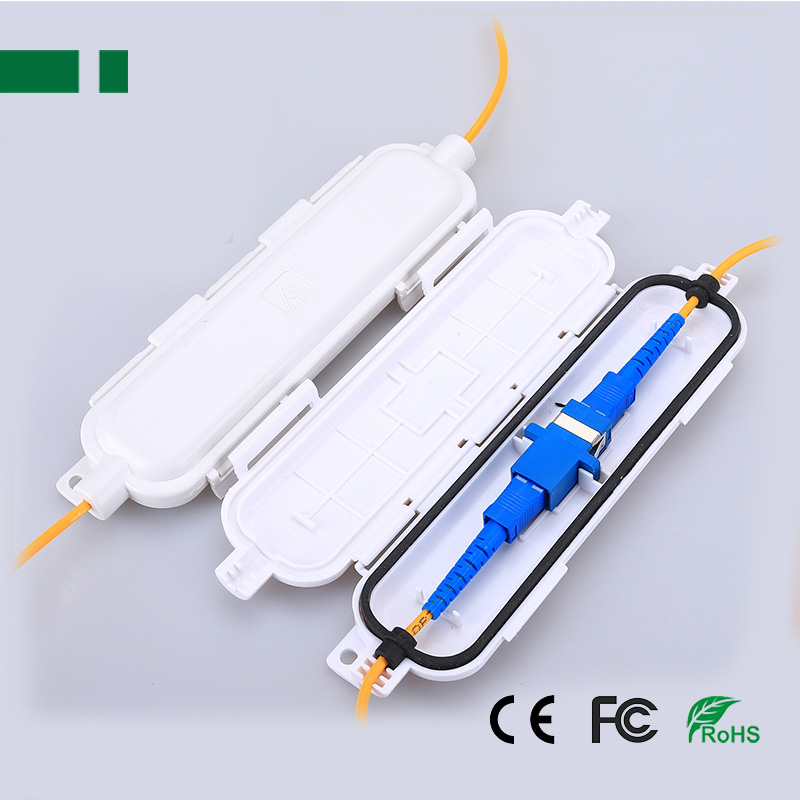

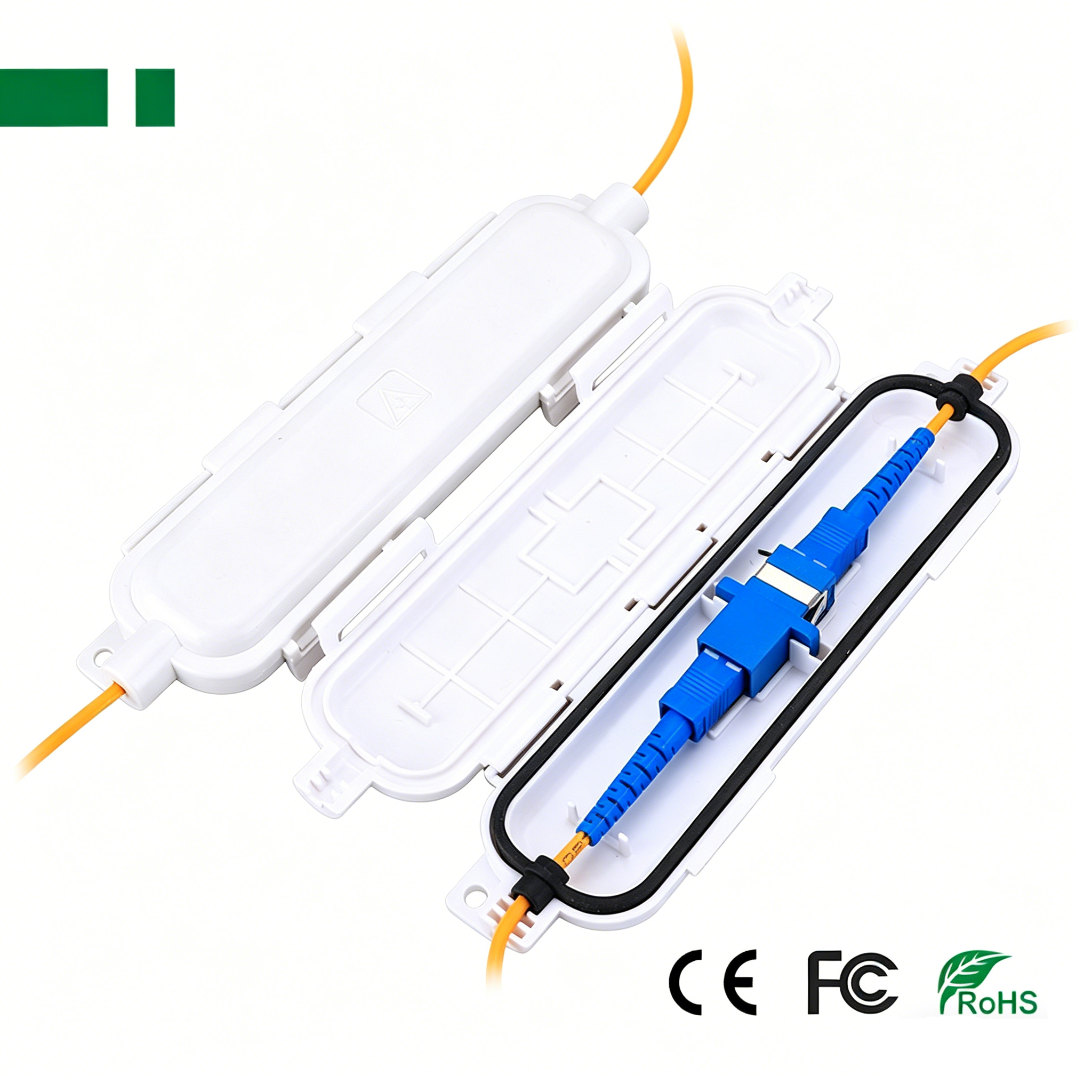

- Product description: IP58 grade optical fiber dust-proof waterproof outdoor protection box, containing waterproof rubber ring, suitable for SC/SC-FC/ST-FC, ST-SC and other eared flanges.
Outdoor Waterproof Optical Fiber Protection Box
Product overview: the optical cable connection box is 1 into the 1, suitable for the 2 optical cable, optical fiber cable and the "8" shape of the optical fiber cable continued protection of 3. Can be elevated, wall hanging. Material: new ABS resistance fuel, quality assurance, flame retardant performance in line with the communications industry standards, flame retardant grade UL94V-0
Feature:
Product Name: SC cold type indoor cable connection protecting box
Fiber curvature radius: 40MM (mm)
Additional loss: 0.2 (dB)
Disc length: 0.5 (m)
Fiber maximum capacity: a variety of options
Withstand voltage strength: 1000 (KV)
Scope of application: trunk cable connection, Fiber Optic cable laying
Size: 160*45*16mm
Color: gray
Product use: FTTH FTTH indoor cable connection protecting box,
Specification:
Suitable for optical cable diameter: Phi 2- Phi 3mm, 8 character skin cable
Number of cables: 1 to 1
Applicable flange: SC, ST, FC
Structure: open cover type
Color: grey (customizable color)
Seal: TPE sealing ring
Laying method: overhead, wall hanging
Protection level: (EN60529) IP58
Size: 160*45*16mm
Weight: 34G
Ambient temperature: -45 -+80
Relative humidity: less than 85% (+30 degrees)
IP58 grade optical fiber dust-proof waterproof outdoor protection box, containing waterproof rubber ring, suitable for SC/SC-FC/ST-FC, ST-SC and other eared flanges.
Suitable for single-mode multi-mode cable, 2.0 and 3.0 optical cables.
Product overview: the optical cable connection box is 1 into the 1, suitable for the 2 optical cable, optical fiber cable and the "8" shape of the optical fiber cable continued protection of 3. Can be elevated, wall hanging. Material: new ABS resistance fuel, quality assurance, flame retardant performance in line with the communications industry standards, flame retardant grade UL94V-0
Feature:
Product Name: SC cold type indoor cable connection protecting box
Fiber curvature radius: 40MM (mm)
Additional loss: 0.2 (dB)
Disc length: 0.5 (m)
Fiber maximum capacity: a variety of options
Withstand voltage strength: 1000 (KV)
Scope of application: trunk cable connection, Fiber Optic cable laying
Size: 160*45*16mm
Color: gray
Product use: FTTH FTTH indoor cable connection protecting box,
Specification:
Suitable for optical cable diameter: Phi 2- Phi 3mm, 8 character skin cable
Number of cables: 1 to 1
Applicable flange: SC, ST, FC
Structure: open cover type
Color: grey (customizable color)
Seal: TPE sealing ring
Laying method: overhead, wall hanging
Protection level: (EN60529) IP58
Size: 160*45*16mm
Weight: 34G
Ambient temperature: -45 -+80
Relative humidity: less than 85% (+30 degrees)
IP58 grade optical fiber dust-proof waterproof outdoor protection box, containing waterproof rubber ring, suitable for SC/SC-FC/ST-FC, ST-SC and other eared flanges.
Suitable for single-mode multi-mode cable, 2.0 and 3.0 optical cables.
| Optical Fiber Protection Box | ||||
| Model | CNP-02 | CNP-03 | CNP-04 | CNP-05W |
| Type | Enclosed round Type | Open Circular Type | Open Square Type | Outdoor Waterproof Type |
| Material | PP | |||
| Size | Φ9*82mm | Φ13*100mm | 80*15*10mm | 160*45*16mm |
| Weight | 2g | 4g | 8g | 37g |
| Applicable | 3.1*2.0mm, 0.9mm, 0.25mm optical fibers | |||
| Scope of application | 45mm-60mm Heat shrinkable sleeve | |||
| Color | White | |||
| Package | 100pcs/pack | |||
