HIKVISION Bracket & Junction Box

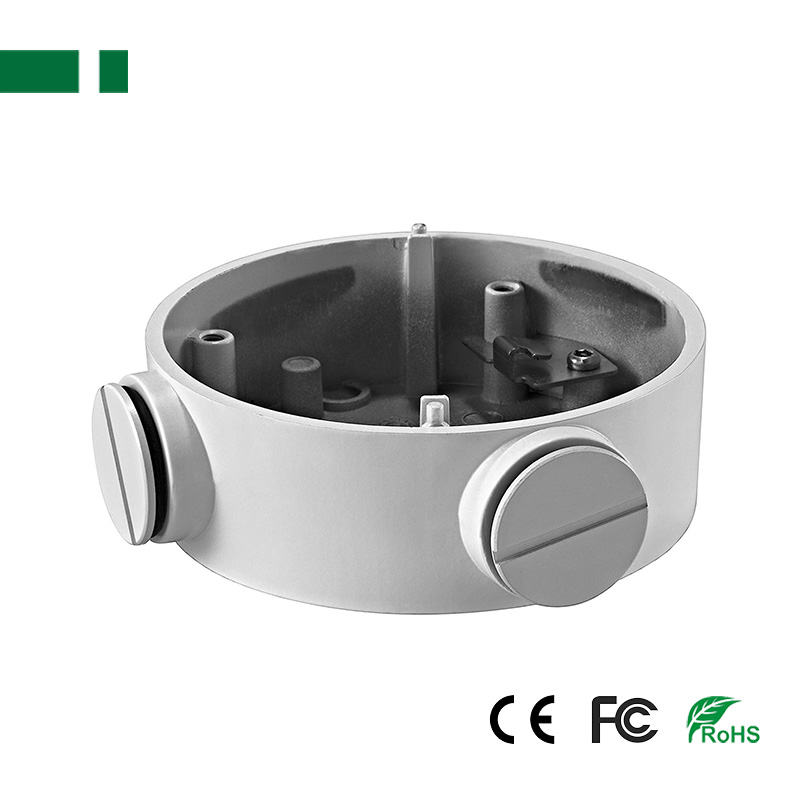

CJB-105 HIKVISION Bracket DS-1260ZJ Junction Box

CJB-105 HIKVISION Bracket DS-1260ZJ Junction Box

Dimension: Ø105 × 36 mm (4.13
The maximum load capacity of the bracket is 4.5KG
Made of aluminum
Appearance: Hikvision White
Product description: Permits to put the power supply, the cables and the installation accessories inside of it. It has multiple holes for installation of different types of dome and bullet cameras.
INQUIRY EMAIL

Junction Box for bullet cameras.

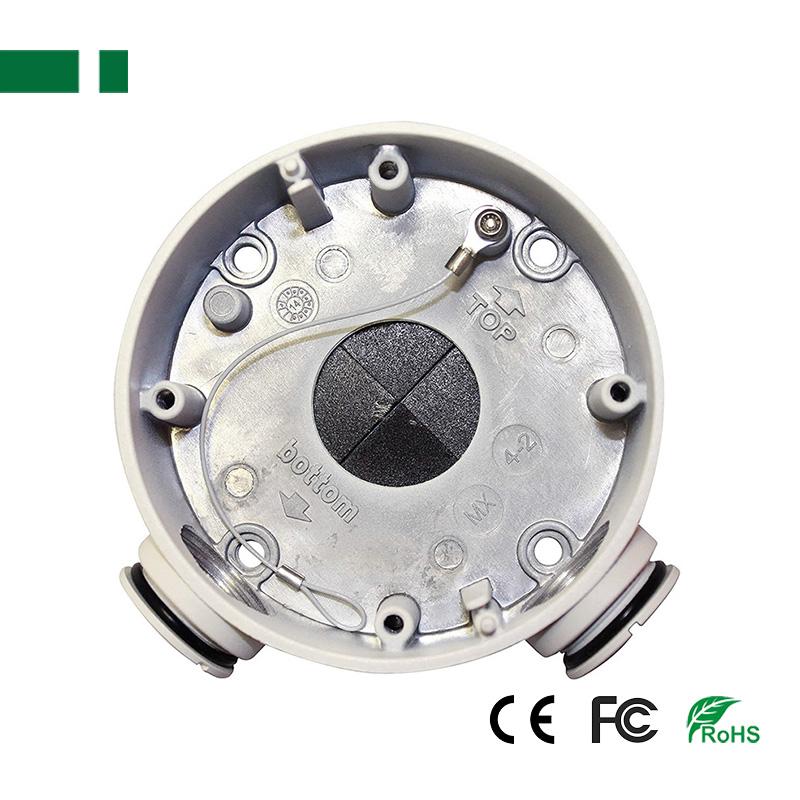

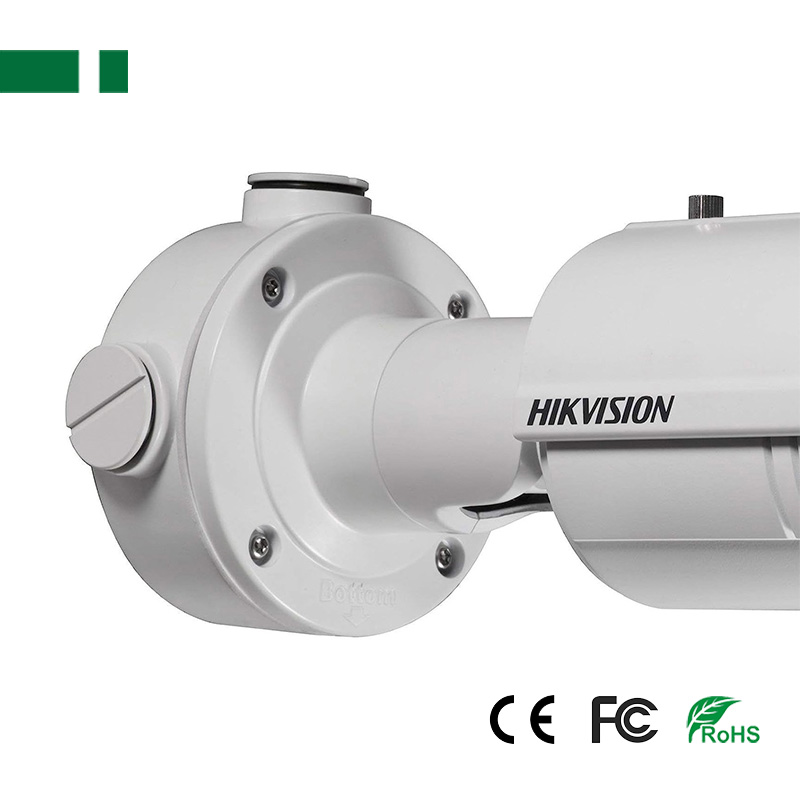

Permits to put the power supply, the cables and the installation accessories inside of it. It has multiple holes for installation of different types of dome and bullet cameras. Fixing to wall or ceiling through 4 screws. The camera is installed in the removable cover of the support. It allows internal wiring passage.

Made of aluminum. Valid for exterior
The Bracket should be installed on flat wall
Waterproof rubber is necessary for outdoor application
The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount.
The maximum load capacity of the bracket is 4.5KG

Model	CJB-105
Description	Junction Box for Bullet Camera
Appearance	Hikvision White
Material	Aluminum Alloy

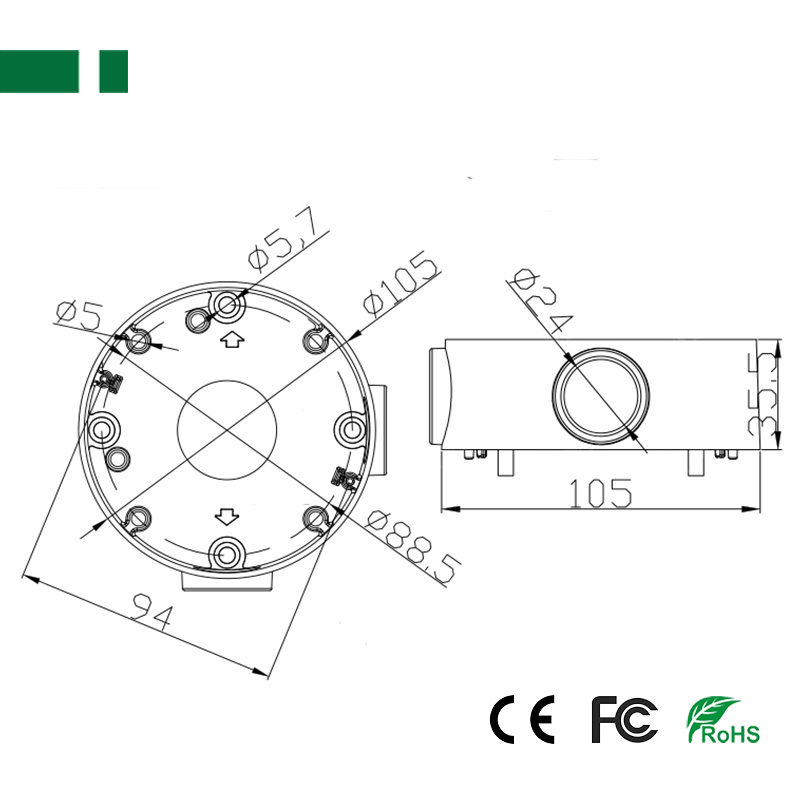

Dimension	Ø105 × 36 mm (4.13" ×1.42")
Weight	251 g (0.55 lb.)
