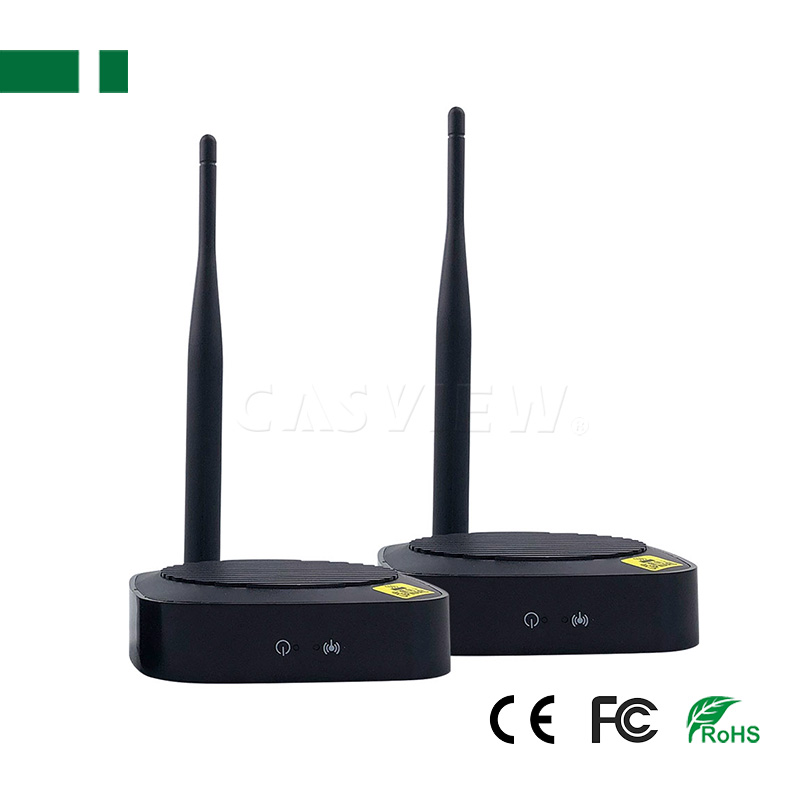

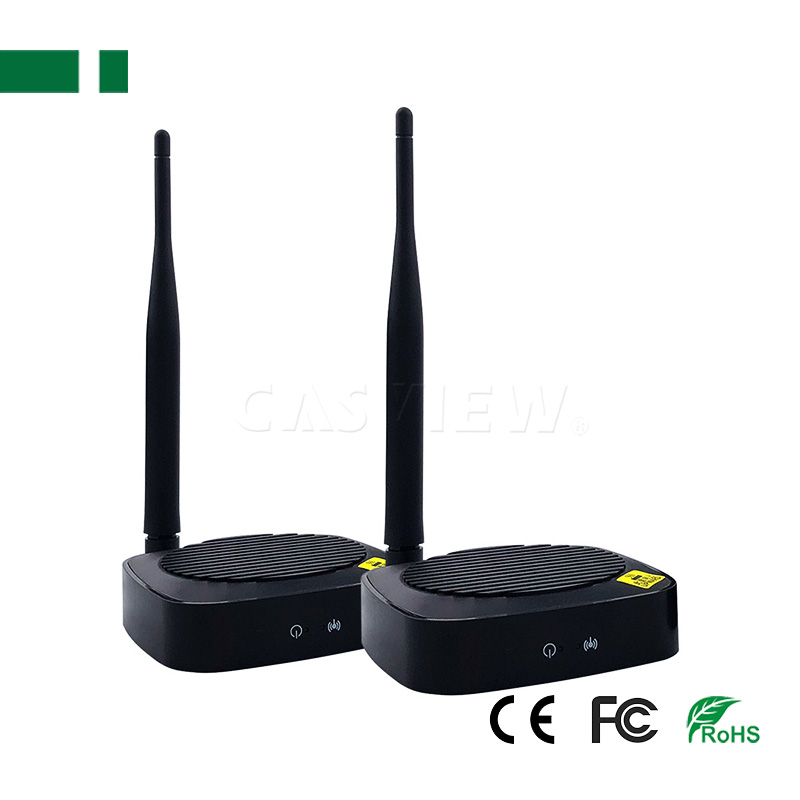

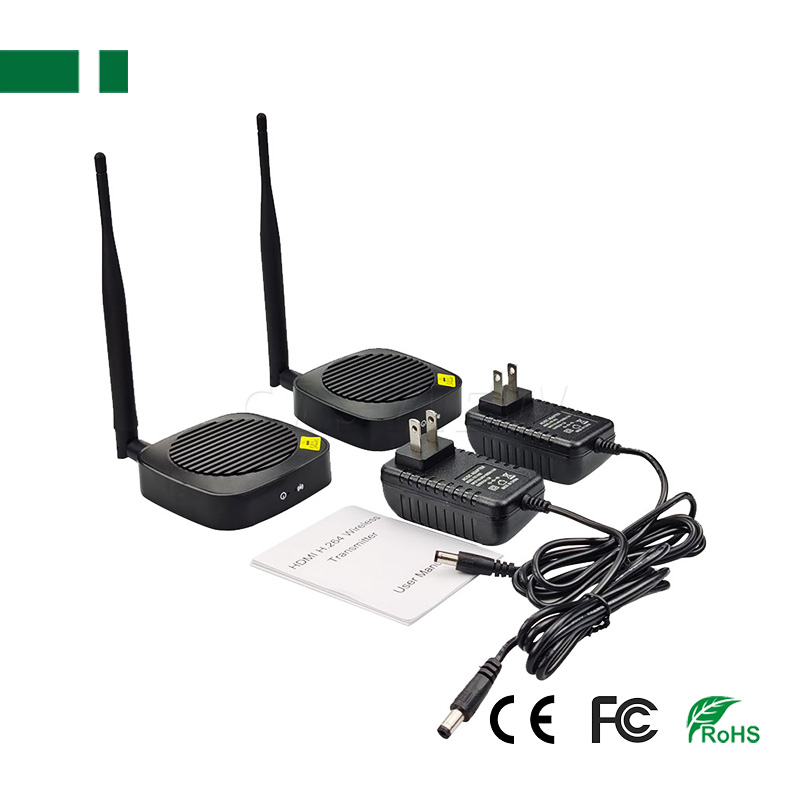

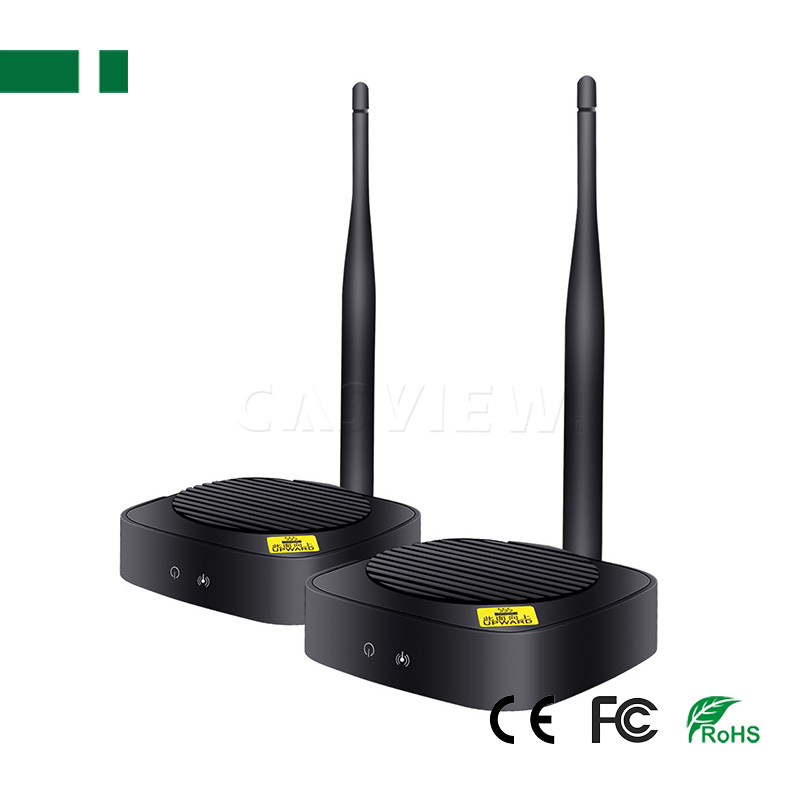

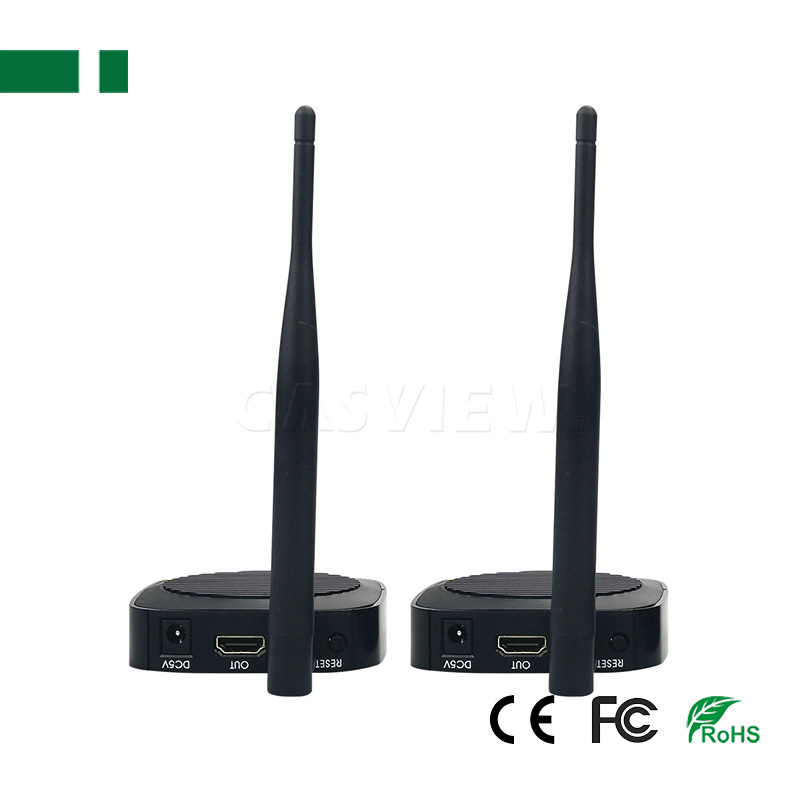

  • 50M HDMI H.264 Wireless Transmitter
  • 1920*1080P@60Hz, HDMI 1.3, HDCP 1.2;
  • Wireless standards: 802.11ac
  • Wireless Frequency: 5.8GHz
  • Product description: 50M HDMI H.264 Wireless Transmitter 1. Supporting 1920*1080P@60Hz, HDMI 1.3, HDCP 1.2; 2. Compression format: H.264; 3. Transmitted up to 50 meters; 4. Wireless standards: 802.11ac; 5. Wireless F
  • INQUIRY   EMAIL

Download for More Details

The HDMI transmitter uses standard Ethernet TCP/IP protocol to transmit high-definition audio and video signals through wireless WIFI signals, enabling point-to-point applications and many-to-one applications. The device has excellent image processing and transmission capabilities, making signal transmission more smooth and stable, and is a cost-effective way to wirelessly extend HDMI signals.

Features:
HDMI video and audio signals are transmitted via built-in wireless WIFI.
The open environment is transported up to 50 meters, and the partition wall is transmitted up to 25 meters.
HD video signal resolution up to 1920*1080P@60Hz.
Compatible with HDMI 1.3.
Support WIFI automatic link.
Use international standard H.264 format to compress and decompress video, effectively improve transmission efficiency and ensure smooth playback.
HDCP 1.2 compliant – high bandwidth digital content       protection technology.
Ability to automatically identify and configure various display modes.
Built-in automatic equalization system, the picture is smooth, clear and stable.
Built-in ESD electrostatic protection circuit to protect system security.
Easy to install, plug and play, no need to set.

Specifications:
Video
Supporting agreement....................HDMI 1.3; HDCP 1.2
Compression format...............................................H.264
Pixel bandwidth..................................165MHz, all digital
Interface bandwidth................Total bandwidth 6.75Gbps
Maximum support resolution..........1920X1080P@60Hz
Interface...............................................HDMI-A Interface
Impedance..............................................................100Ω

WIFI
RF power consumption.........................................13dbm
Wireless standards..........................................................802.11ac
Signal direction...........................................unidirectional
Wireless Frequency............................................................5.8GHz

Other
Dimensions (length, width and height).......................................................119*82*23mm
Weight................................................TX:162g, RX:162g
Shell material.........................................................plastic
Operating temperature..............................-5 °C ~ +70°C
Storage temperature ......................................-20~+60°C
Working humidity.............10~90% RH (no condensation)
Storage humidity...............5~95% RH (no condensation)
Maximum power consumption....................................9W
