Video & Audio Extender

  • CXU-22
  • CXU-22
  • CXU-22
  • CXU-22
  • CXU-22


  • Bluetooth distance: up to 15m
  • Support NFC quick link
  • Support Stereo Left/Right RCA output
  • Support APTX/ A2DP/ AVRCP
  • Product description: APTX and DAC built in NFC Bluetooth 5.0 music Receiver; 1. Bluetooth distance: up to 15m; 2. Support NFC quick link; 3. Support Stereo Left/Right RCA output; 4. Support Digital SPDIF output; 5. S

Download for More Details

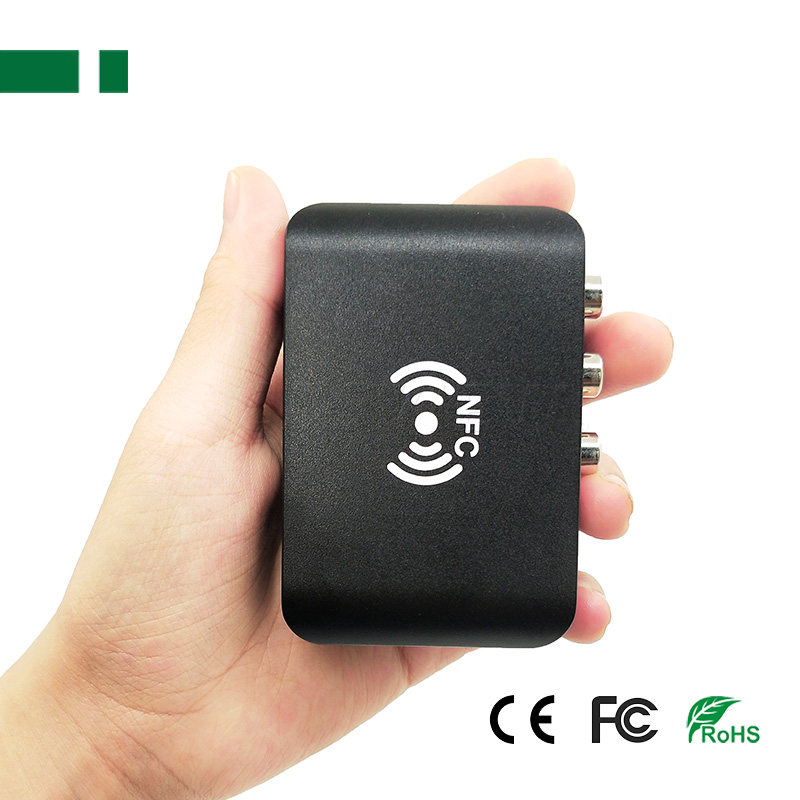

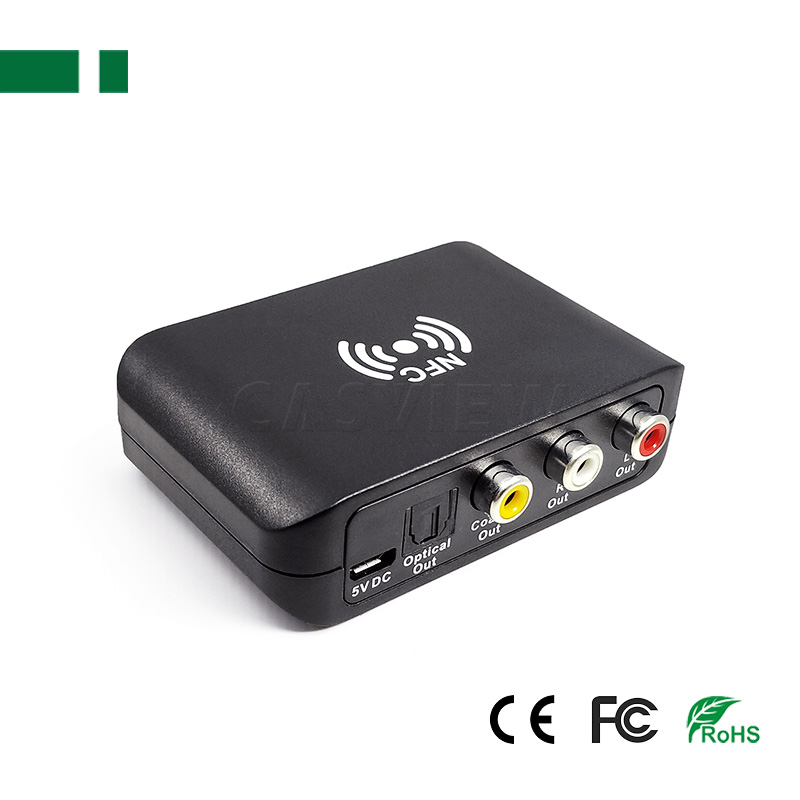

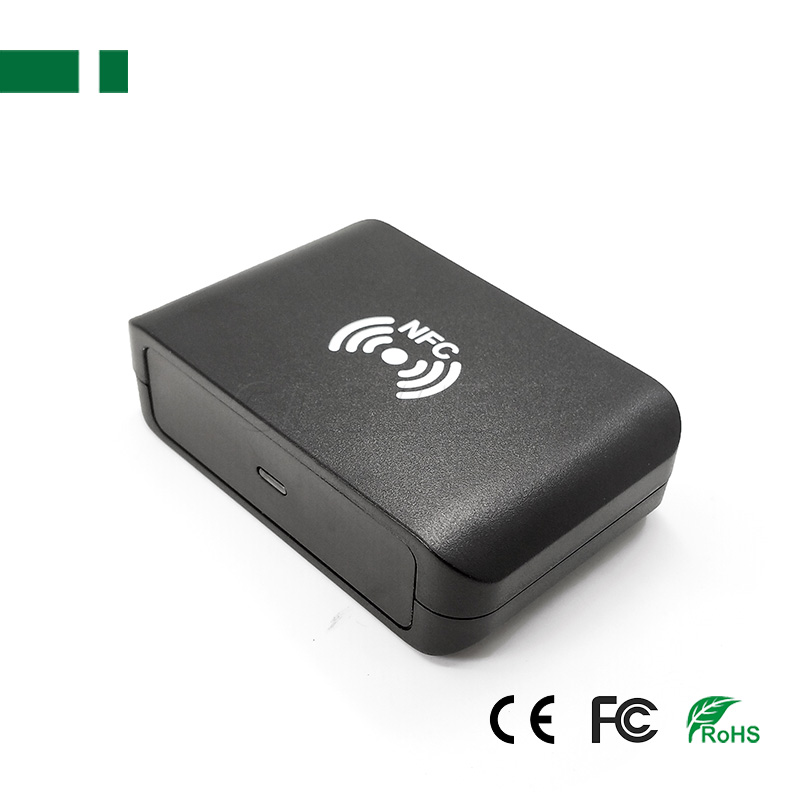

Thank you for purchasing the CXU-22. The CXU-22 is a Bluetooth capable audio receiver that connects non-Bluetooth speakers to your smart phone, tablet or PC. The CXU-22 supports the lasts Bluetooth low energy 5.0 version and APTX technology for delivering CD quality audio through your speakers or headphones. Analog stereo L/R RCA as well as S/PDIF TOLIN and coaxial outputs are included for superior music quality. The CXU-22 is powered by 5V through the supplied micro USB power adapter. Read all safety and operating instructions before using the Bluetooth receiver.

1. Bluetooth 5.0 connection BLE lower power consumption
2. NFC quick link
3. APTX superior audio code: CD quality sound

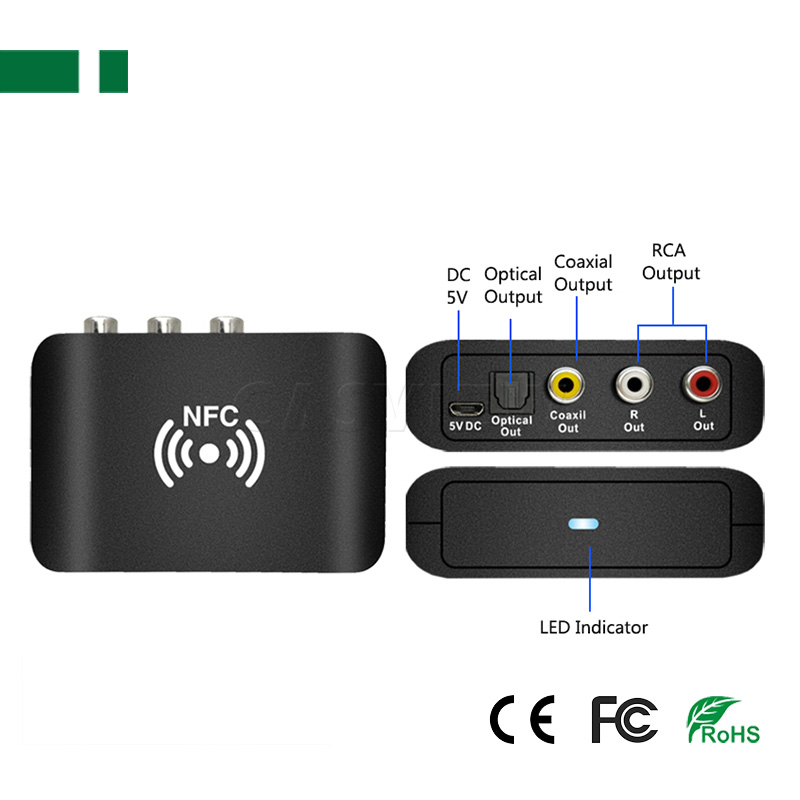

4. Analog output: Stereo Left/Right RCA
5. Digital SPDIF outputs: both TOSLINK optical and coaxial
6. Connect 3 separate speakers via CXU-22 at the same time
7. Auto reconnection supported
8. Link loss reconnection enabled
9. Low latency fast streaming
10. Desktop version: Plug &play; no battery
11. Micro USB power port

Bluetooth version& profile: ----------------------5.0 A2DP, EDR
Bluetooth distance: ------------------------------up to 30m
DAC:--------------------------- TI PCM5102A (PCM Interface: 32bit/ 384KHz; SNR: 112dB)
Frequency response: ------------------------------10Hz- 20Khz
APTX low latency: -----------------------------------30ms
Power supply: ---------------------------------------5VDC
Optical transmission speed------------------------ up to 16Mbps
Optical transmission distance-----------------------up to 20 m
Dimensions------------------------------------------7.8x 7.8x2.6cm
Color------------------------------------------------- black

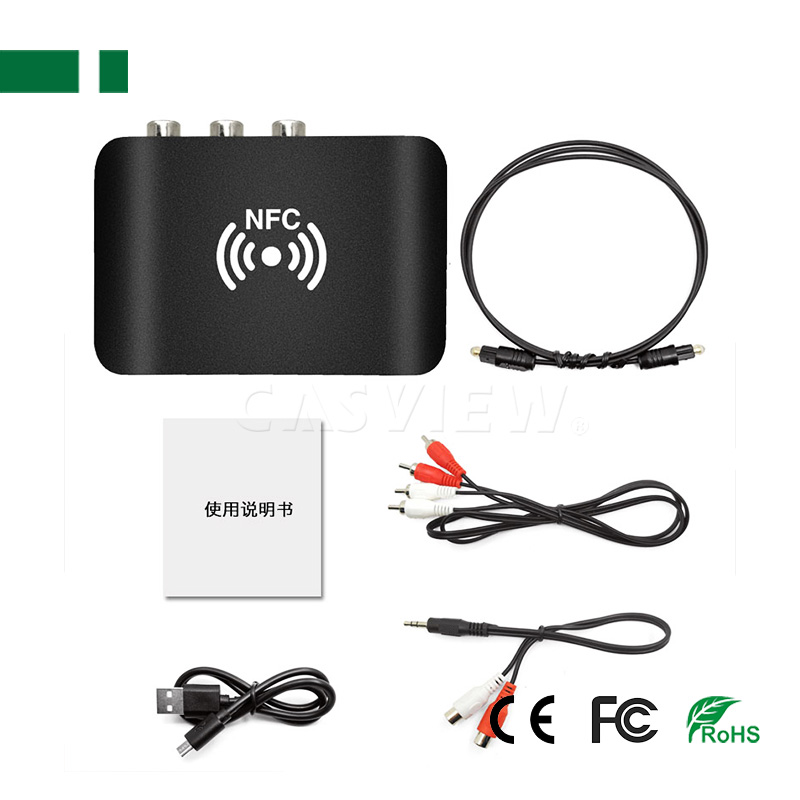

1 x NFC Bluetooth Receiver
1 x 3.5mm to 2xRCA adapter cable
1 x 2xRCA to 2xRCA audio cable
1 x Toslink optical cable
1 x USB cable
1 x English Manual
