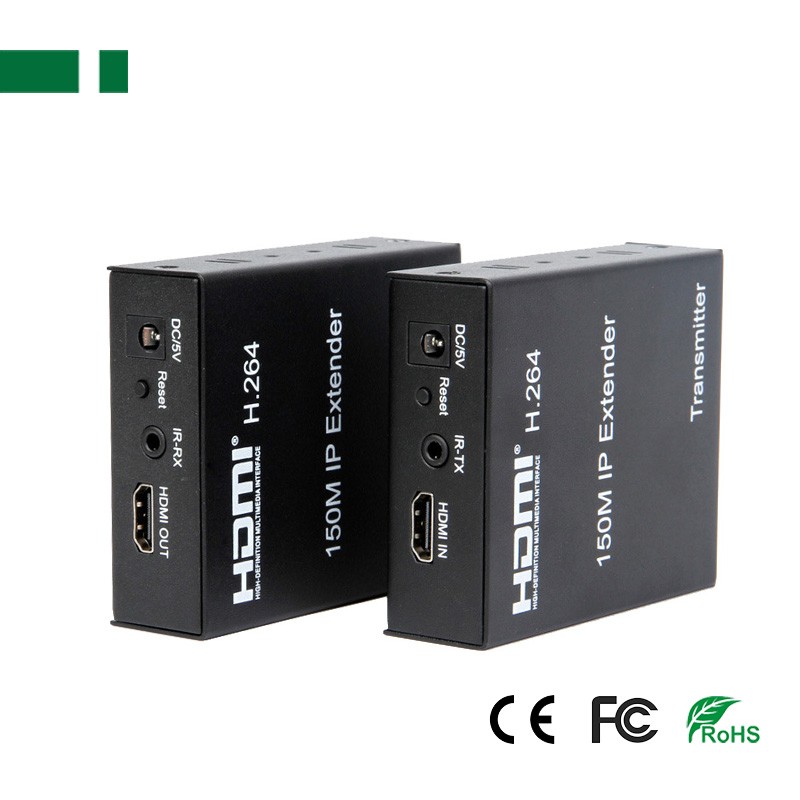

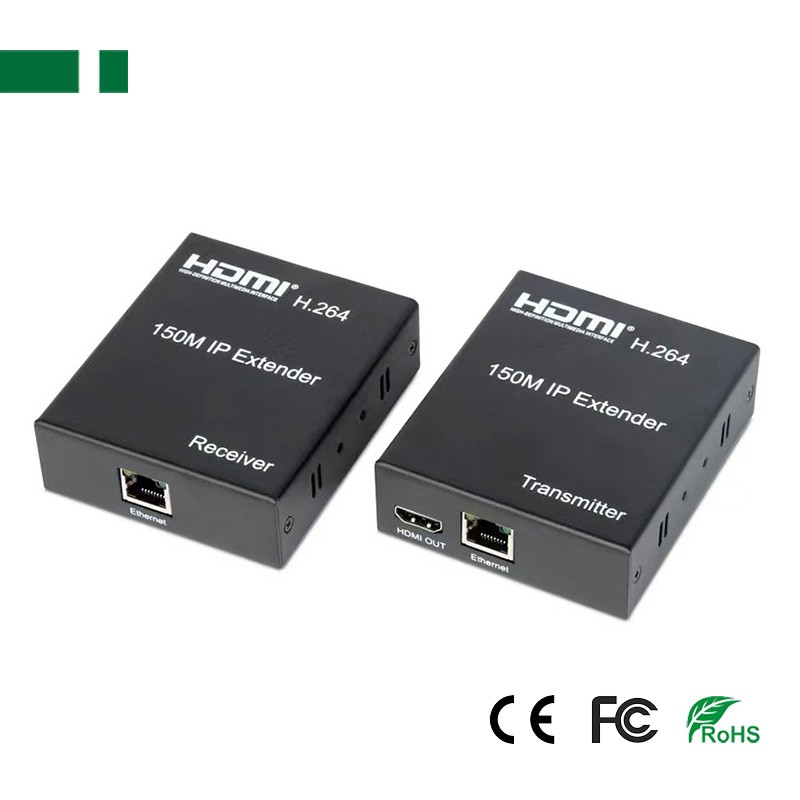

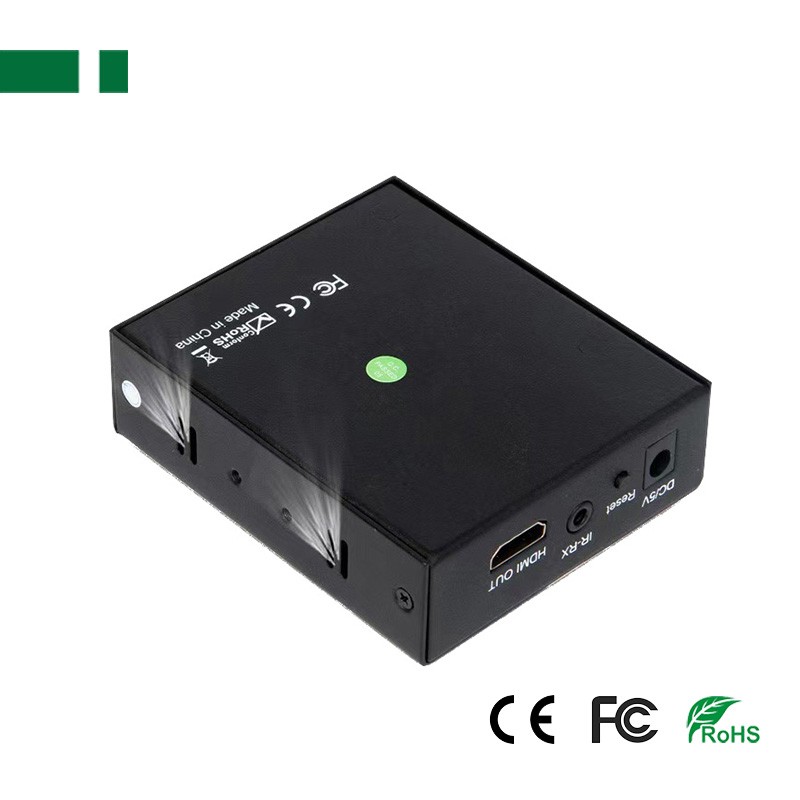

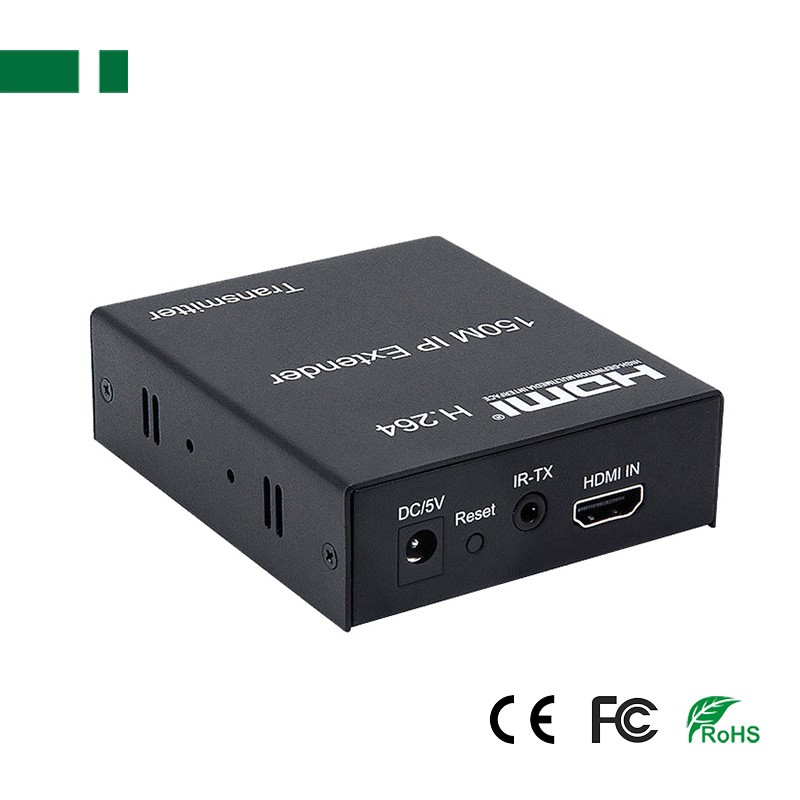

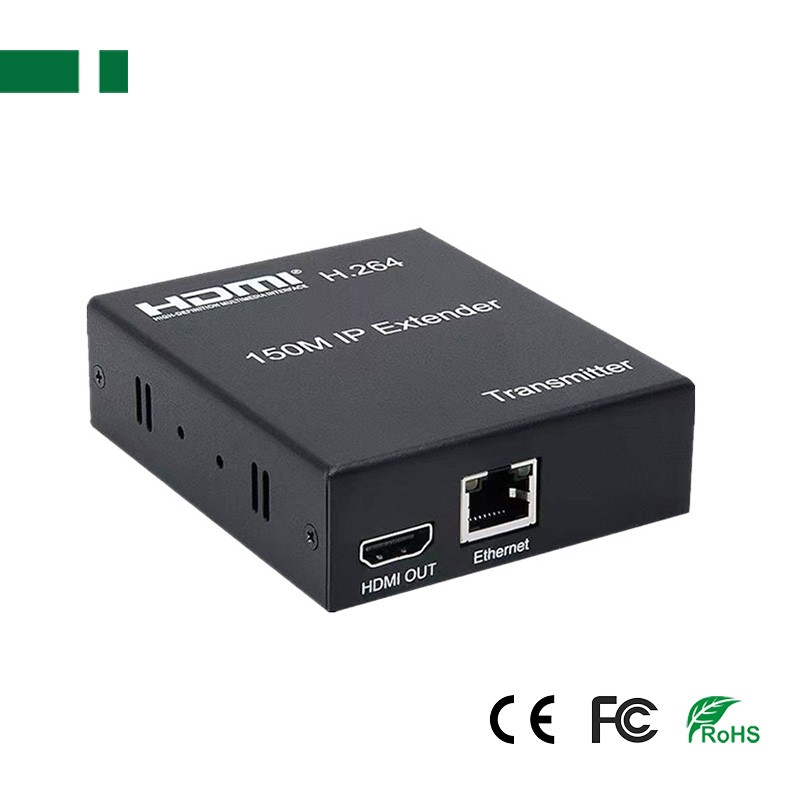

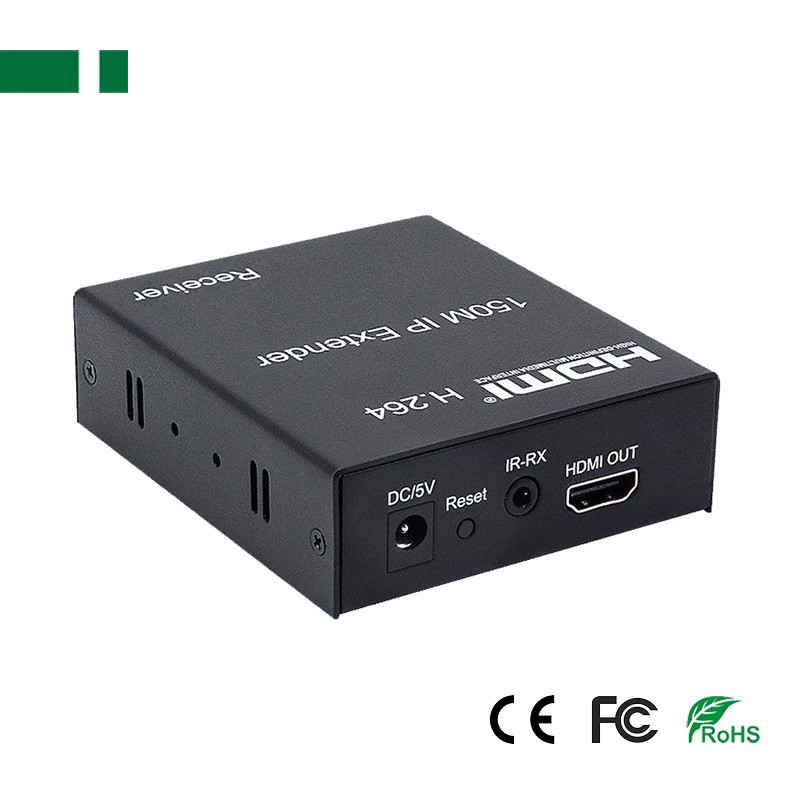

CHM-150H 150M H.264 1080P HDMI Extender with IR Remote

Introduction:

150M HDMl IP Extender is based on TCP/lP standard. lt transmits your HD display with the high resolution up to 150 meters away from your DVD or computer source by usingone CAT5e/6 cable.

At the same time, it's convenient to transmit HDMl audio and video source by point-to-point mode, one point-to-multi point mode and cascade connection mode.

Feature:

▪ 150M H.264 1080P HDMI IP Extender with IR Remote;

▪ Support HDMI 1.3;

▪ H.264 code transmission, transmission rate 8.1Mbps

▪ Support point-to-point mode, one point-to-multi point mode and cascade connection mode;

▪ 802.3 Ethernet standard;

▪ Support lR remote control;

▪ The transmitter support HDMl loop-out function;

▪ The design of pure hardware, plug and play, no need for additional software.

Specification:

▪ HDMI Version: HDMI 1.3;

▪ HDTV Resolutions: 480p,720p,1080p;

▪ Audio: Sample rate:32kHz,44.1kHz and 48kHz code;

▪ IR remote control:38 KHZ;NEC;

▪ Power Adapter: DC5V 1A;

▪ The Max Power consumption: HDMI sender:3W, HDMI receiver:3W;

▪ Size(L-W-H): 93*79*27mm;

▪ Weight: 228g*2.

Package:

▪ Transmitter *1-PC;

▪ Receiver *1-PC;

▪ 5V/1A Power adapter *2-PC;

▪ IR cable *1-Pair;

▪ User's Manual *1-PC.
