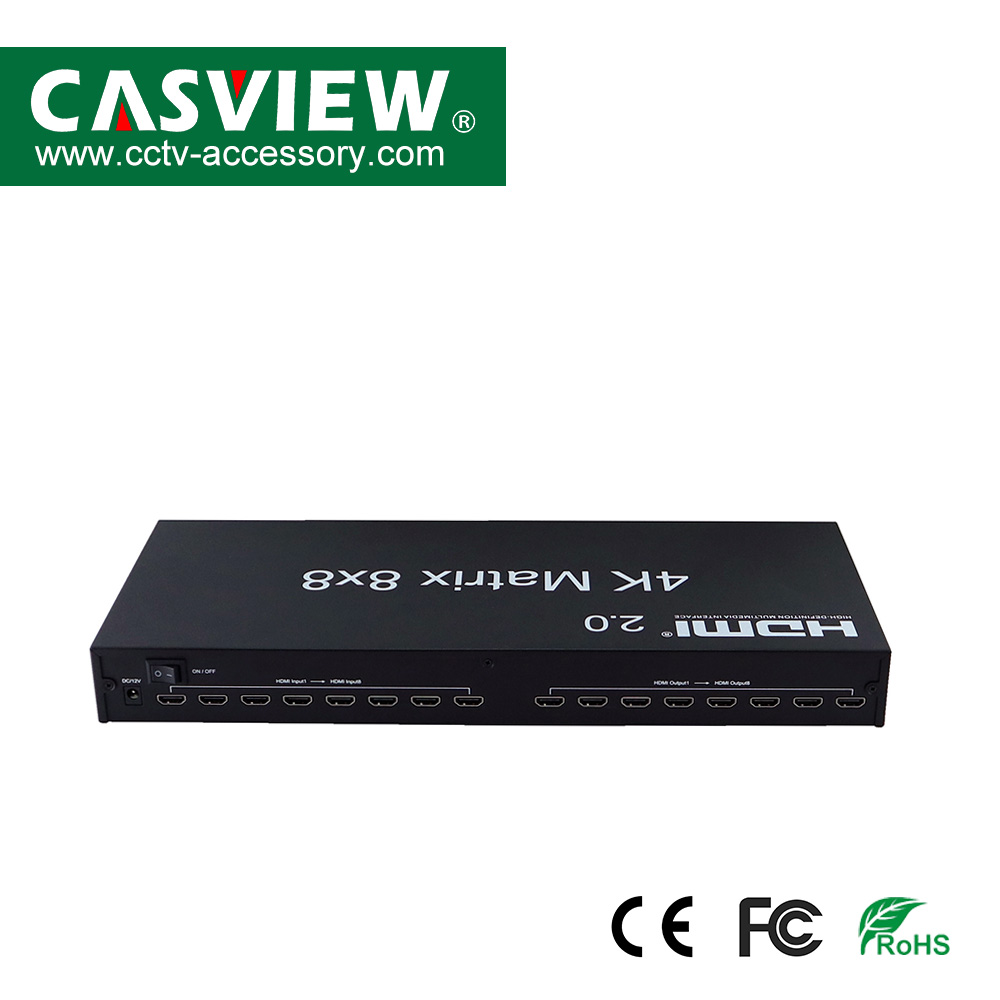

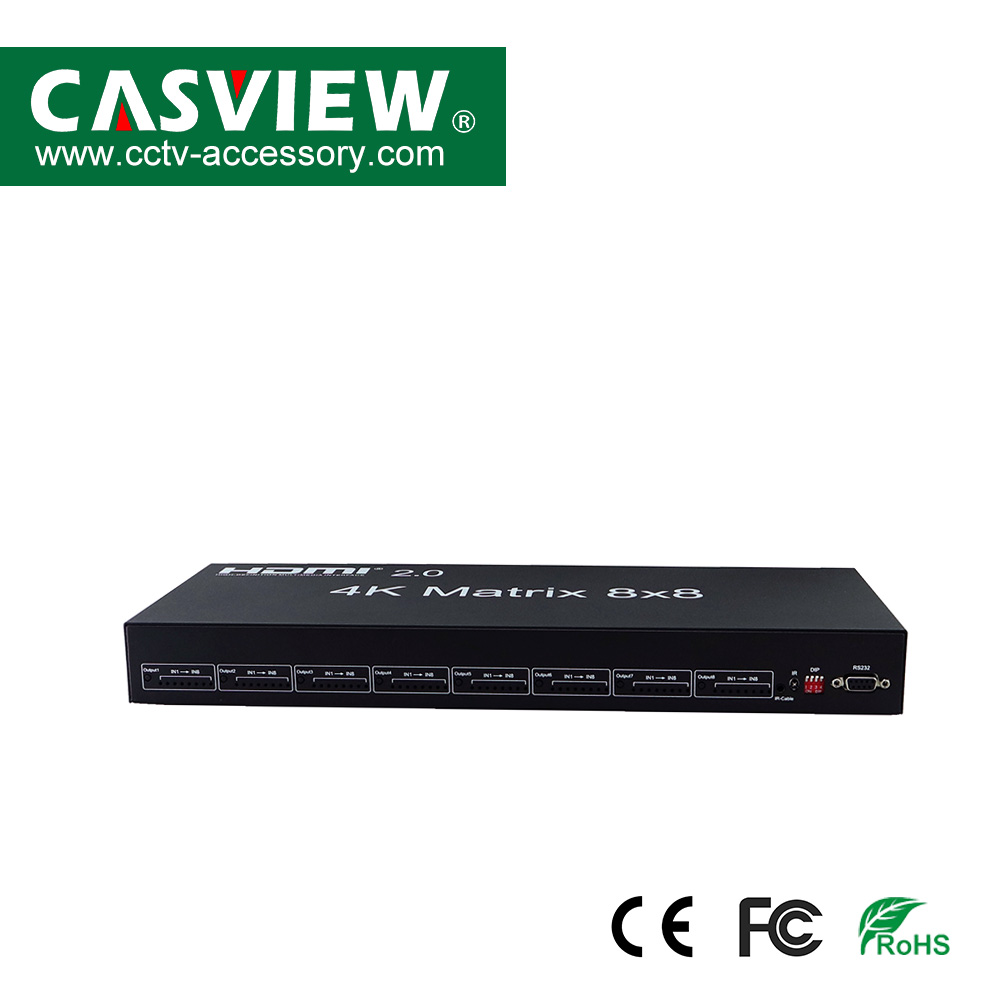

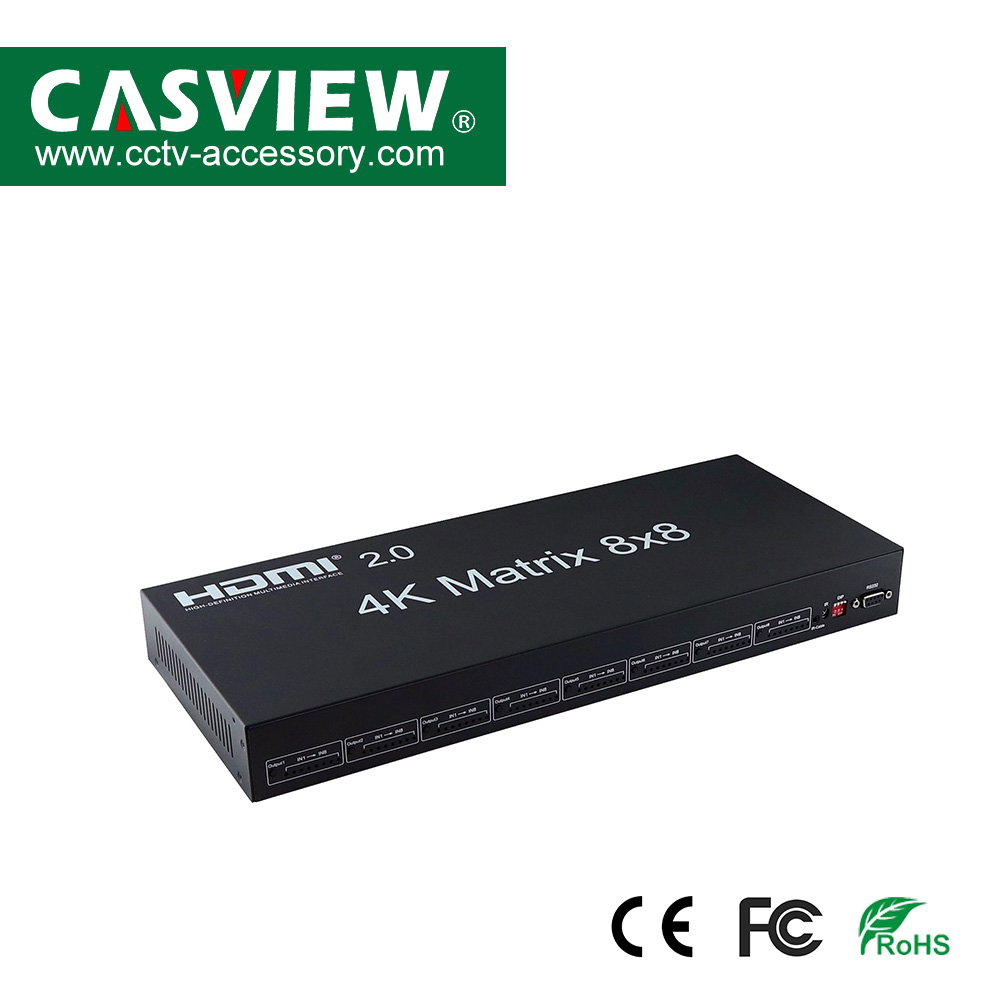

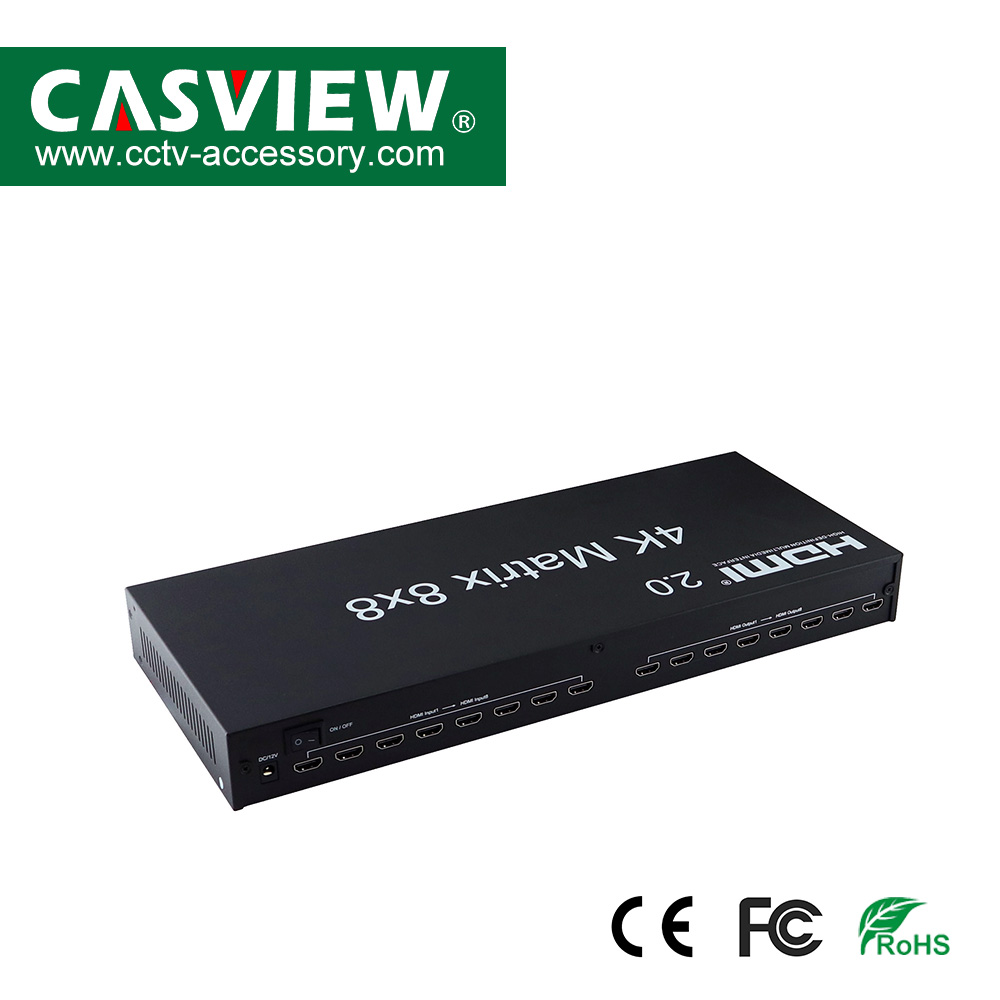

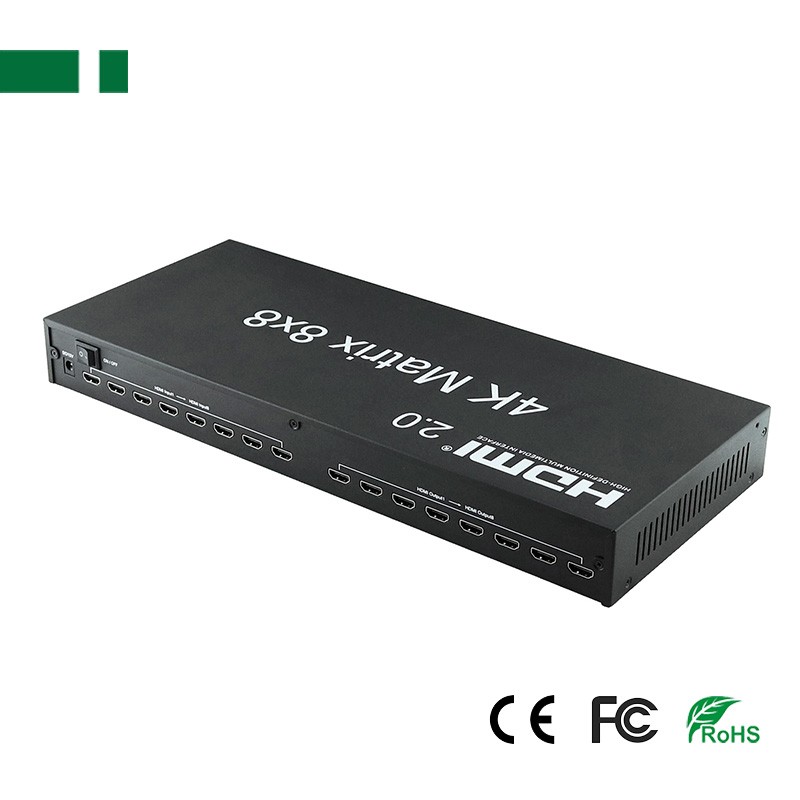

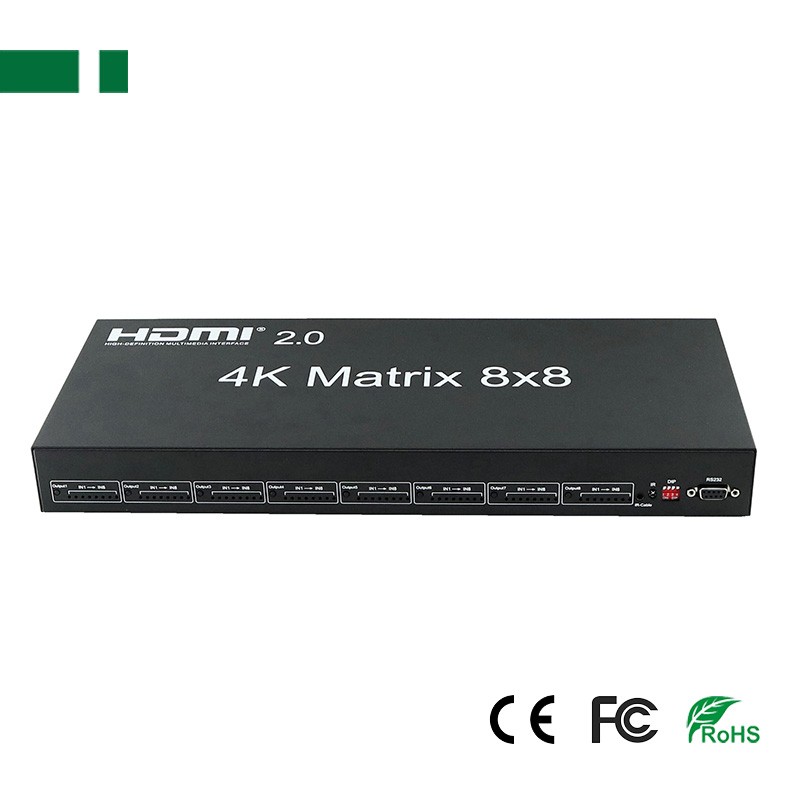

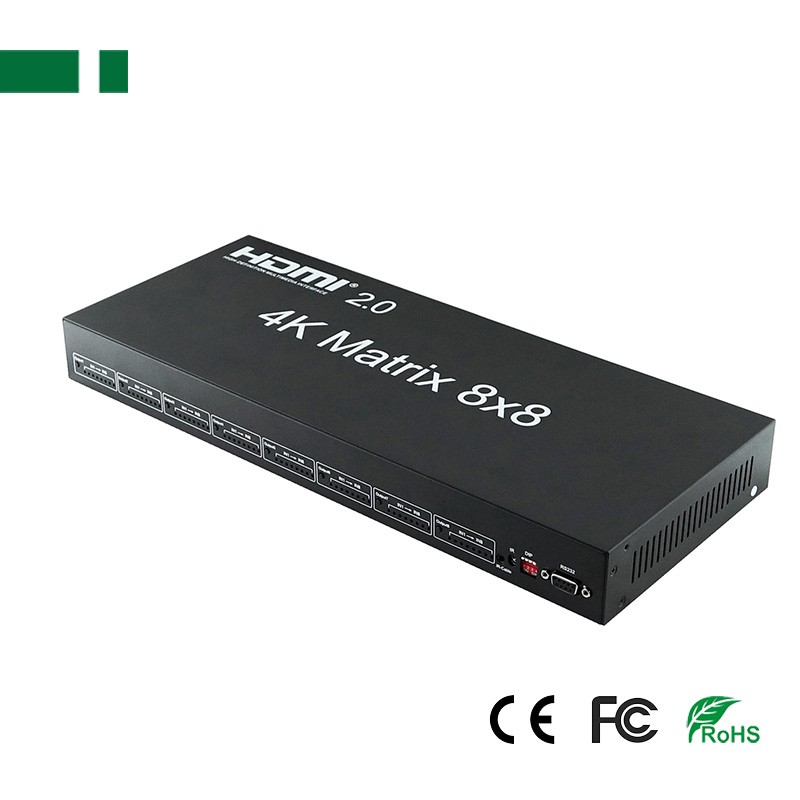

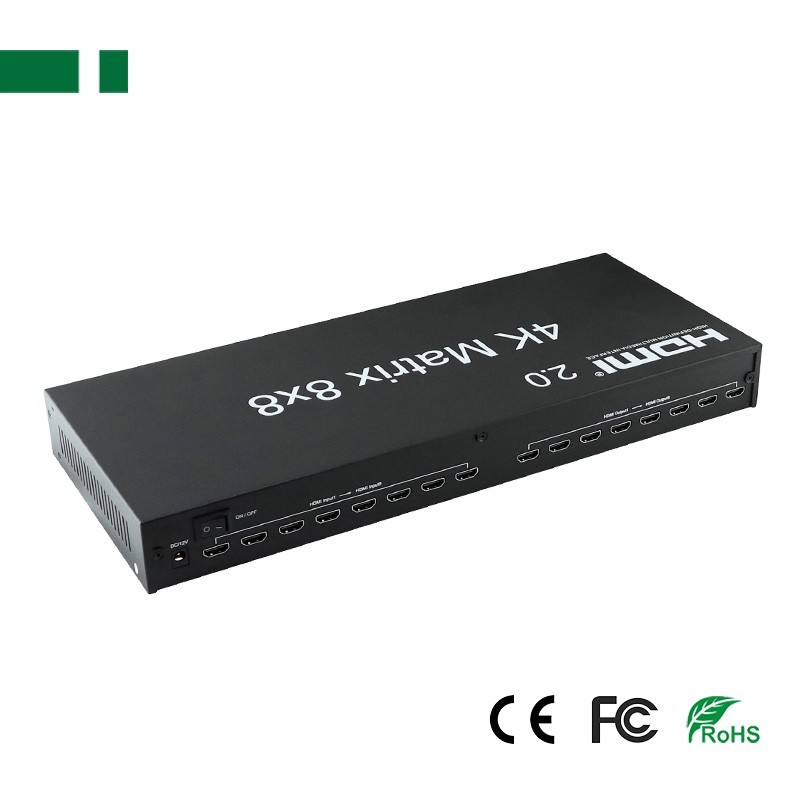

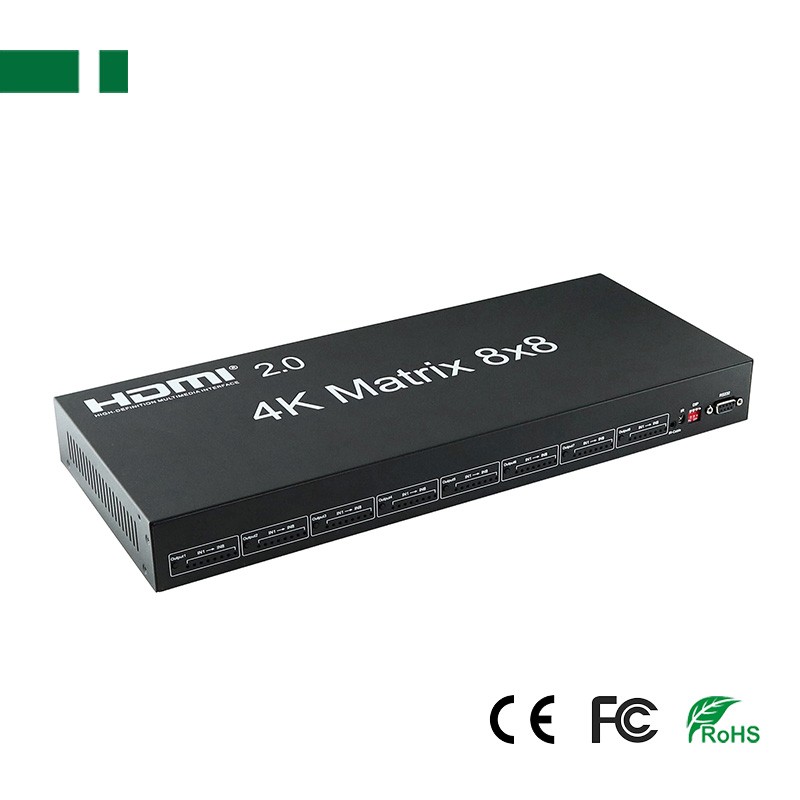

CHM-S0808-4K

Features :
Eight HDMI signals input to be independently distributed or switched to eight displays which support HDMI signal input
Support HDMI 1.4b and HDCP1.4
Support 8/10/12/16 bit deep colour
Support max resolution 3840x2160@30Hz
Support audio format DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD
Support signal timing reset
Support AWG26 HDMI standard cable, input up to 8 meters,output up to 8 meters
Input ports can be controlled by IR
Via RS-232 control,for PC control and upgrading the software
12V/5A External Power Supply


SPECIFICATIONS:
HDMI resolution……………………....24/50/60fs/2160P/1080p/1080i/720p/576p/576i/480p/480i
Support audio color format …………………………..…………. …............................8/10/12/16bit
Support audio format……………DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max baud rate…….…………….…………………………………………. ……..3.4Gbps
Input and output TMDS signal………….…………………………..…… 0.5~1.5Volts p-p
Input and output DDC signal……………………………………………..5Volts p-p (TTL)
Input cable distance.……………………….……………….………….≤8m AWG26 HDMI standard cable
Output cable distance…………………………….…...≤8m AWG26 HDMI standard cable
Max working current………………………………………………………………………3.6A
Power Adapter format ……………Input:AC(50HZ, 60HZ) 100V-240V;output: DC12V/5A
Operating Temperature range……..…………….…………………………… (-15℃ to +55℃)
Working humidity range………………………….….………5 to 90%RH (No Condensation)
Dimension (L x W x H)……………………………….……………………435*184*16 (mm)
Weight…..………………………………………………………..…………….………..1944g


Packaging content:
1. HDMI Matrix
2. IR Remote Control
3. IR Receiver cable
4. 12V DC Power adapter
5. User Manual
