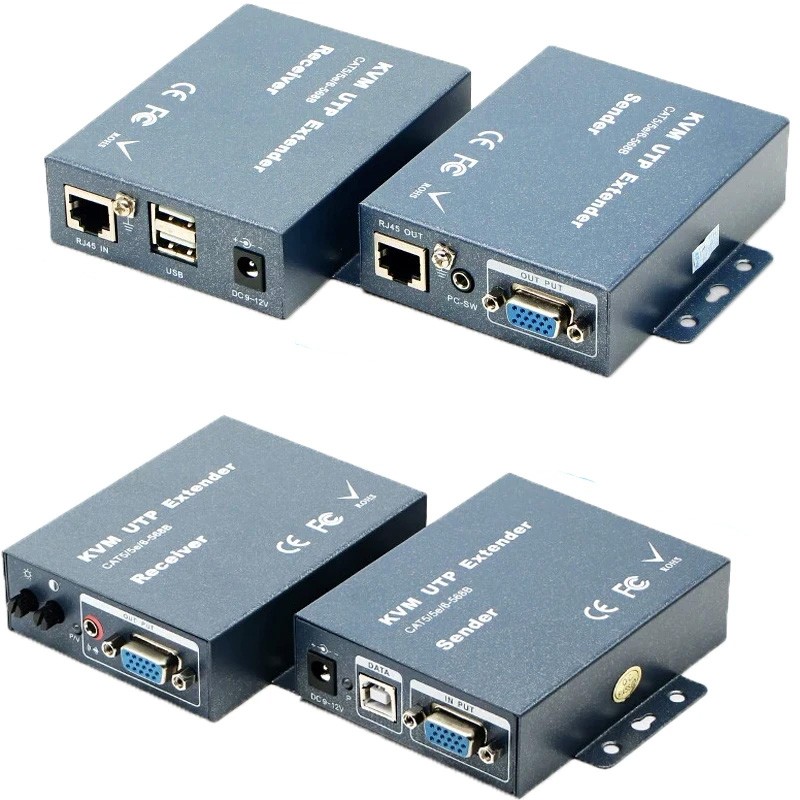

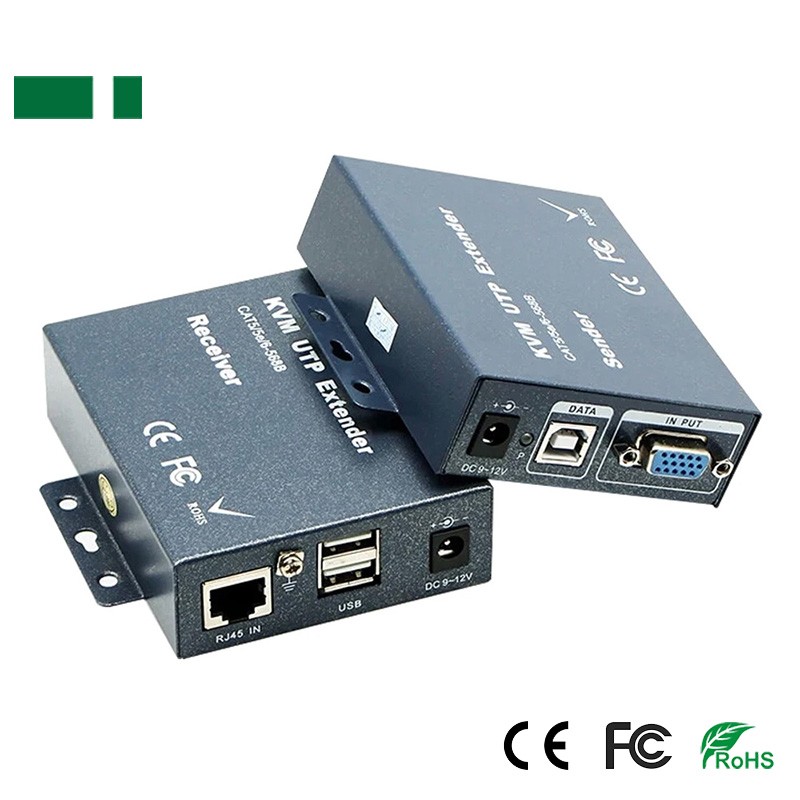

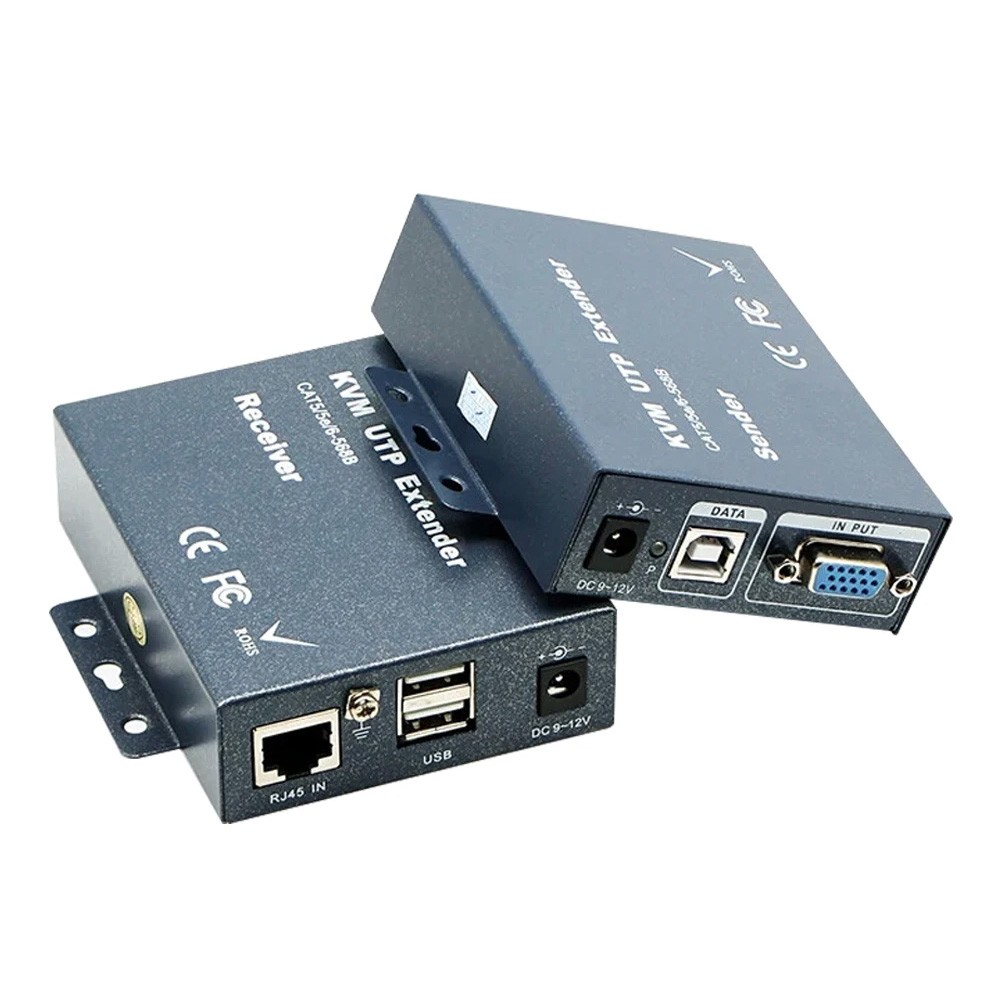

CHM-K112-100 CHM-K112-200 CHM-K112-300 VGA KVM extender

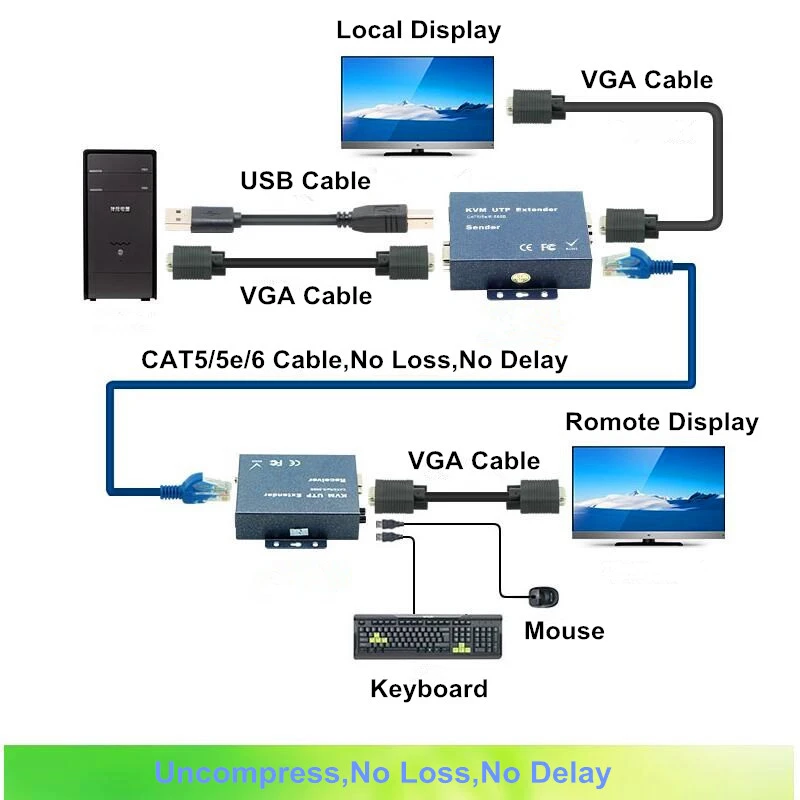

100m/200m/300m VGA KVM extender provides extension of VGA video audio signal long distances over a single Ethernet RJ45 CAT5/5e/6 cable, it supports high resolution up to 1920*1440@60Hz and keyboard/mouse signal and vga loop out signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:

Transmits VGA video and audio signal over CAT5/5e/6 cable

Support video resolution up to 720P,1080P,1920*1440@60Hz.

Compliance with VGA standard.

Uncompress,no delay,no loss.

Support VGA loop out function.

Support keyboard and mouse signal transmission

High compatibility, can auto-match source and display device.

Built-in automatic adjustment system, make the image smooth, clear and stable.

Built-in ESD protection system.

Simple to install, plug and play.

Specifications:

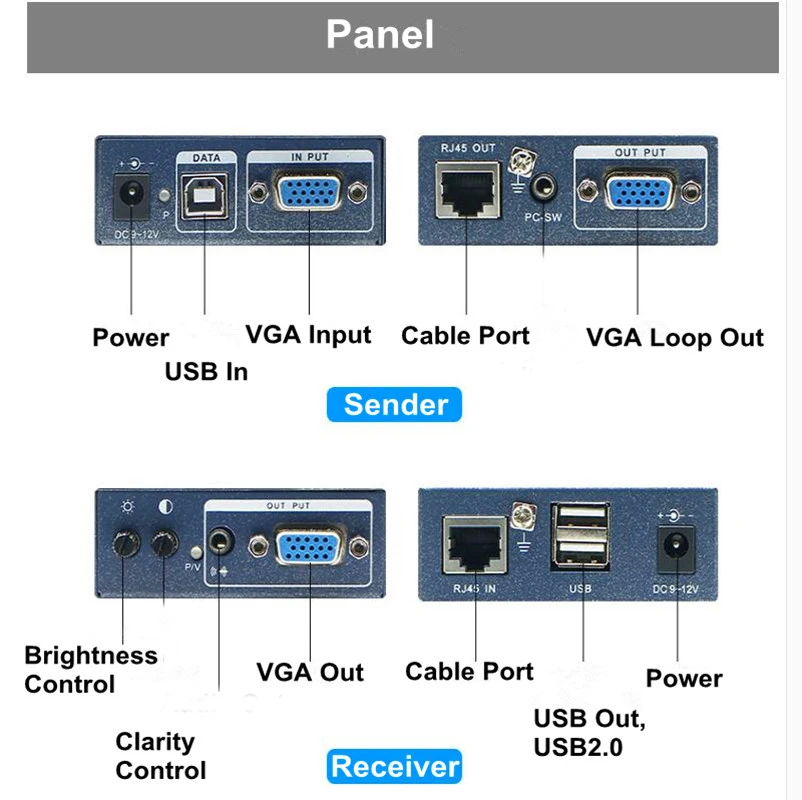

Local Unit

Host Connection

Multiplatform support: Windows 2000/XP/Vista/Windows7/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.

Male/Female 15-pin HD connector for computer connection

Local Access

Crisp and clear 1920x1440@60Hz video resolution.

Female 15-pin HD connector for local VGA monitor

Remote Unit

Supports resolutions up to 1920x1440@60Hz; refer to the resolution chart below for resolutions at different lengths.

Female 15-pin HD connector.

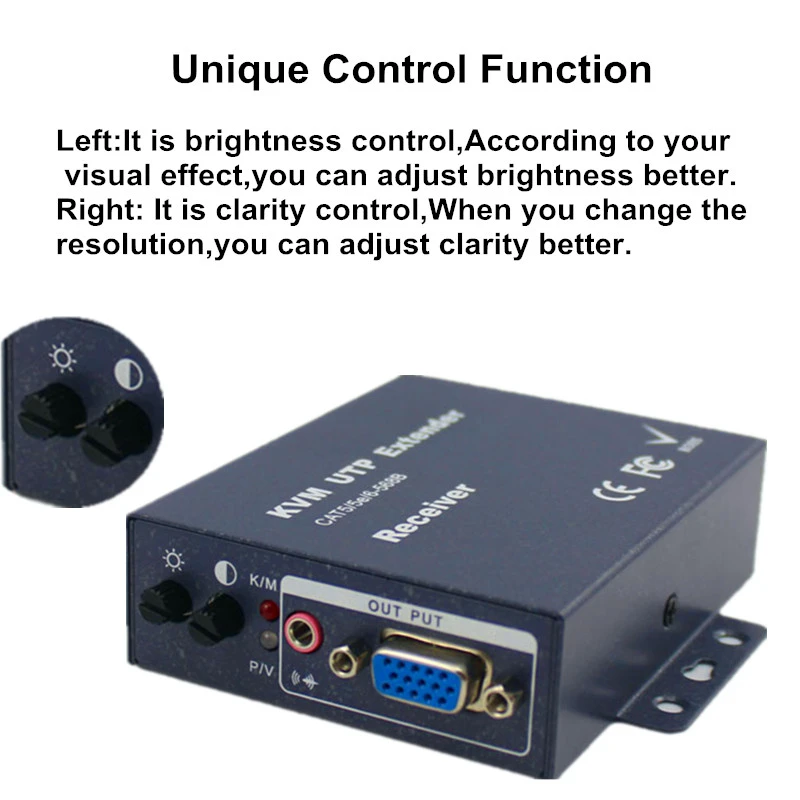

Video Quality Adjustment

Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually for the video-only extender, and automatically for audio/video or video/RS232 extender.

Test Pattern for Cable Length

Environmental

Operating temperature: 32°F to 100°F (0°C to 38°C).

Storage temperature: -20°F to 140°F (-30°C to 60°C).

Operating and Storage Relative Humidity: 17 - 90% non-condensing RH.

Dimensions

WxDxH (mm): 95*97*28mm

Weight(g):0.95KG(With packaging)

Power

220 or 110 VAC at 50 or 60 Hz via AC adapter (Included).

Power Consumption: 6W (each - local and remote unit).

Package:

VGA KVM transmitter ……………………….……. 1 pcs

VGA KVM receiver …………………………………. 1 pcs

USB Cable …………………………….…………. 1 pcs

Power Adapter ……………………………….... 2 pcs

User manual …………………………………..… 1 pcs
