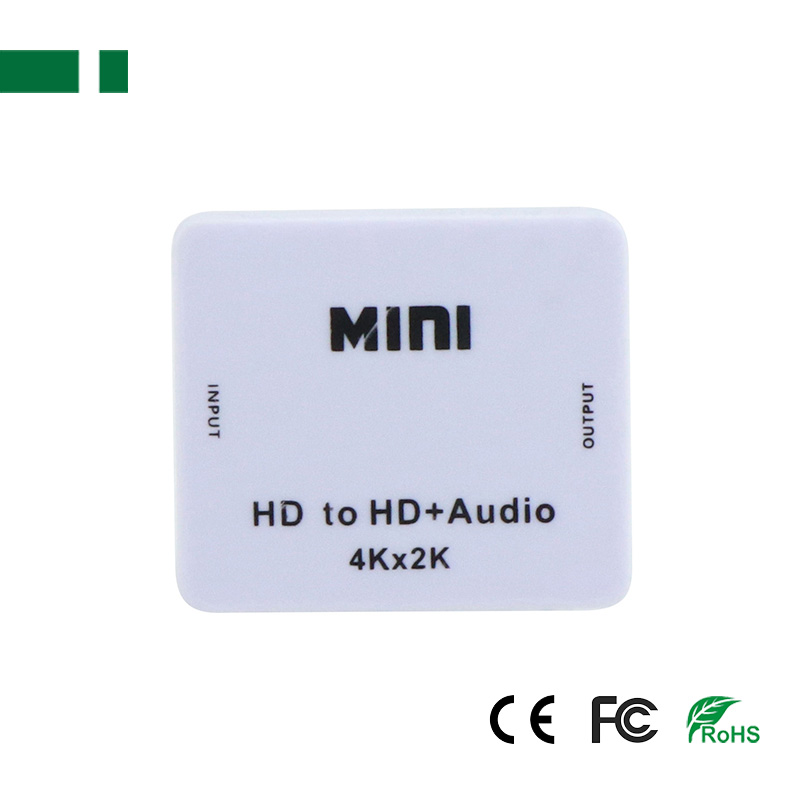

CHM-A21 4K*2K HDMI TO HDMI+ AUDIO (R/L)

MINI HDMI to HDMI+Audio(3.5mm Stereo)  4K*2K Converter HDMI Audio extractor Adapter switcher For PC Laptop HDTV

Introduction
The HDMI to HDMI+Audio(3.5mm Stereo)  4K*2K converter increase the analog stereo audio output on the basis of the HDMI signal transmission. The analog stereo audio signal can be easily connected to the earphone or audio power amplifier.

Features
1. Convert one HDMI input to one HDMI + Audio(3.5mm Stereo)output.
2. Audio output supports: R/L analog Audio Output.
3. Input Resolution: Up to 3840x2160@30Hz/4096x2160@30Hz.
4. Supports 12-bit Deep Color Full HD,3D and 4K*2K video.
5. HDMI to achieve the synchronization of audio signal separation.

Specifications
HDCP Version.................................................HDCP1.4
HDMI Version................................................HDMI1.4b
HDMI resolution ..............2160p@30Hz/1080p@50/60Hz/1080i/720p/1576i/480p/480i
Support video color format.............24bits/deep color 30bit,36bit
Audio output...............................................L/R
Max bandwidth.................................................340MHz
Max baud rate................................................10.2Gbps
Input/ Output TMDS signal........................0.5-1.5Volts p-p(TTL)
Input/ Output DDC signal.............................5Volts p-p(TTL)
Input cable distance.................<=7m AWG26 standard cable HDMI
Output cable distance................<=8m AWG26 standard cable HDMI
Max working current............................................500mA
Operating temperature range..........................(-15 to +55°C)
Operating humidity range...............5 to 90% RH(NO Condensation)
Dimension (LxWxH)......................................60x55x20(mm)
Weight........................................................35g

The Difference Between These 4 HDMI Audio Extractor

Model	CHM-A1	CHM-A11	CHM-A2	CHM-A21
Resolution	1920*1080@60Hz		3840*2160@30Hz
Input ports	1*HDMI	1*HDMI	1*HDMI	1*HDMI
Output ports	1*HDMI, 1*3.5mm Stereo, 1*SPDIF	1*HDMI, 1*3.5mm Stereo	1*HDMI, 1*3.5mm Stereo, 1*SPDIF	1*HDMI, 1*3.5mm Stereo
Audio output	L/R+SPDIF	3.5mm Stereo	L/R+SPDIF	3.5mm Stereo
HDCP Version	HDCP1.4		HDCP1.4
HDMI Version	HDMI1.3		HDMI1.4b
Power	DC5V (Power supply not included)
Dimensions	60(D)*55(W)*20(H)mm
Weight	40G

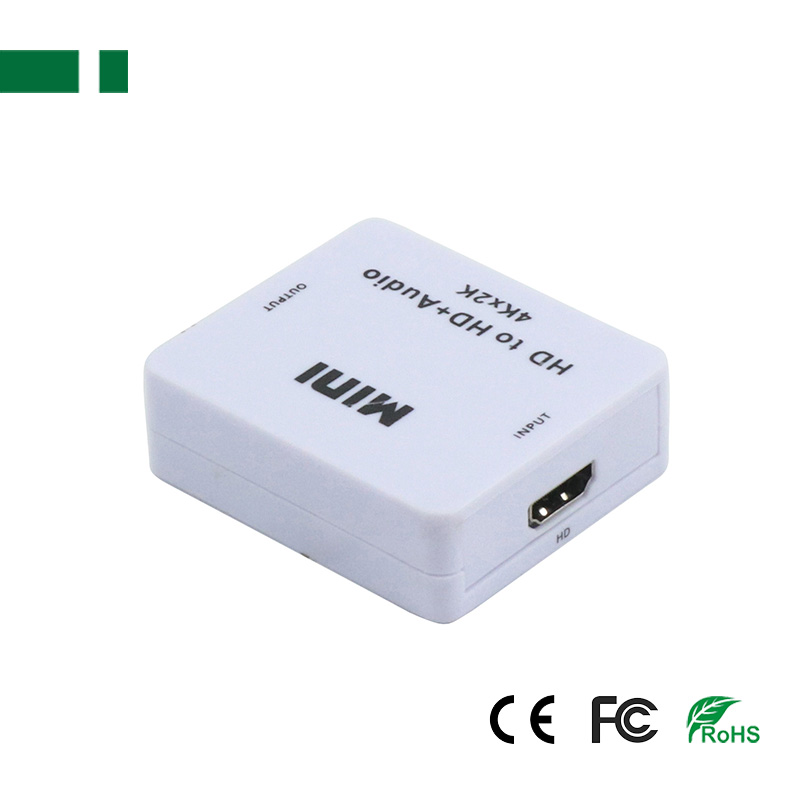

HDMI IN: HD audio video signal input interface which connect to input device.
Toslink: Digital audio output interface.

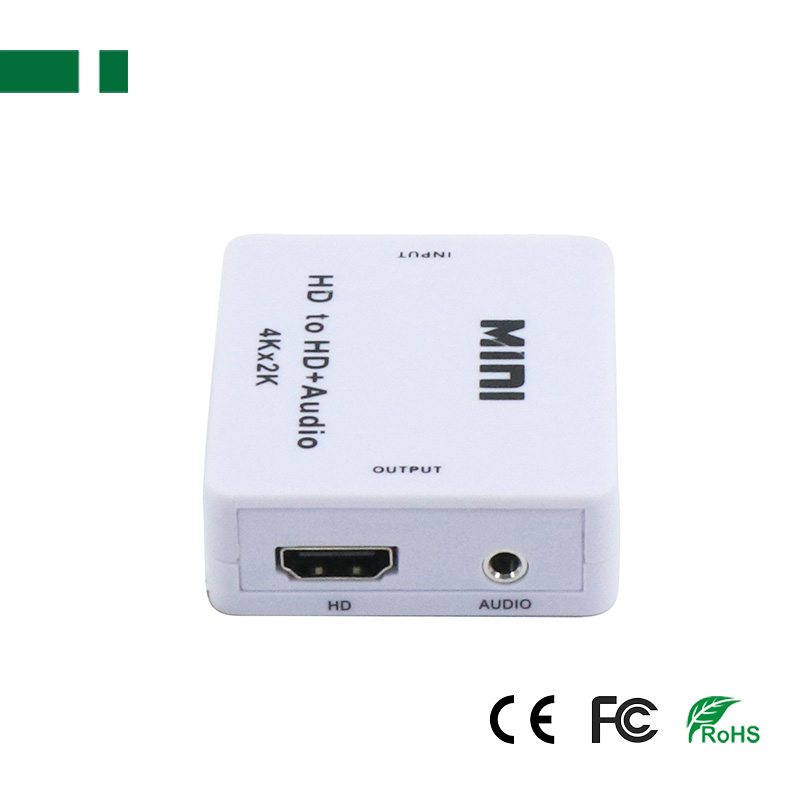

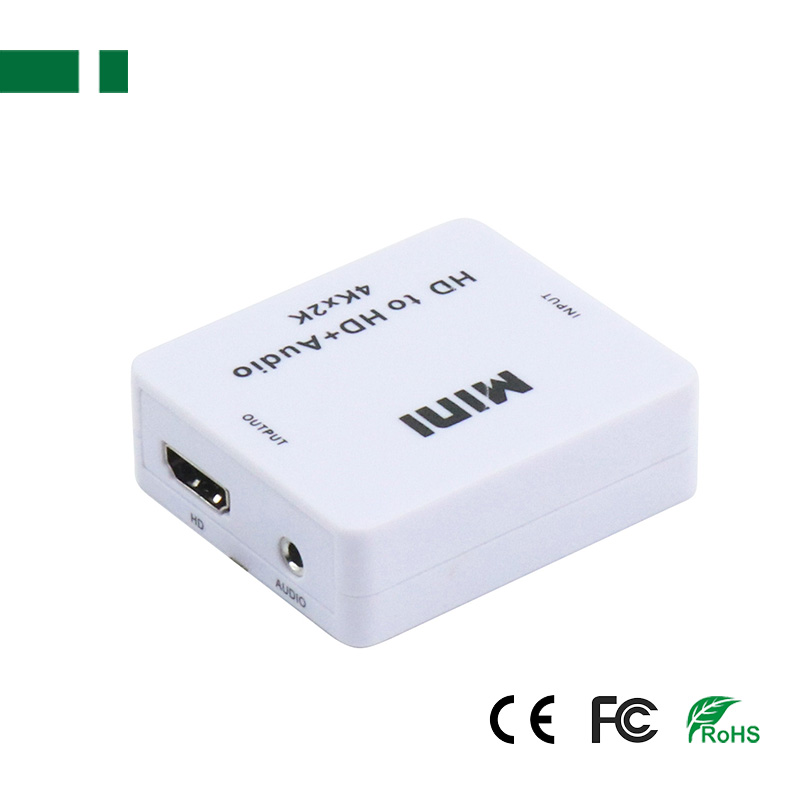

HDMI OUT: HD audio video output interface.
L/R OUT: Analog audio output interface.

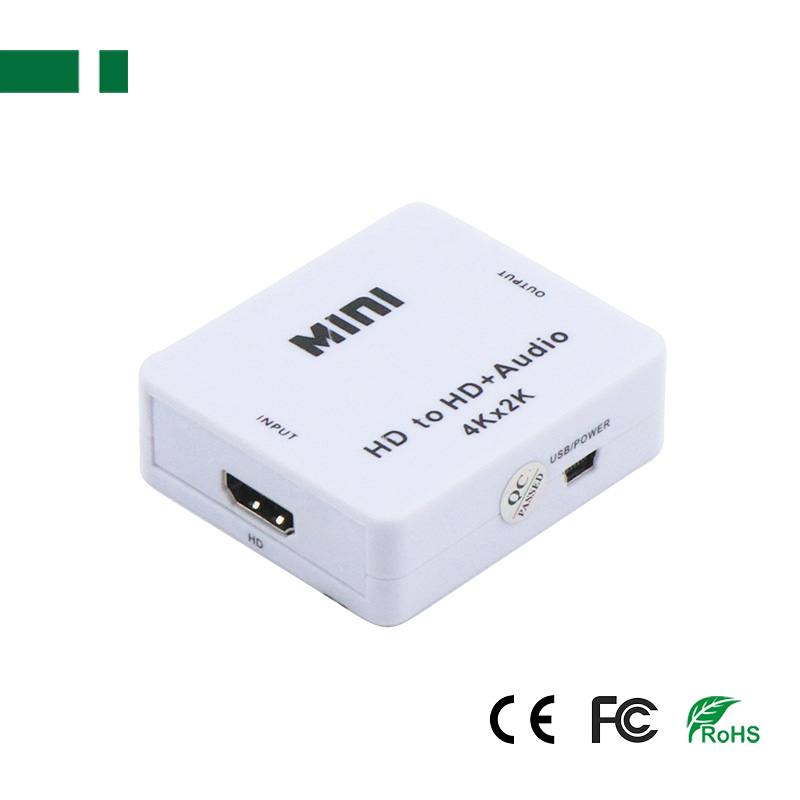

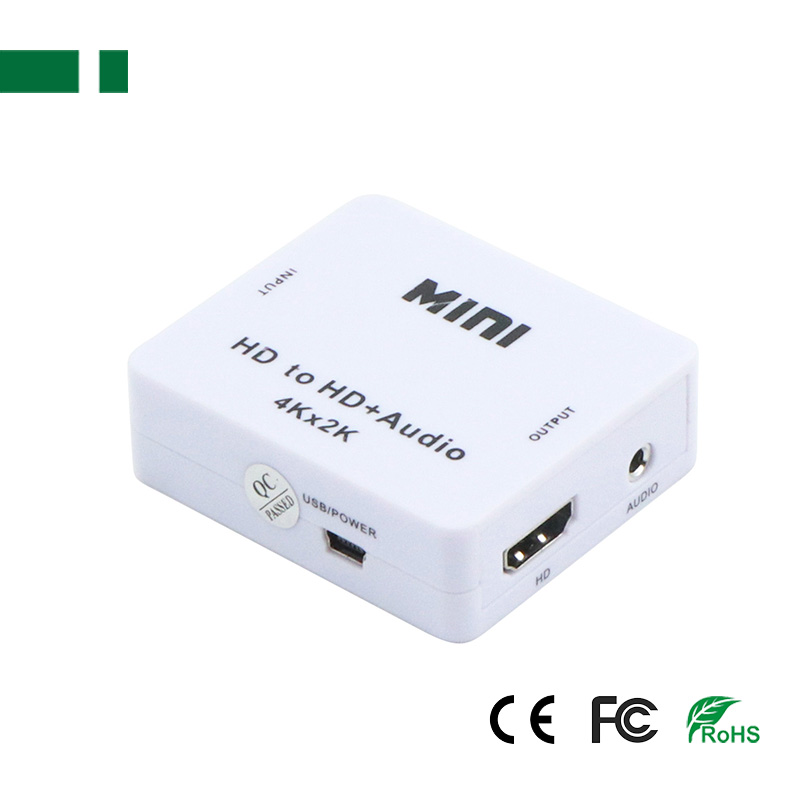

USB/POWER:DC +5V Power supply interface.

Before installation, please make sure all devices you wish to connect have been turned off.
1. Use the HDMI Cable to connect the HDMI input interface to the HD source device.
2. Use the HDMI cable to connect the HDMI output interface to the HD display.
3. Use the audio cable to connect the R/L interface to the audio equipment.
4. Use the optical cable to connect the SPDIF interface to the audio equipment
5. Use the 5V USB power cable to connect the converter to the 5V/1A USB plug.

Package Contents
1*Audio Extractor
1*5V USB Power Cable Optional
1*User Manual
