  • HDMI TO HDMI+AUDIO(SPDIF+R/L)
  • HDMI 1.3.
  • 1920×1080@ 60Hz
  • HDCP 1.4
  • Product description: The MINI HDMI2HDMI+Audio(L/R+SPDIF) Converter increases the analog stereo audio output on the basis of the HDMI-compatible signal transmission. The analog stereo audio signal can be easily connected
  • INQUIRY   EMAIL

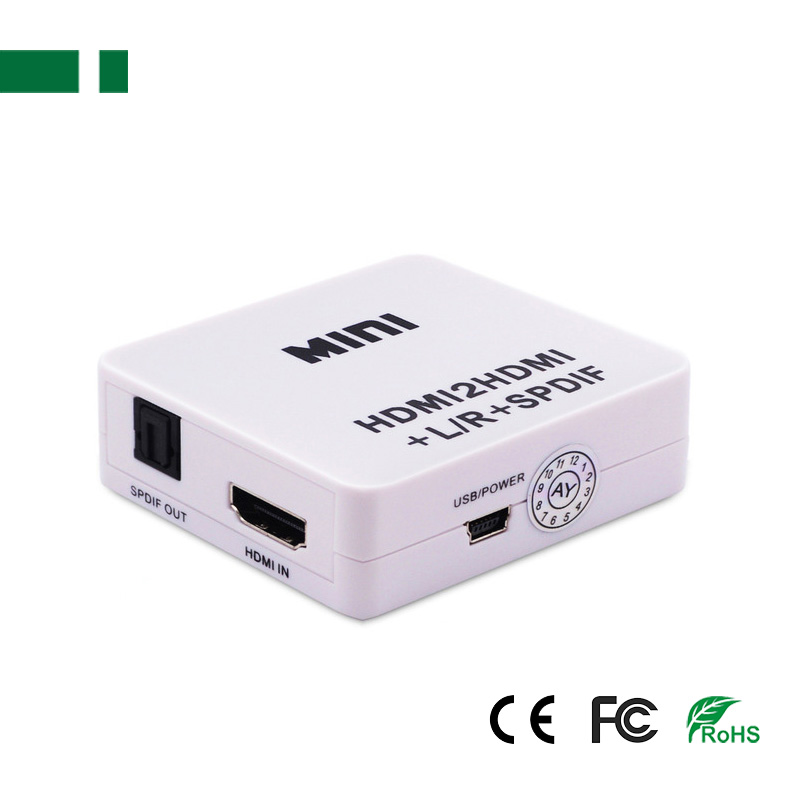

HDMI TO HDMI+AUDIO(SPDIF+R/L)

Introduction

The MINI HDMI2HDMI AUDIO+ Audio converter increase the analog stereo audio output on the basis of the HDMI signal transmission. The analog stereo audio signal can be easily connected to the earphone or audio power amplifier.


Features

No need to install driver, portable, flexible, plug and play.
Low power, no Power Adapter.
HDMI is compliant with HDMI 1.3.
High bandwidth capability support up to 1920×1080@ 60Hz


The Difference Between These 4 HDMI Audio Extractor

Model CHM-A1 CHM-A11 CHM-A2 CHM-A21
Resolution 1920*1080@60Hz 3840*2160@30Hz
Input ports 1*HDMI 1*HDMI 1*HDMI 1*HDMI
Output ports 1*HDMI, 1*3.5mm Stereo, 1*SPDIF 1*HDMI, 1*3.5mm Stereo 1*HDMI, 1*3.5mm Stereo, 1*SPDIF 1*HDMI, 1*3.5mm Stereo
Audio output L/R+SPDIF 3.5mm Stereo L/R+SPDIF 3.5mm Stereo
HDCP Version HDCP1.4 HDCP1.4
HDMI Version HDMI1.3 HDMI1.4b
Power DC5V (Power supply not included)
Dimensions 60(D)*55(W)*20(H)mm
Weight 40G

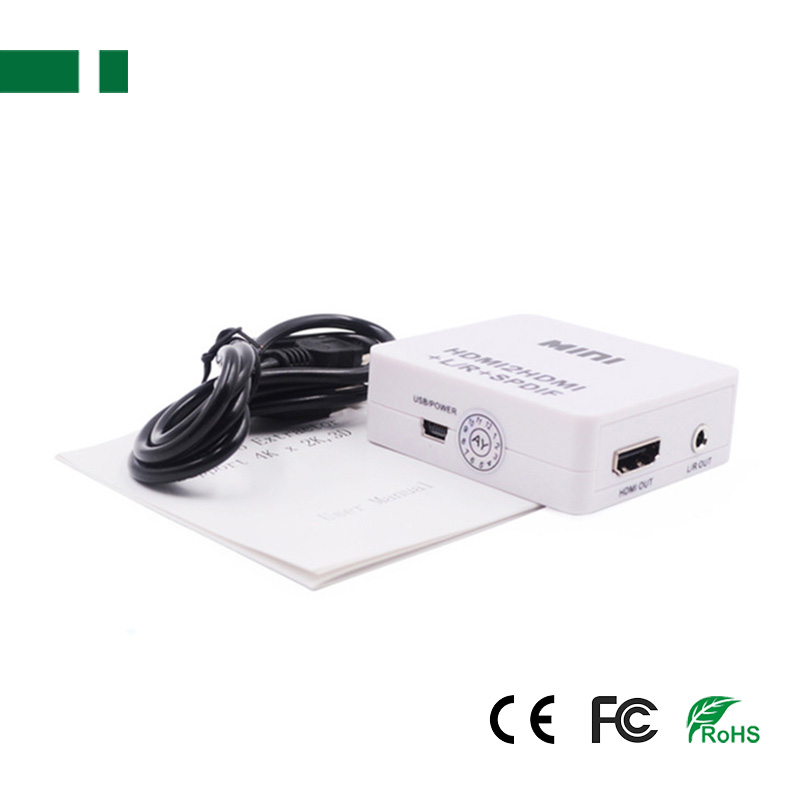

Package included:
1* HDMI2HDMI+Audio(L/R+SPDIF) Converter
1* User manual
1* mini USB Cable
