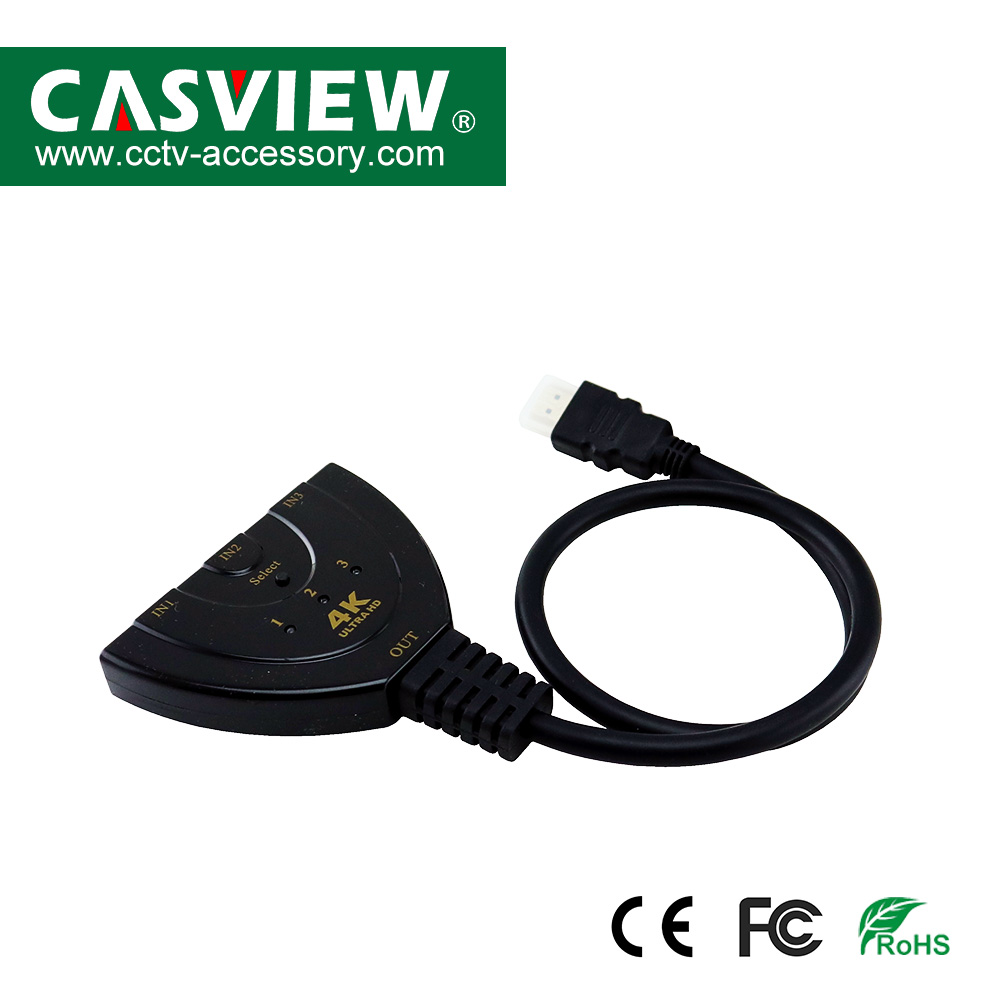

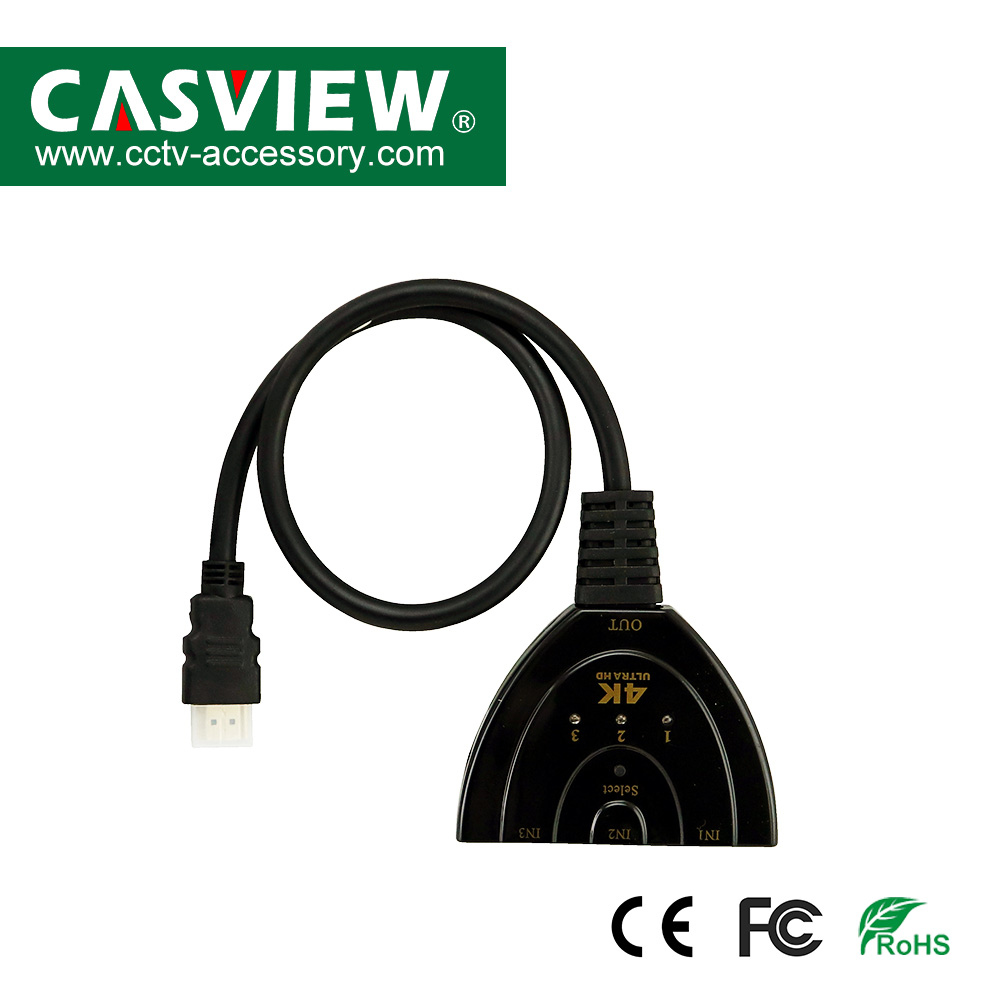

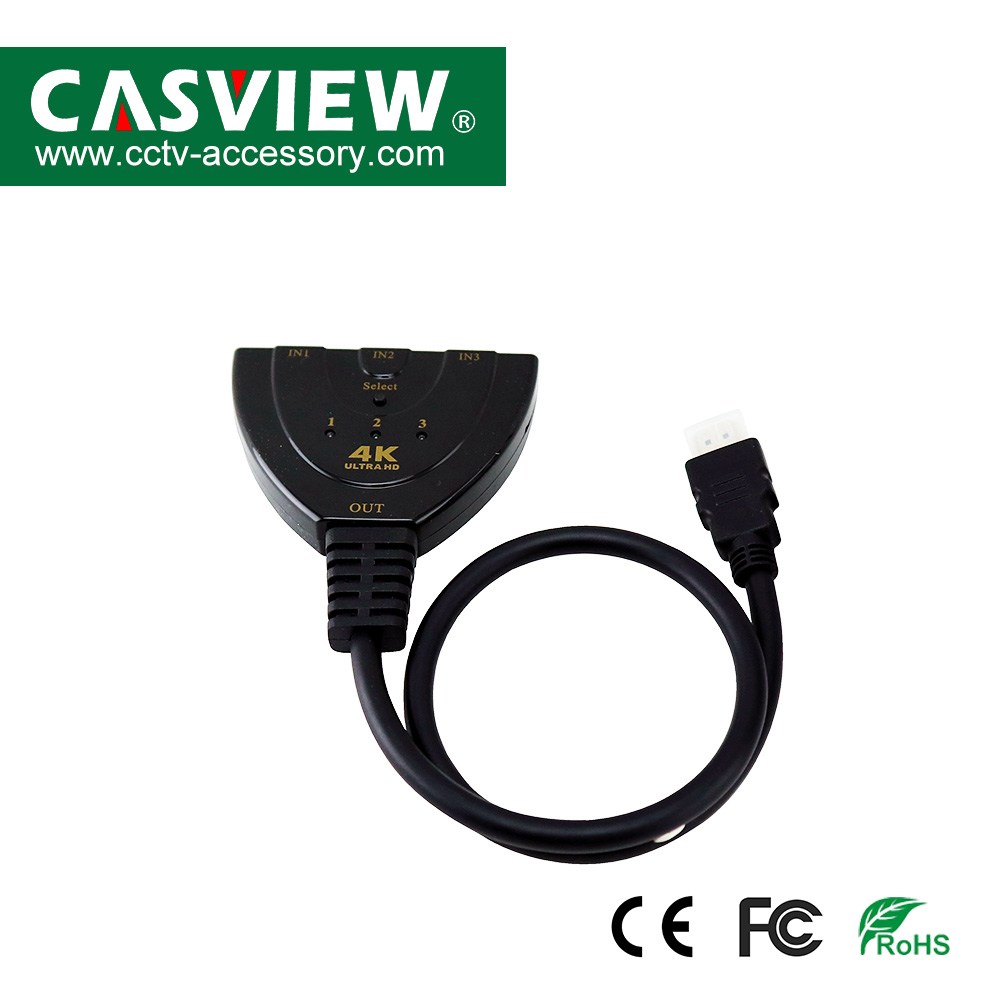

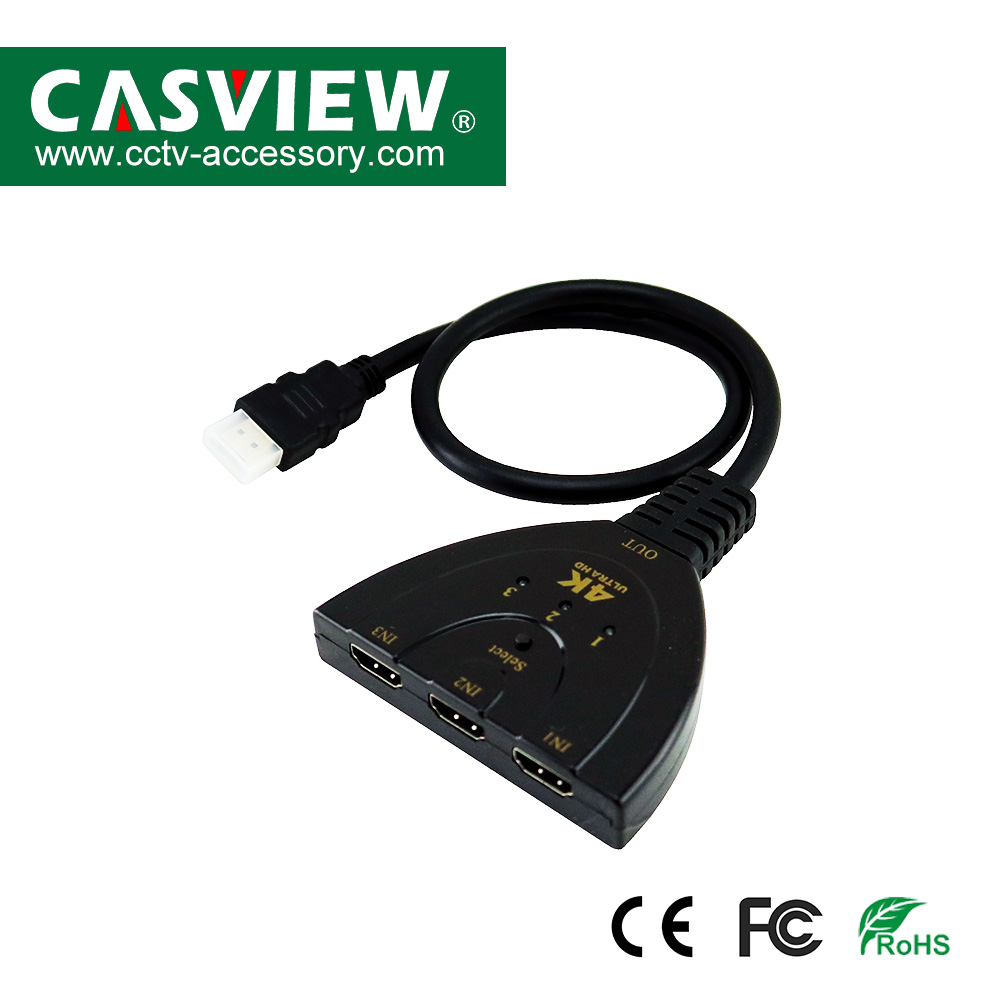

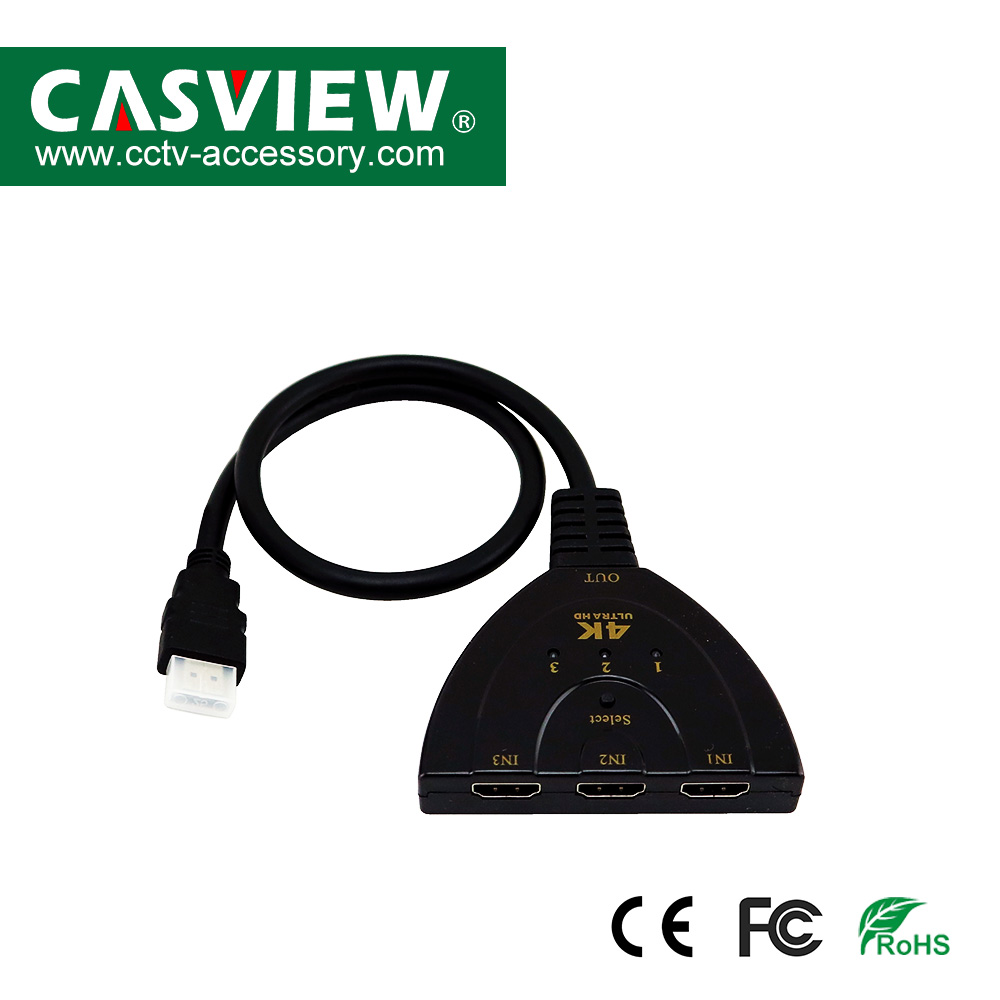

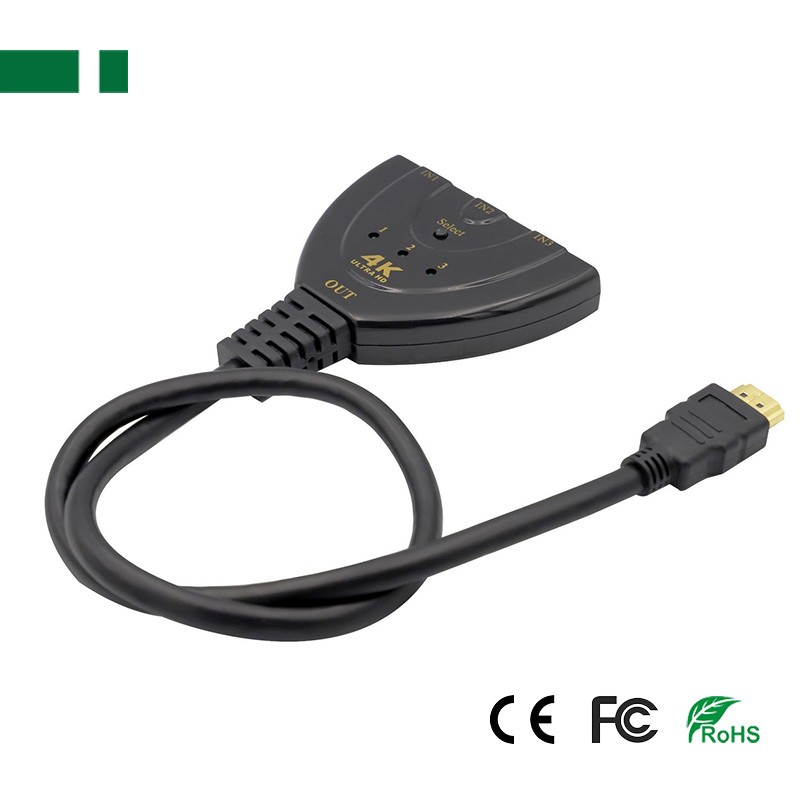

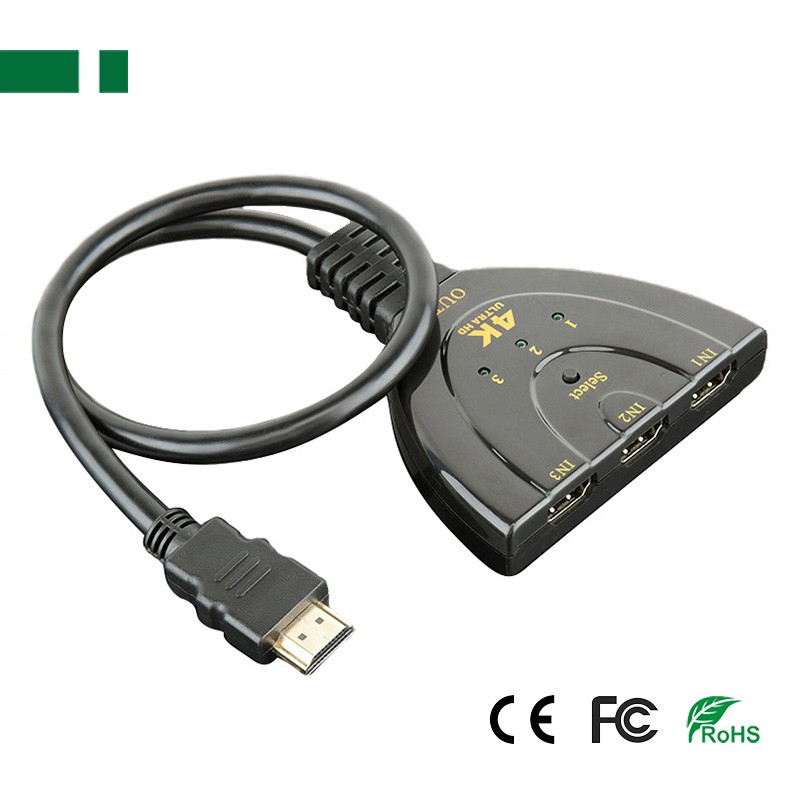

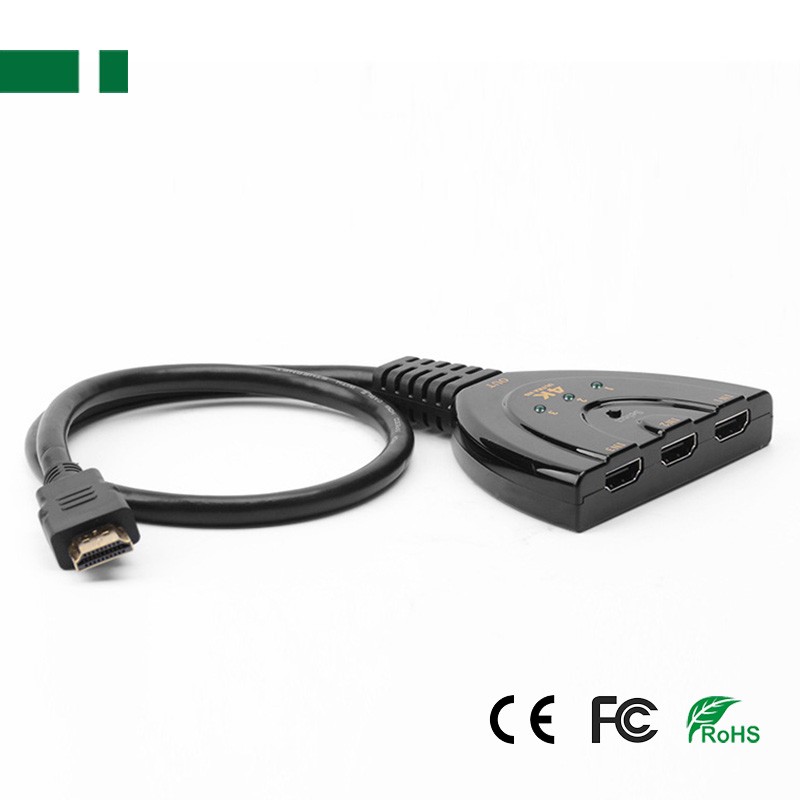

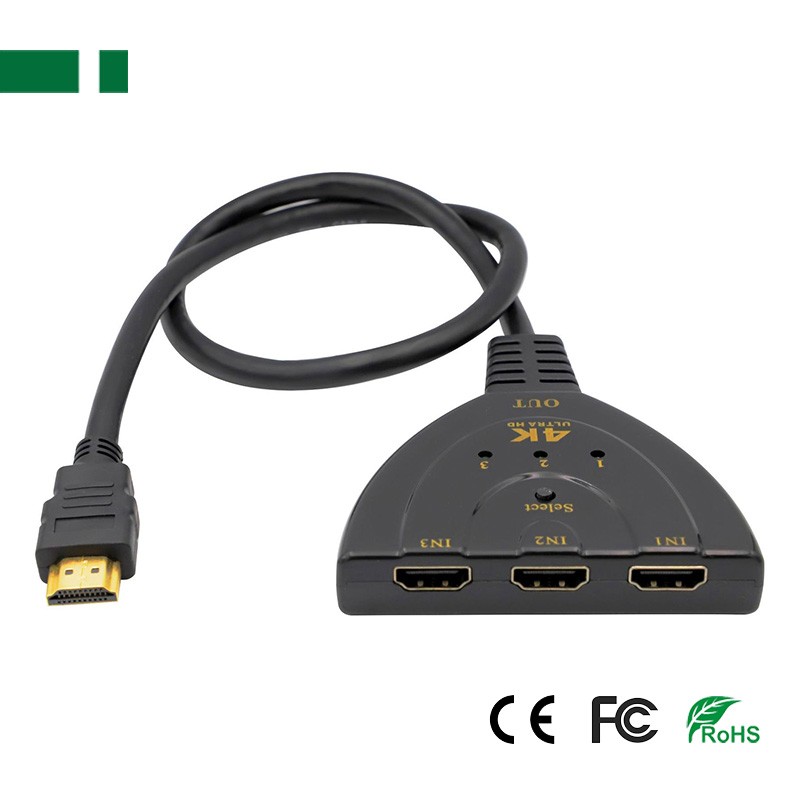

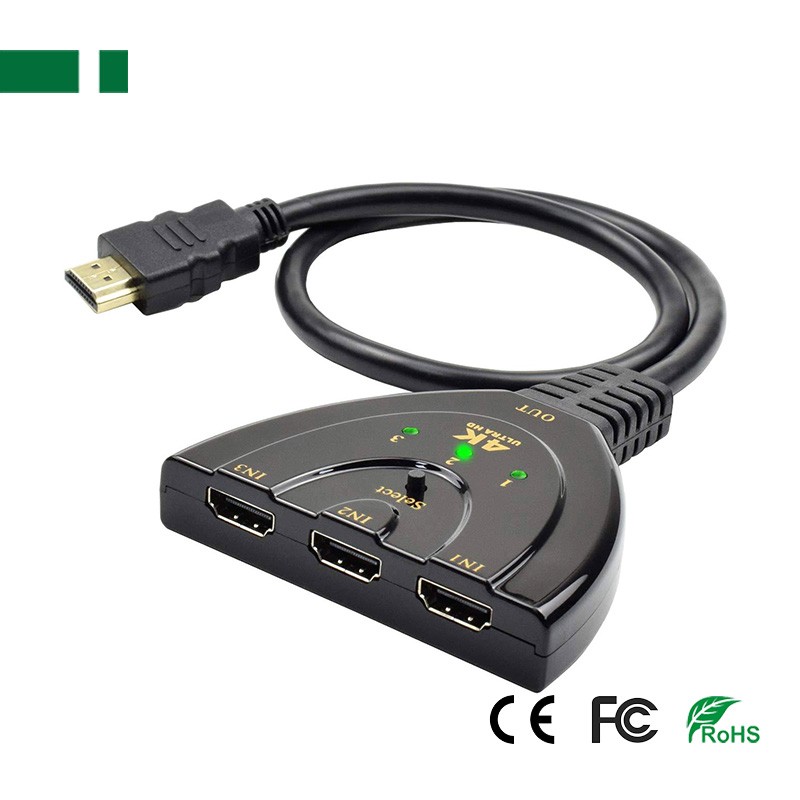

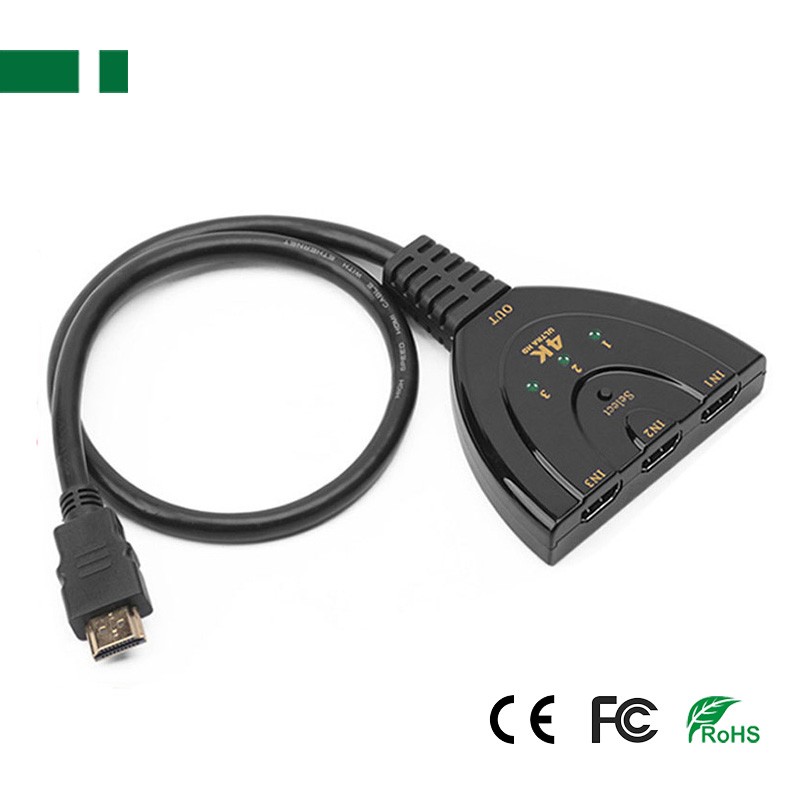

CHM-302-4K 3 ports 4K 30Hz HDMI Switcher

  • 3X1 4K 30Hz HDMI Switch
  • 3 HDMI Inputs, 1 HDMI Output
  • HDMI Version: HDMI 1.4b
  • No external power supply;
  • Product description: This 3 input to 1 output HDMI-compatible switcher has the key-press-switching function and has the inteligent function.
  • INQUIRY   EMAIL

4K*2K 3D 1080P Mini 3 Port HDMI Switch 1.4b 4K Switcher Splitter 1080P 3 in 1 out Port Hub for DVD HDTV Xbox PS3 PS4.


Description:
This 3 input to 1 output HDMI-compatible switcher has the key-press-switching function and has the intelligent function.
The 3 input to 1 output HDMI switcher routes high definition 4K*2K video and digital audio from any one of the 3 sources to display unit.
Three inputs accommodate the simultaneous connection of high definition video sources, such as HD player, Blu-ray player, Set Top Box, P&S3, Xbox360 etc.
The output sends the high definition audio/video signals to a high definition display like HDTV.

Features and Specifications:
1. Support with HDMI 1.4b.
2. Supports 3D devices.
3. Supports up to 4K resolutions.
4. Supports HDCP pass-through.
5. Supports a total TMDS throughput of 8.91Gbps max .
6. Supports uncompressed audio such as LPCM .
7. Supports compressed audio such as DTS Digital, Dolby Digital, DTS-HS and Dolby TrueHD.
8. Maximum Single Link Video Range: 1920x1080.
9. Supports 2.5Gbps/250MHz per channel, maximum bandwidth per display is 7.5Gbps.
10. Supports 12-bit Deep color per channel; maximum of 36-bits across all channels.
