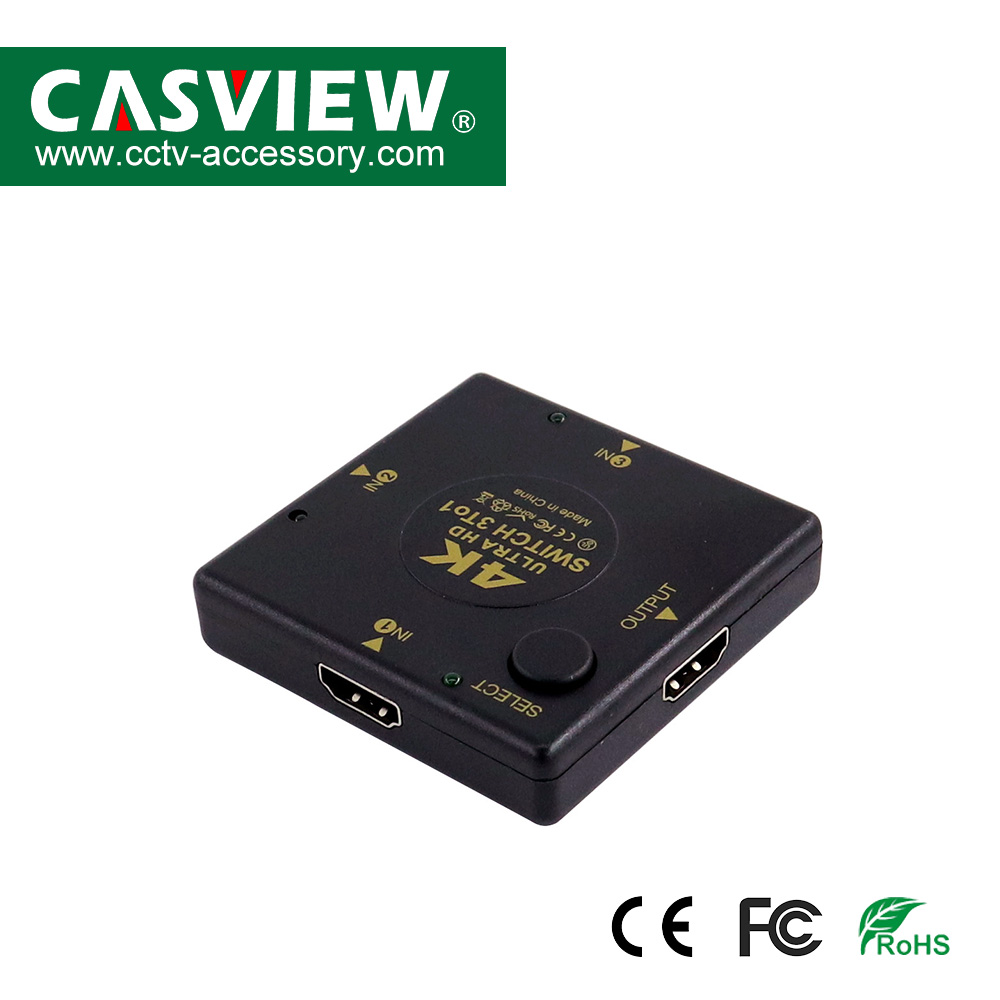

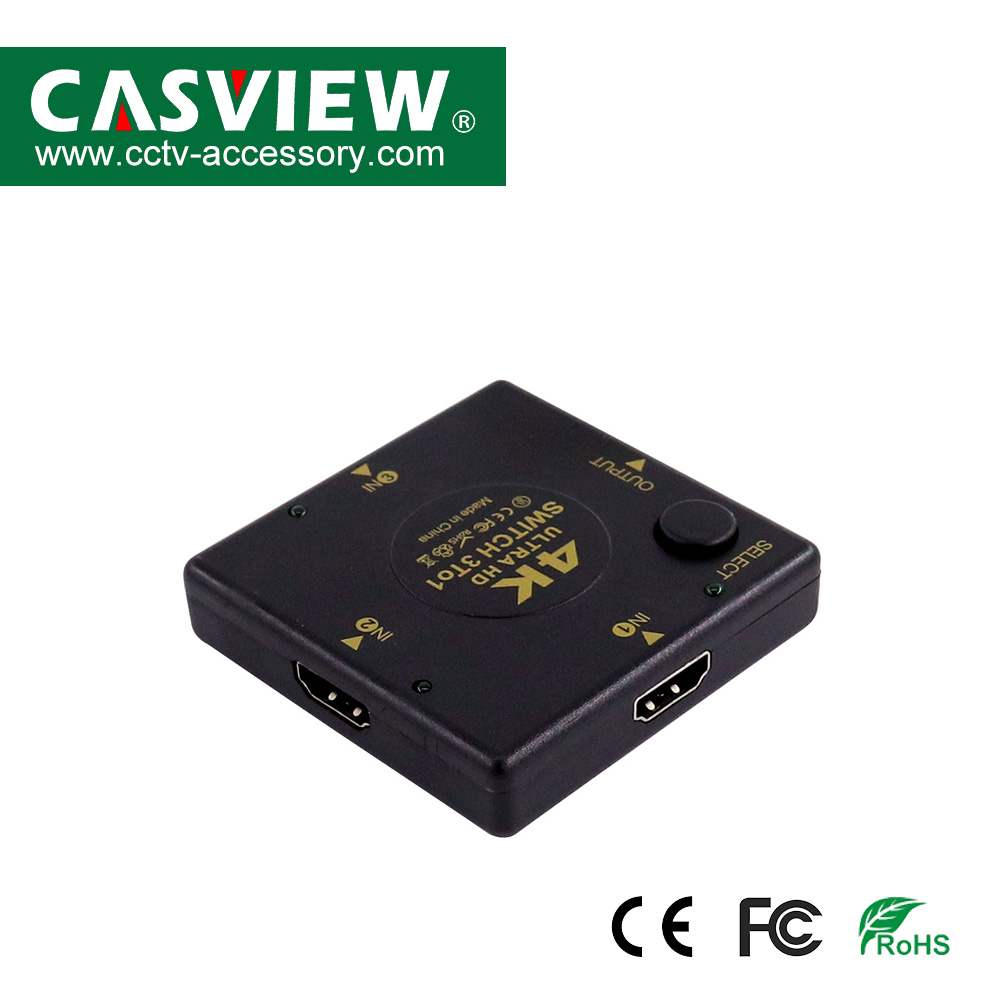

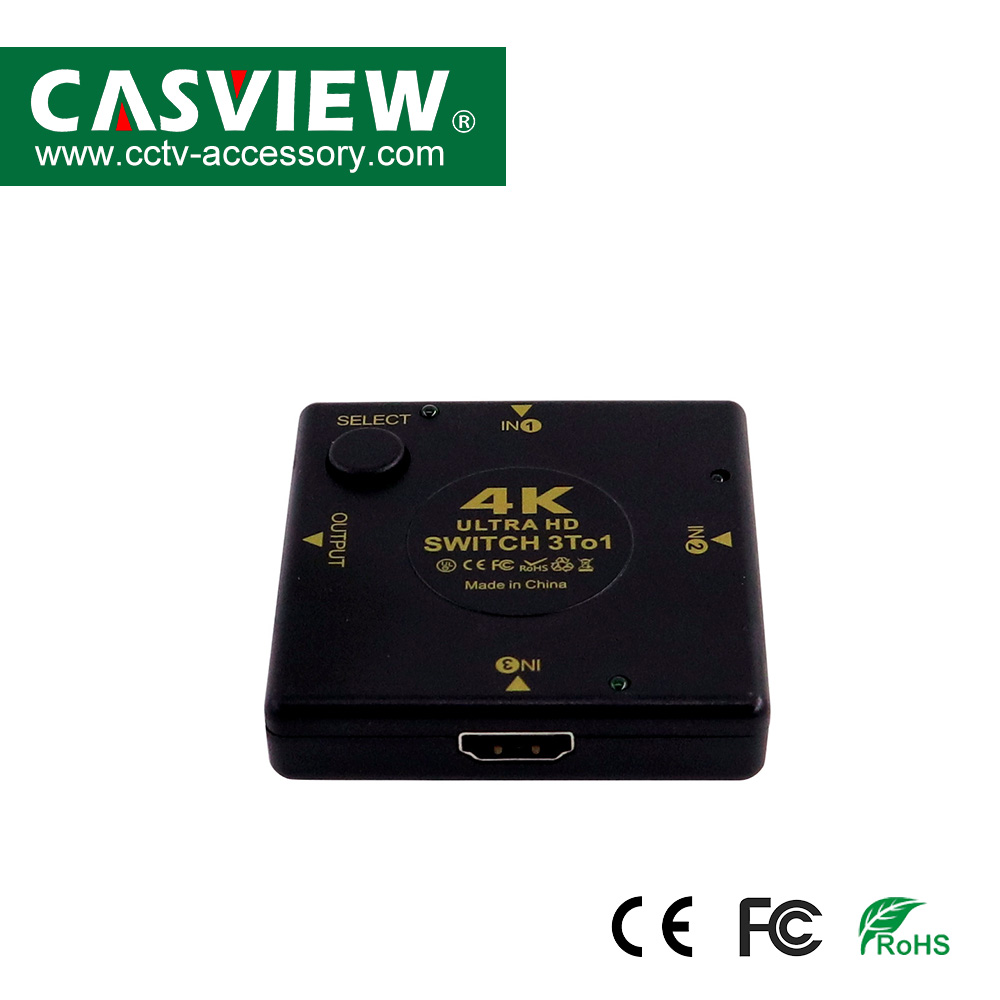

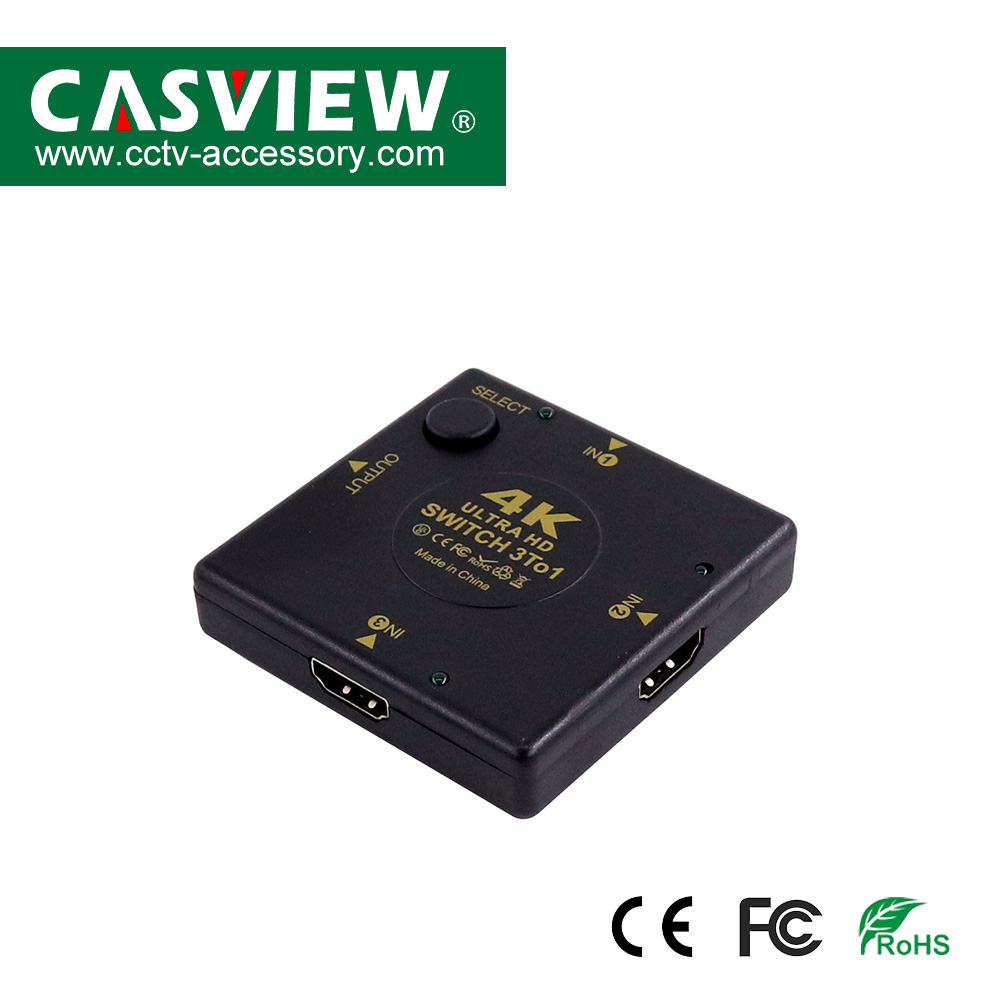

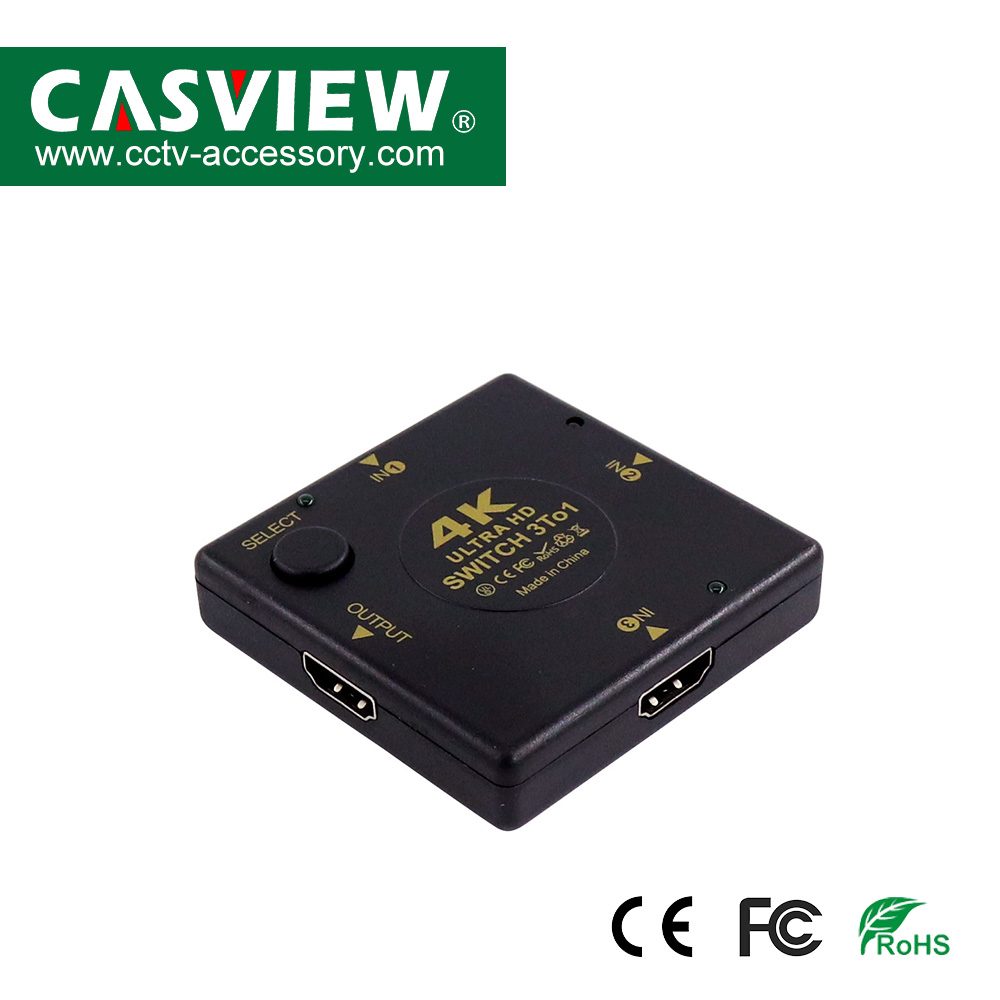

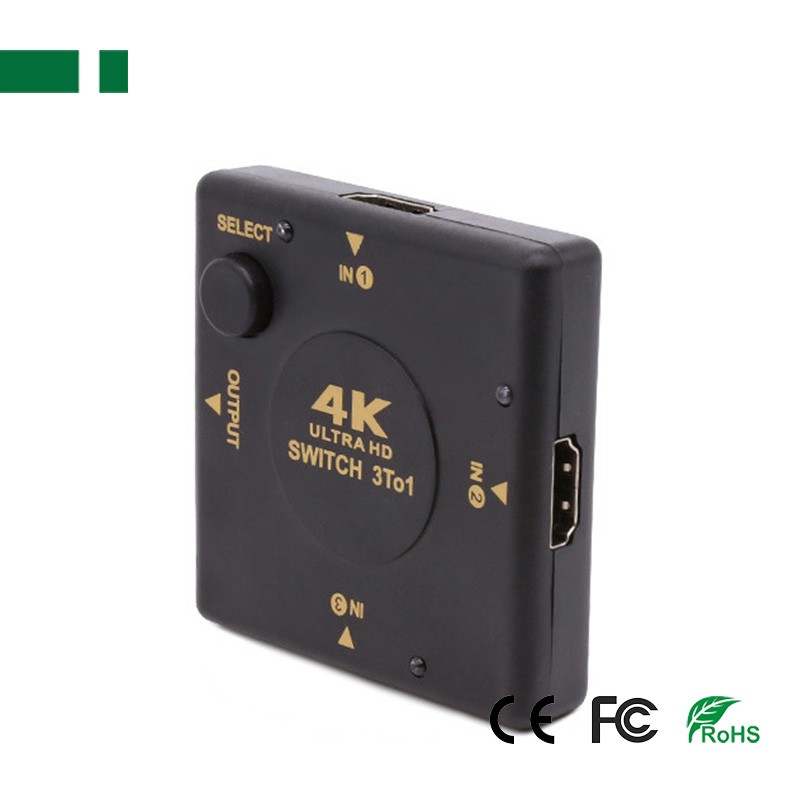

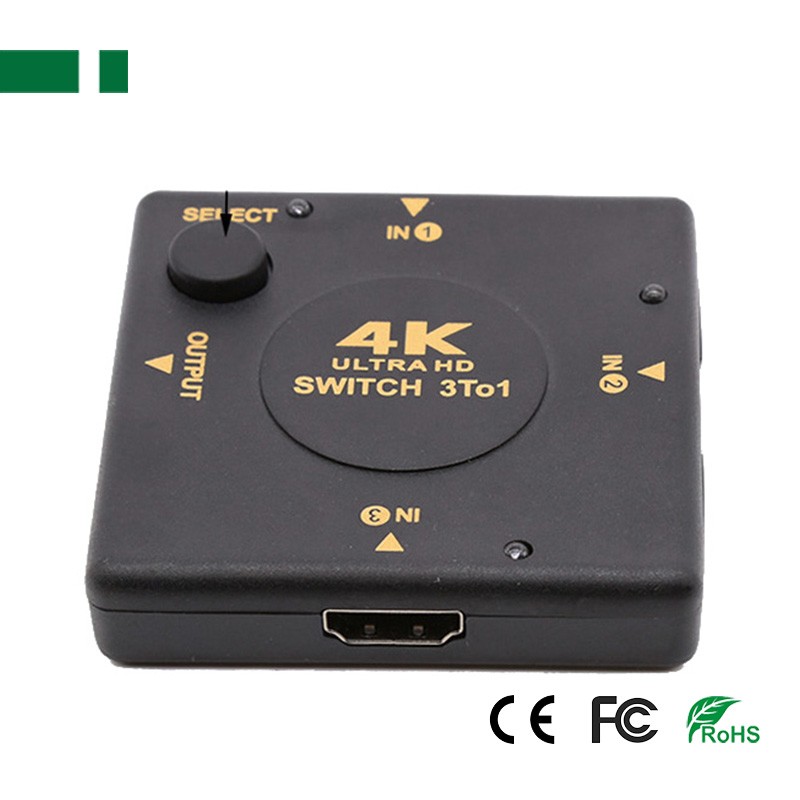

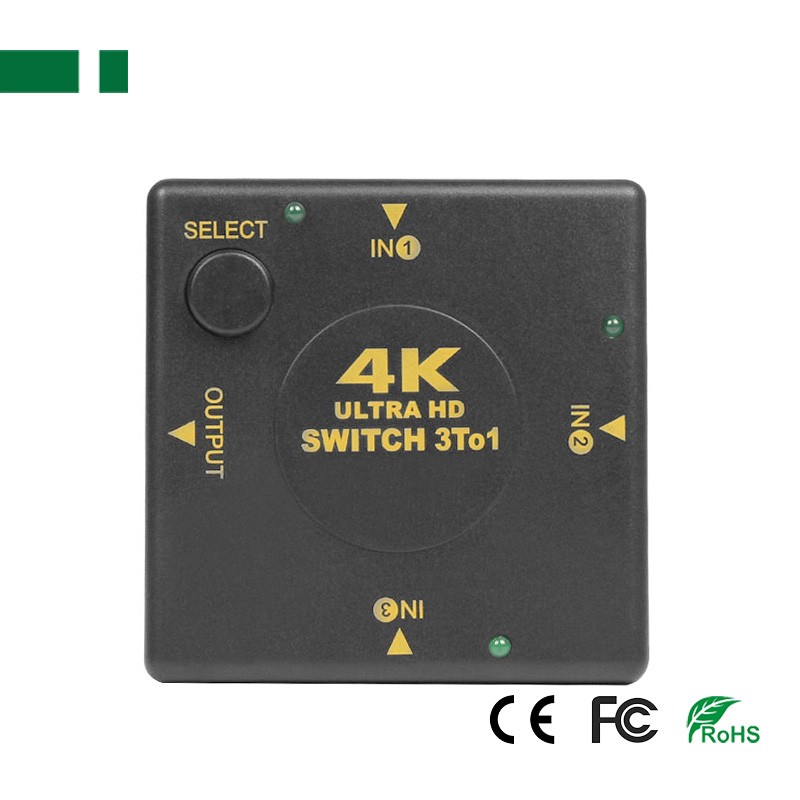

▪ 4K@30Hz 3*1 HDMI Switcher
▪ Support with HDMI 1.4b.
▪ Supports 3D devices.
▪ Support up to 3840x2160@30Hz;
▪ Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC;
▪ Support Full HD, Full 3D;
▪ Dimension: 66*66*15mm (L*W*H);
▪ An HDMI switch is a device that allows you to connect multiple HDMI sources into a single display port and switch between them. So, you could connect your gaming console, Blu-ray player, and TV to the switch and then have the box select which device to display on the TV at any given time.
Description:
An HDMI switch is a device that allows you to connect multiple HDMI sources into a single display port and switch between them. So, you could connect your gaming console, Blu-ray player, and TV to the switch and then have the box select which device to display on the TV at any given time.
Feature:
▪ 4K@30Hz 3*1 HDMI Switcher
▪ Support with HDMI 1.4b.
▪ Supports 3D devices.
▪ Support up to 3840x2160@30Hz;
▪ Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC;
▪ Digital audio format, as DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD/HD(HBR);
▪ Support Full HD, Full 3D (If your devices support 3D);
▪ Dimension: 66*66*15mm (L*W*H);
▪ Good compatibility, for DVD, SB interface, STB, PS3, PC, DV, DLP Video Projector and other HDMI devices.
Specification:
| Model | CHM-301-4K | CHM-302-4K | CHM-303-4K | CHM-305-4K | CHM-306-4K | CHM-401-4K | CHM-402-4K |
| HDMI Input | 3chs HDMI input | 3chs HDMI input | 3chs HDMI input | 5chs HDMI input | 3chs HDMI input | 4chs HDMI input | 4chs HDMI input |
| HDMI Output | 1ch HDMI output | 1ch HDMI output | 1ch HDMI output | 1ch HDMI output | 1ch HDMI output | 1ch HDMI output | 1ch HDMI output |
| HDMI Connector | 19-Pin HDMI Female Port | ||||||
| Coaxial Output | N/A | N/A | N/A | N/A | N/A | N/A | 1ch output |
| Fiber Output | N/A | N/A | N/A | N/A | N/A | N/A | 1ch output |
| HDMI Version | HDMI 1.4b | ||||||
| HDCP Version | HDCP 1.4 | ||||||
| Support Video Format | up to 4K*2K (3840*2160) /30Hz | ||||||
| Audio Output | N/A | N/A | N/A | N/A | N/A | N/A | 3.55 AUX |
| Max band width | 250MHz | ||||||
| Max baud rate | 3*2.5Gbps | ||||||
| Power Supply | Input: AC100V-240V (50Hz/ 60Hz); Output: DC5V Operating | ||||||
| Temperature | Operating: -15℃ to +55℃, Storage: -10℃ to +70℃ | ||||||
| Humidity | Operating: 10% to 80%RH (No Condensation), Storage: 5% to 90%RH (No Condensation) | ||||||
| Material | ABS Plastic Housing | ||||||
| Dimension | 66*66*15mm (L*W*H) | 83*62*16mm (L*W*H) | 82*58*19mm (L*W*H) | 82*58*19mm (L*W*H) | 83*62*16mm (L*W*H) | 170*60*13mm (L*W*H) | 169*68*29mm (L*W*H) |
| Weight | 55g | 92g | 107g | 109g | 56g | 113g | 440g |
