Fiber Optic Connector

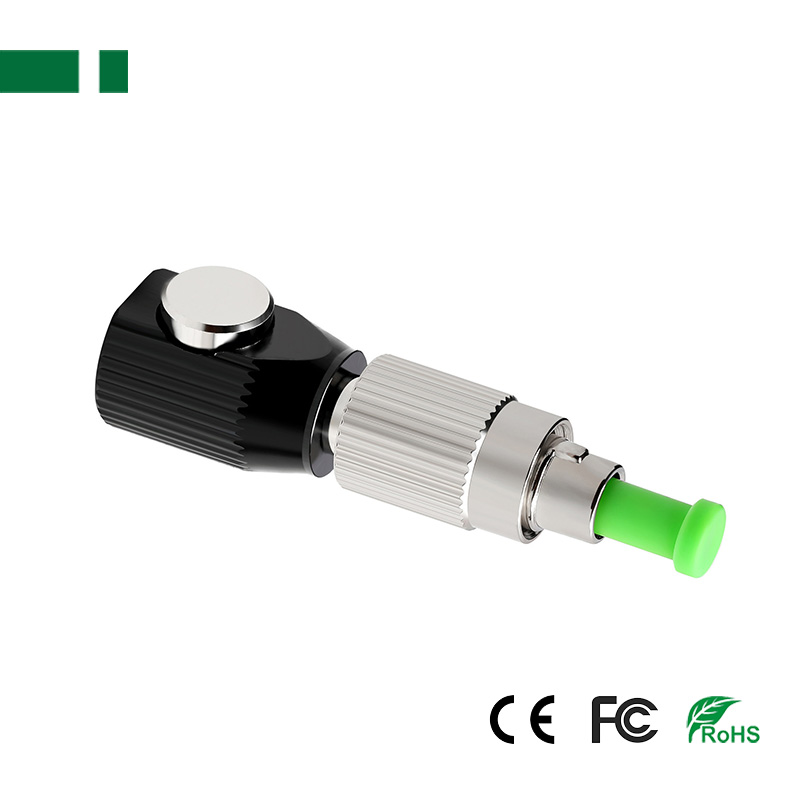

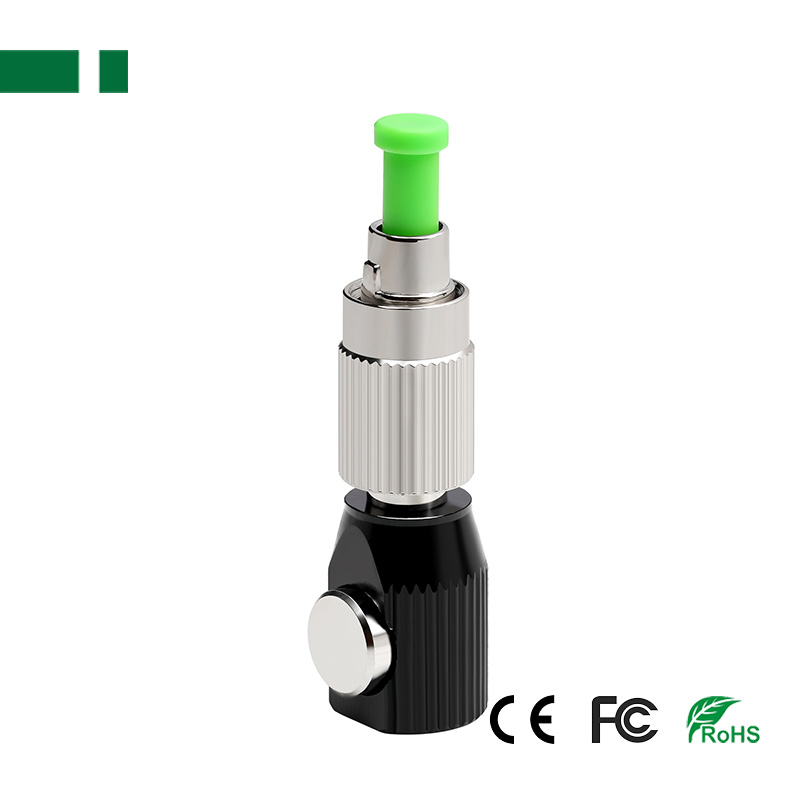

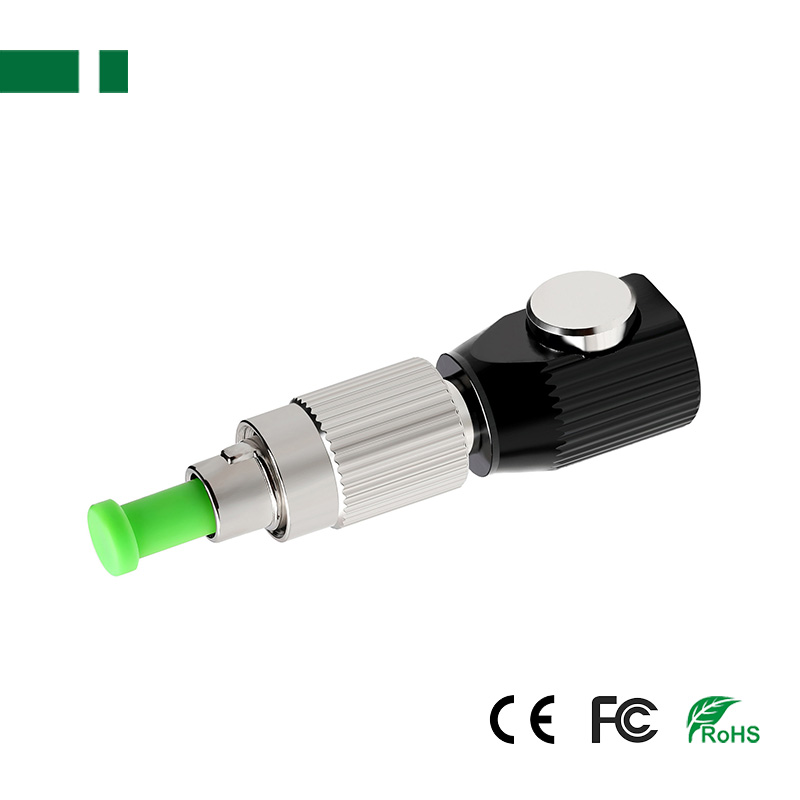

CFC-04FCA FC APC Fiber Optic Connector

FC APC Fiber Optic Connector
Fiber Diameter: 125μm
Housing: ABS + Metal.
Scope of Application: 3.0*2.0mm Butterfly shaped leather Cable
Product description: Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector used in assembly.
INQUIRY EMAIL

FC APC FTTH Fiber Optic Fast Connector Quick Connector

Description:
Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector used in assembly. It can provide Open flow and Precast type of products, whose optical and mechanical specification meets the standard optical fiber connector.

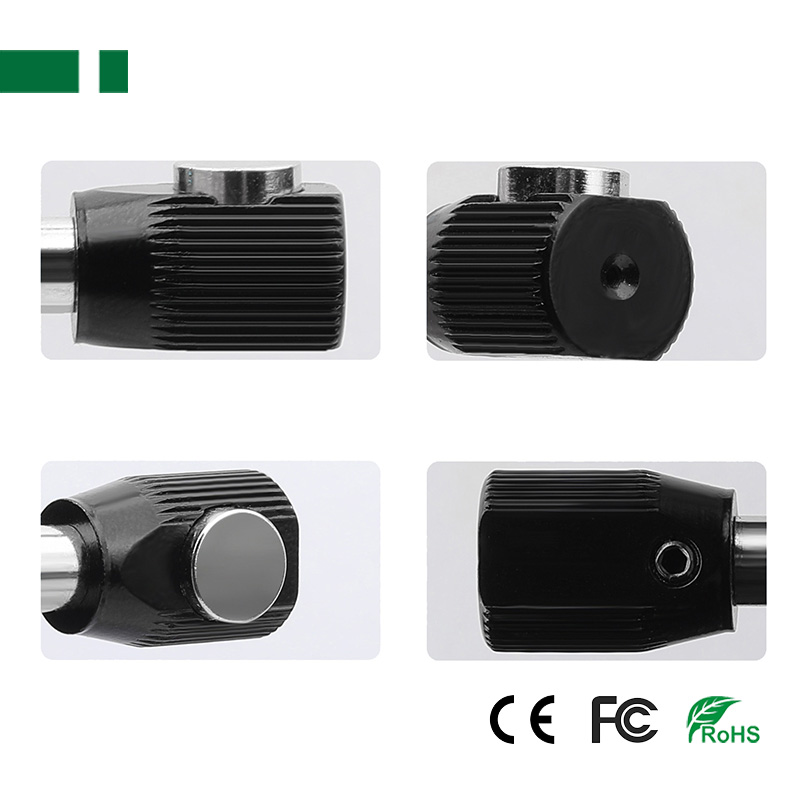

It is designed for high quality and high efficiency for installation. the structure of crimping position is a unique design, and need not gluing, polishing neither any consumables. adopted fiber preinstalled structure, and convenient for field installation.

Feature:
1. Factory-installed fiber stub.
2. No epoxy and polishing required; no special Tools needed when installed.
3. Allows up to three re-termination result.
4. Easily installed, Quick and easy fiber termination in the field.
5. Only 30 seconds needed to learn the process of installation and making.
6. Cost effective, Warranty: One year.
7. Fast connecting and repeat, no special tools needed when installed.
8. Can be made on-site without splicing connectors.
9. Eliminates cable excess length and pigtail splice storage.
10. Can be installed and make repeatedly thus avoiding loss.

Specification:

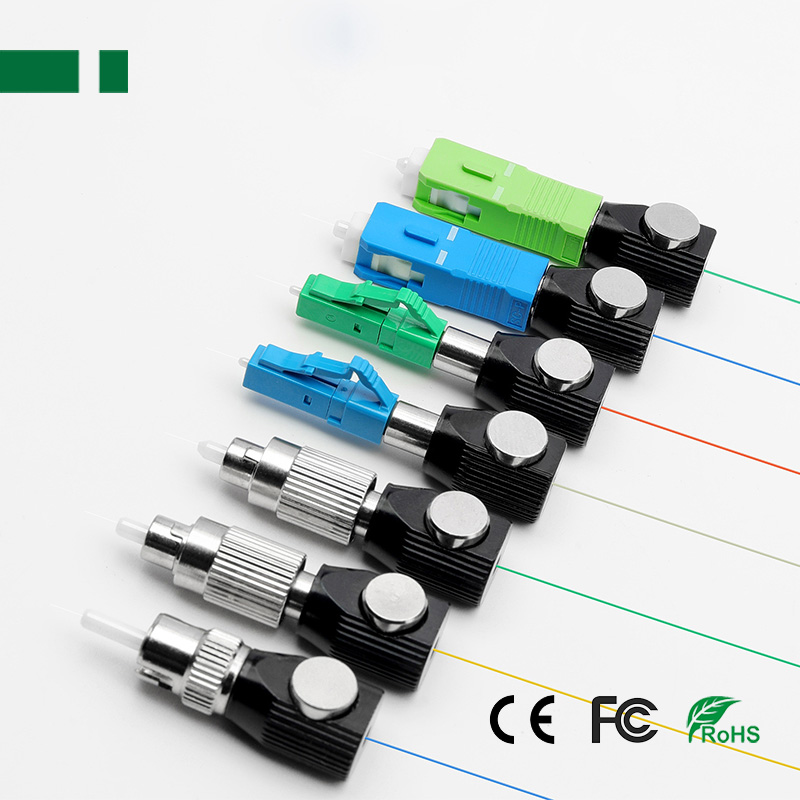

ITEM	Fiber Optic Single-mode Fast Connector
Model	CFC-04LCU	CFC-04LCA	CFC-04SCU	CFC-04SCA	CFC-04FCU	CFC-04FCA	CFC-04STU
Type	LC		SC		FC		ST
Ferrule	UPC	APC	UPC	APC	UPC	APC	UPC

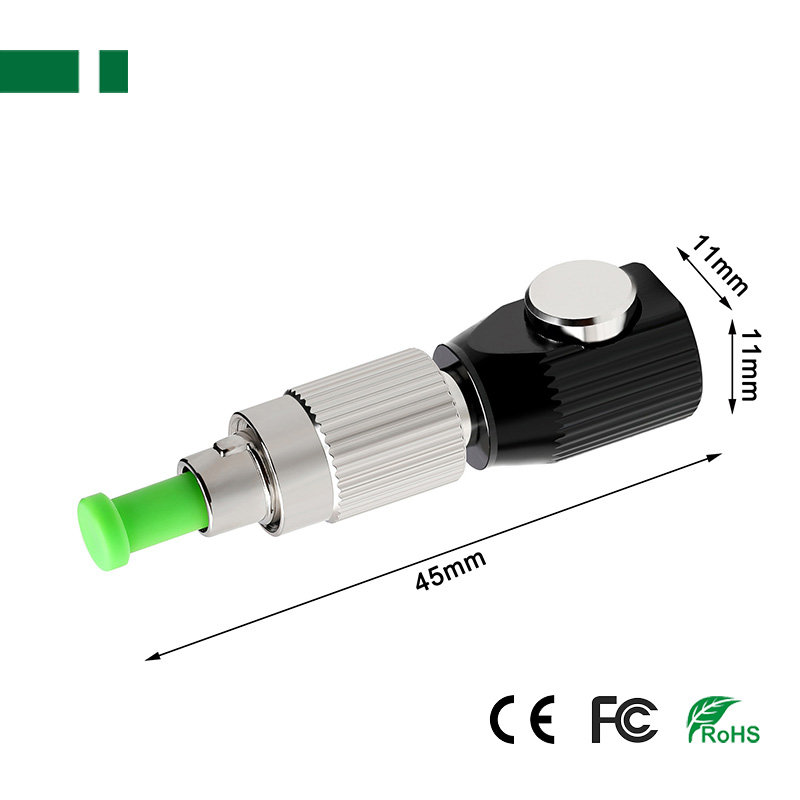

Dimension	461111mm		501111mm		451111mm		391111mm
Net Weight	7.7g		10.3g		11.2g		9.3g
Fiber Diameter	125μm(657A & 657B)
Tight Cladding Diameter	250μm
Housing	ABS + Metal
Scope of Application	3.0*2.0mm Butterfly shaped leather Cable
Application	Single mode FTTH COLD connection
Insert Loss	<0.3dB
Return Loss	≥50dB	≥65dB	≥50dB	≥65dB	≥50dB	≥65dB	≥50dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times mating)
Tensile Strength	> 10kg
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)
