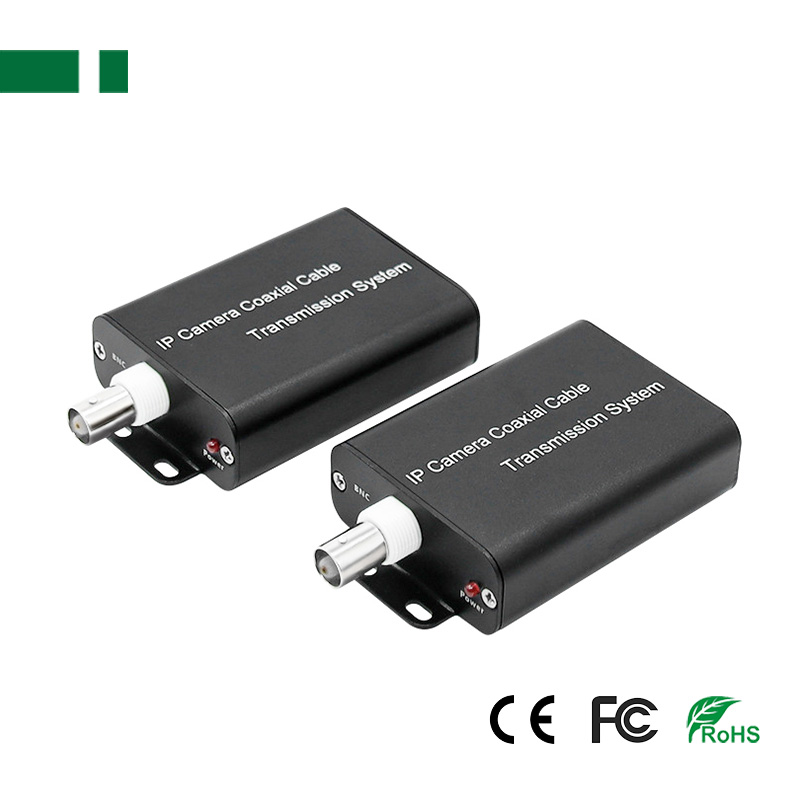

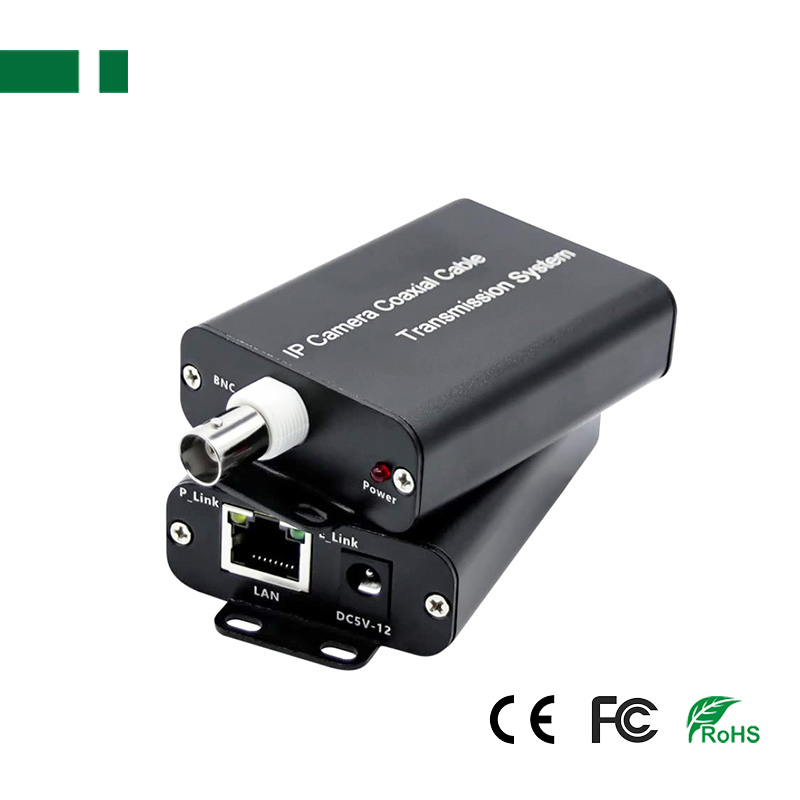

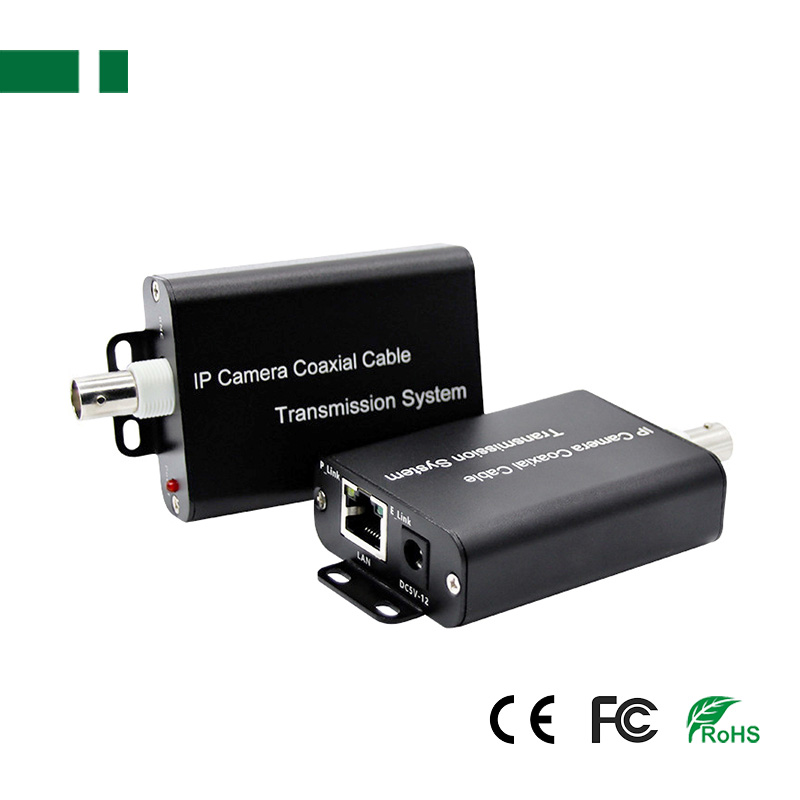

BNC Ethernet over Coaxial Extender
10/100M 1BNC+1RJ45
IP/Ehernet over Twisted Pair Solution
Transmission distance: 500M

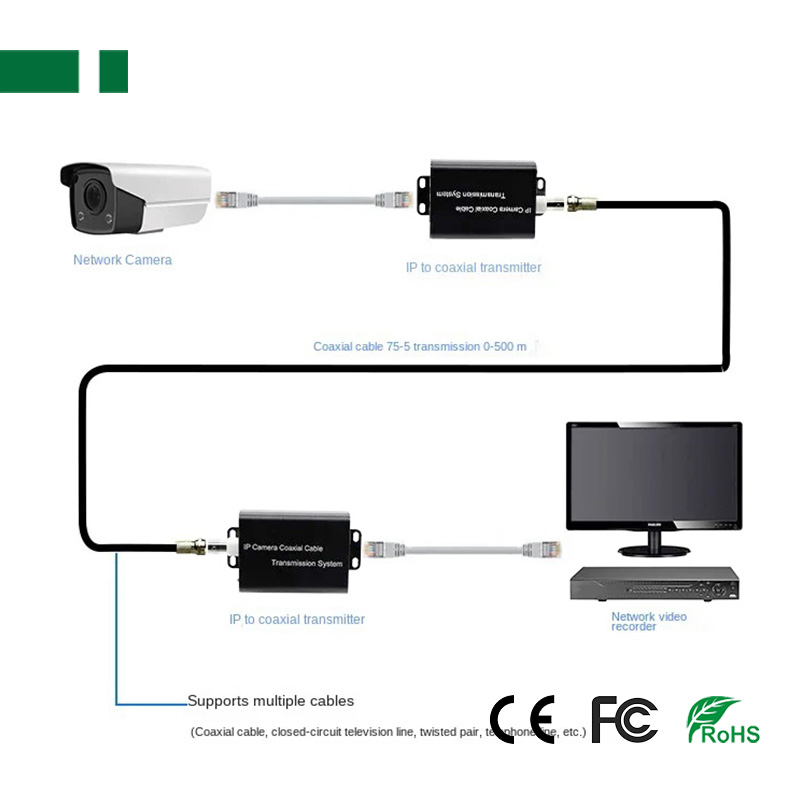

Elevator monitoring transmission - Can use the elevator accomparying cable transmission network HD video signal, it has the arvantages of long ransnisiin distance and strong anti-inleterenc ability.
BNC Ethernet over Coaxial Extender, 10/100M 1BNC+1RJ45;
IP/Ehernet over Twisted Pair Solution, can be transmitted with the Coaxial Cable, Twisted Pair cable or telephone line;
Self-organized network, no need set up;
Transmission distance: 500M;
Physical transmission rate: 100Mbps;
Power supply: DC12V 1A
| 10/100Mbps Ethernet over Coaxial Extender (EOC) | ||||||
| Model | CEOC-01 | CEOC-02 | CEOC-03 | CEOC-04 | CEOC-05 | CN-601P |
| Standard | IEEE 802.3 10Base-T | |||||
| Bandwidth | 10/100Mbps | |||||
| Max. distance | 2000M | 500M | 100M | 100M | 100M | 100M |

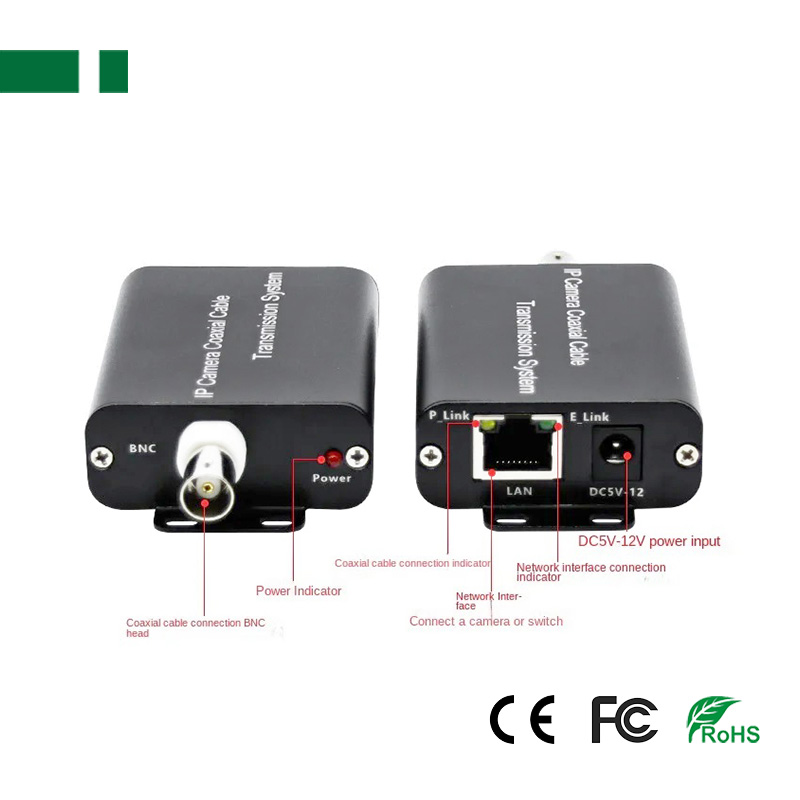

| Connector | BNC Female + RJ45 Female | BNC Female + RJ45 Male | BNC Female + RJ45 Female | BNC Female + RJ45 Male | ||
| Cable | RG59 RG6 Coaxial Cable | |||||
| Power | DC12V 1A | DC5V~DC12V | N/A | |||
| Operating temperature | Operating: -20℃~70℃ | |||||
| Relative humidity | 0~95%(non condensing) | |||||
| Storage temperature | Storage: -40℃~150℃ | |||||
| Housing | Metal | Metal | ABS Plastic | ABS Plastic | ABS Plastic | ABS Plastic |

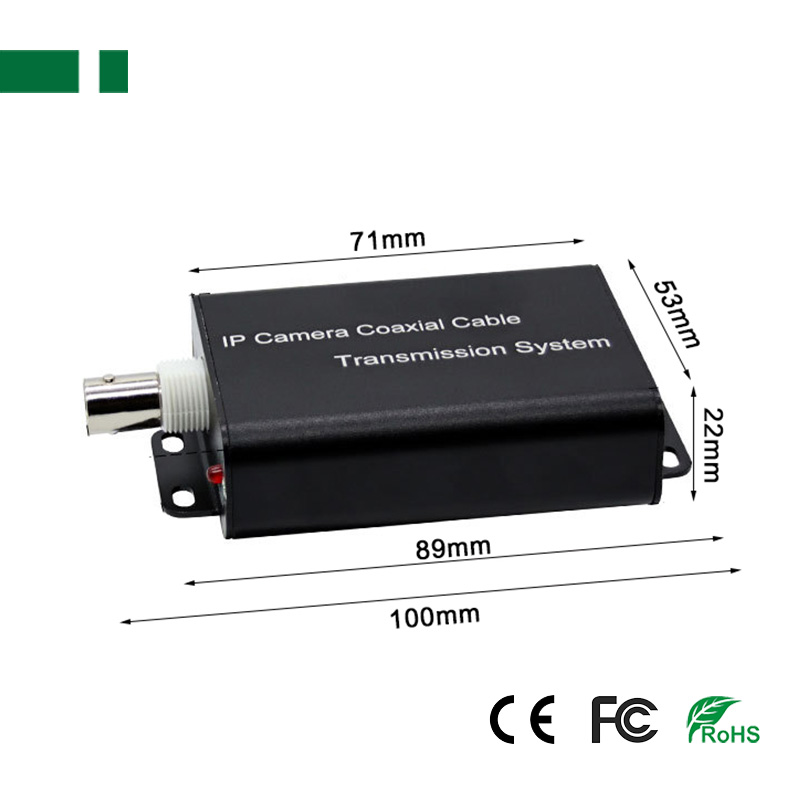

| Dimensions | 108*66*27mm | 92*46*28mm | 40*20*19mm | 50*20*19mm | 40*20*19mm | 50*25*19mm |
| Net weight | 170G | 270G | 40G | 50G | 40G | 50G |
