Specification:
Model | CEOC-03 |

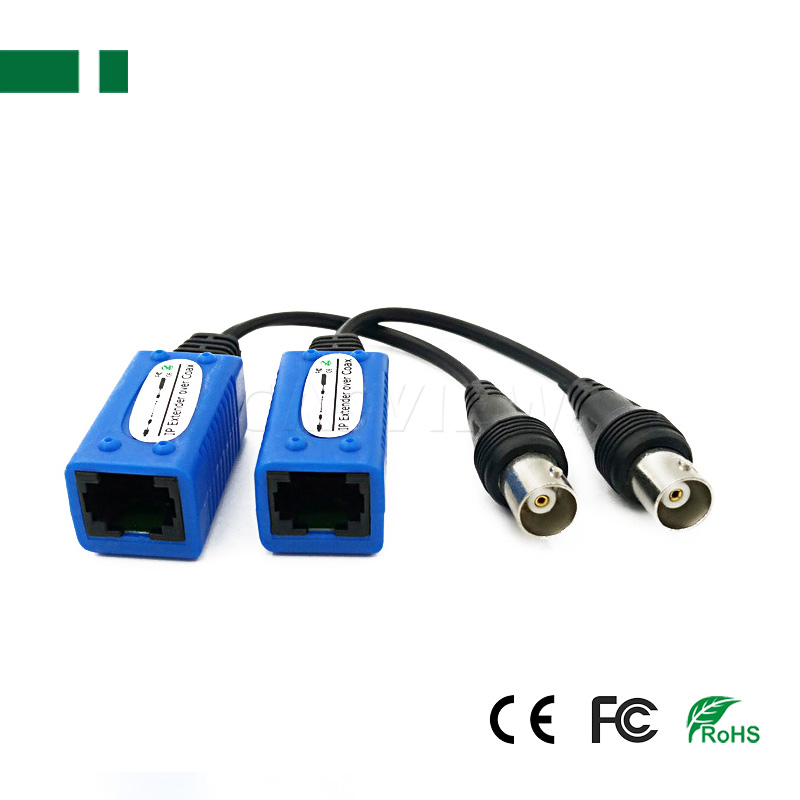

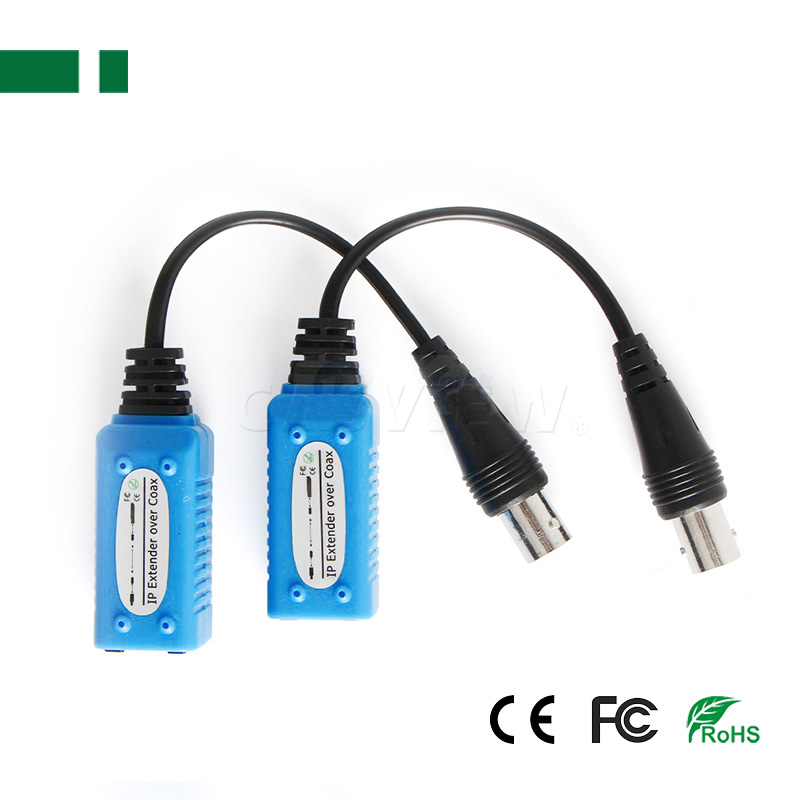

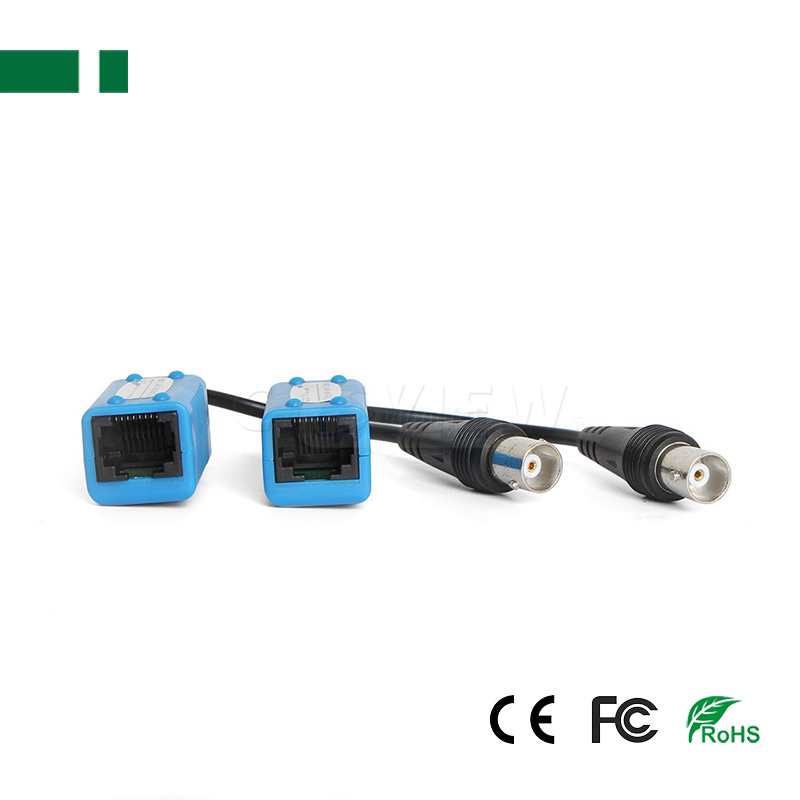

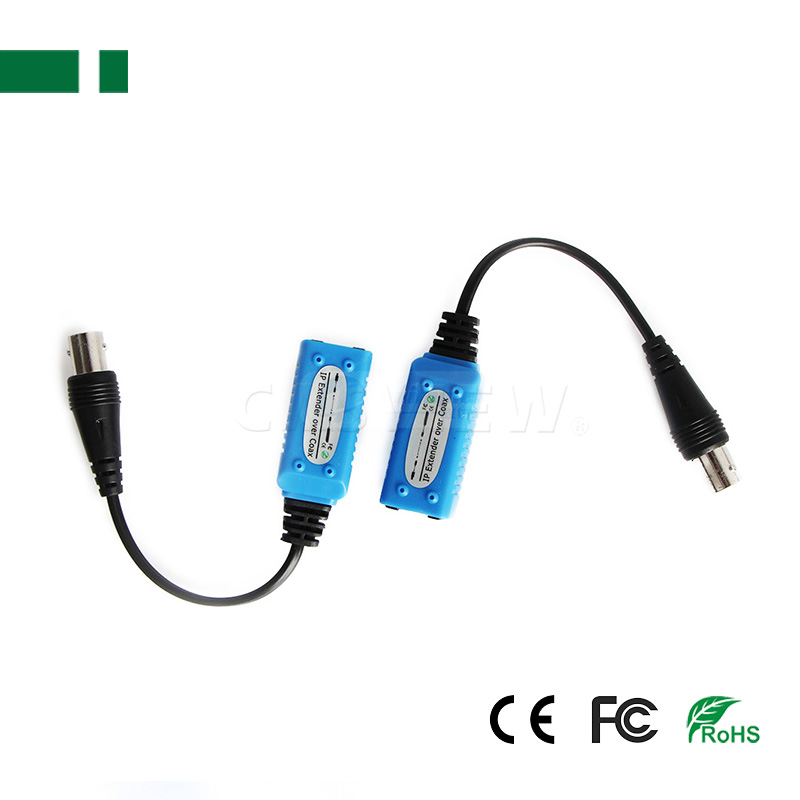

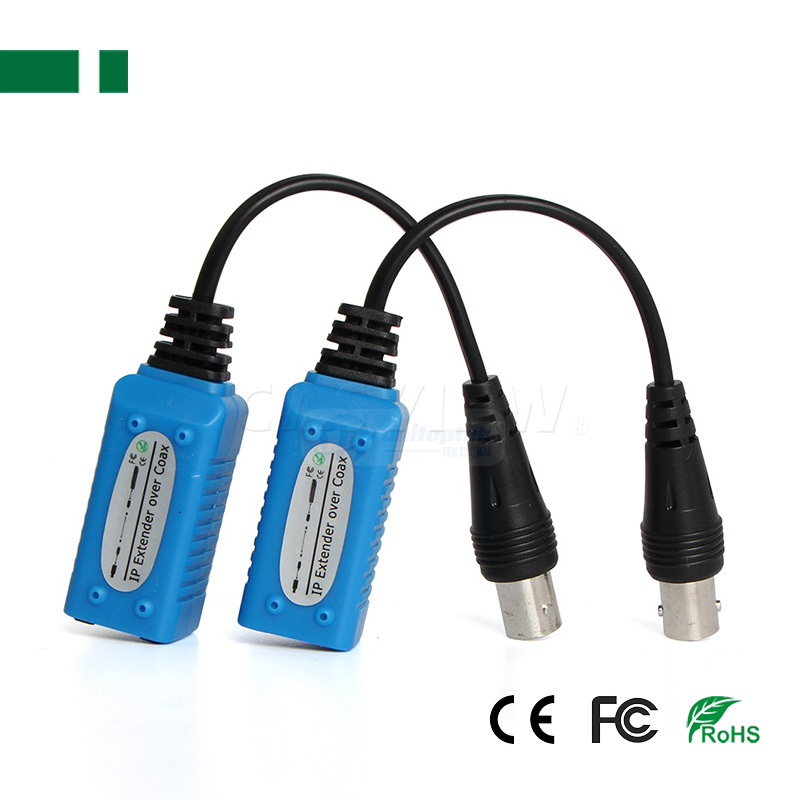

Product name | Single channel passive IP transmitter/receiver |
Applied devices | CCTV cameras, Monitors, DVR, Switchers, IP encoders and other CCTV equipment |
Video format | PAL, NTSC, SECAM |
Standard | IEEE 802.3 10Base-T |
Bandwidth | 10Mbps |
Impedance | 50Ω to dual 100Ω or 75Ω to dual 100Ω or 93Ω to dual 100Ω |
Max. distance | 220m/720ft |
Crosstalk | >30dB |
Connector | Female/Male BNC, RJ45 |
Cable | Coax cable(RG59/6) |
Power | No external power required |
Housing | ABS engineering plastic |
Body color | Black |
Dimensions | 40*19.5*18.5mm(BNC connector & cable excluded) |
Net weight | 40G |
Operating temperature | -20℃~70℃ |
Relative humidity | 0~95%(non condensing) |
Storage temperature | -40℃~150℃ |
