BNC Video Connector

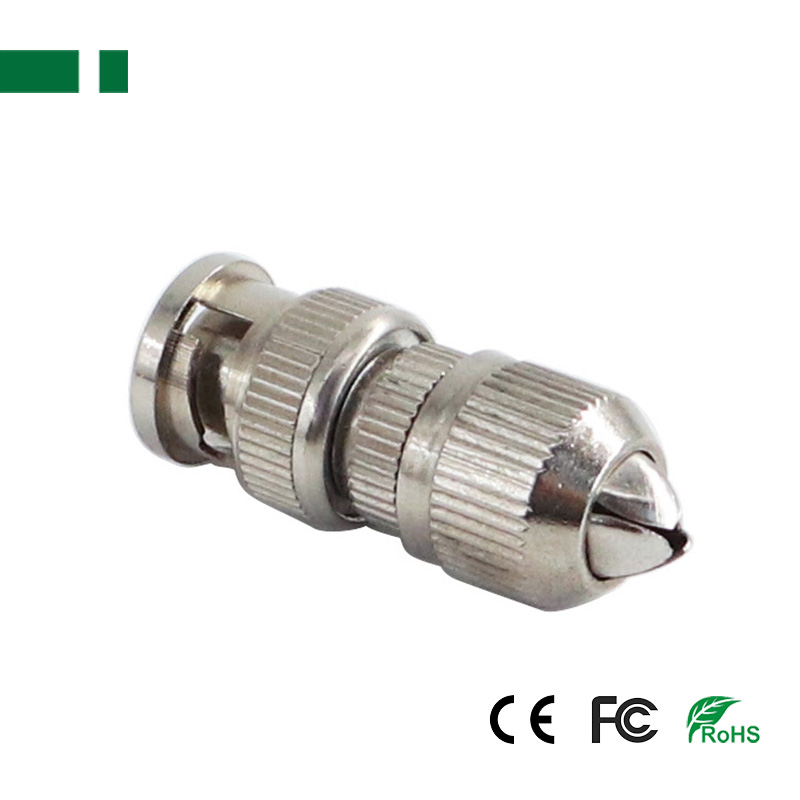

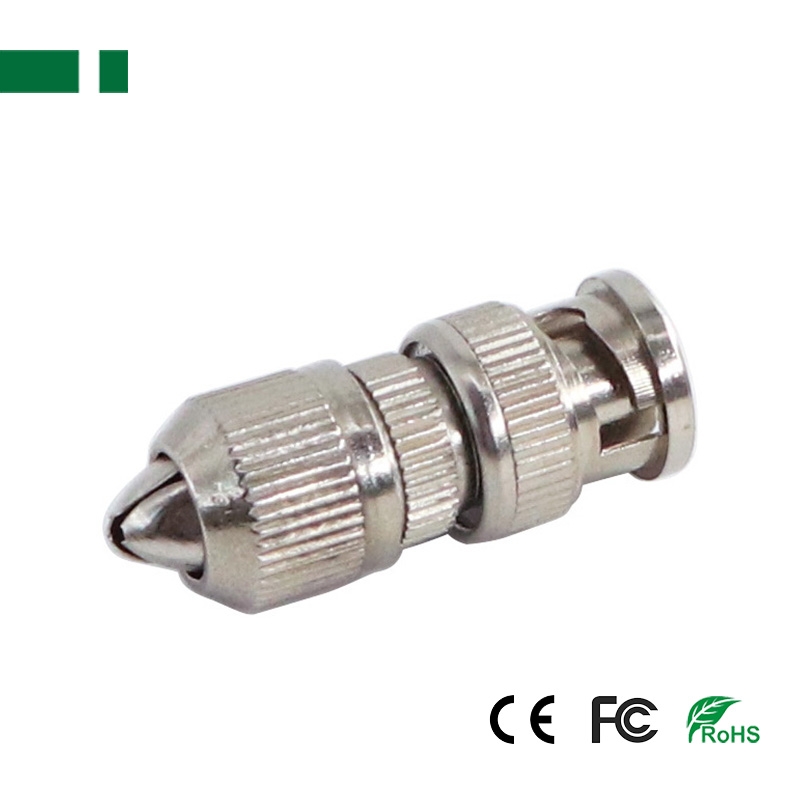

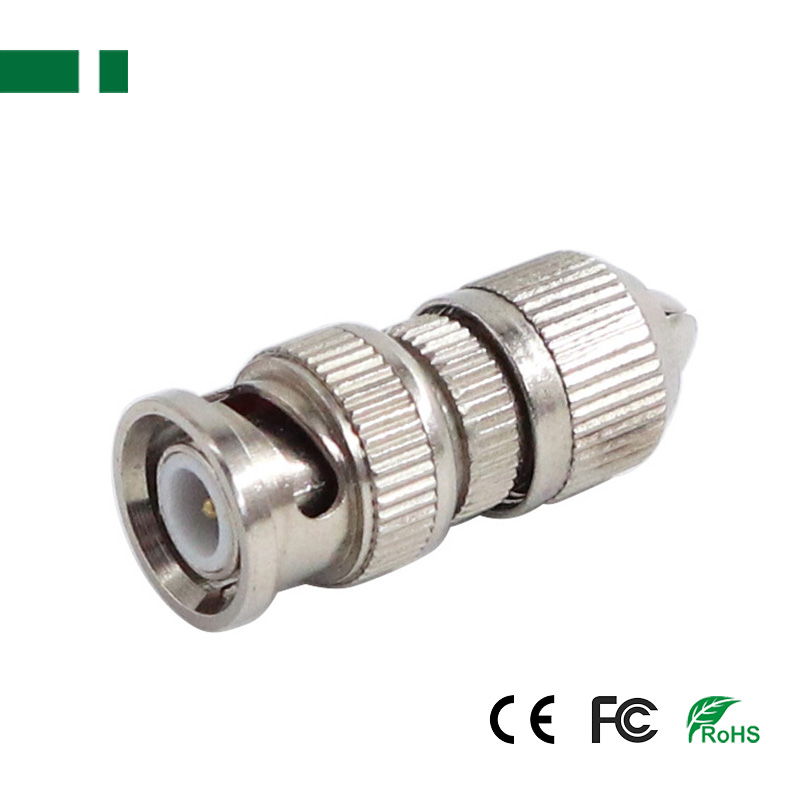

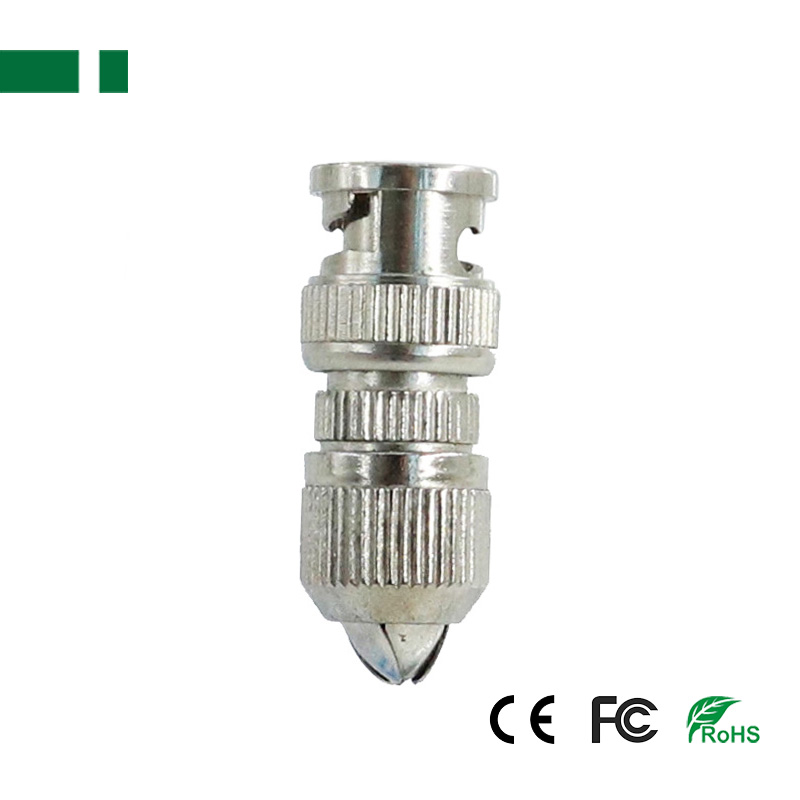

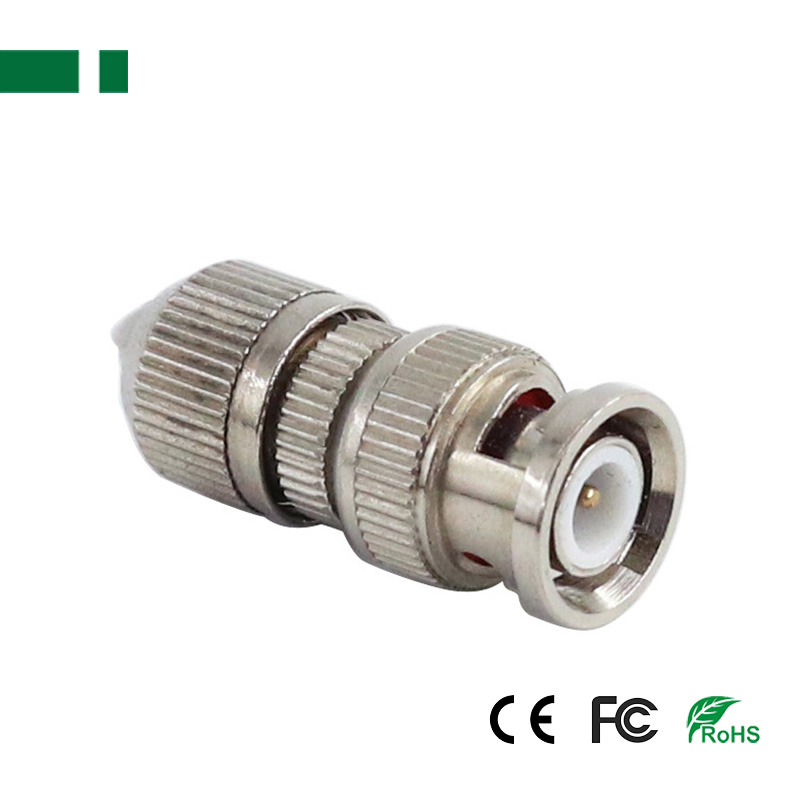

CBN-096 BNC Male Connector

BNC Connector
75-5(RG60) male connector

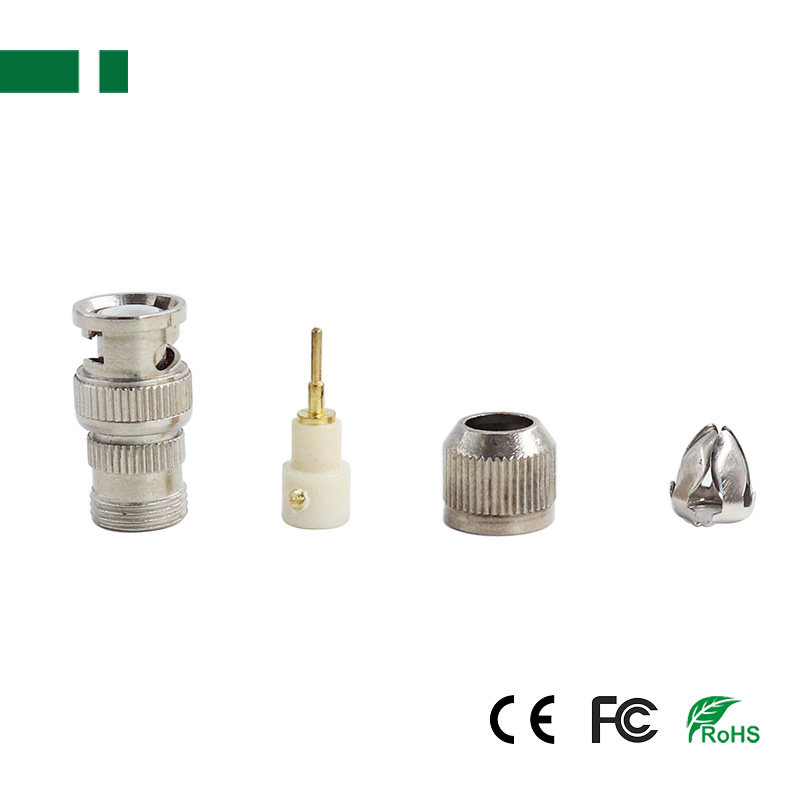

Solderless with screw inside
Product description: BNC connector is used in electronic architectures like audio, video, and networking to connect various radio frequencies up to 3GHz and voltages under 500V DC.
INQUIRY EMAIL

In place of coaxial connectors, the Bayonet Neill-Concelman Connector (BNC Connector) is a coaxial RF (Radio frequency) electrical connector type.

A BNC connector is used in electronic architectures like audio, video, and networking to connect various radio frequencies up to 3GHz and voltages under 500V DC. Due to its low-signal-loss architecture, BNC is also utilized in high-grade analog communications test equipment and avionics. Nearly always, BNC connectors are used to terminate coaxial ethernet cables.

CCTV camera BNC 75-5(RG60) male connector

Solderless with screw inside
Material: Copper Pin and Zinc Alloy Body

100% brand new and high quality product
Great for cctv system connection
High quality termination
Simply & Professional appearance for cabling
Easier for CCTV camera installation save time and money

Model	CBN-096
Connectors	Male BNC
Material	Zinc Alloy Body+Copper Pin
Contact Resistance	center conductor≤1.5mΩ; outer conductor≤1mΩ
Insulation Resistance	≥5000MΩ
Frequency Range	0~3GHZ
Disengage Force	≥0.6N
Attenuation	0.5dB type
Wire Type	Coaxial Cable
DC Loop Resistance	52 ohms per 1,000 ft
Withstand Voltage	1500V rms
Frequency Response	DC to 8 MHz
Working Temperature	-10°C to +70°C
Humidity	0 to 95%
Packing	100pcs/bag
