Solderless Type BNC Male Connector
with Screw
RG58/ RG59/ RG60 optional
CASVIEW technology concentrating on CCTV power supply, video balun, CCTV Cable BNC Connectors and other cctv accessories etc. email: info@casview.com

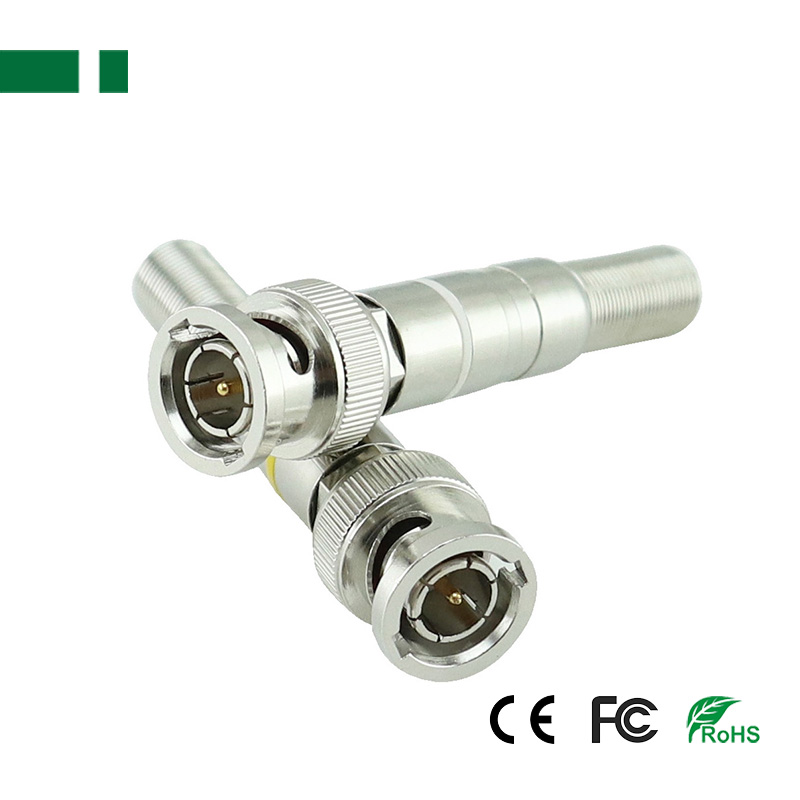

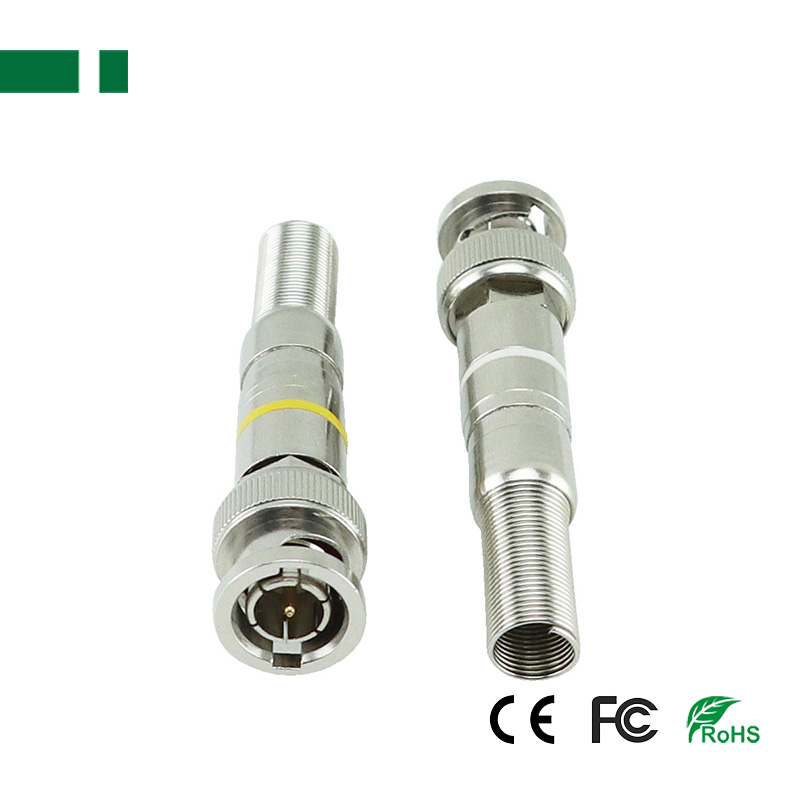

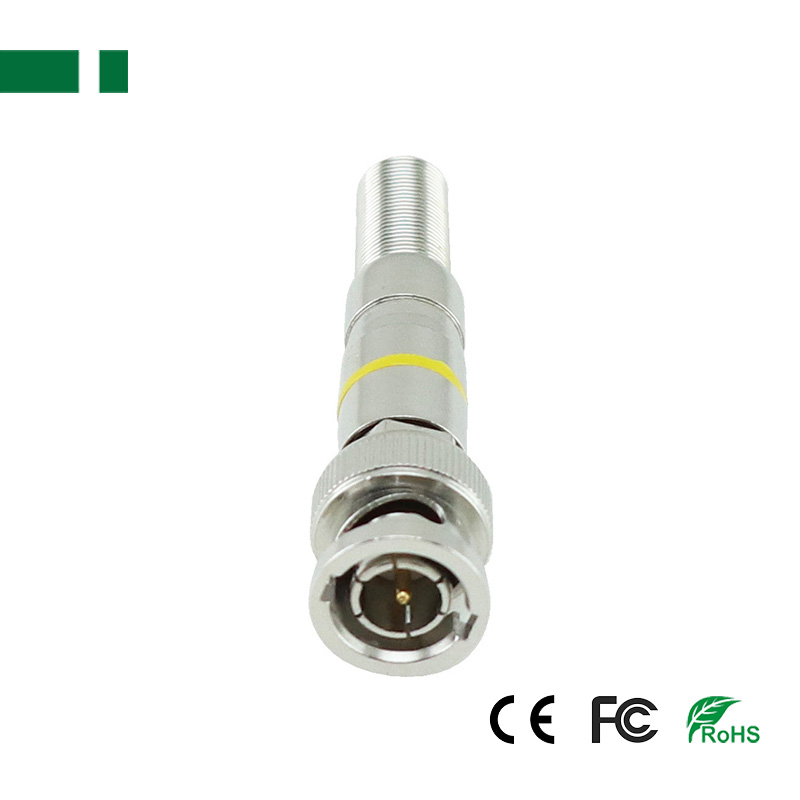

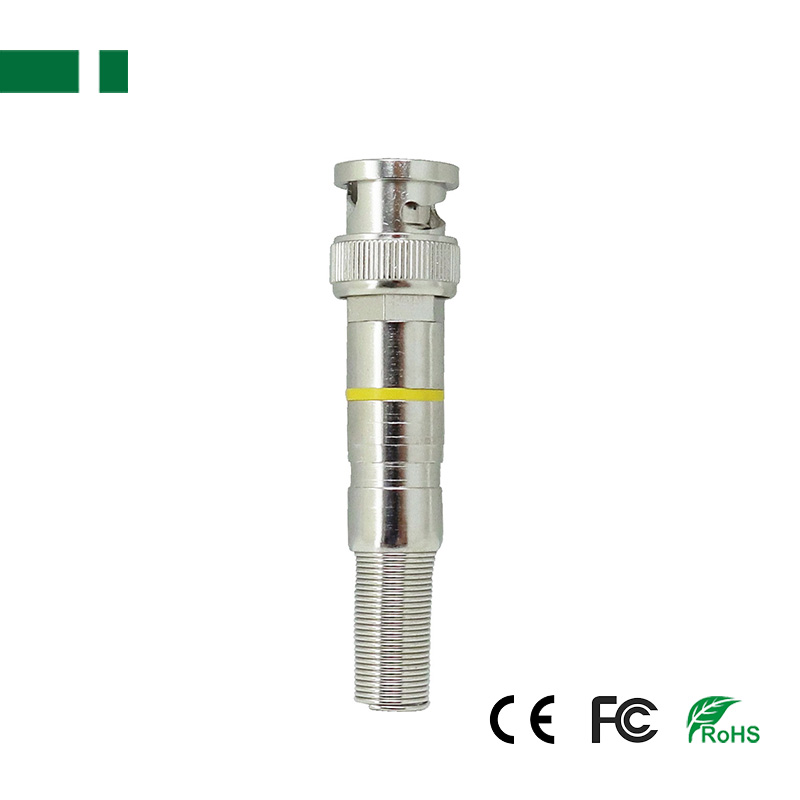

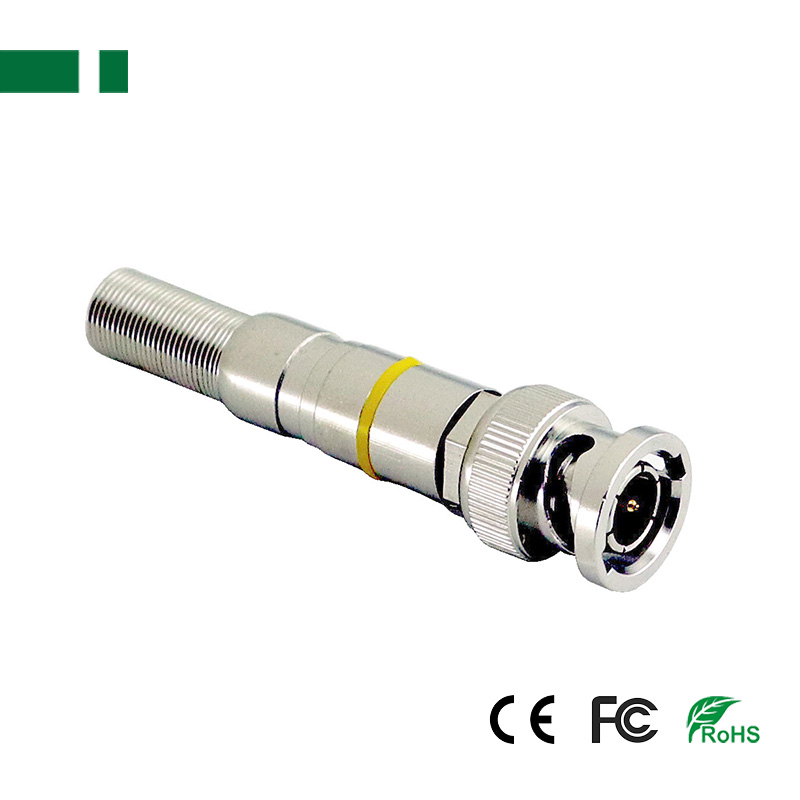

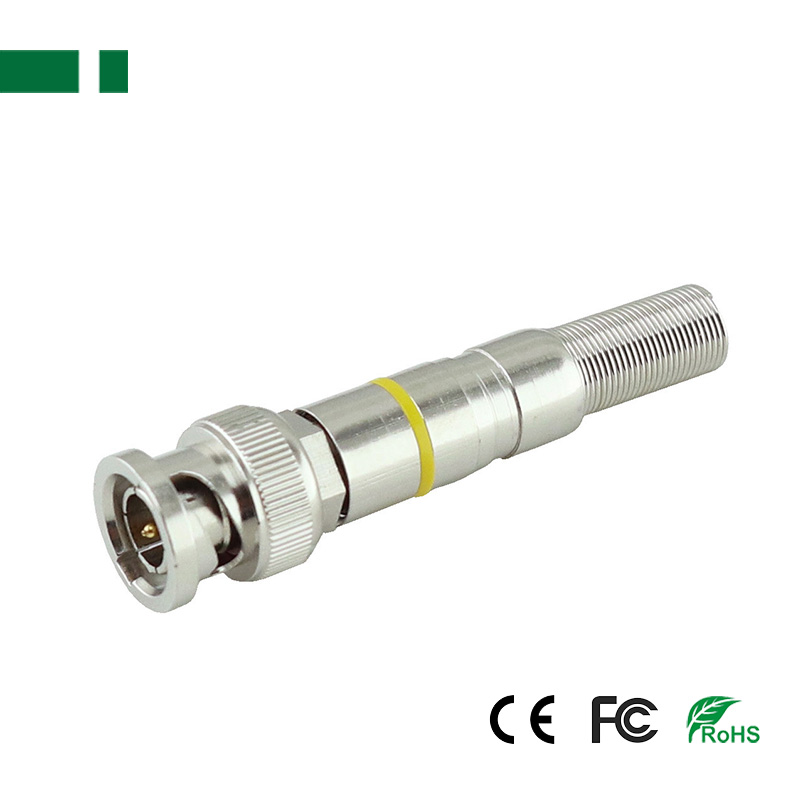

Solderless Type BNC Male Connector with Screw
Zinc Alloy Body, Nickel plated
RG58/ RG59/ RG60 optional
Simply & Professional appearance for cabling
Easier for CCTV camera installation save time and money
<div class="rich-text-table" style="margin:0px;padding:0px;background-color:#FFFFFF;font-family:Roboto, Arial, " color:#222222;font-size:14px;"="">
| Model | CBN-094 |
| Connectors | Male BNC |
| Material | Zinc Alloy Body |
| Contact Resistance | center conductor≤1.5mΩ; outer conductor≤1mΩ |
| Insulation Resistance | ≥5000MΩ |
| Frequency Range | 0~3GHZ |
| Disengage Force | ≥0.6N |
| Attenuation | 0.5dB type |
| Wire Type | Coaxial Cable |
| DC Loop Resistance | 52 ohms per 1,000 ft |
| Withstand Voltage | 1500V rms |
| Frequency Response | DC to 8 MHz |
| Working Temperature | -10°C to +70°C |
| Humidity | 0 to 95% |
| Packing | 100pcs/bag |
