BNC Connector
75-2 male connector
Solderless with screw inside
BNC connector is used in electronic architectures like audio, video, and networking to connect various radio frequencies up to 3GHz and voltages under 500V DC.
In place of coaxial connectors, the Bayonet Neill-Concelman Connector (BNC Connector) is a coaxial RF (Radio frequency) electrical connector type.
A BNC connector is used in electronic architectures like audio, video, and networking to connect various radio frequencies up to 3GHz and voltages under 500V DC. Due to its low-signal-loss architecture, BNC is also utilized in high-grade analog communications test equipment and avionics. Nearly always, BNC connectors are used to terminate coaxial ethernet cables.

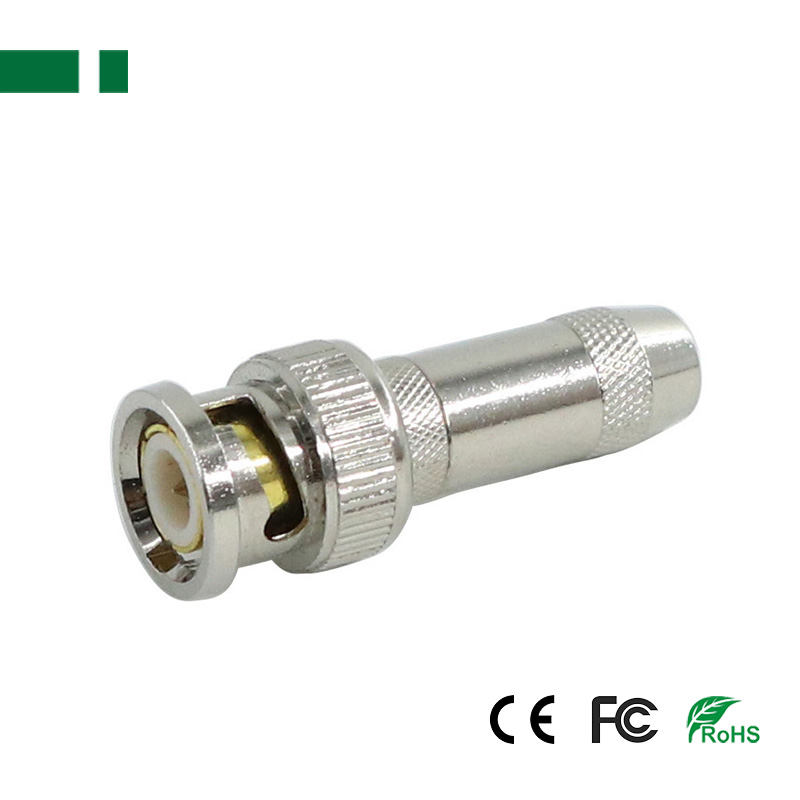

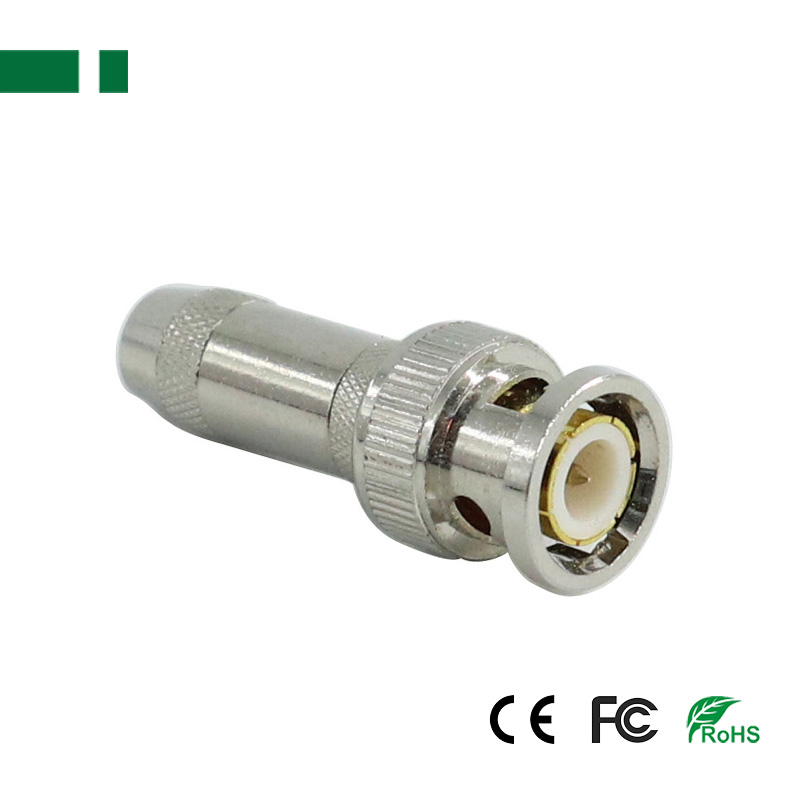

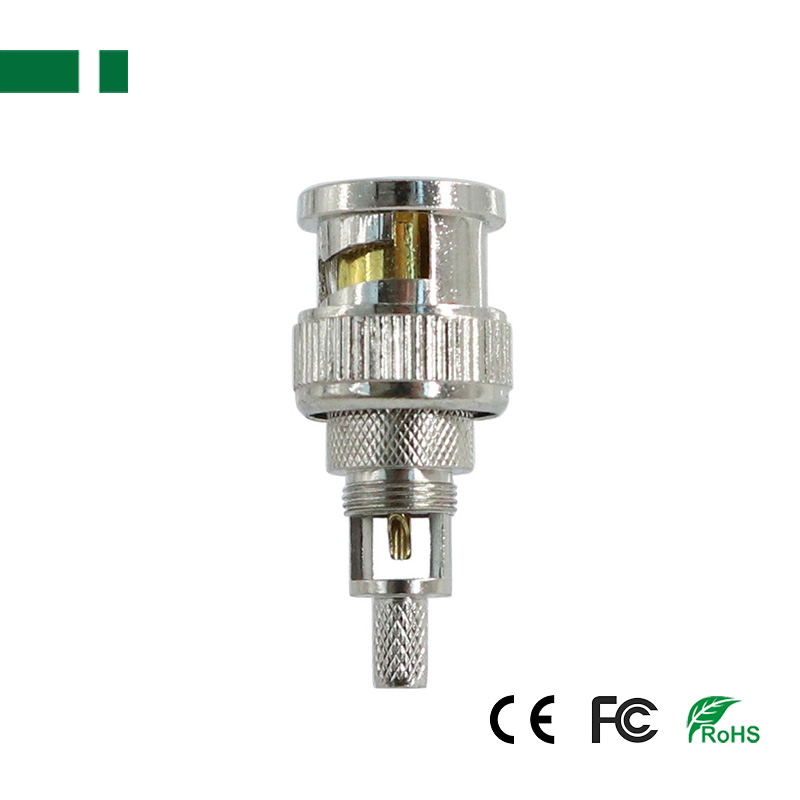

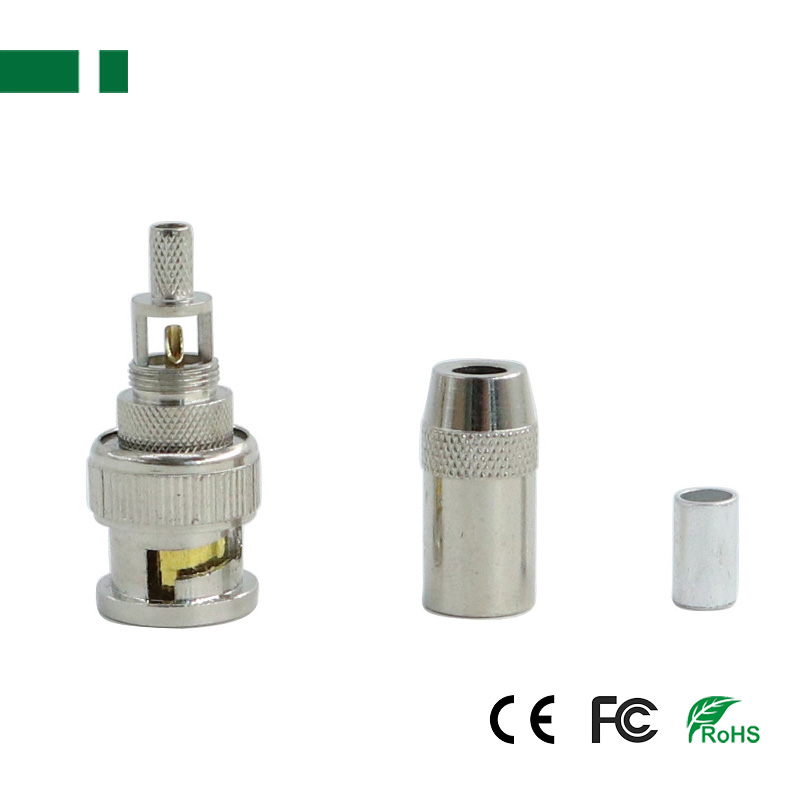

CCTV camera BNC 75-2 male connector
Solderless with screw inside
Material: Copper Pin and Zinc Alloy Body
Simply & Professional appearance for cabling
Easier for CCTV camera installation save time and money
<div class="rich-text-table" style="margin:0px;padding:0px;color:#222222;font-family:Roboto, Arial, " font-size:14px;background-color:#ffffff;"="">
| Model | CBN-097 |
| Connectors | Male BNC |
| Material | Zinc Alloy Body+Copper Pin |
| Contact Resistance | center conductor≤1.5mΩ; outer conductor≤1mΩ |
| Insulation Resistance | ≥5000MΩ |
| Frequency Range | 0~3GHZ |
| Disengage Force | ≥0.6N |
| Attenuation | 0.5dB type |
| Wire Type | Coaxial Cable |
| DC Loop Resistance | 52 ohms per 1,000 ft |
| Withstand Voltage | 1500V rms |
| Frequency Response | DC to 8 MHz |
| Working Temperature | -10°C to +70°C |
| Humidity | 0 to 95% |
| Packing | 100pcs/bag |
