CB-159 I type monitoring hoisting bracket

  • Material: aluminum alloy
  • Tube diameter: 38mm, Outlet: 15*20mm
  • Length: 180mm,250mm,350mm,400mm,500mm,600mm,800mm ,1000mm optional.
  • Product description: Product name: Monitoring duckbill gun machine stand aluminum alloy wall-mounted lifting bracket
  • INQUIRY   EMAIL
Product name: Monitoring duckbill gun machine stand aluminum alloy wall-mounted lifting Bracket

Feature:
Product name: I type monitoring hoisting bracket
Material: aluminum alloy
Color: White
Tube diameter: 38mm, Outlet: 15*20mm
Installation method: wall-mounted, ceiling-mounted , hoisting, vertical installation
Installation Place: Outdoor & indoor. (Note: Wall mounting is not recommended for sizes above 60-120cm.)
Length: 180mm,250mm,350mm,400mm,500mm,600mm,800mm ,1000mm optional.
It supports universal adjustment, thickened material, corrosion prevention and rust prevention, durability, high compatibility, and supports for HIKVISION Dahua camera.


Specification:

Model CB-159A CB-159B CB-159C CB-159D CB-159E CB-159F CB-159G CB-159H
Name "I" Shape Monitoring Hoisting Aluminum Bracket
Material Aluminum alloy
Installation Wall-mounted, Ceiling-mounted , Hoisting, Vertical installation
Applicable Outdoor & Indoor
Rotation Support up and down rotation 180°, left and right rotation 360°, the direction can be adjusted.

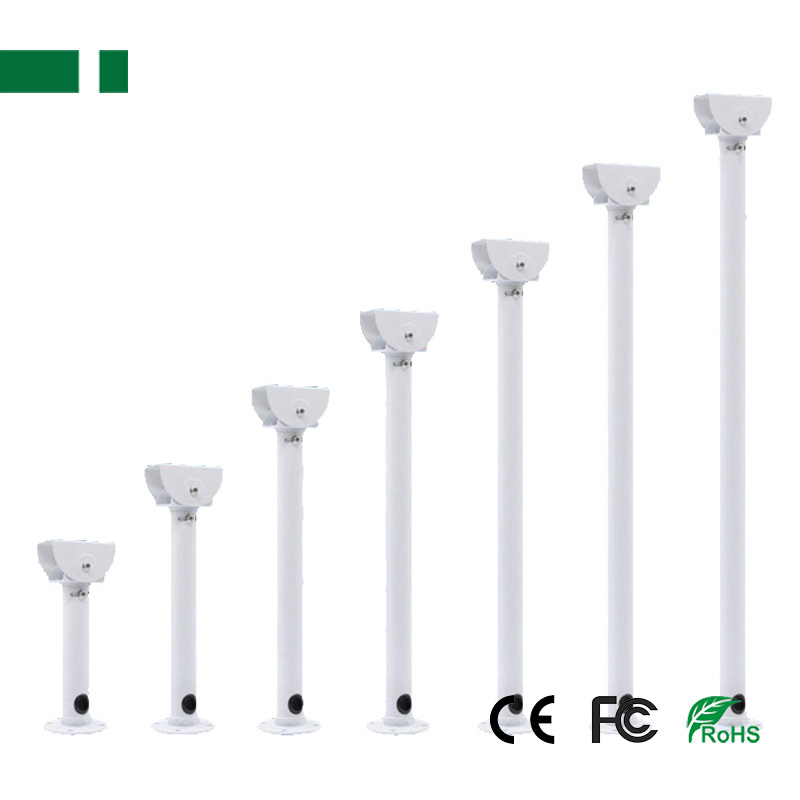

Length 180mm 250mm 350mm 400mm 500mm 600mm 800mm 1000mm

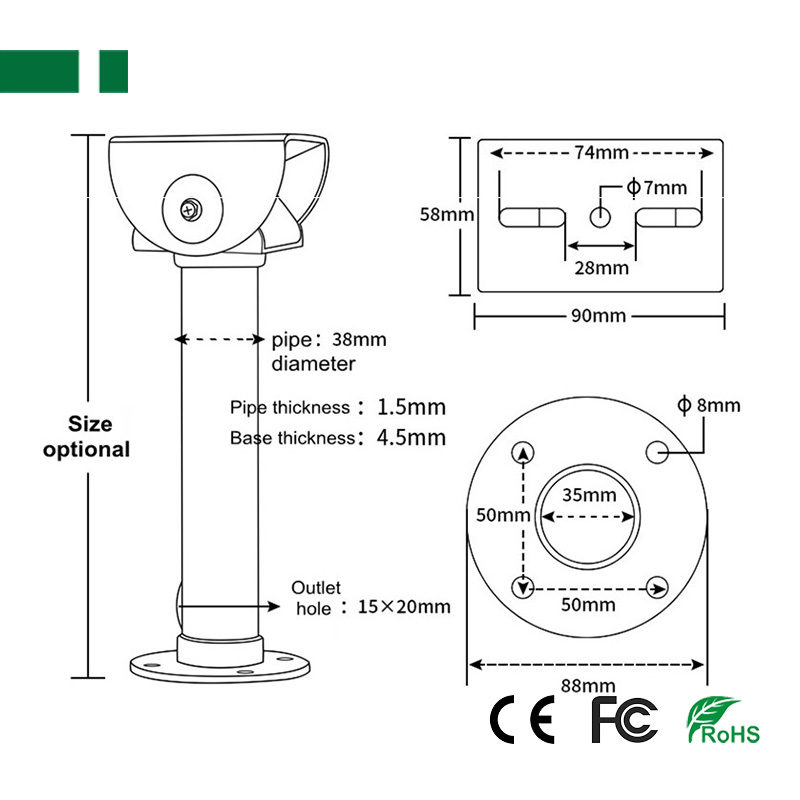

Fixed Base 88(D)mm

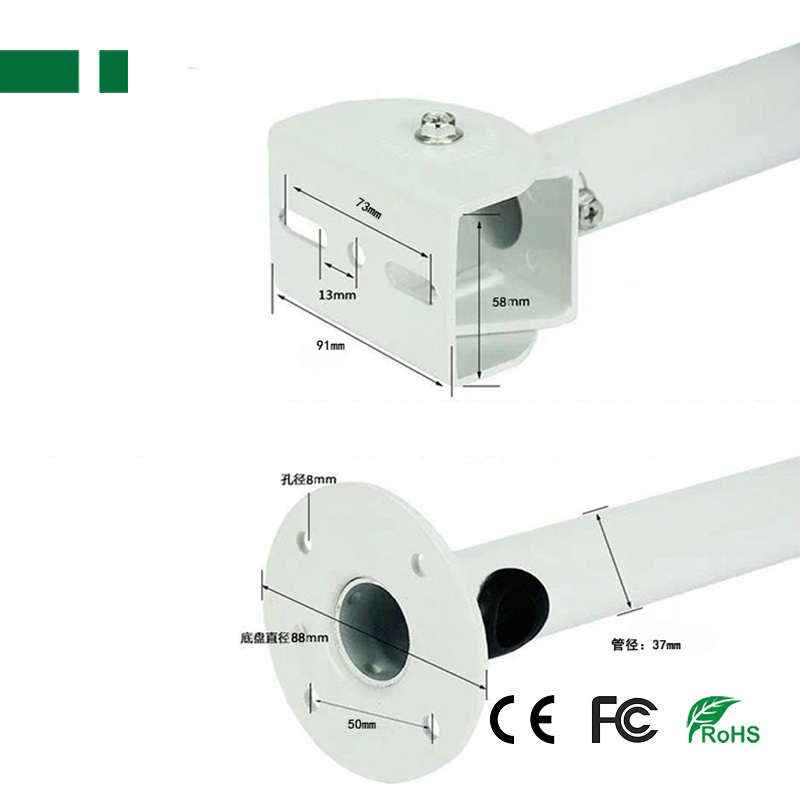

Clamp size 90(L)*58(W)mm
Tube diameter 38mm
Weight 300g 350g 400g 415g 430g 445g 531g 680g

Package Including:
1pcs camera bracket
Warm prompt: Camera is not included in the package.

Disclaimer: The size is manually measured by hand, and there may be an error of 1-3MM.
