ST/UPC-SM ST UPC Single Mode Optical Fiber Pigtail

Description:

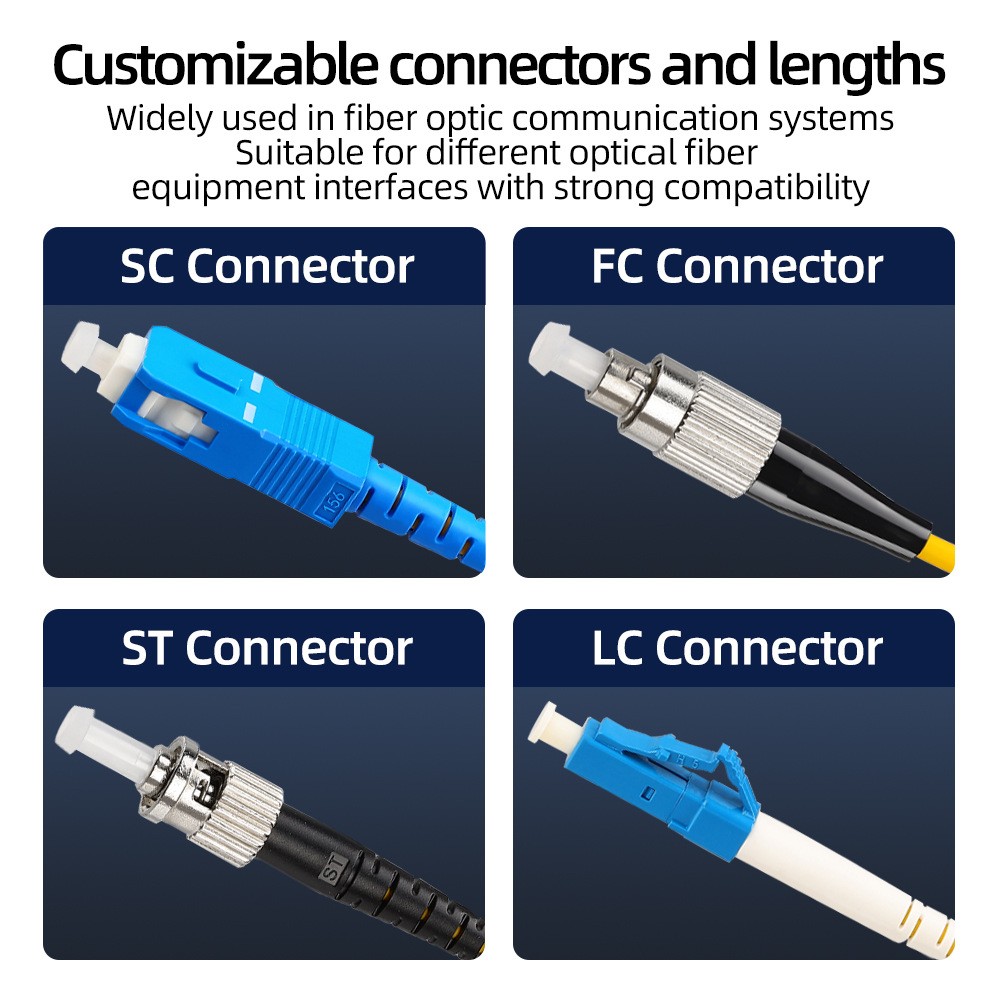

A Fiber Optic pigtail is a specialized type of fiber optic cable that features a connector (such as FC, LC, SC, ST or MPO) on one end and an exposed fiber on the other. This design allows the pigtail to be spliced directly into a main fiber optic cable or patch panel, facilitating seamless signal transmission. Pigtails are essential for permanent or semi-permanent installations, particularly in high-density environments like data centers and telecommunications networks.

Features:

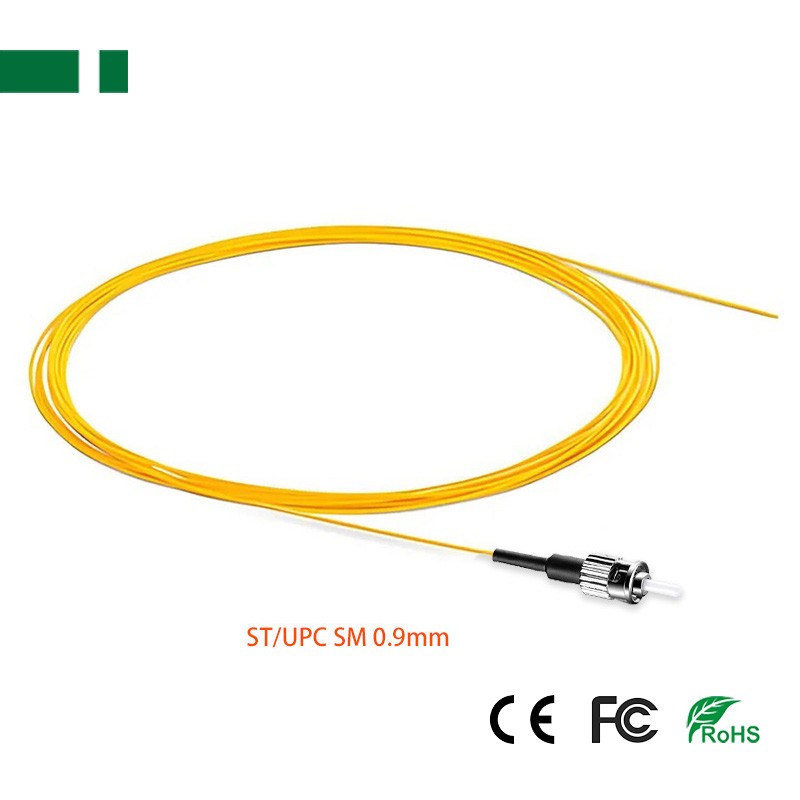

▪ ST/UPC Single mode Optical Fiber Pigtail;

▪ Length: 1M/ 2M/ 3M/ 5M/ 10M/ 15M/ 20M/ 25M/ 30M;

▪ Single Mode Yellow Pigtail: Ideal for high-speed data transmission over long distances;

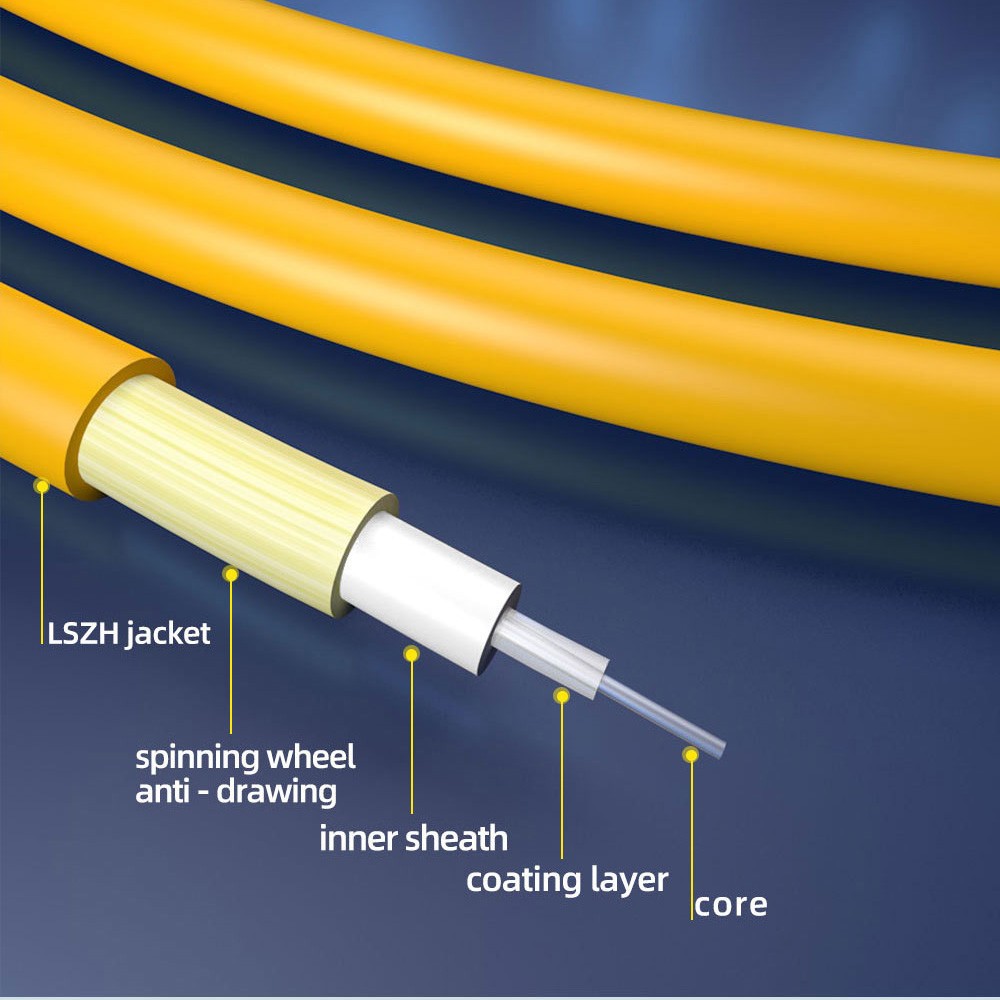

▪ 0.9mm Diameter: Provides flexibility and durability for easy handling and routing;

▪ LSZH Jacket Material: Offers flame retardant and low smoke properties for safer installations;

▪ Fiber Type G652D: Ensuring low attenuation and high bandwidth.

Speicification:
