SFP Module

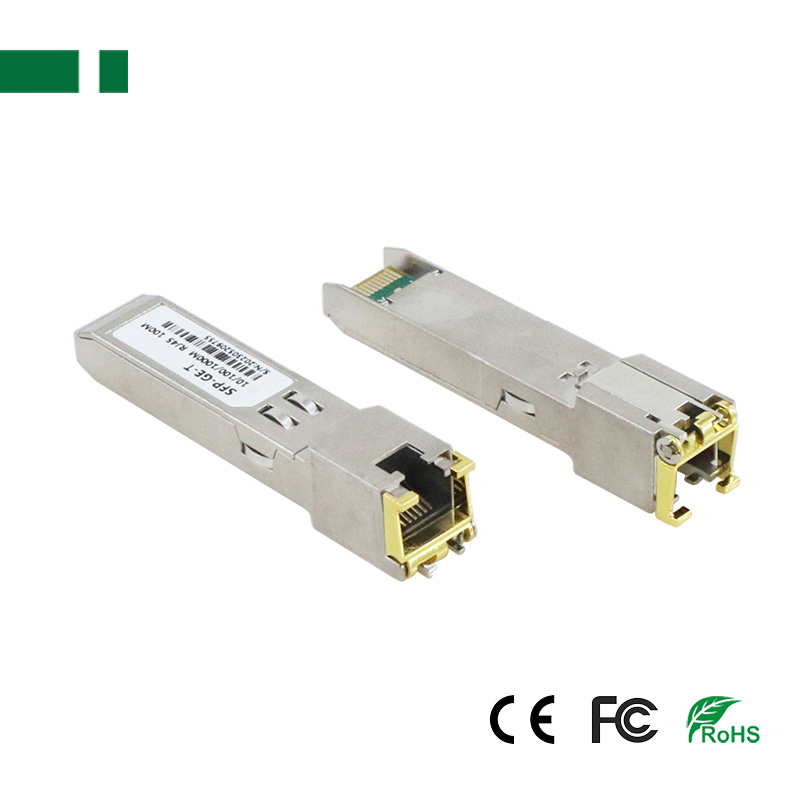

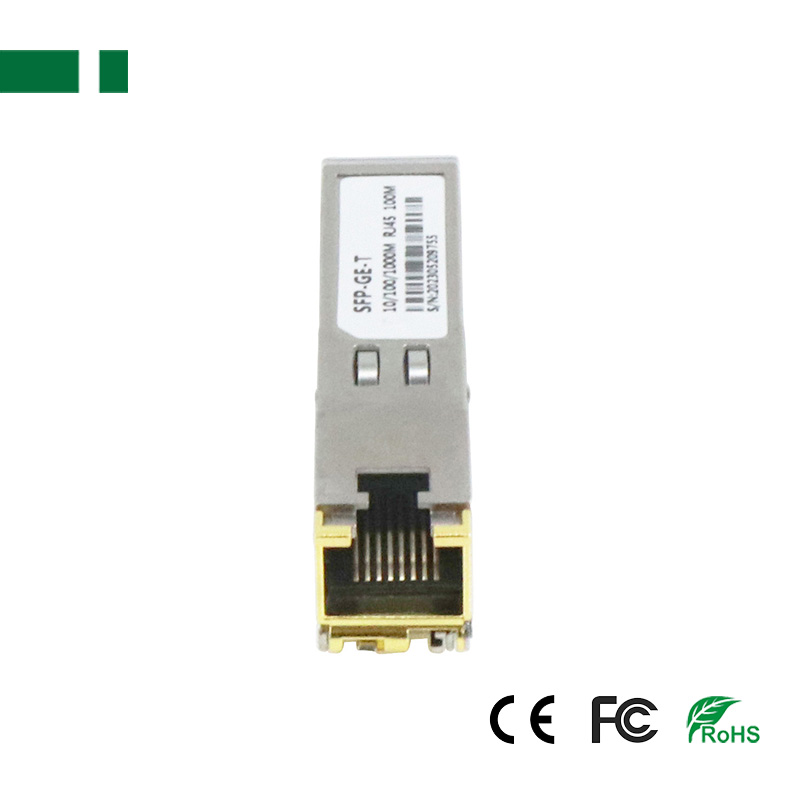

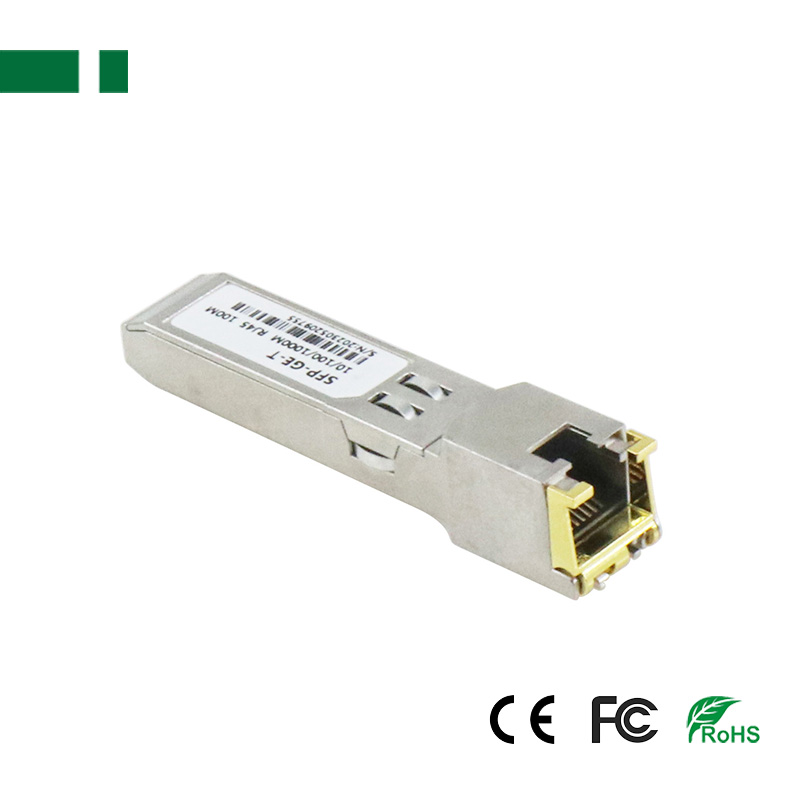

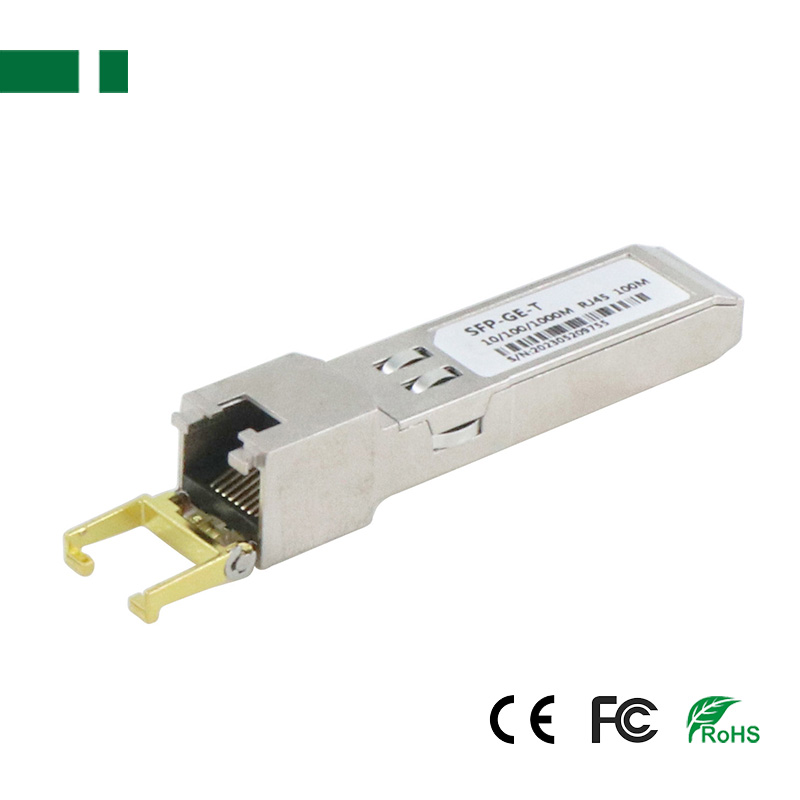

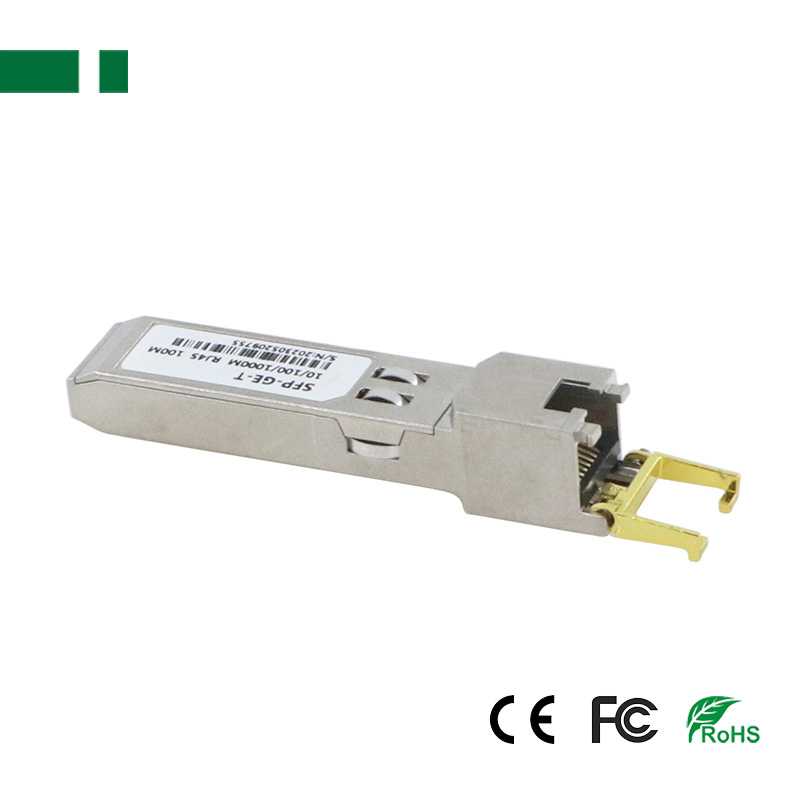

SFP-GE-T 1.25Gbps-RJ45-SFP copper transceiver module

SFP-GE-T 1.25Gbps-RJ45-SFP copper transceiver module

IEEE 802.3az Compliant
Supports 10/100 Base-T
MDI/MDIX Crossover.
Low Power Consumption (2.5W MAX @ 30m
Product description: The 1.25Gbps-RJ45-SFP copper transceiver module is a high performance integrated duplex data link for bi-directional communication over copper cable.
INQUIRY EMAIL

SFP+ module RJ45 Switch gbic 1.25Gbps connector SFP Copper RJ45 SFP module Gigabit Ethernet port

The 1.25Gbps-RJ45-SFP copper transceiver module is a high performance integrated duplex data link for bi-directional communication over copper cable. It is specifically designed for high speed communication links that require 1.25 Gigabit Ethernet over Cat 6a/7 cable. This is the first SFP+ transceiver that offers 1.25 Gb/s communication over this type of media.

Features:
1. Supports Links up to 30m using Cat 6a/7 Cable;
2. IEEE 802.3az Compliant;
3. Low Power Consumption (2.5W MAX @ 30m);
4. Fast Retrain EMI Cancellation Algorithm;
5. Low EMI Emissions;
6. I2C 2-Wire Interface for Serial ID and PHY Register Access;
7. Auto-negotiates with other 1.25GBase-T PHYs;
8. Supports 10/100 Base-T using Cat 5e cable or better;
9. MDI/MDIX Crossover;
10. Multiple Loopback Modes for Testing and Troubleshooting;
11. Built-in Cable Monitoring and Link: Cable Length Measurements; Opens/Shorts;
12. Robust Die Cast Housing;
13. Bail Latch Style ejector mechanism;
14. Unshielded and Shielded cable support.

Specification:

Model

Data Rate

Connector

Distance

Operating Temperature

Compatibility

SFP-GE-T

1.25Gbp

1*RJ45

100M

Commercial:

0°C to +70°C;
