IEEE 802.3az Compliant
Supports 10/100/1000 Base-T
MDI/MDIX Crossover.
Low Power Consumption (2.5W MAX @ 30m
The 10Gbps-RJ45-SFP copper transceiver module is a high performance integrated duplex data link for bi-directional communication over copper cable.
SFP+ module RJ45 Switch gbic 10Gbps connector SFP Copper RJ45 SFP module Gigabit Ethernet port
The 10Gbps-RJ45-SFP copper transceiver module is a high performance integrated duplex data link for bi-directional communication over copper cable. It is specifically designed for high speed communication links that require 10 Gigabit Ethernet over Cat 6a/7 cable. This is the first SFP+ transceiver that offers 10 Gb/s communication over this type of media.
Features:
1. Supports Links up to 30m using Cat 6a/7 Cable;
2. IEEE 802.3az Compliant;
3. Low Power Consumption (2.5W MAX @ 30m);
4. Fast Retrain EMI Cancellation Algorithm;
5. Low EMI Emissions;
6. I2C 2-Wire Interface for Serial ID and PHY Register Access;
7. Auto-negotiates with other 10GBase-T PHYs;
8. Supports 10/100/1000 Base-T using Cat 5e cable or better;
9. MDI/MDIX Crossover.
10. Multiple Loopback Modes for Testing and Troubleshooting;
11. Built-in Cable Monitoring and Link: Cable Length Measurements; Opens/Shorts;
12. Robust Die Cast Housing;

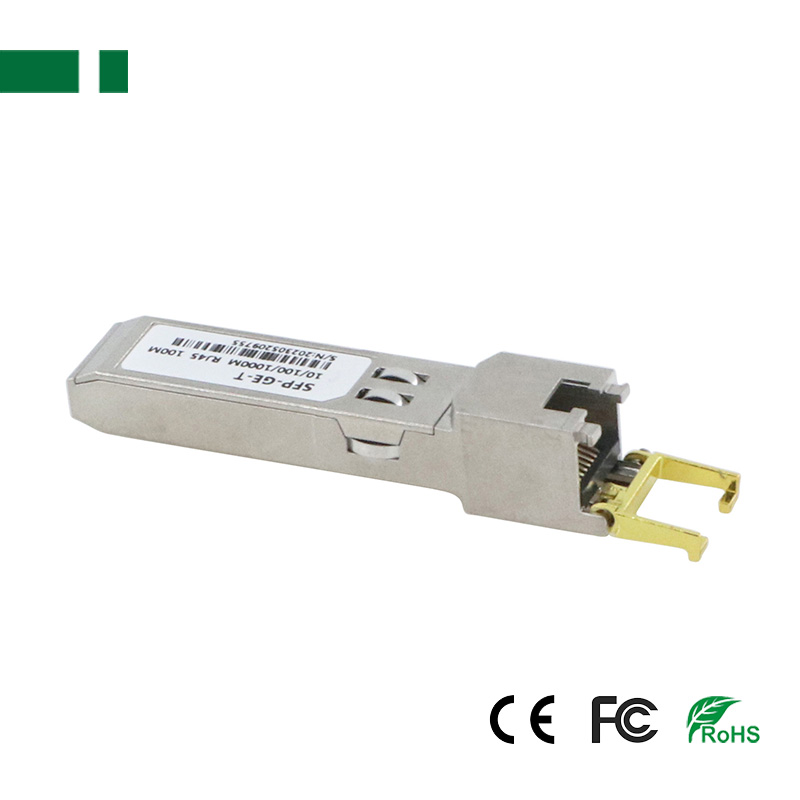

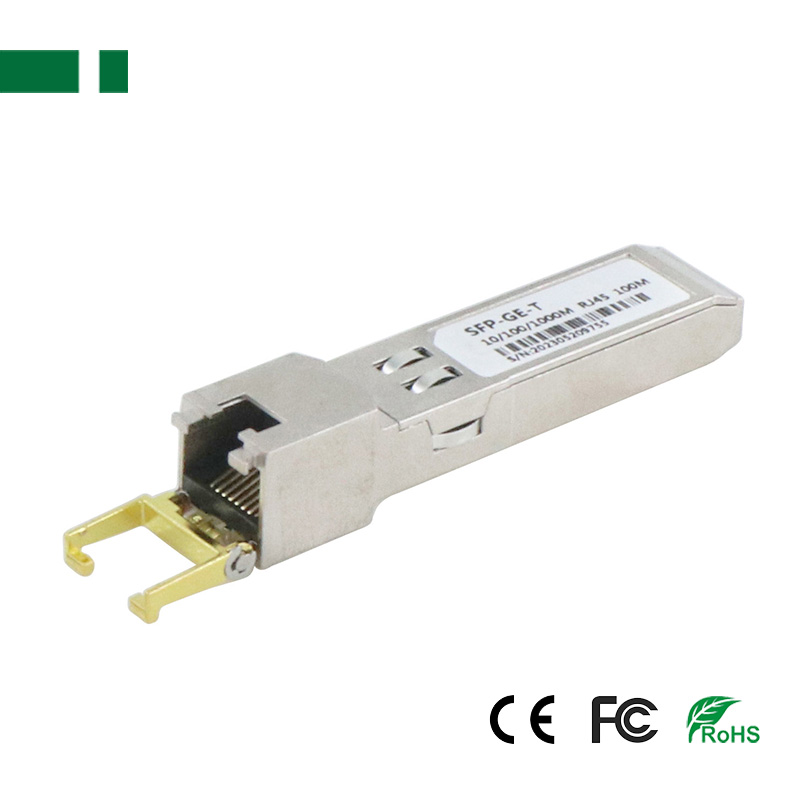

13. Bail Latch Style ejector mechanism;
14. Unshielded and Shielded cable support.
Specification:
| Model | Data Rate | Connector | Distance | Operating Temperature | Compatibility |
| SFP-GE-T | 1.25Gbp | 1*RJ45 | 100M | Commercial: 0°C to +70°C; Extended: -10°C to +80°C; Industrial: -40°C to +85°C | Compatible with optical fiber equipment from Huawei, ZTE, H3C, Cisco, TPLINK, Ruijie, Dell, HP, Intel, NETGEAR, Juniper, AMD and other brands. |
| SFP-10GE-T | 10Gbps |
