Features:

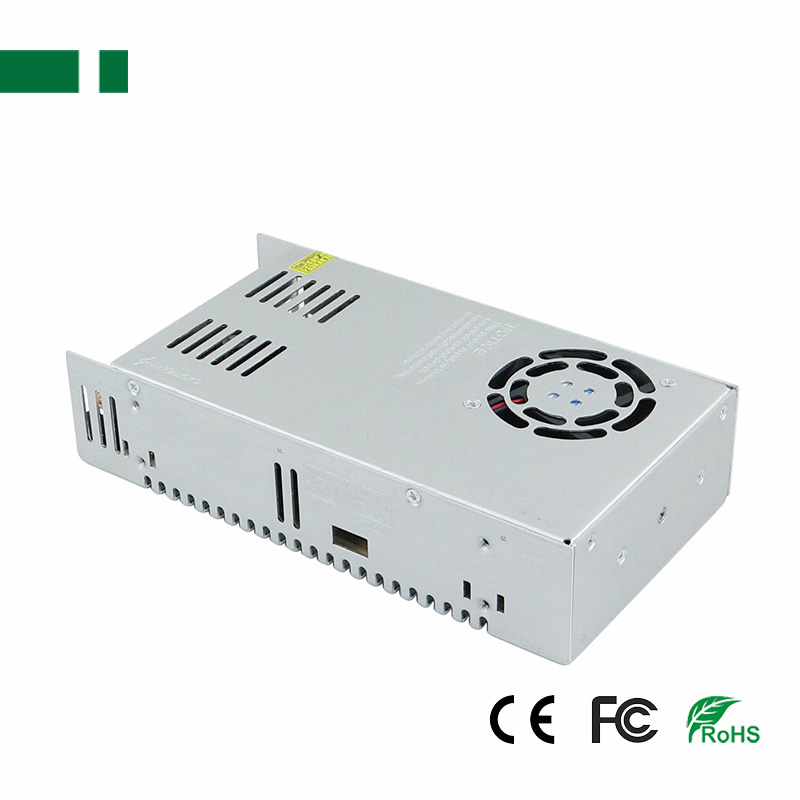

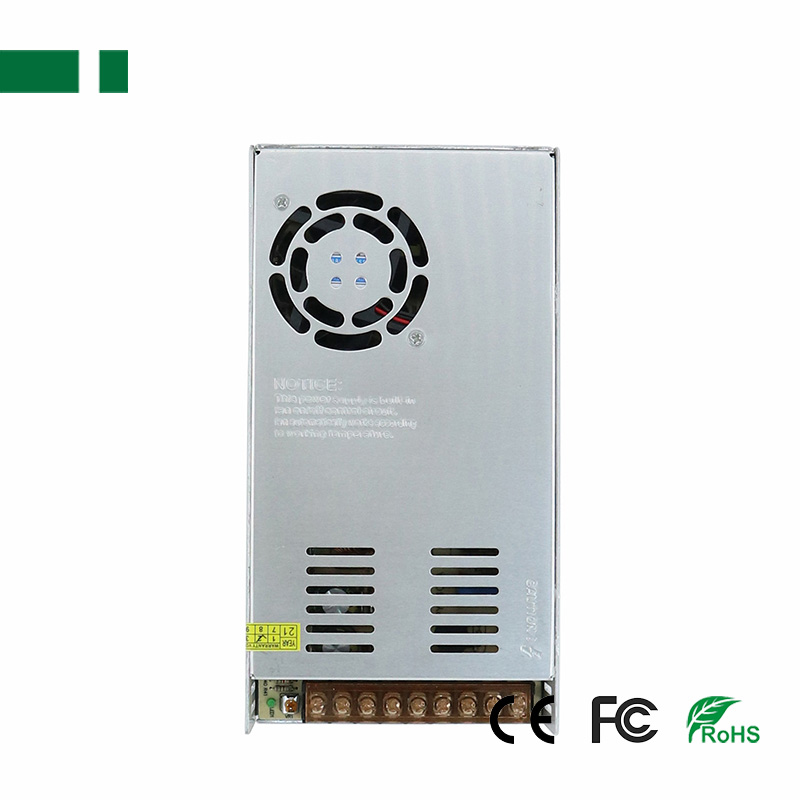

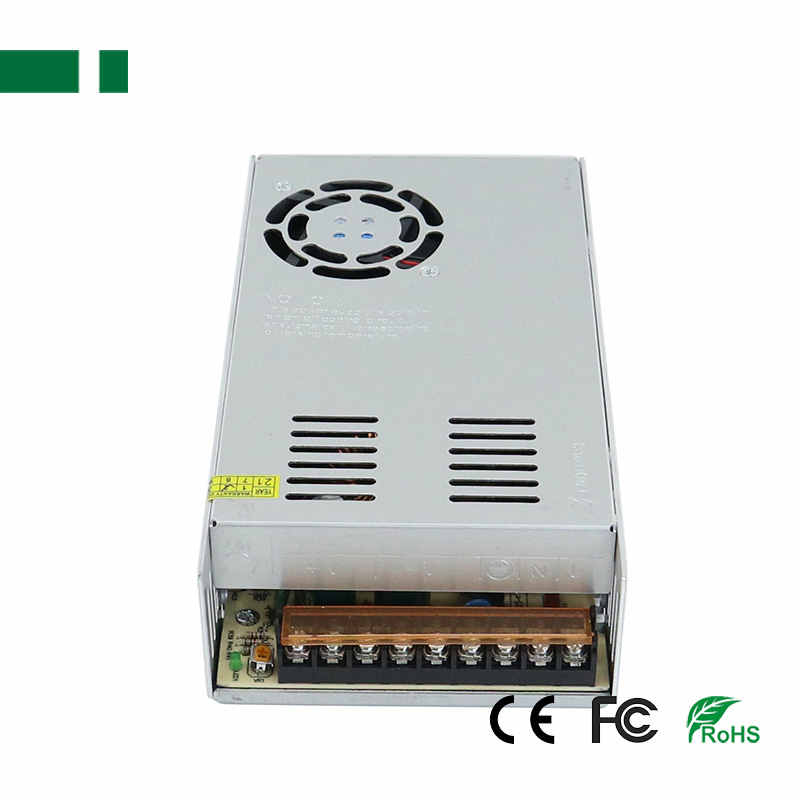

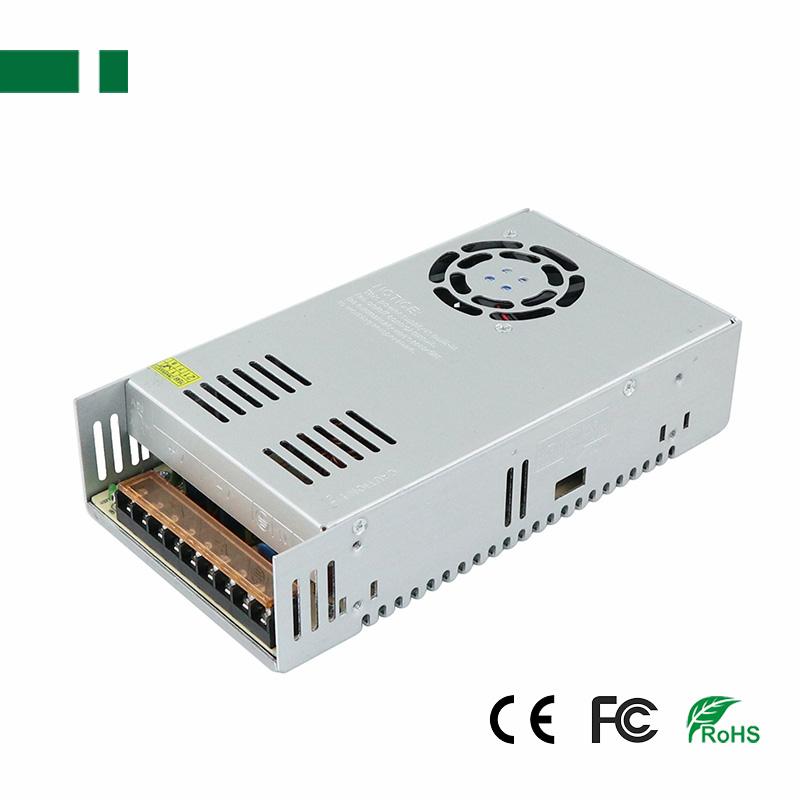

1. 300W Output Switching Power Supply
2. Output voltage & current: DC5V 60A
3. Input voltage range: 85~264VAC
4. Built in EMI filter with tiny ripple
5. 100% full load burn-in test
6. Forced air Cooling by built-in DC fan
7. Protection: Short circuit/ Overload/ Over voltage/ Over temperature
8. Built-in constant current limiting circuit (C.C.+C.V.mode);
Model | S-300W-5 | |
Output | DC output Voltage | 5V±10% |
Output Current Range | 0-60A | |
Wave and Noise | 120mVp-p | |
DC output Power | 300W | |
Efficiency | 85% | |
DC Voltage Adjustable Scope | (at full load)≦0.5% | |
Input | Voltage Range | 85~264VAC 47-63Hz |
Input Current | 0.14A/115V, 0.07A/230V | |
Leakage Current | <1mA/ 240VAC | |
Inrush Current | Cold start 20A/120VAC, 40A/230VAC | |
Protection | Over-load |
105%~135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed |
Over-voltage | 105%---150% Rated Voltage, Protection type: Shut off | |
High-temperature | RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V) | |
Environment | Working temperature and humidity | -10°C~+50°C, 20~90%RH |
Store temperature and humidity | -20°C~+85°C, 10~95%RH | |
Temperature coefficient | ±0.03%°C(0~50°C) | |
Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES | |
Safety | Withstand voltage | I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC |
Isolation resistance | I/P-O/P,I/P-FG,O/P-FG: 100M Ohms/500VDC | |
Standard | CE EMC Standard | EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013 |
CE LVD Standard | EN61347-2-13:2014+A1:2017, EB61347-1:2015 | |
ROHS Standard | IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc. | |
Other | Dimension | 70*39*31mm (L*W*H) |
Weight | 0.058kg | |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. I/P-O/P: Input and output interval, I/P-FG: Input and enclosure, O/P-FG: Output and enclosure |
