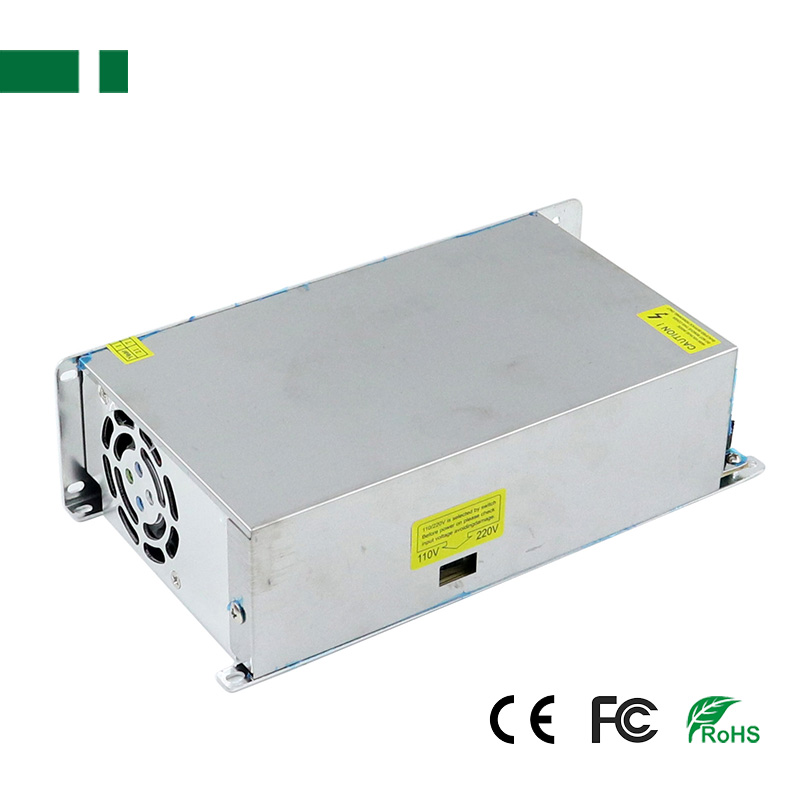

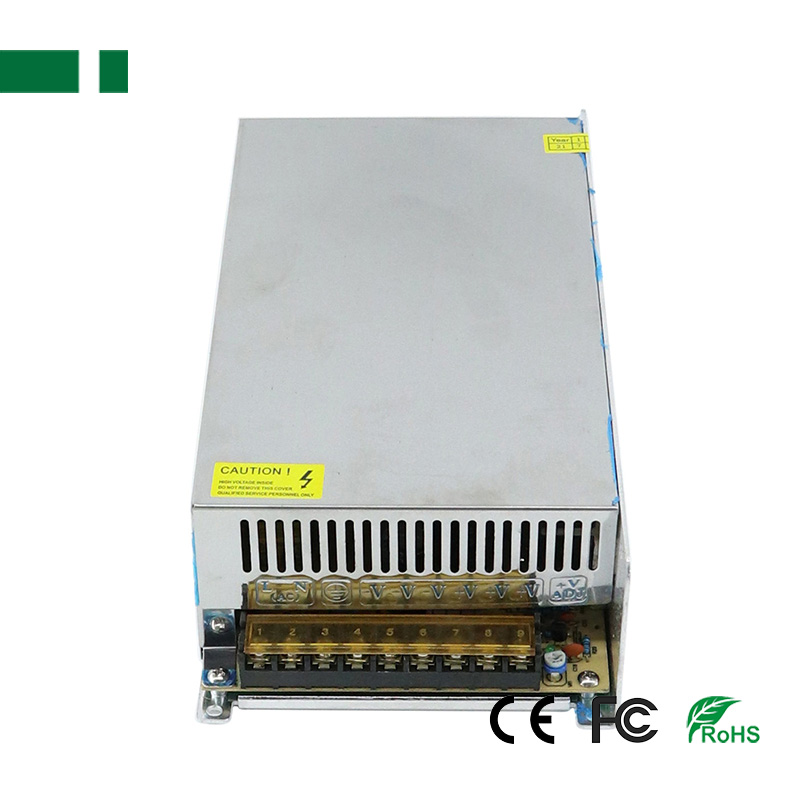

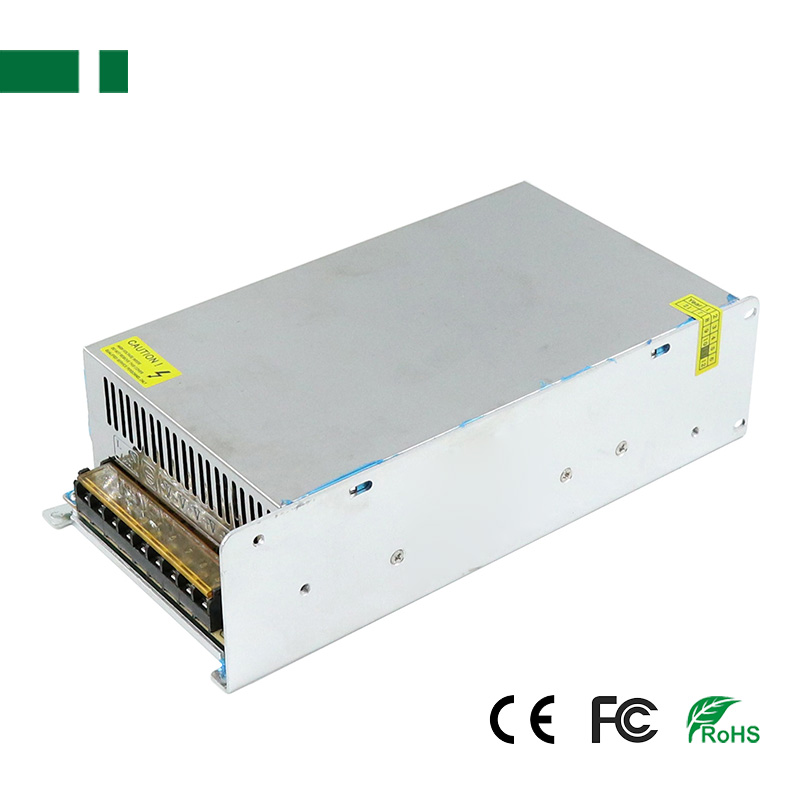

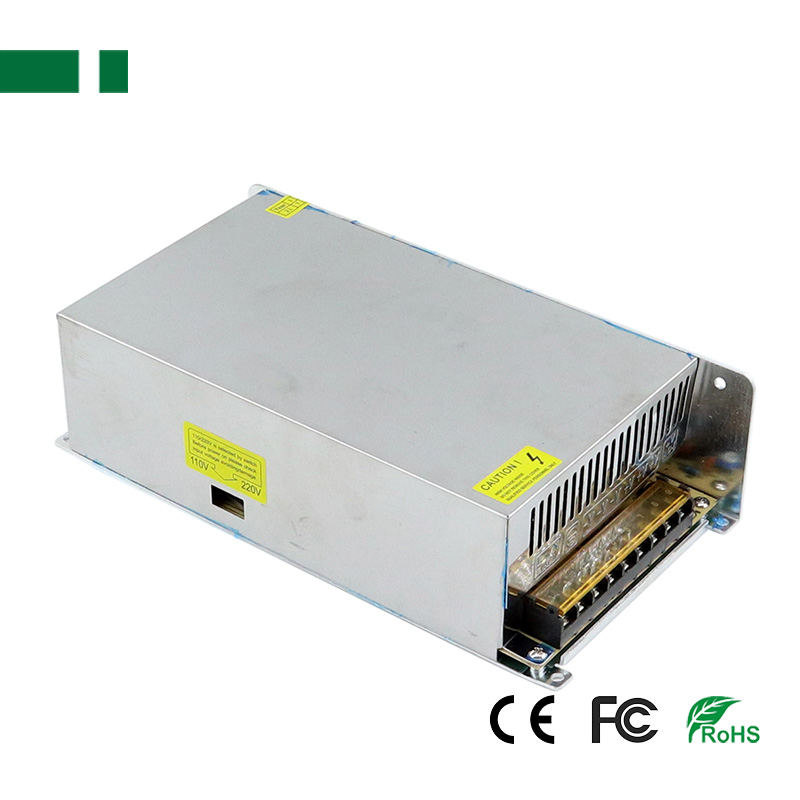

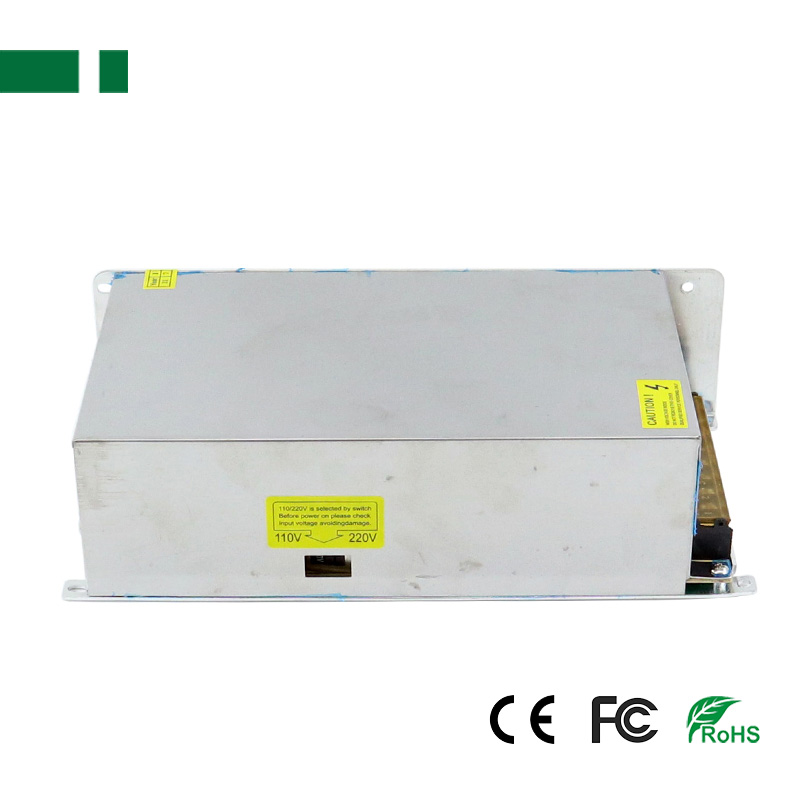

800W Switching Power Supply
DC12V 66.6A
100% full load burn-in test
◆ Built in EMI filter with tiny ripple ◆ 100% full load burn-in test ◆ Protection: Short circuit/ Overload/ Over voltage/ Over temperature
Features:
1. 800W Output Switching Power Supply
2. Output voltage & current: DC12V 66.6A
3. Input voltage range: 85~264VAC
4. Built in EMI filter with tiny ripple
5. 100% full load burn-in test
6. Forced air Cooling by built-in DC fan;
7. Protection: Short circuit/ Overload/ Over voltage/ Over temperature
| More Model | DC Output | Input Current | Dimension | Weight |
| CP1207-1A | DC12V 1A 15W | 0.14A/ 115V, 0.07A/ 230V | 71*40*32mm | 59g |
| CP1207-2A | DC12V 2A 24W | 0.24A/ 115V, 0.12A/ 230V | 85*59*33mm | 88g |
| CP1207-3A | DC12V 3A 36W | 0.36A/ 115V, 0.18A/ 230V | 110*78*35mm | 183g |
| CP1207-5A(S) | DC12V 5A 60W | 0.54A/ 115V, 0.27A/ 230V | 110*78*35mm | 191g |
| CP1207-8.5A | DC12V 8.5A 100W | 0.88A/ 115V, 0.44A/ 230V | 160*98*42mm | 312g |
| CP1207-10A | DC12V 10A 120W | 1.1A/ 115V, 0.55A/ 230V | 199*98*42mm | 415g |
| CP1207-15A | DC12V 15A 180W | 1.32A/ 115V, 0.66A/ 230V | 199*98*42mm | 425g |
| CP1207-20A | DC12V 20A 240W | 2.2A/ 115V, 1.1A/ 230V | 203*115*56mm | 663g |
| CP1208-20A | DC12V 20A 240W | 2.2A/ 115V, 1.1A/ 230V | 203*115*50mm | 676g |
| CP1208-30A | DC12V 30A 360W | 3.2A/ 115V, 1.6A/ 230V | 215*115*50mm | 720g |
| CP1208-40A | DC12V 40A 480W | 3.5A/ 115V, 1.75A/ 230V | 215*115*50mm | 718g |
| CP1208-50A | DC12V 50A 600W | 5.3A/ 115V, 3.15A/ 230V | 215*115*50mm | 841g |
| CP1208-600W | DC12V 50A 600W | 5.3A/ 115V, 3.15A/ 230V | 244*126*67mm | 1069g |
| CP1208-800W | DC12V 66.6A 800W | 6.96A/ 115V, 3.48A/ 230V | 244*126*67mm | 1135g |
| CP1208-1000W | DC12V 83.3A 1000W | 8.7A/ 115V, 4.35A/ 230V | 244*126*67mm | 1265g |
Specification:
| Model | CP1208-800W | CP2408-800W | |
| Output | DC output Voltage | 12V±10% | 24V±10% |
| Output Current Range | 0-66.6A | 0-33.3A | |
| Wave and Noise | 120mVp-p | ||
| DC output Power | 800W | ||
| Efficiency | 85% | ||
| DC Voltage Adjustable Scope | （at full load）≦0.5% | ||
| Input | Voltage Range | 85~264VAC 47-63Hz | |
| Input Current | 6.96A/115V, 3.48A/230V | ||
| Leakage Current | <1mA/ 240VAC | ||
| Inrush Current | Cold start 20A/120VAC, 40A/230VAC | ||
| Protection | Over-load | 105%~135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed | |
| Over-voltage | 105%---150% Rated Voltage, Protection type: Shut off | ||
| High-temperature | RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V) | ||
| Environment | Temperature | Working: -10°C~+50°C, Store: -20°C~+85°C | |
| Humidity | Working: 20~90%RH, Store: 10~95%RH | ||
| Temperature coefficient | ±0.03%°C(0~50°C) | ||
| Vibration | 10~500Hz,2G 10min./1cycle, Period for 60min, EACH AXES | ||
| Safety | Withstand voltage | I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC | |
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | ||
| Standard | CE EMC Standard | EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013 | |
| CE LVD Standard | EN61347-2-13:2014+A1:2017, EB61347-1:2015 | ||
| ROHS Standard | IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc. | ||

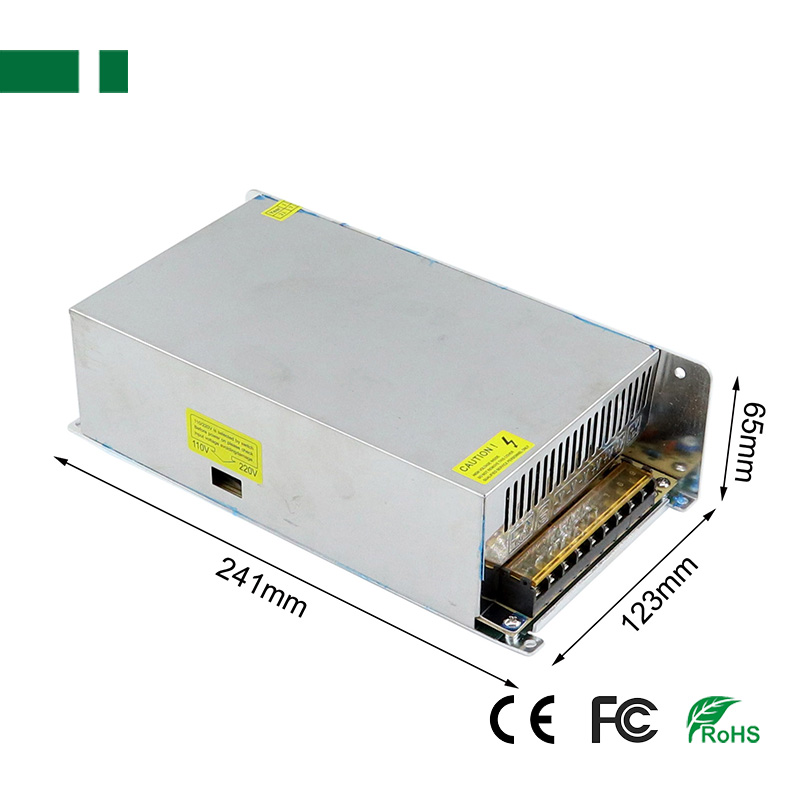

| Other | Dimension | 244*126*67mm (L*W*H) | |
| Weight | 1135g | ||
| Notes |
1.
All parameters NOT specially mentioned are measured at 230VAC input, rated
load and 25℃ of ambient
temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. I/P-O/P: Input and output interval, I/P-FG: Input and enclosure, O/P-FG: Output and enclosure. | ||
