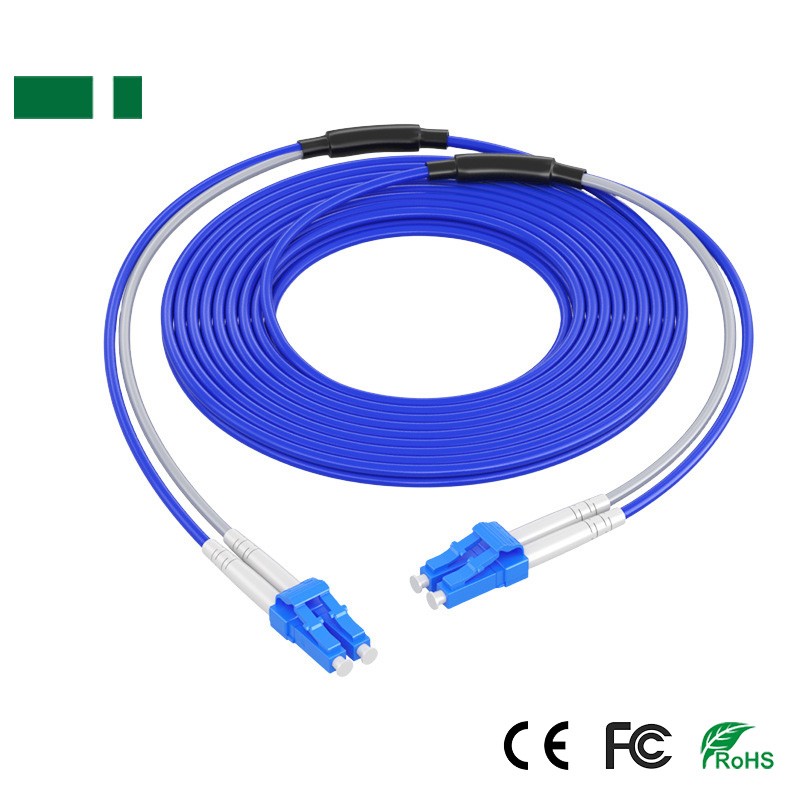

LC/UPC-LC/UPC-1MA-D LC/UPC-LC/UPC-2MA-D LC/UPC-LC/UPC-3MA-D LC/UPC-LC/UPC-5MA-D LC/UPC-LC/UPC-10MA-D Armored Optical Fiber Patch Cord Single-Mode Dual Core

3MM, G652D, Armored Optical Fiber Patch Cord, Single-Mode, Dual Core, Blue Color

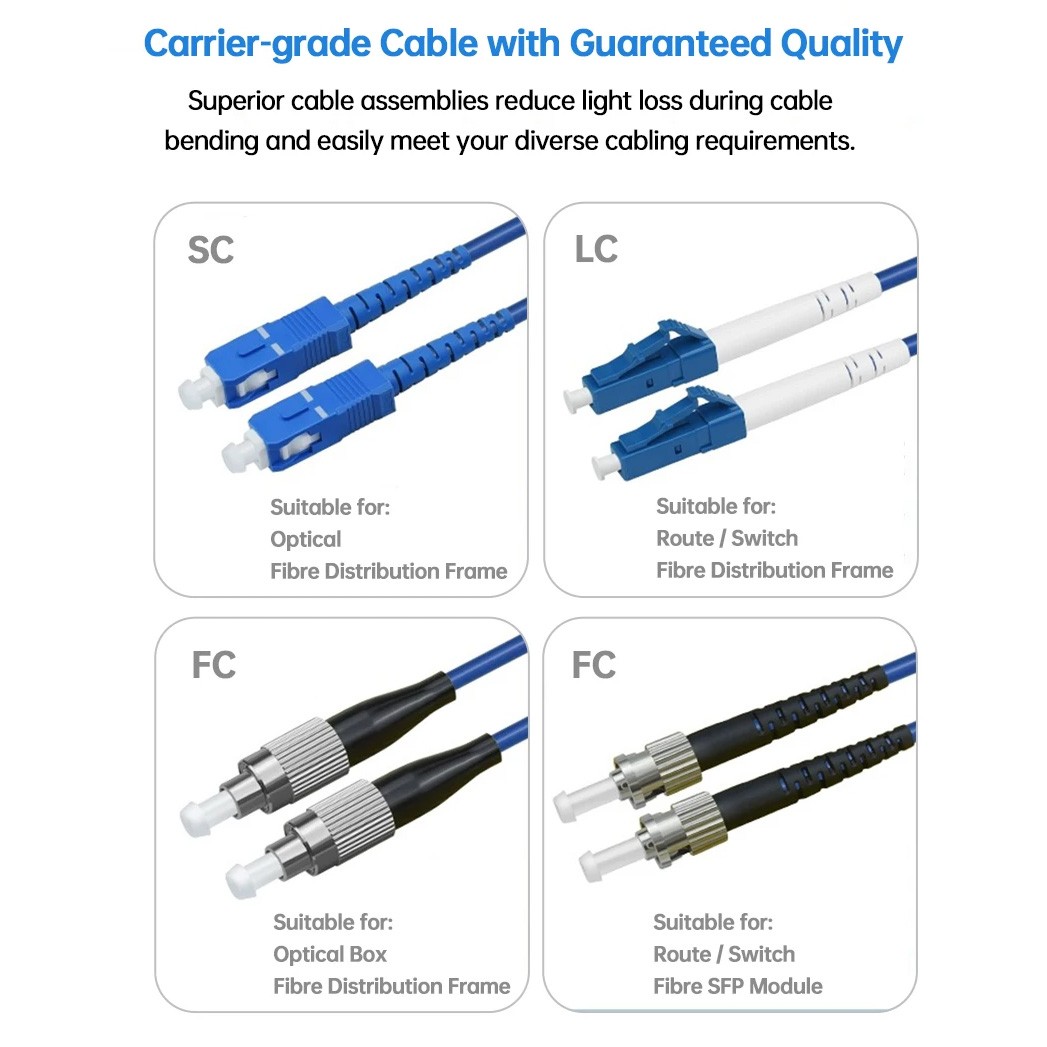

Connector Type: LC/UPC-LC/UPC

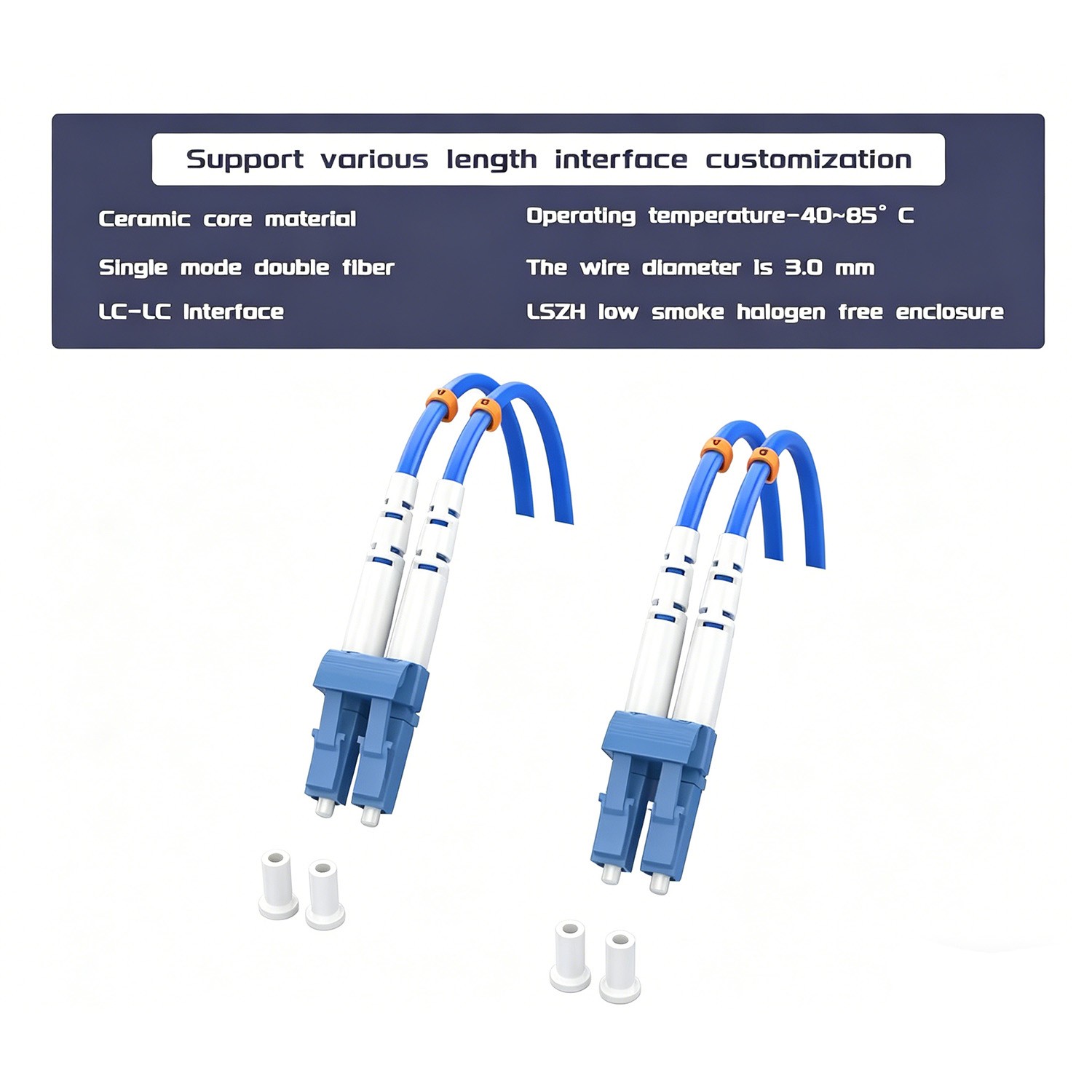

Optional Length: 1M/ 2M/ 3M/ 5M/  10M/ 15M/ 20M/ 25M/ 30M/ 40M/ 45M/ 50M/ 60M/ 80M/ 100M/ 120M/ 150M/ 200M/ 250M/ 300M;

Description

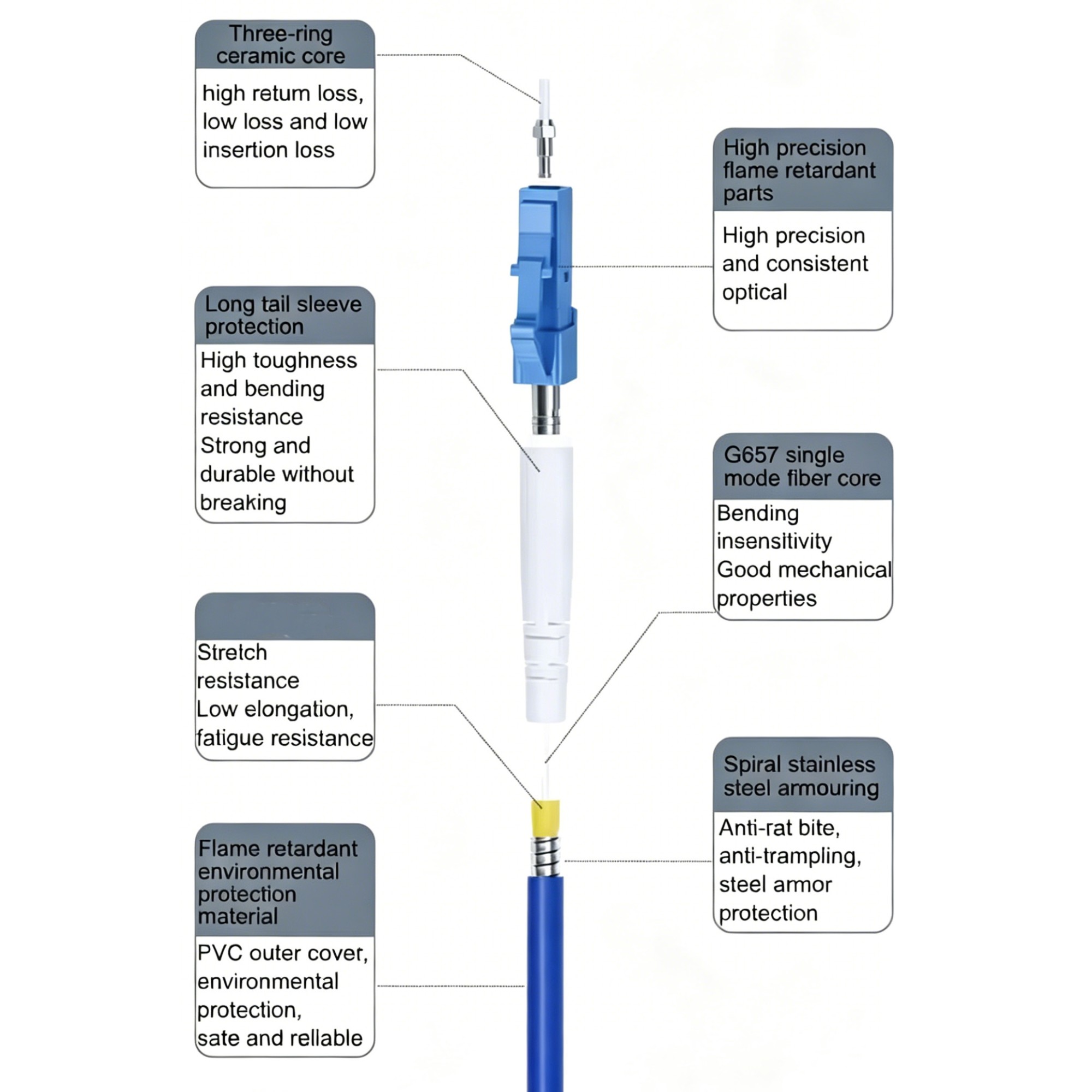

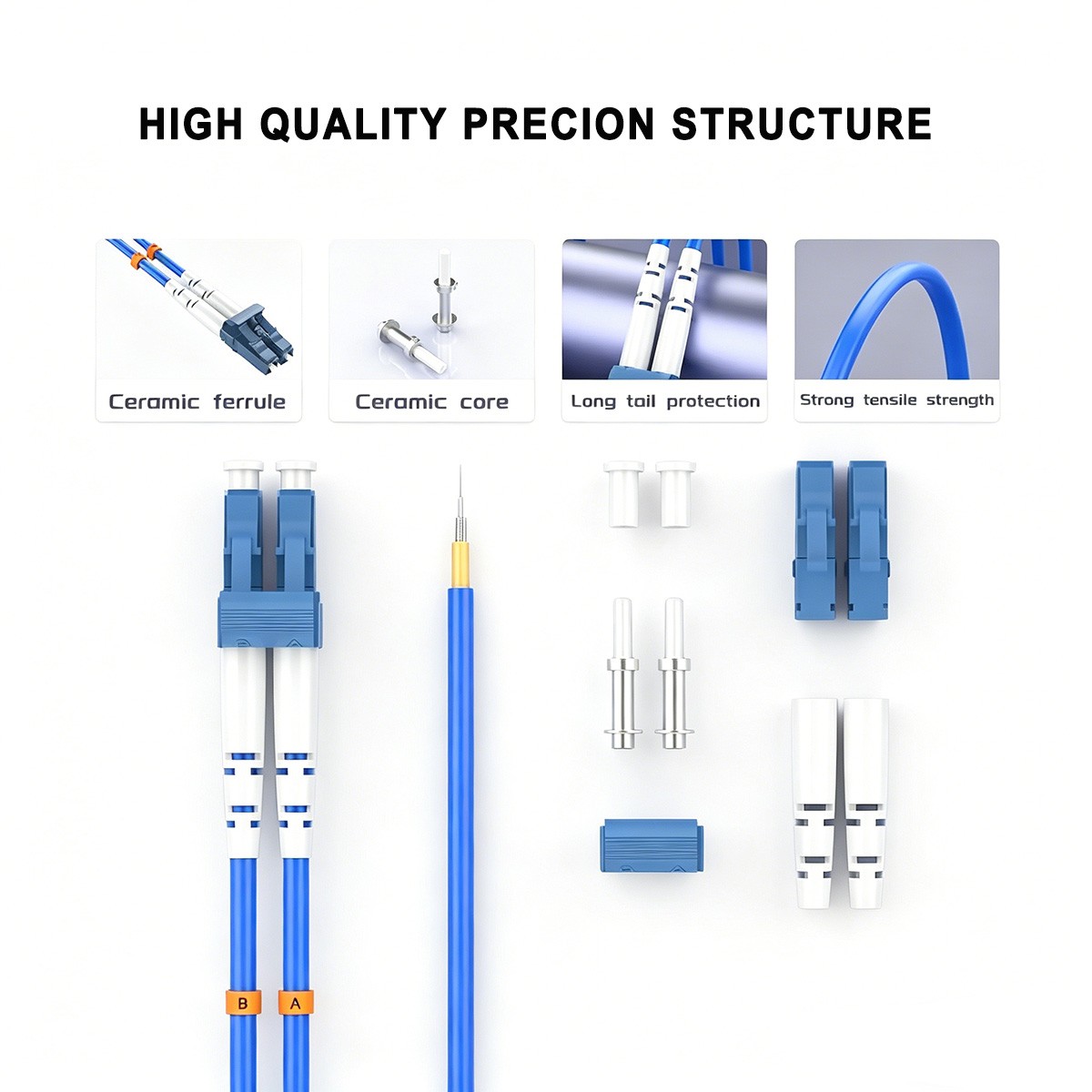

Steel armoured patchcords with build-in metal armor can provide stronger protection of the optical fibers than standard Fiber Optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents. With the high-quality ceramic ferrule, it has good conformity and low Insertion Loss.

Features

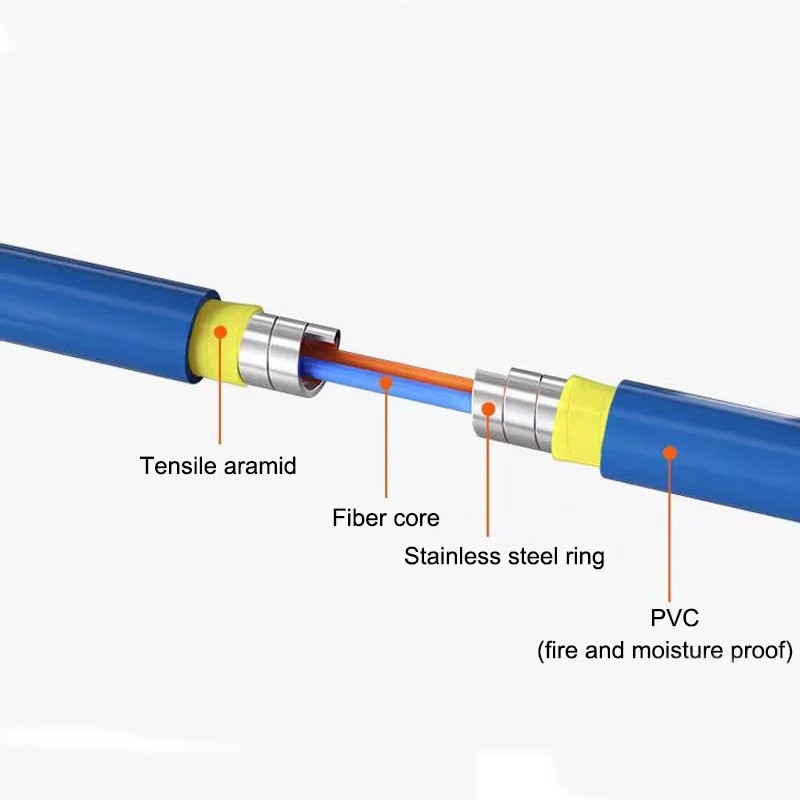

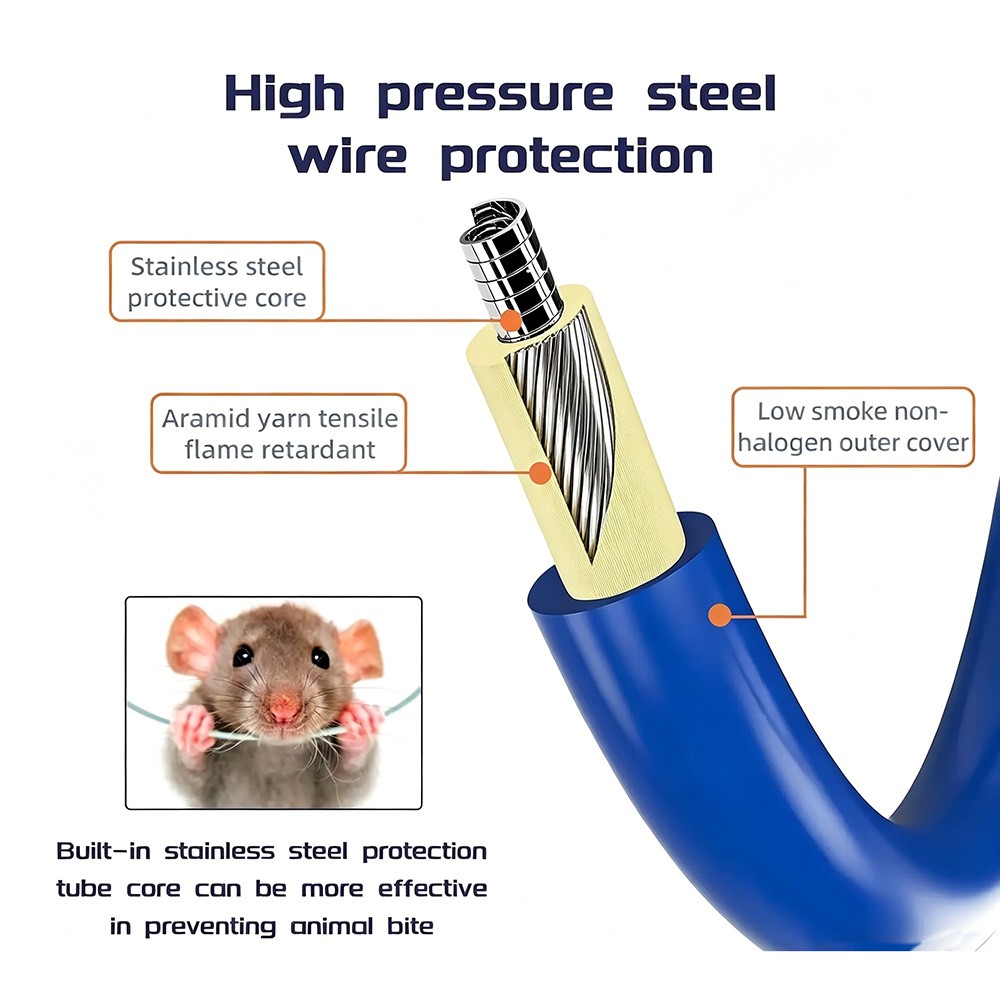

Stainless steel armor provides good protection against physical damage

Low insertion loss and high back reflection loss

Good exchangeability

Good Durability

High temperature stability

Standard: IEC Grade B

Specifications

Polishing: UPC

Testing Wavelength:1310nm & 1550nm

Insertion Loss:≤0.25dB

Return Loss: ≥50dB

Applications:

Gigabit Ethernet; Active device termination

Telecommunication networks; Video

Multimedia; Premise installations

Local area networks

FTTH FTTX applications; CATV

Optional Models:
