▪ Single-mode Single-core Optical Fiber Patch Cord;

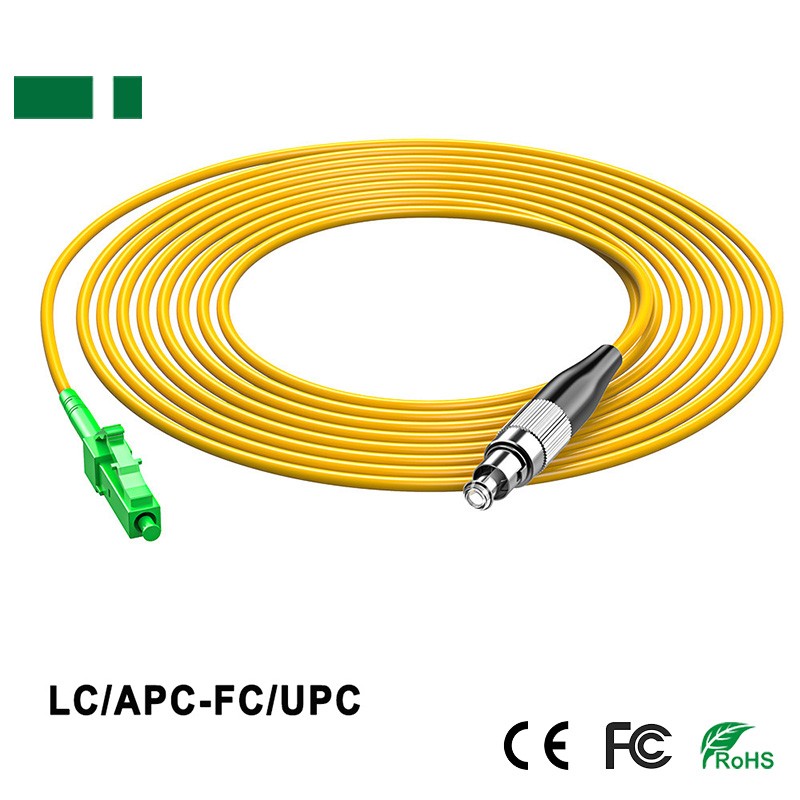

▪ Connector Type: LC/APC-FC/UPC
▪ Length: 1M/ 2M/ 3M/ 5M/ 10M/ 15M/ 20M/ 25M/ 30M Optional
▪ Fiber Optic Patch cords are made from fiber optic cables with connectors at both ends, allowing for the transmission of data over long distances. These cables are commonly used in networking, telecommunications, and audio/video applications.
Description:
Fiber Optic Patch cords are made from fiber optic cables with connectors at both ends, allowing for the transmission of data over long distances. These cables are commonly used in networking, telecommunications, and audio/video applications.

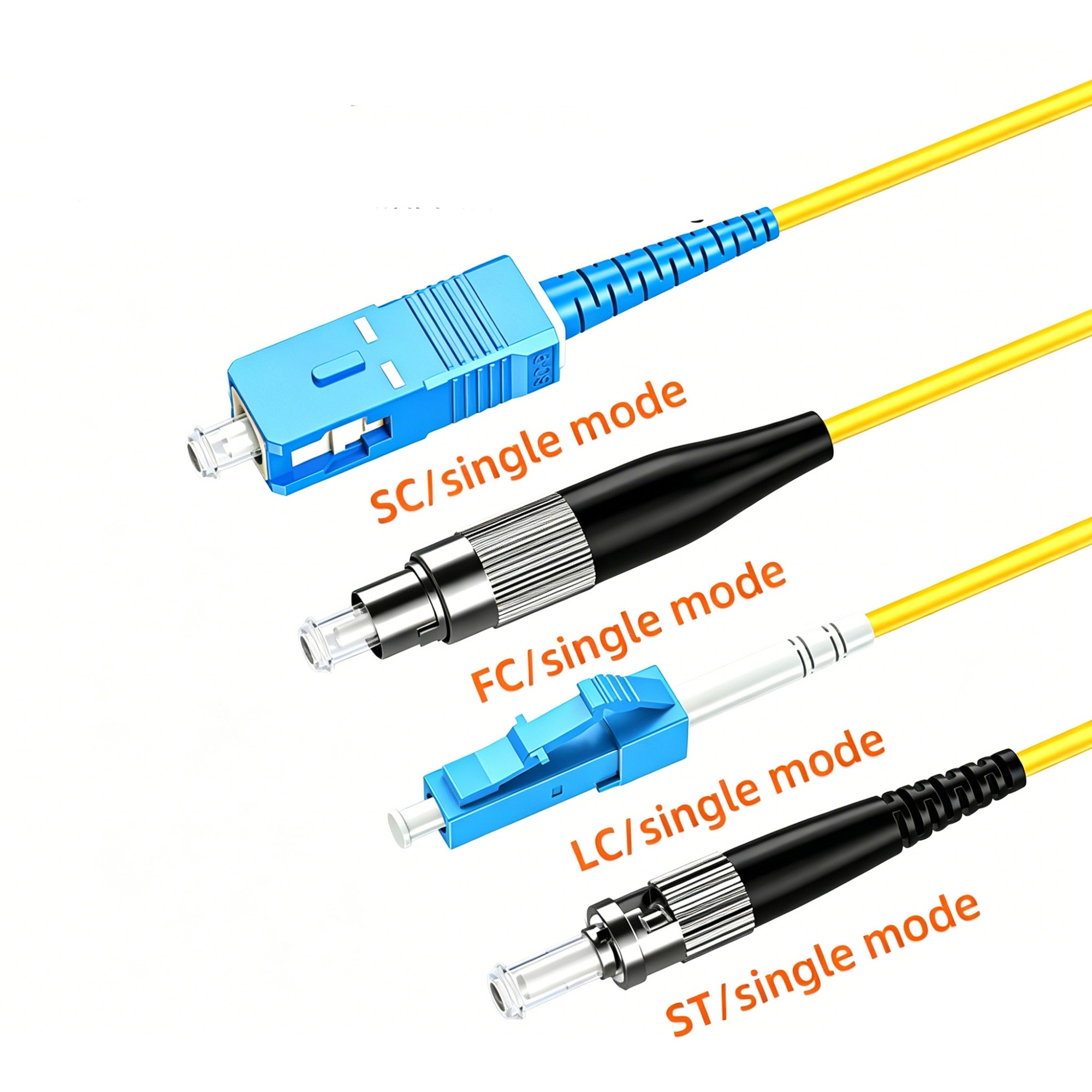

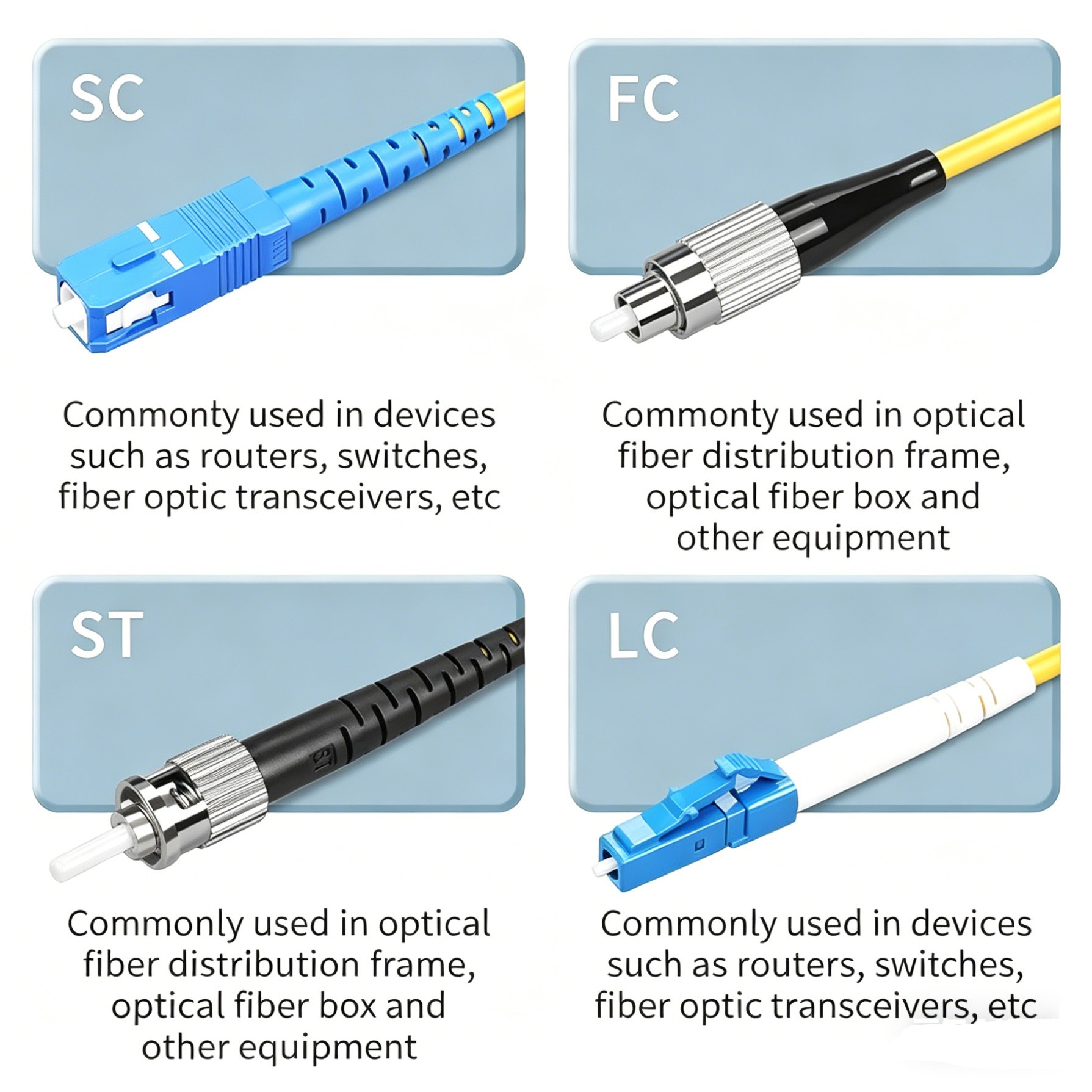

Fiber Optic Patch cords are classified by connectors at both ends,there are SC, FC, LC, ST, MU, DIN, D4, E2000, LX.5, MTRJ, VF-45 and SC-FC etc. hybrid patch cords.
Features:
▪ Single-mode Single-core Optical Fiber Patch Cord;
▪ Connector Type: LC/APC-FC/UPC
▪ Length: 1M/ 2M/ 3M/ 5M/ 10M/ 15M/ 20M/ 25M/ 30M;
Insertion loss: ≤0.2dB
Return loss: ≈50dB
Exterior Material: Polyethylene PVC

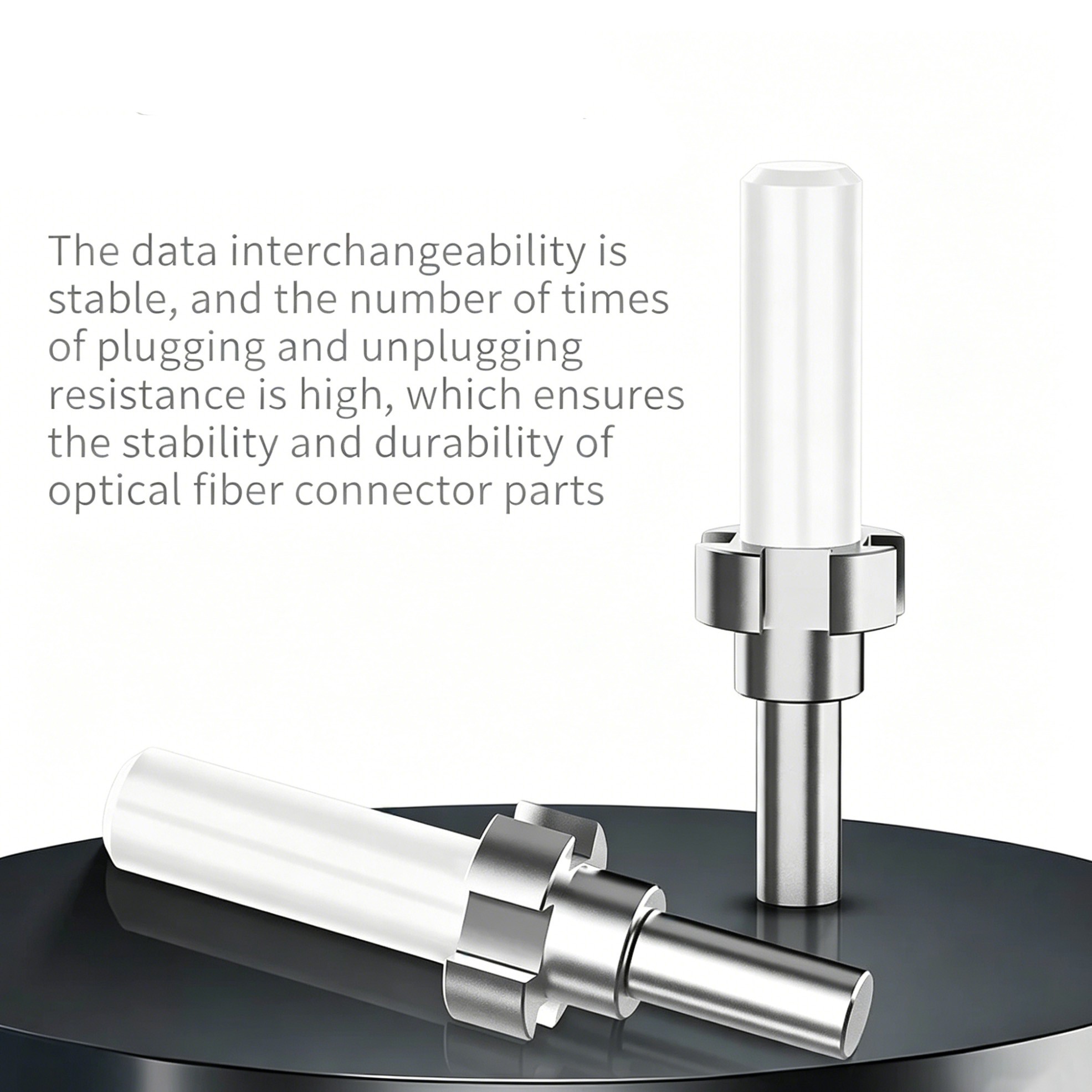

Plug in specifications: Three ring A-classceramic plug core
Plug and unplug times: >1000 times
Operating Temperature: -40°C~85°C
FTTH Compatible: Perfect for fiber-to-the-home installations, telecom networks, and CATV systems
Optional Models:
| LC/APC-FC/UPC-1M | 1M Length |
| LC/APC-FC/UPC-2M | 2M Length |
| LC/APC-FC/UPC-3M | 3M Length |
| LC/APC-FC/UPC-5M | 5M Length |
| LC/APC-FC/UPC-10M | 10M Length |
| LC/APC-FC/UPC-15M | 15M Length |
| LC/APC-FC/UPC-20M | 20M Length |
| LC/APC-FC/UPC-25M | 25M Length |
| LC/APC-FC/UPC-30M | 30M Length |
