Anti-interference Device
CVE-H006 Power Type Anti-Interference Device
- Power Type Anti-Interference Device
- Aluminum Alloy Shell
- High level of integration
- Real-time transmission over UTP Cat5e/6
- Product description: This kind of product applies to elevators, hospitals, an intersection, factories etc. avoiding any interference to the process of monitoring the image from any kind of furious electromagnetic signal a
Description:
This kind of product applies to elevators, hospitals, an intersection, factories etc. avoiding any interference to the process of monitoring the image from any kind of furious electromagnetic signal and electric waves signal.
When you using this kind of product, you can restrain the interference effectively and you can solve the problems about the jiggle, the swirl, the ripple with the images. To ensure the stability of the signals 'transmitting quality in the bad environment, and increasing the distance of the images transmitting.
Features:
1. Unique and quality AHD/ CVI/analog video anti jamming device;
2. Keep video signals from external electromagnetic interference by adjusting signal frequencies;
3. High level of integration, small in size;
4. SMT Integrated Circuit, low power consumption, uses 12V power supply as cameras do;
5. Aluminum Alloy Shell, durable and good at heat dissipation;
6. Lengthen the transmission distance up to 800m.
Specifications:
This kind of product applies to elevators, hospitals, an intersection, factories etc. avoiding any interference to the process of monitoring the image from any kind of furious electromagnetic signal and electric waves signal.
When you using this kind of product, you can restrain the interference effectively and you can solve the problems about the jiggle, the swirl, the ripple with the images. To ensure the stability of the signals 'transmitting quality in the bad environment, and increasing the distance of the images transmitting.
Features:
1. Unique and quality AHD/ CVI/analog video anti jamming device;
2. Keep video signals from external electromagnetic interference by adjusting signal frequencies;
3. High level of integration, small in size;
4. SMT Integrated Circuit, low power consumption, uses 12V power supply as cameras do;
5. Aluminum Alloy Shell, durable and good at heat dissipation;
6. Lengthen the transmission distance up to 800m.
Specifications:
| Power Type Anti-Interference Device for HD-AHD/CVI/TVI Video System | |
| Model | CVE-H006 |
| Signal Standards | HD-AHD/ CVI/ TVI/ CVBS |
| Transmitter Power in | DC12V±10% |
| Transmitter Power out | DC12V±10% 0.5A |
| Signal standards | NTSC/ PAL/VCCIR |
| Images in | BNC input 75Ω 1.0Vp-p |
| Images out | BNC output 75Ω 1.0Vp-p |
| Images bandwidth | 10MHz |
| Interface | BNC Female |
| Working environment | —40℃~85℃ |
| Consuming power | <10W |
| Shell material | High quality aluminum alloy |
| Color | Silver |

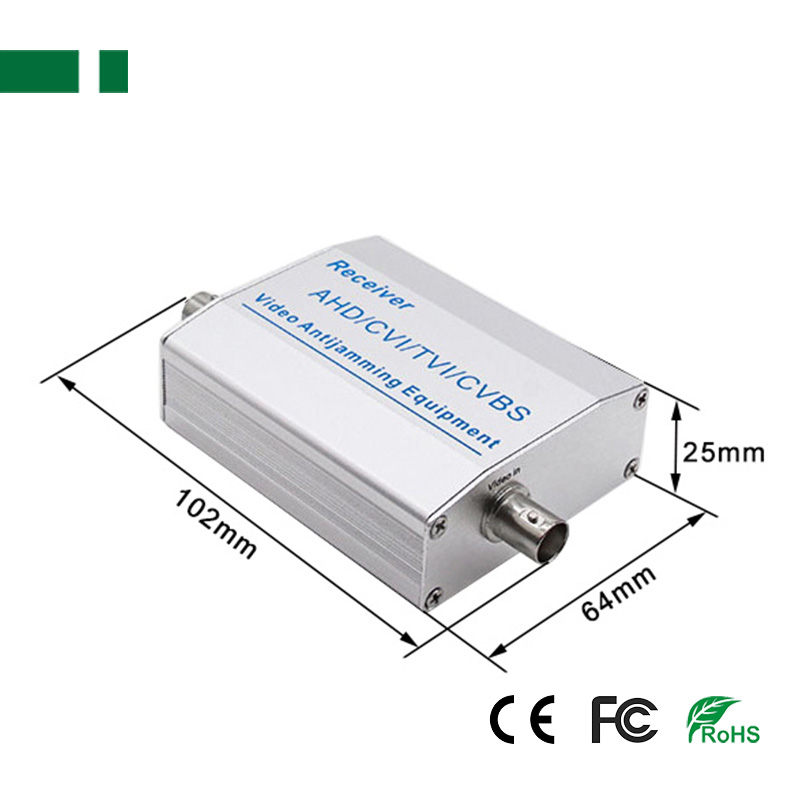

| External dimension | 102(L)*64(W)*25(H)mm |
| Net weight | 92g/pc |
Transmission Distance:
| Distance for SYV | Distance for SYWV | ||
| SYV75-3 | ≤450M | SYWV75-5 | ≤910M |
| SYV75-5 | ≤630M | SYWV75-7 | ≤1300M |
| SYV75-7 | ≤790M | SYWV75-9 | ≤1580M |
| SYV75-9 | ≤1150M | SYWV75-12 | ≤2275M |
