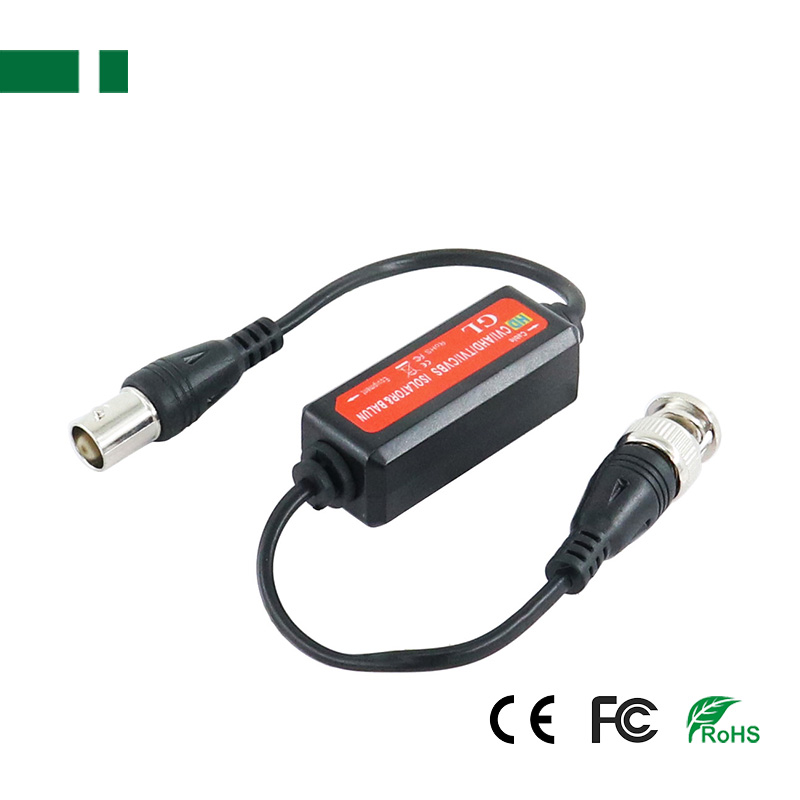

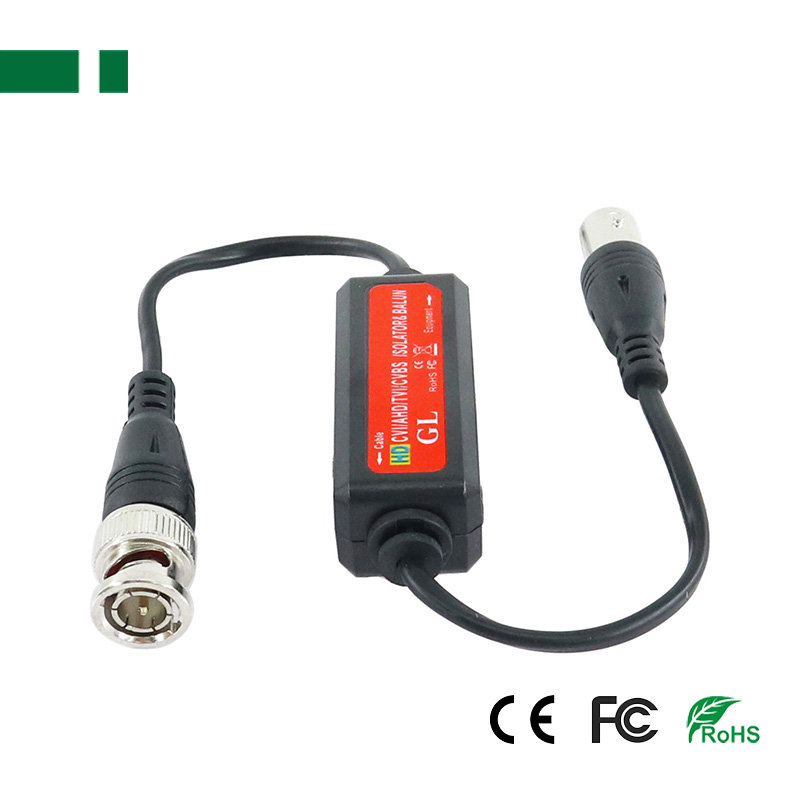

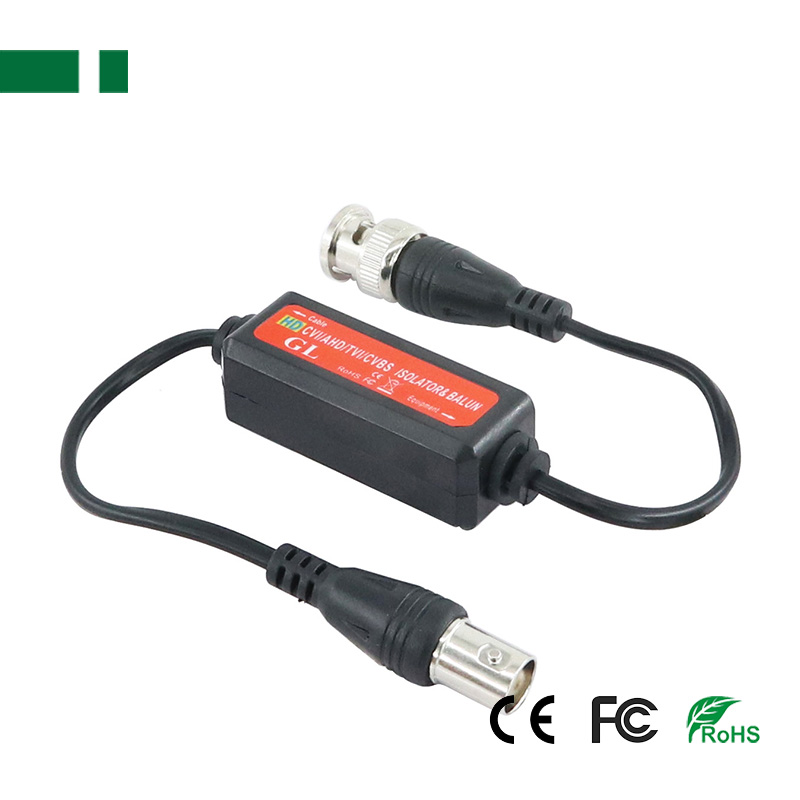

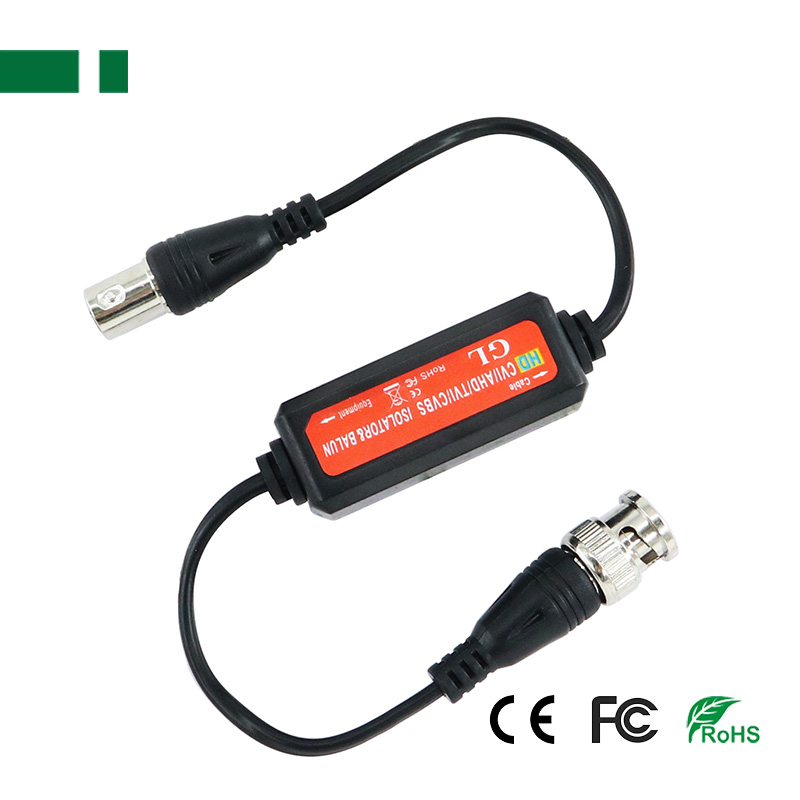

C-GL106A 2 Level Filter type HD Ground Loop Isolator

The product is a ground loop isolator for HD video. It can effectively eliminate interference like distortion, tearing, cross striation, reticulate pattern and snowflake caused by earth potential difference. The isolation voltage reaches 800V. It features super surge protection and can be widely used in HD video transmission.

Features:
Second-level Filter Type, better quality.
Compact size and easy installation.
BNC male to BNC female with mini cable on both sides.
Passive, no power required.
Prevents video-signal distortion caused by video ground loops.
Eliminates picture tearing , cross talk and rolling
Built in Video Balun, perfect to work with DVR to immunity DVR interference , for extra interference rejection
Built in TVS for surge protection.
No filter ground isolator, suitable for coaxial grounding isolation.
HD-TVI/CVI/AHD/CVBS 4 in 1 ground loop lsolated videa balun.
Up to 230m(754ft)for HD-TVI Hikvision 720p camera
Up to 250m(820ft)for HD-TVI Hikvision 1080p camera
Up to 440m( 1443f) for HD-CVI Dahua 720p camera.
Up to 240m(787f) for HD-CVI Dahua 1080p camera.
Up to 320m( 1053t)for AHD 1080p camera.
Up to 330m(1082ft) for AHD 1080p camera.
Wave Filter Design, Anti- Static Design
Lightning protection design Grade: III
60 dB crosstalk and noise immunity
Exceptional interference rejection.
Video signal strength is stronger than filtered.

Specification:
Item Type: Ground Loop Isolator
Shell Material: Plastic
Color: Black
Package Weight: 38g/1.34oz
Item Size: 50 * 20 * 20mm/1.96 * 0.78 * 0.78inch(Approx.)
Insertion loss 0.5db
Frequency response 0-3db at 10 MHZ
Input Resistance 75ohm
Output Resistance 75ohm
Isolation Voltage 600VDC(Min)
Insulation resistance 100m Ohm
Transient Voltage suppressors 12 Vrms
Cable length: 30cm( approx)
Design: ABS plastic injection-wide, waterproof, compact.
