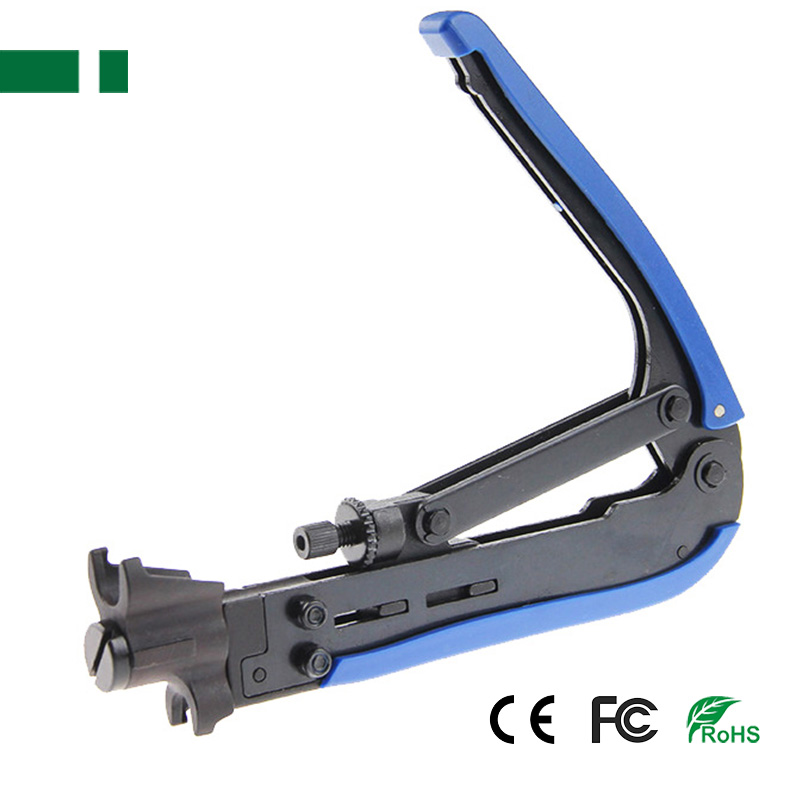

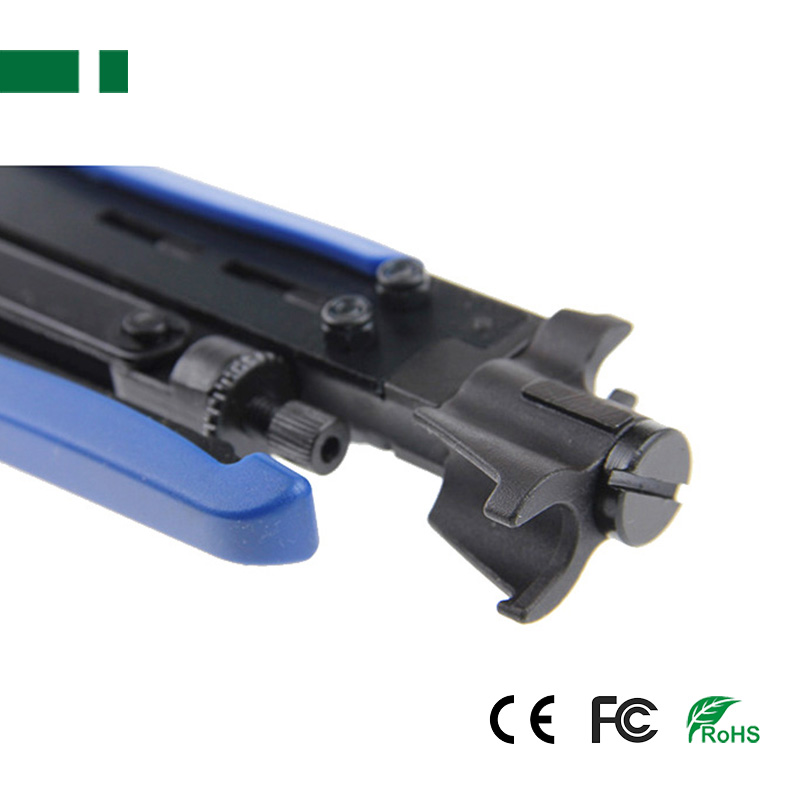

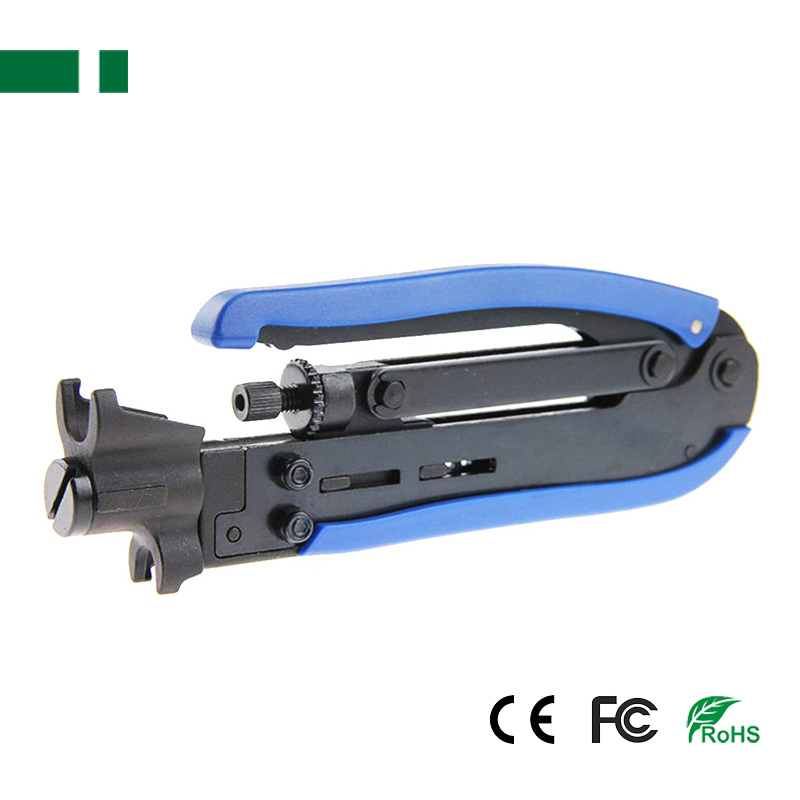

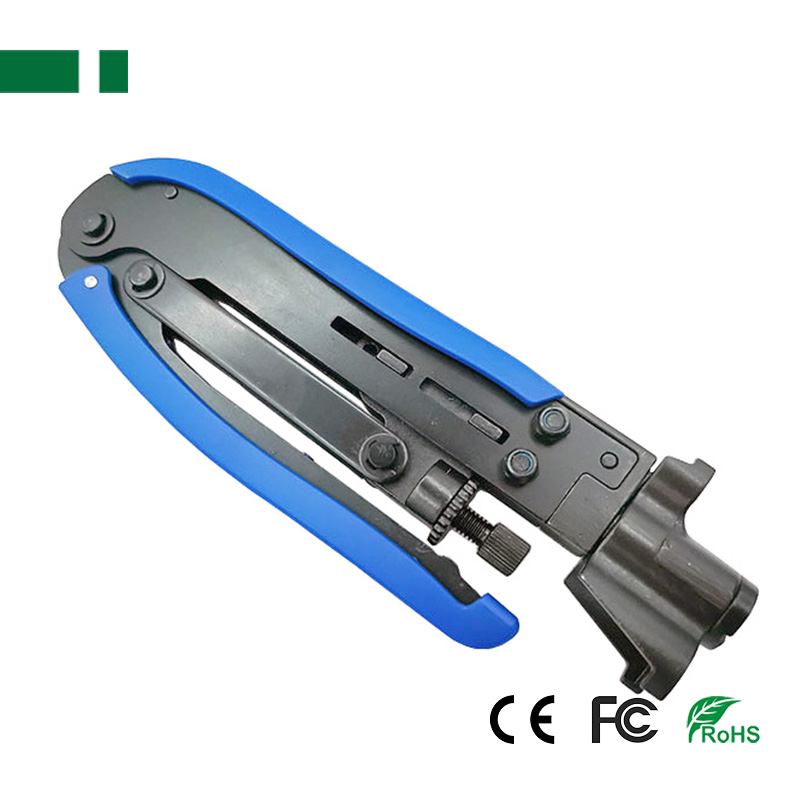

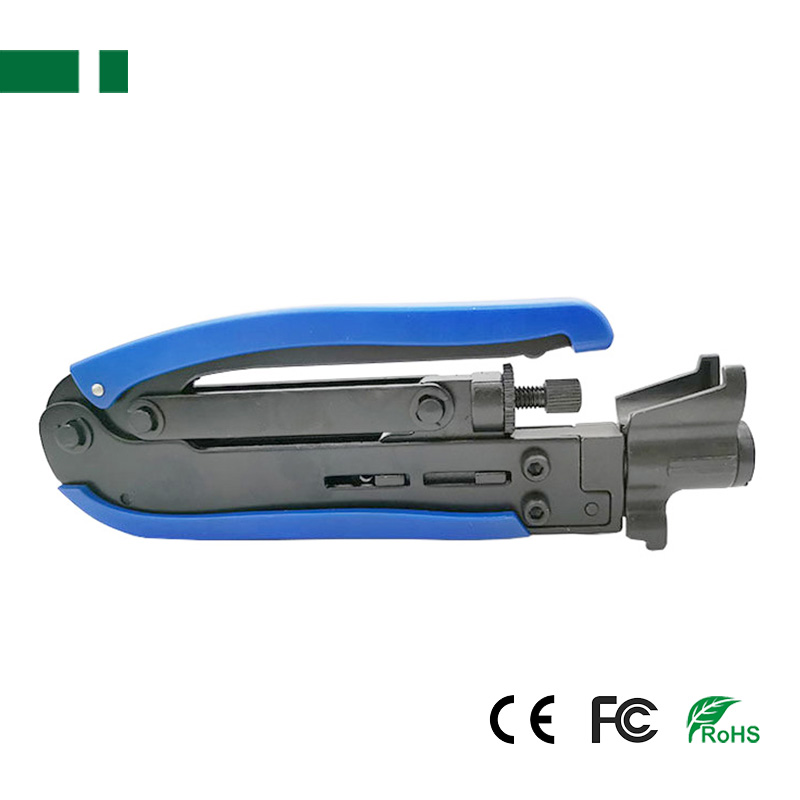

Connectors Crimping Tool for Coaxial cable RG59/ RG6/ RJ11
Application: RG59, RG6, RG11 extrusion F-heads
Crimping capacity: 20.3±0.15 (mm²)
CASVIEW technology concentrating on CCTV power supply, video balun, CCTV Cable BNC Connectors and other cctv accessories etc. email: info@casview.com
Connectors Crimping Tool for Coaxial Cable RG59/ RG6/ RJ11
Material: ABS+ Tool Steel .
Crimping capacity: 20.3±0.15 (mm²)
Application: RG59, RG6, RG11 extrusion F-heads.

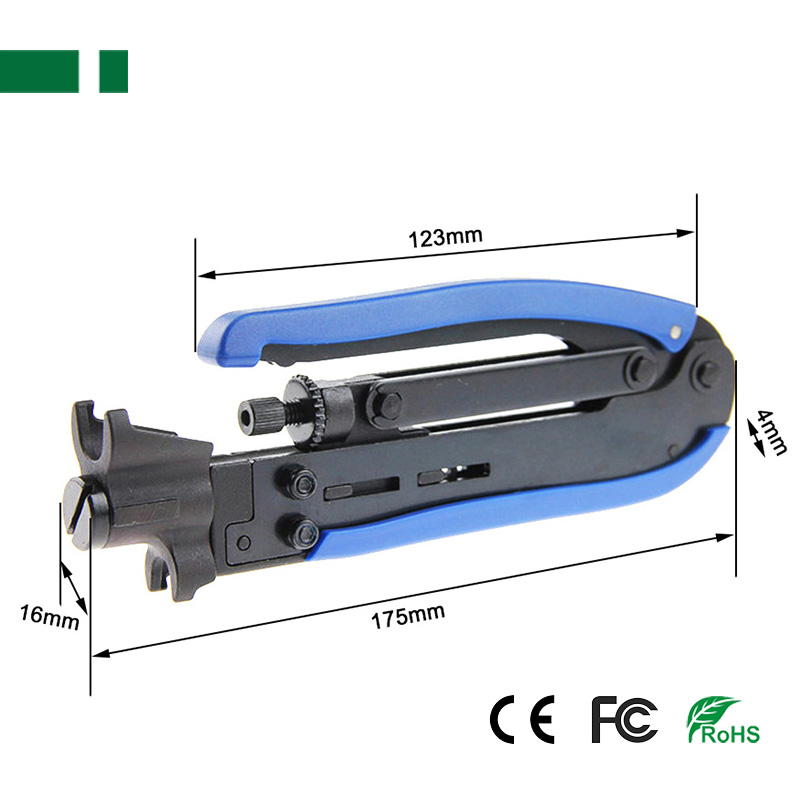

Size: 175*123*16MM, Weight: 410G
| Crimping Tools For F type RG-59(4C) & rg-6(5C) Compression Connector | |||||
| Picture |  |  |  |  |  |
| Model | CT-16 | CT-20 | CT-24 | CT-37 | CT-40 |
| Crimp Connector | F Crimp Connector | F Crimp Connector | F Crimp Connector | F Crimp Connector, BNC Pressure Connector, RCA Crimp Connector | |
| Capacity | RG58, RG59, RG6 | RG59, RG6, RG11 | RG58, RG59, RG6 | RG58, RG59, RG6 | RG58, RG59, RG6 |
| Extrusion Range | 19.5-46.8mm | RG59/ RG6: 15.5-21.3mm, RG11: 30.5-36mm | 20.3mm | Adjustable Max.10mm | Adjustable Max.10mm |
| Material | Tool Steel+ PP | ||||
| Total Length | 180mm | 175mm | 145mm | 195mm | 225mm |
| Weight | 310 | 376g | 270g | 400g | 474g |
