Surge Protector

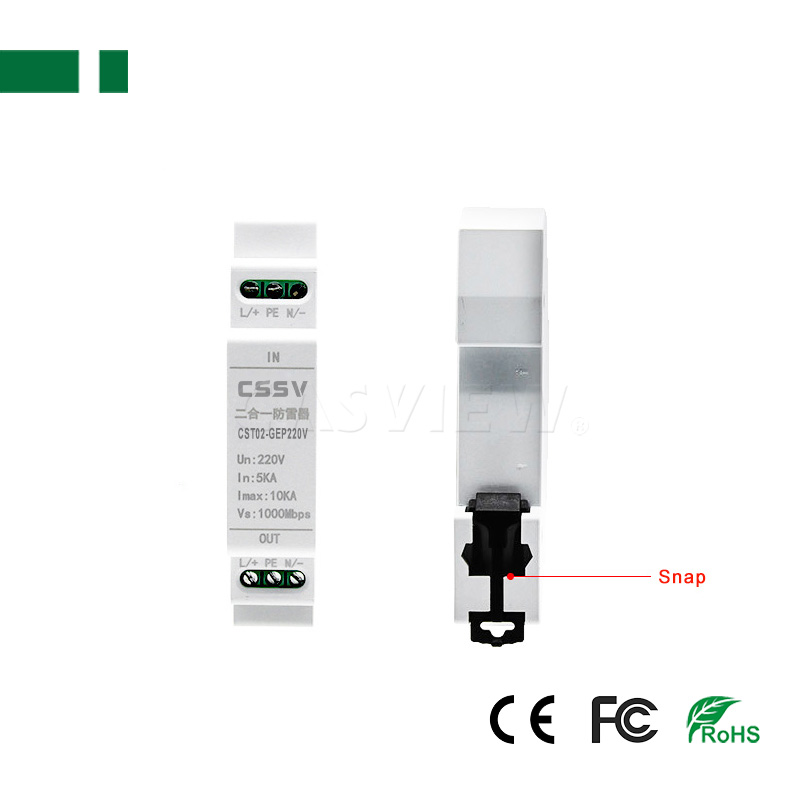

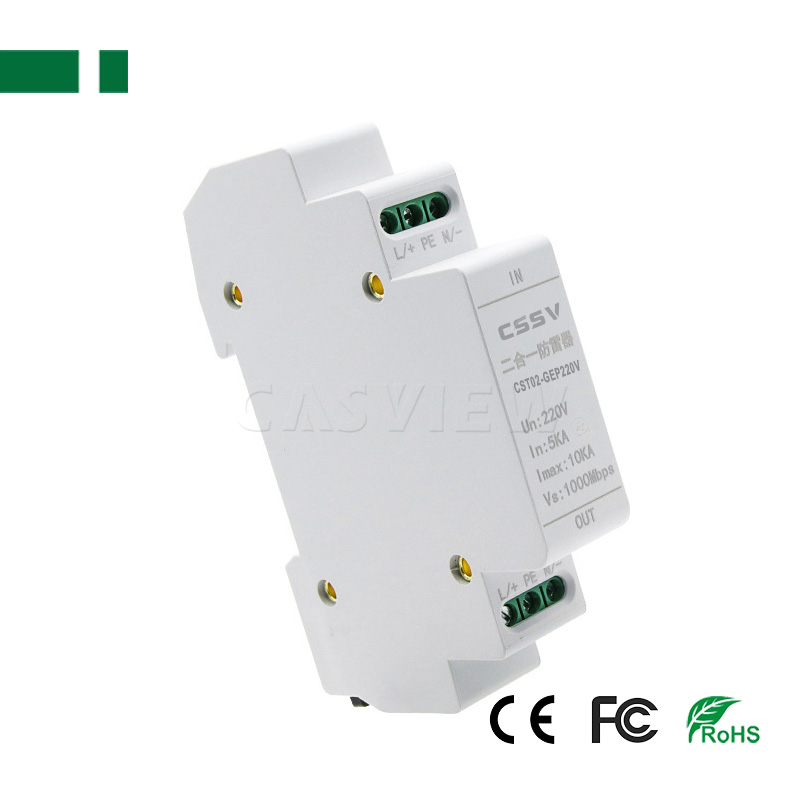

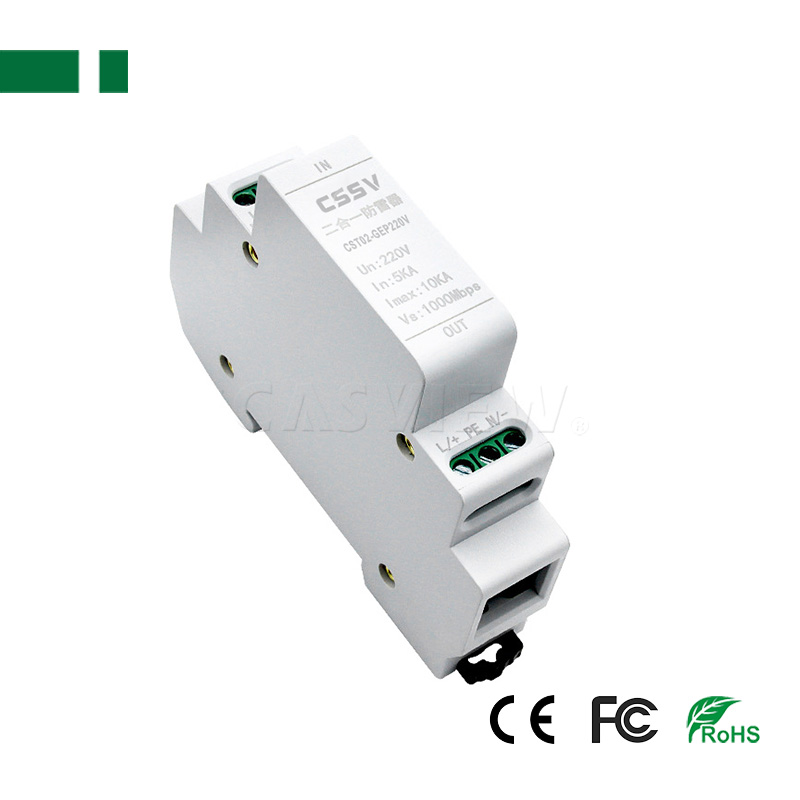

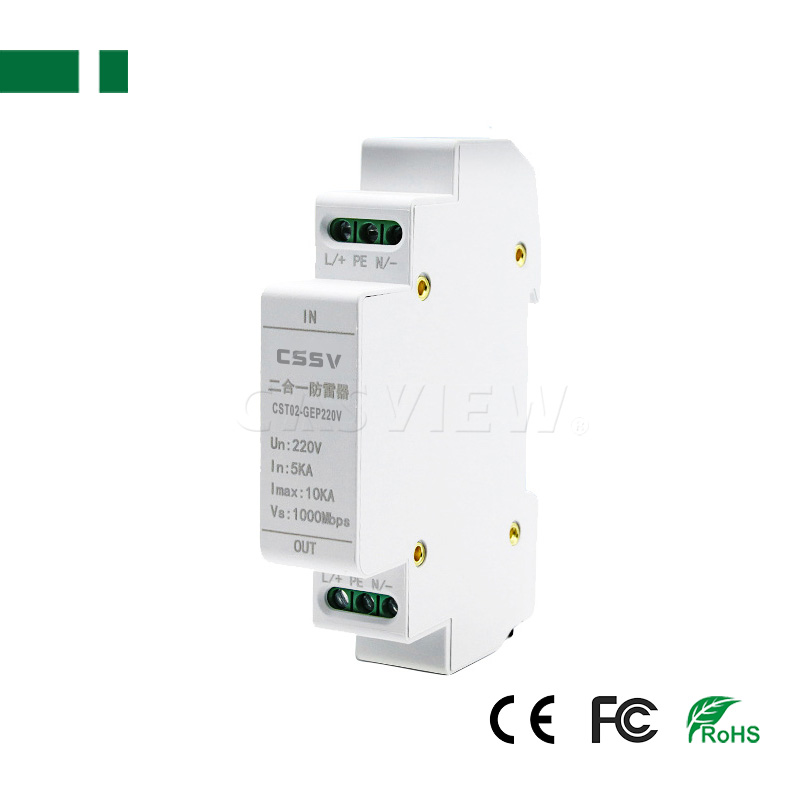

CST02-GEP220V 10/100/1000Mbps Ethernet & Power Surge Protective Protector
- 10/100/1000Mbps Ethernet & Power Surge Protective Protector
- Power operating Voltage: AC220V-385V
- Network operating Voltage: DC5V-6V
- Size: 36*66*96mm, 275g;
- Product description: 10/100/1000Mbps Ethernet & Power Surge Protective Protector, Application: Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage.
Description:
Network signal arrester is used to protect sensitive high-speed communication network lines from damage caused by lightning induced voltage,power supply interference and electrostatic discharge.The signal lightning protection device adopts multistage protection Circuit,the world famous components,using advanced production technology manufacturing with flow capacity,low residual pressure ,sensitive ,stable performance,reliable work and other characteristics.
1. Sulti-stage protection,large circulation capacity;
2. Core components are strictly screened,and international famous products are selected,with superior performance;
3. Built-in fast semiconductor protection device,quick response;
4. Low capacitance design ,superior transmission performance;
5. Low insertion loss and longer distance;
6. Extremely low on-line resistance reduces unnecessary attenuation of signal strength,maximizes the distance the singnal travels;
7. The limiting voltage is extremely low;
8. Advanced production technology,beautiful appearance;
9. Easy installation.
Features:
10/100/1000Mbps Ethernet & Power Surge Protective Protector;
1. Power operating Voltage: AC220V-385V
2. Power max. Discharge Current(8/20μs)(Imax): up to 10kA (8/20μs);
3. Network operating Voltage: DC5V-6V
4. Network max. Discharge Current(8/20μs)(Imax): up to 3kA (8/20μs);
5. Standard: IEC/EN 61643-1;
6. Size: 19*65*91mm, 120g;
Network signal arrester is used to protect sensitive high-speed communication network lines from damage caused by lightning induced voltage,power supply interference and electrostatic discharge.The signal lightning protection device adopts multistage protection Circuit,the world famous components,using advanced production technology manufacturing with flow capacity,low residual pressure ,sensitive ,stable performance,reliable work and other characteristics.
1. Sulti-stage protection,large circulation capacity;
2. Core components are strictly screened,and international famous products are selected,with superior performance;
3. Built-in fast semiconductor protection device,quick response;
4. Low capacitance design ,superior transmission performance;
5. Low insertion loss and longer distance;
6. Extremely low on-line resistance reduces unnecessary attenuation of signal strength,maximizes the distance the singnal travels;
7. The limiting voltage is extremely low;
8. Advanced production technology,beautiful appearance;
9. Easy installation.
Features:
10/100/1000Mbps Ethernet & Power Surge Protective Protector;
1. Power operating Voltage: AC220V-385V
2. Power max. Discharge Current(8/20μs)(Imax): up to 10kA (8/20μs);
3. Network operating Voltage: DC5V-6V
4. Network max. Discharge Current(8/20μs)(Imax): up to 3kA (8/20μs);
5. Standard: IEC/EN 61643-1;
6. Size: 19*65*91mm, 120g;
7. Application: Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage.
Specification:
| Model | CST02-EP220V | CST02-GEP220V | CST02-GE/POE | |
| Power | Rated operation voltage(Un) | AC220V | N/A | |
| Max. Continuous Operating Voltage(Uc) | AC385V | N/A | ||
| Nominal Discharge Current(8/20μs)(In) | 5KA | 5KA | N/A | |
| Max. Discharge Current(8/20μs)(Imax) | 10KA | 10KA | N/A | |
| Voltage Protection Level(Up) | ≤1.2KV | ≤1.2KV | N/A | |
| Network | Rated operation voltage(Un) | DC5V | DC48V | |
| Max. Continuous Operating Voltage(Uc) | DC6V | DC60V | ||
| Nominal Discharge Current(8/20μs)(In) | 2.5KA | 3KA | ||
| Max. Discharge Current(8/20μs)(Imax) | 3KA | 5KA | ||
| Voltage Protection Level(Up) | ≤6.8V | ≤60V | ||
| Insulation Resistance (MΩ) | ≥0.4MΩ | |||
| Insertion loss(dB) | ≤0.1dB | |||
| Near end crosstalk(dB) | ≥60(pass) | |||
| Bandwidth (FG) | 10/100M | 10/100/1000M | 10/100/1000M | |
| Transmission Speed (Vs) | 100Mbps | 1000Mbps | 1000Mbps | |
| Others | Response Time | ≤1ns | ||
| Interface | RJ45 & Terminal | RJ45 | ||
| Installation | Standard rail 35mm | |||
| Storage Environment | -40℃~90℃ | |||
| Working Environment | -35℃~90℃ | -35℃~75℃ | ||
| Material of Outer Shell | Flame retardant materials | |||
| Net Weight | 120g | |||

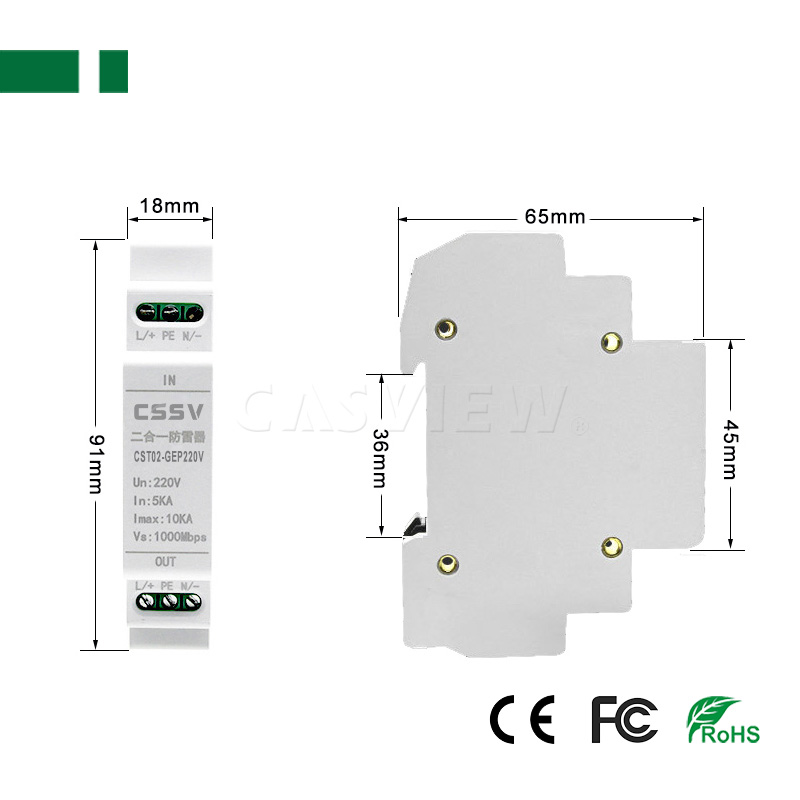

| Size | 19*65*91mm | |||
