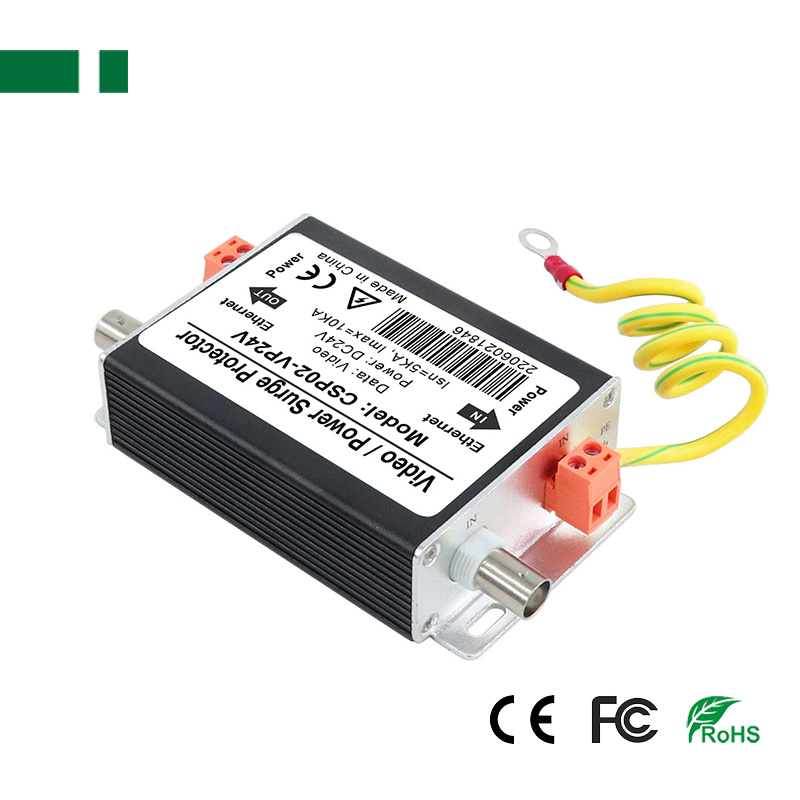

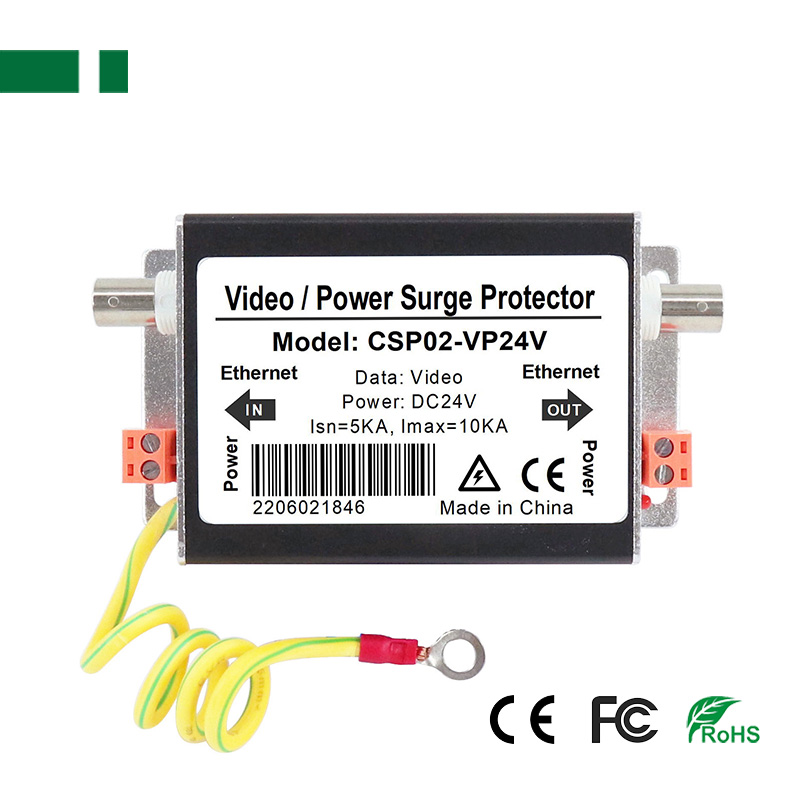

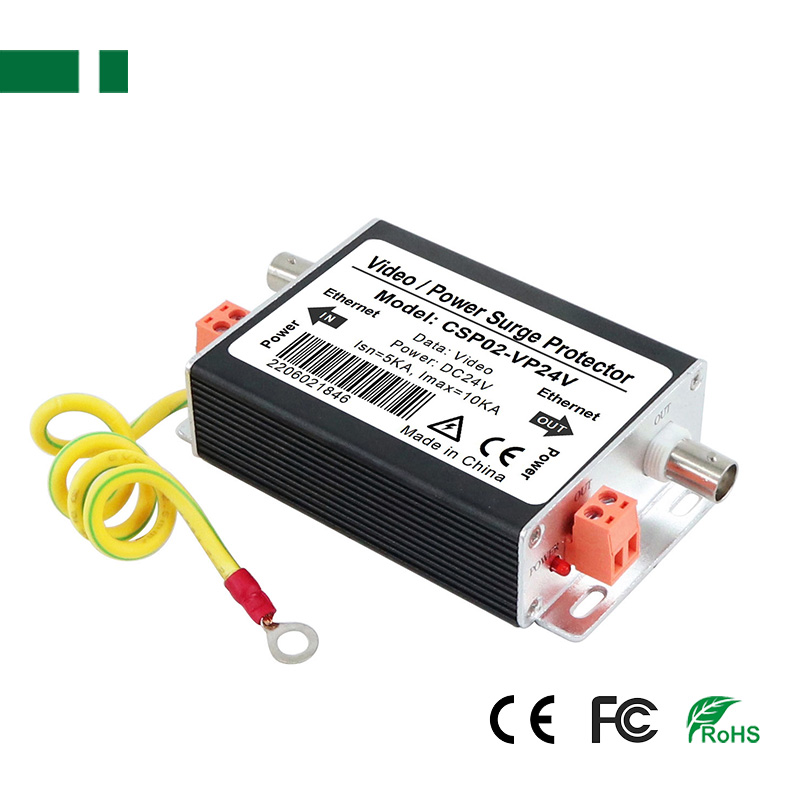

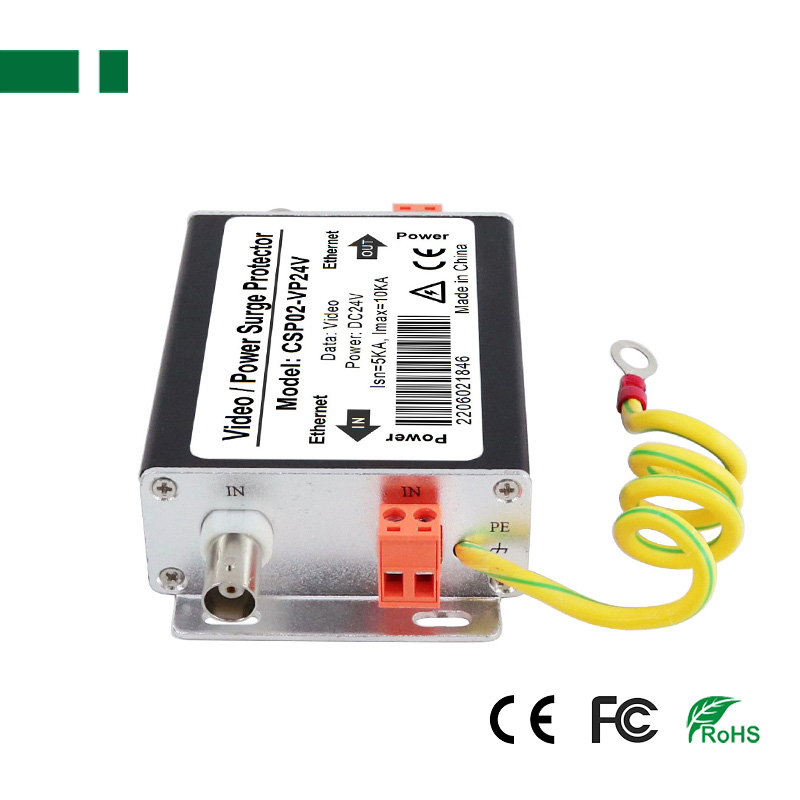

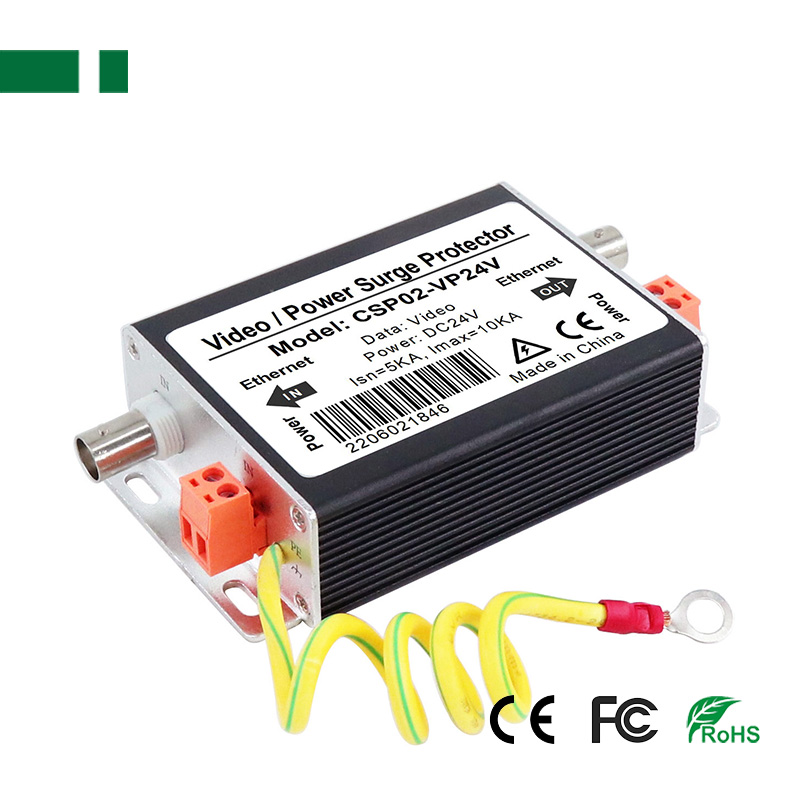

CSP02-VP24V Video and DC24V Power Supply Surge Protector

  • Video and DC24V Power Supply Surge Protector
  • High transmission rate
  • Multi-level protection
  • Larger flow capacity
  • Product description: A surge protector is a special component that curbs these sudden, high voltages. As the power starts to spike, the protector kicks in, and any excessive charge is routed through the ground connection
  • INQUIRY   EMAIL


A surge protector is a special component that curbs these sudden, high voltages. As the power starts to spike, the protector kicks in, and any excessive charge is routed through the ground connection so it never has chance to cause damage. Each surge protector has a pre-set level that is deemed to be the maximum voltage allowed.


Feature:
● Protection video signal and DC12V/ DC(AC)24V/ AC220V power supply,
● Function Multi-level over voltage protection, large  capacity discharge current, low limiting voltage, quick reacting time, low inserting loss,
● Grounding Mode Extending Line to ground,
● Outlook design Clear mark, easily recognized,  aluminum shell, delicate size, simple installation;


Specification:

Model CSP02-VP12V CSP02-VP24V CSP02-VP220V
Video
parameters
Rated operation voltage DC5V
Max continuous operating voltage DC6V
Nominal discharge current in(8/20μs) 5KA
Max discharge current(8/20μs) 10KA
Voltage protection level(10/700μs) <20V
Reacting time ≤0.5ns
Inserting loss ≤0.2dB
Inserting resistance ≤1Ω
Signal Bandwidth 10MHz
Power
parameters
Nominal working voltage DC12V DC/ AC 24V AC220V
Max continuous operating voltage DC18V DC/ AC47V DC470V
Nominal discharge current(8/20μs) 2.5KA
Max discharge current (8/20μs) 5KA
RLA ≤3A
Leakage Current ≤5μA
Reacting Time ≤25ns
Connector type BNC & Grip
Environment
parameters
Working temperature -20°C to +50°C
Storage Temperature -40°C to +70°C
Humidity 0 to 95%
MTBF >30000hrs
Other
parameters

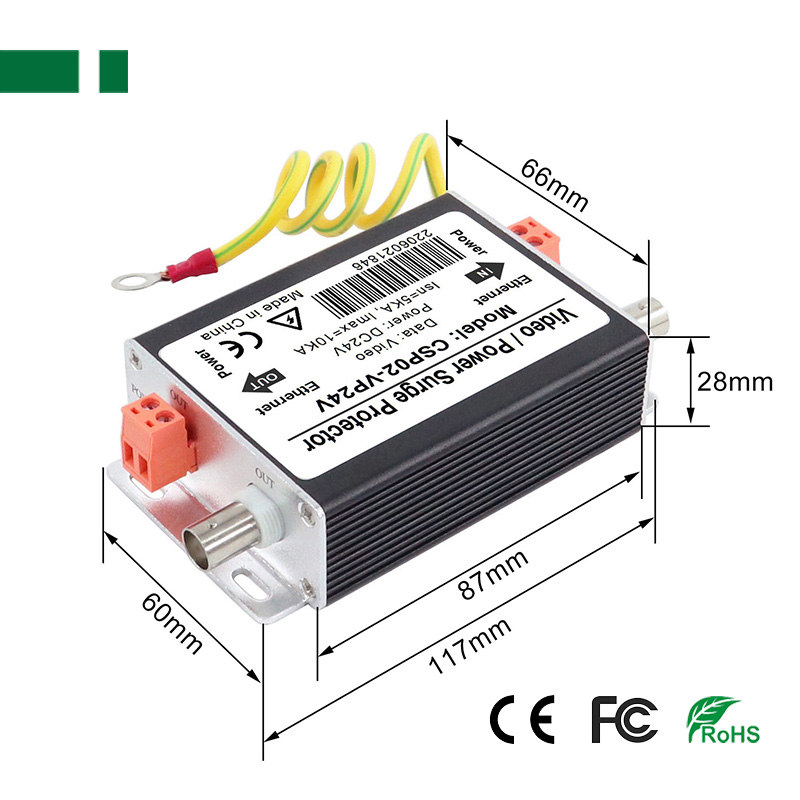

Dimension 120*65*28mm, 140g
Test standard IEC61643-21 : 2000
